Sea Mite
A 10-ft. sailer, outboarder and shoal-draft utility boat
- Category
- Sail Boats
- Published
- Boat Builder, p. 14
- Craft Print
- 324

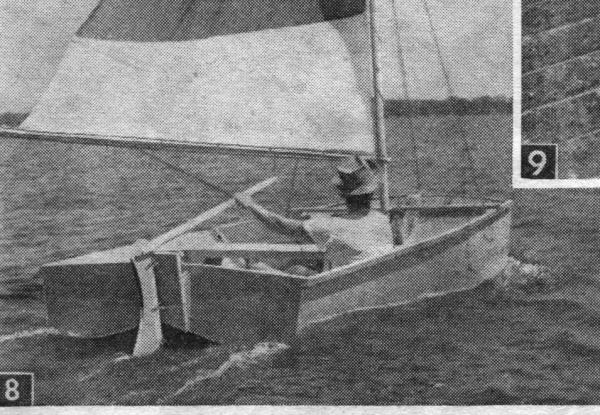

A shoal-draft utility boat for protected-water fishing, hunting and Sunday sailing: it sails or takes a small outboard. The inverted-V bottom forms two slim hulls that move in the lightest breeze and remove the need for a centerboard, making it an excellent sailing trainer. Materials ran $75–85.
Specifications
- Length
- 10 ft
- Beam
- 65 in
- Draft
- 3 in
- Construction
- Plywood-covered hull with inverted-V bottom (no centerboard needed); fiberglass-taped edges
- Power
- Gaff sail rig or small outboard
Downloads

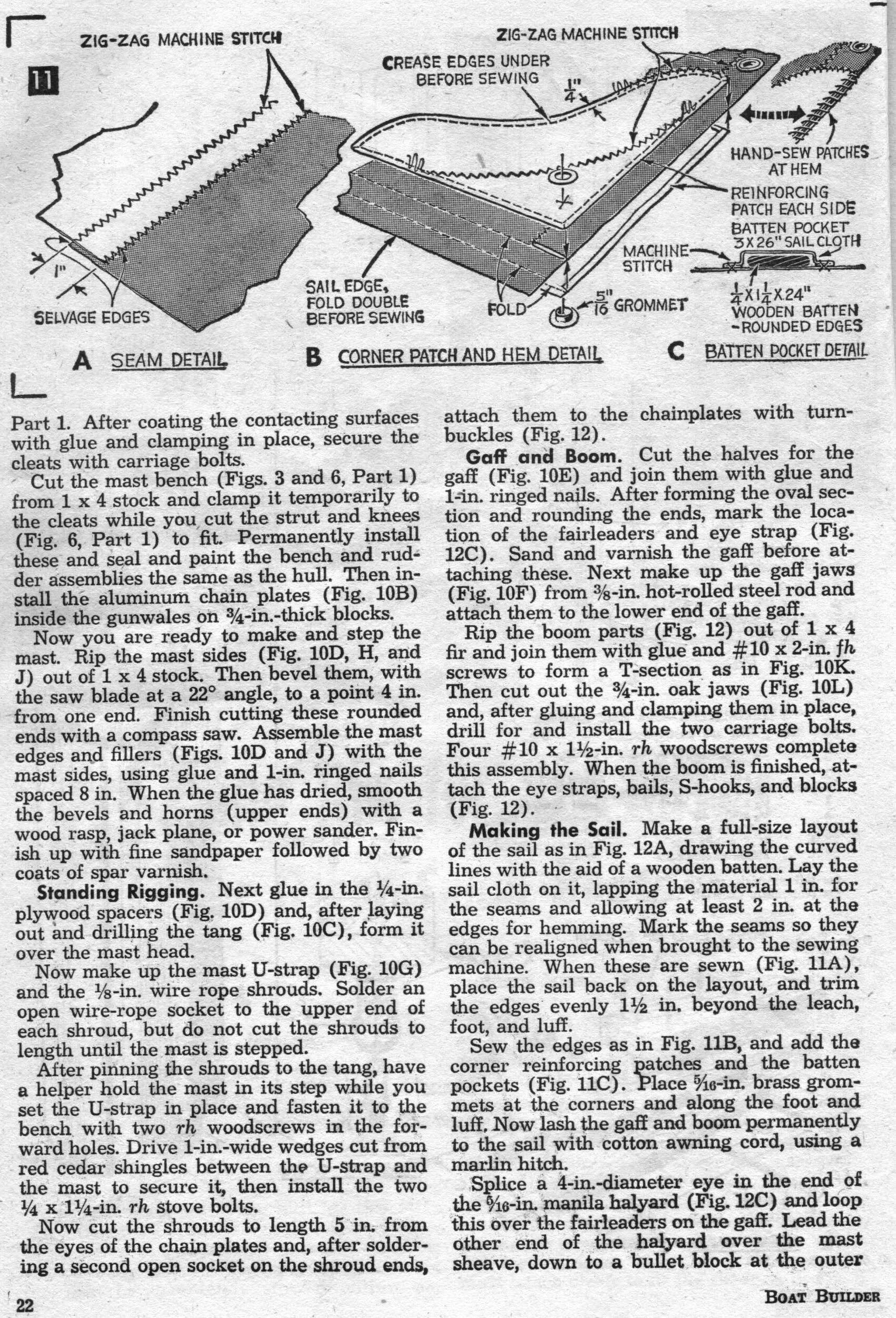

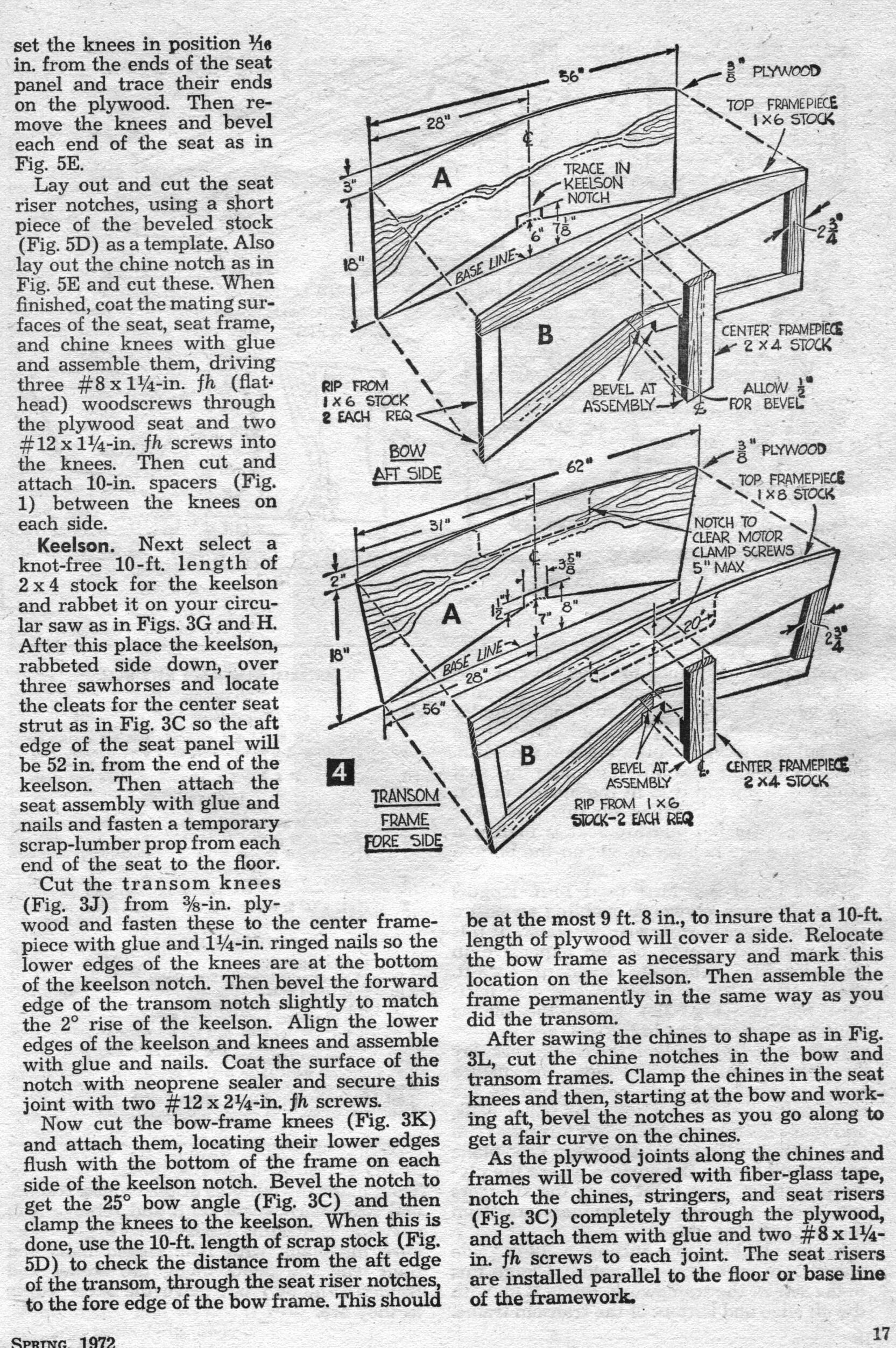

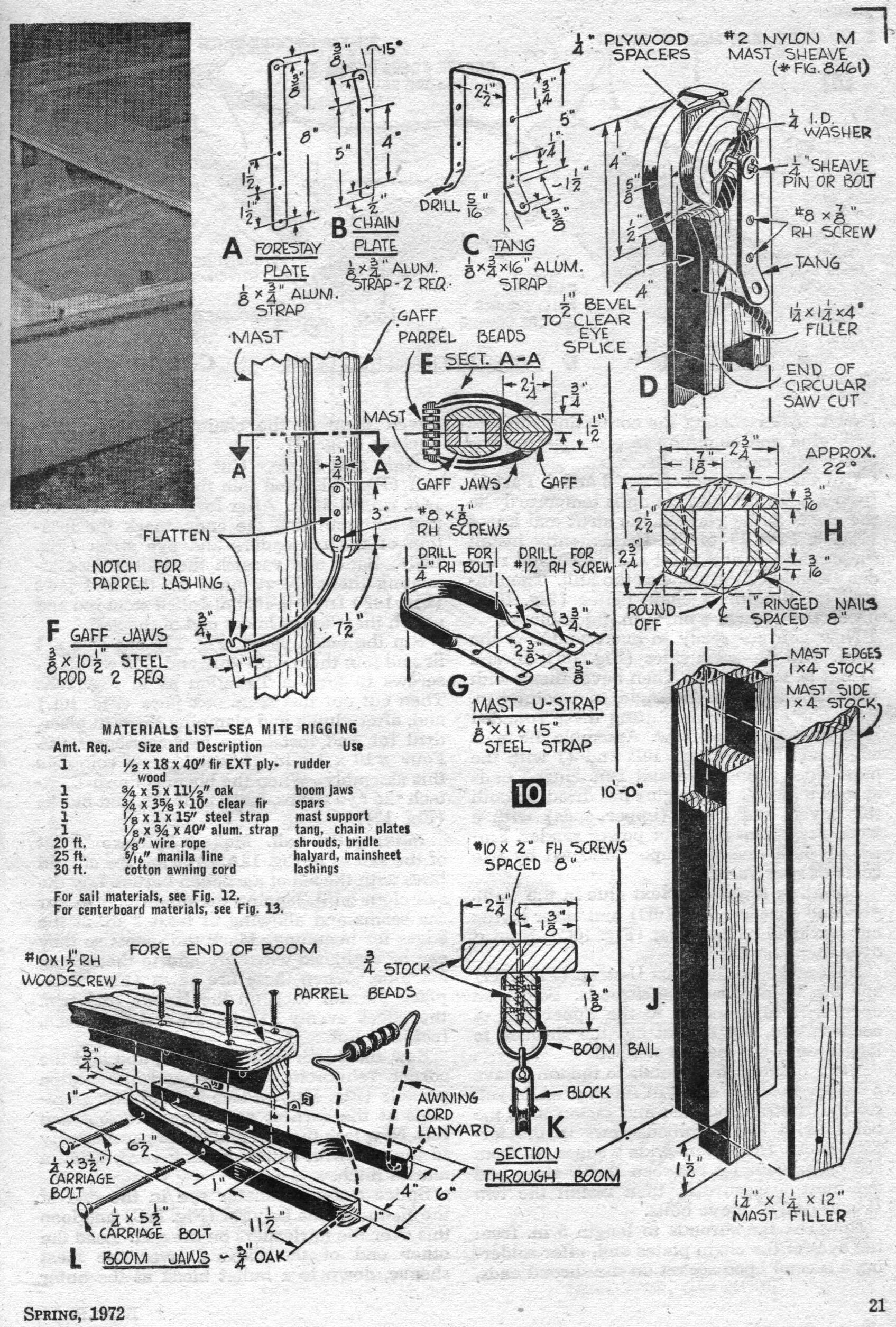

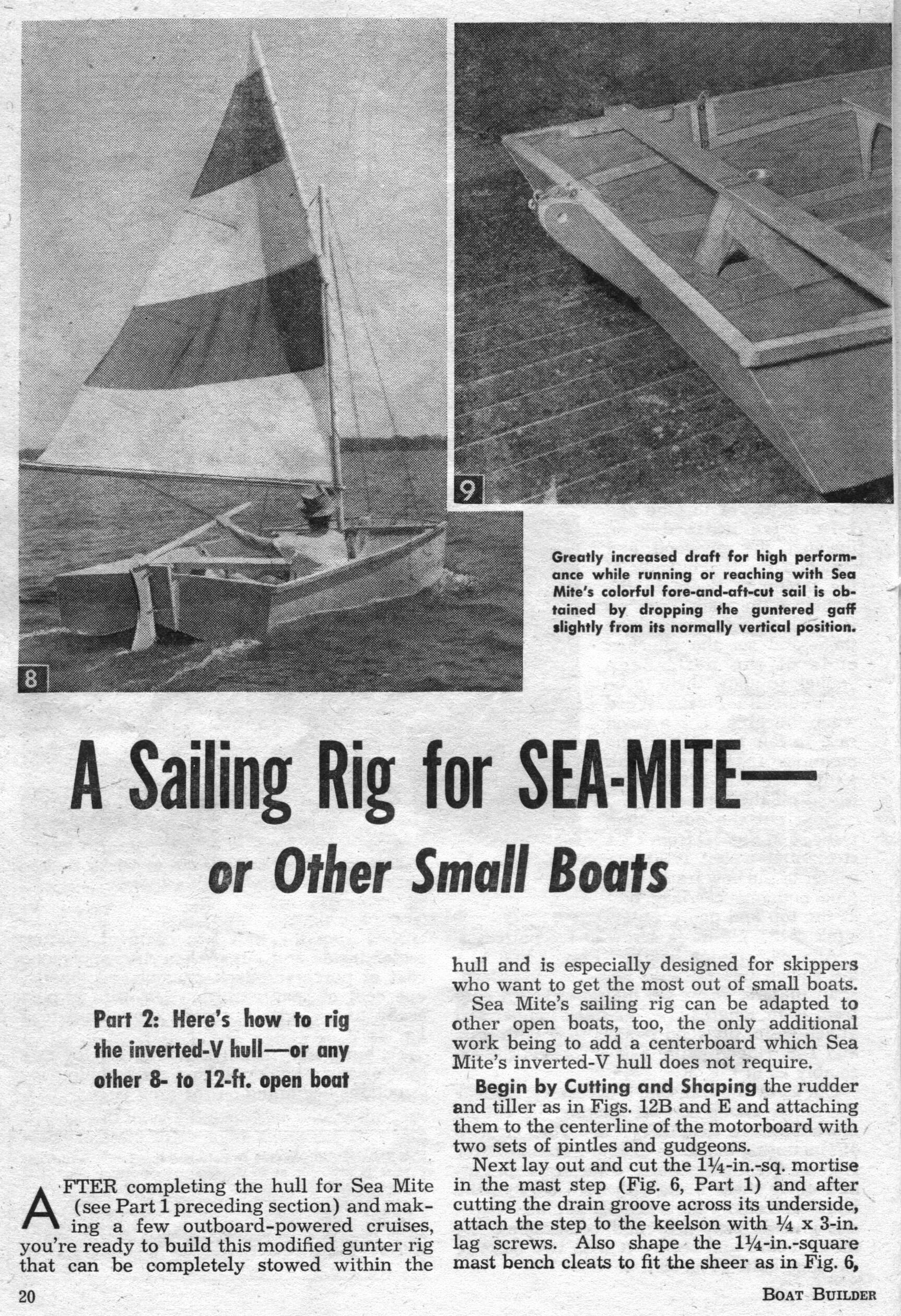

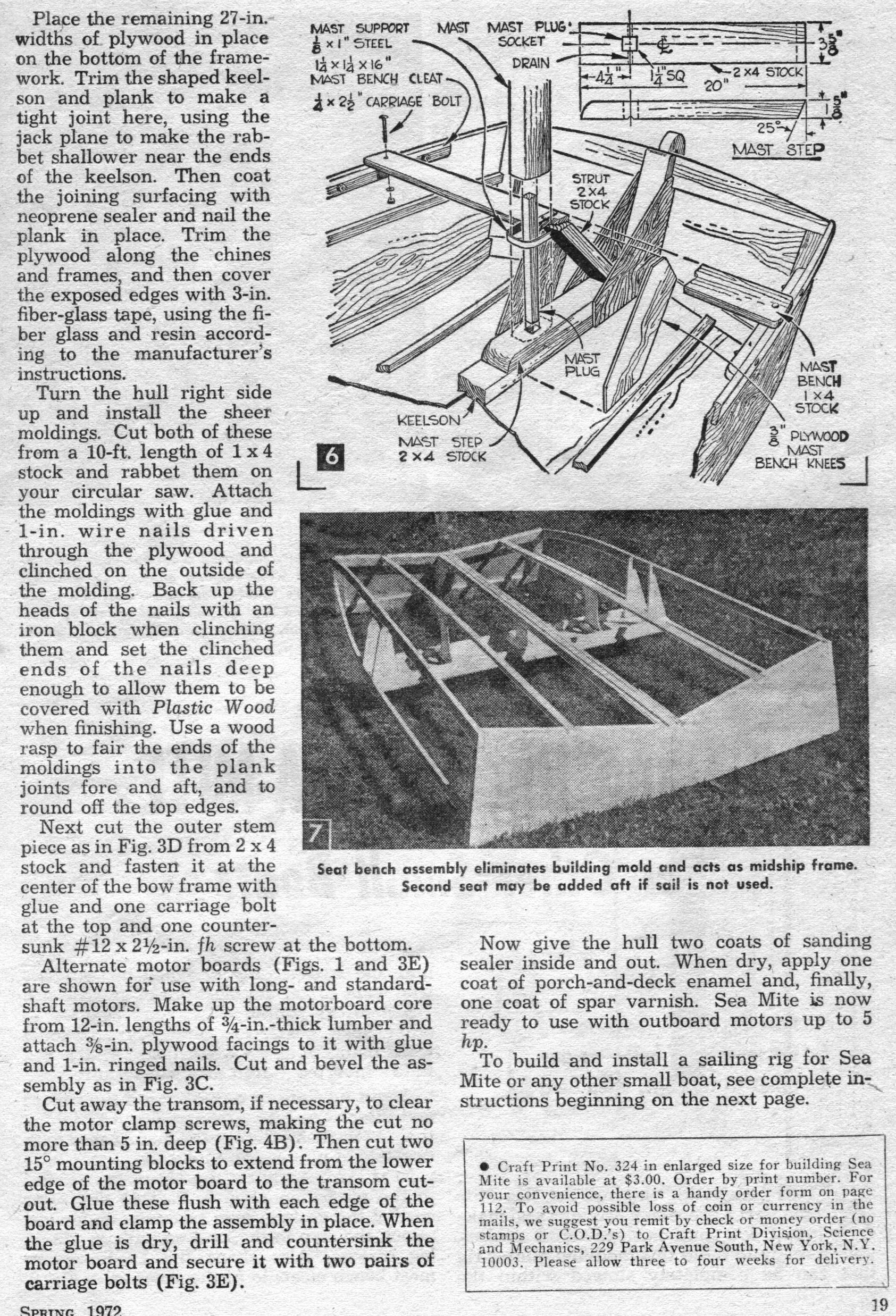

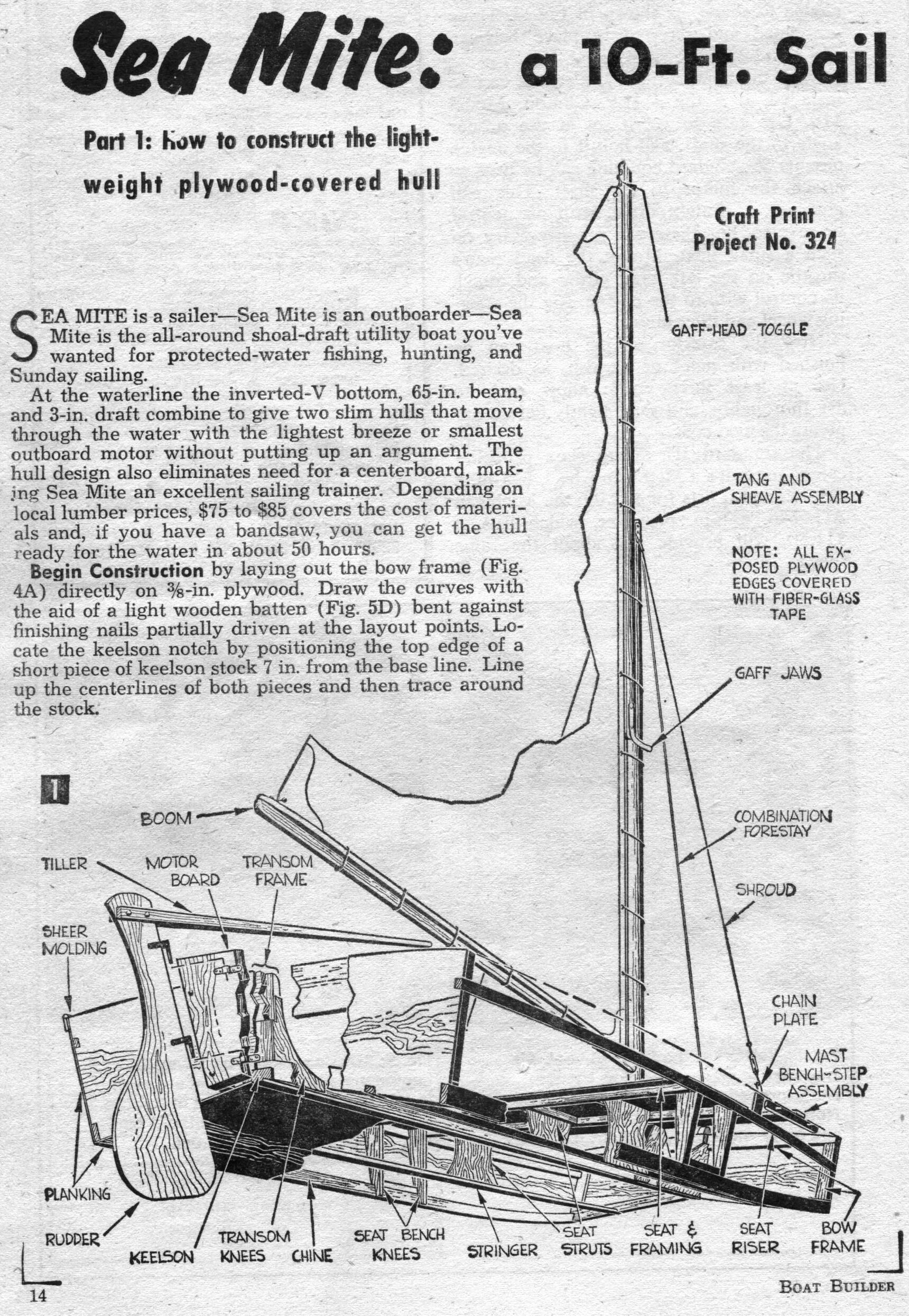

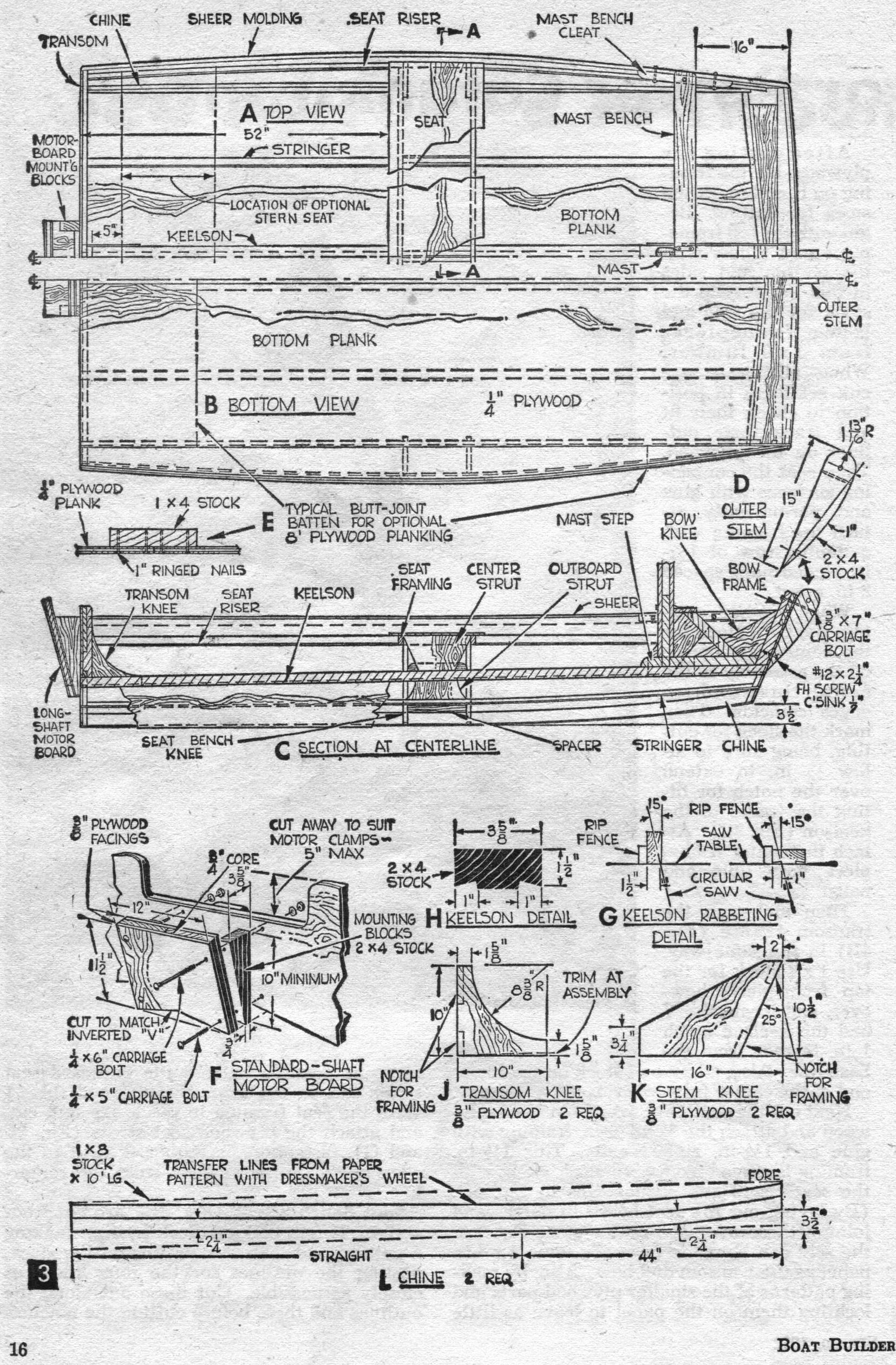

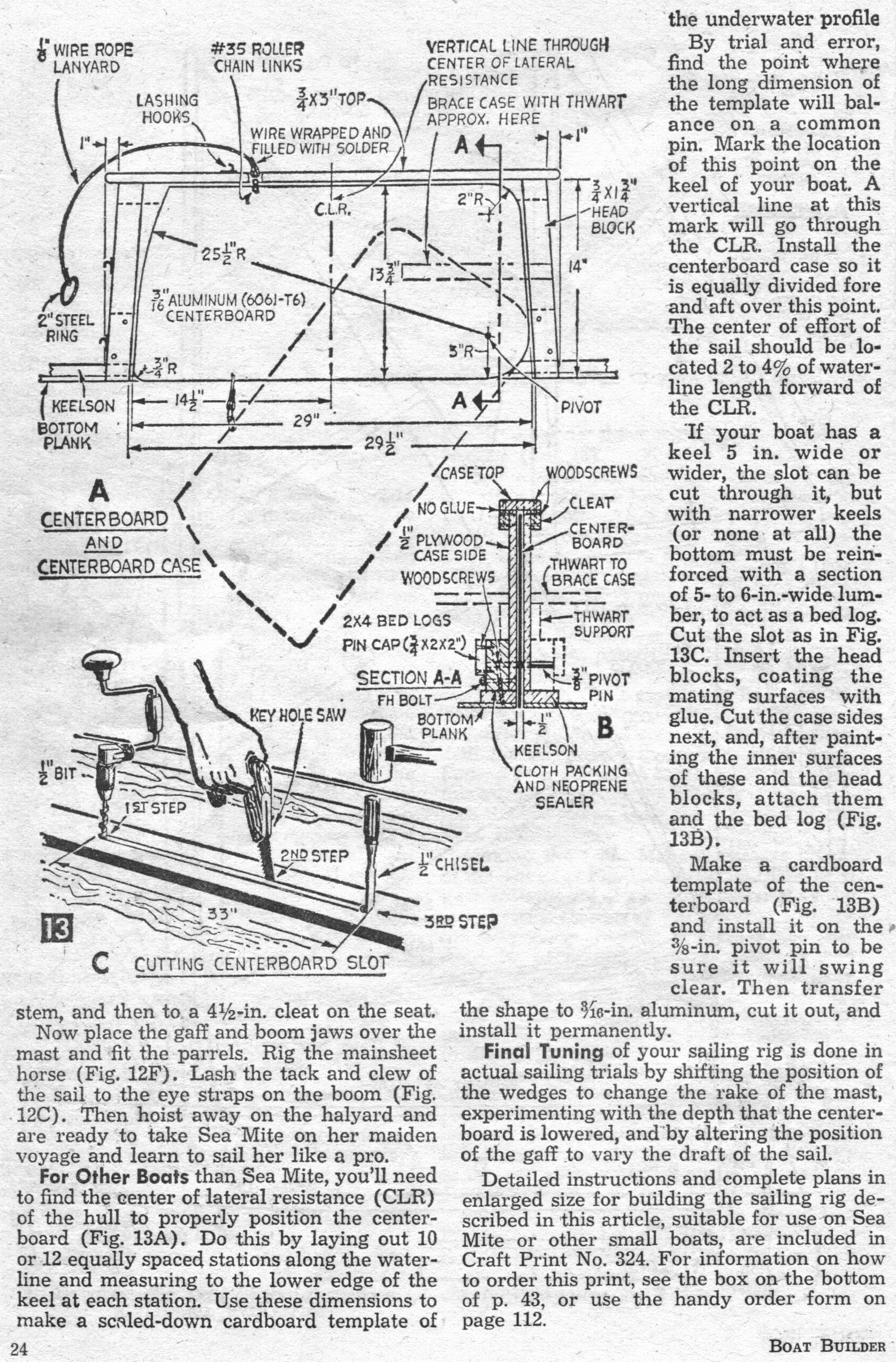

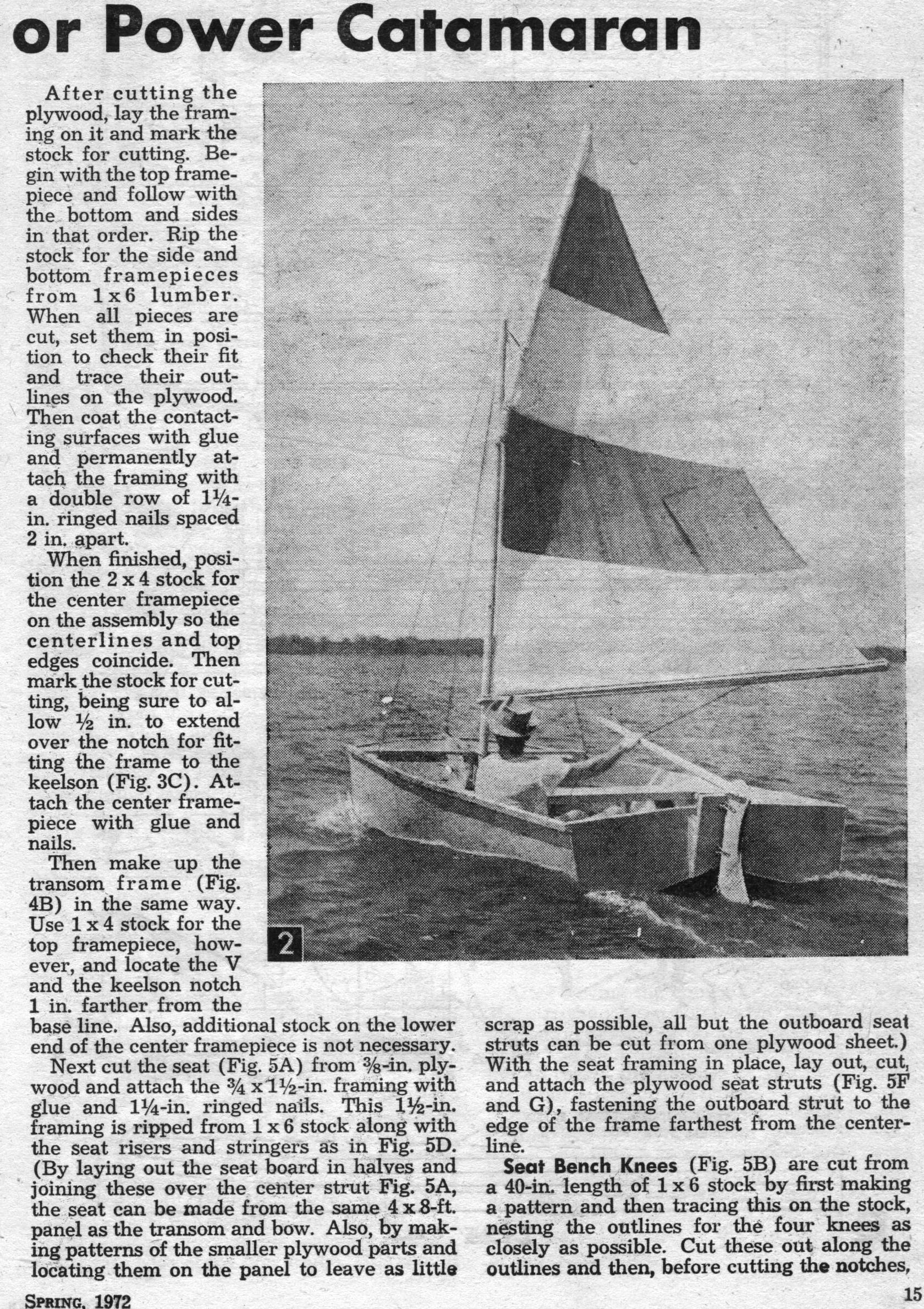

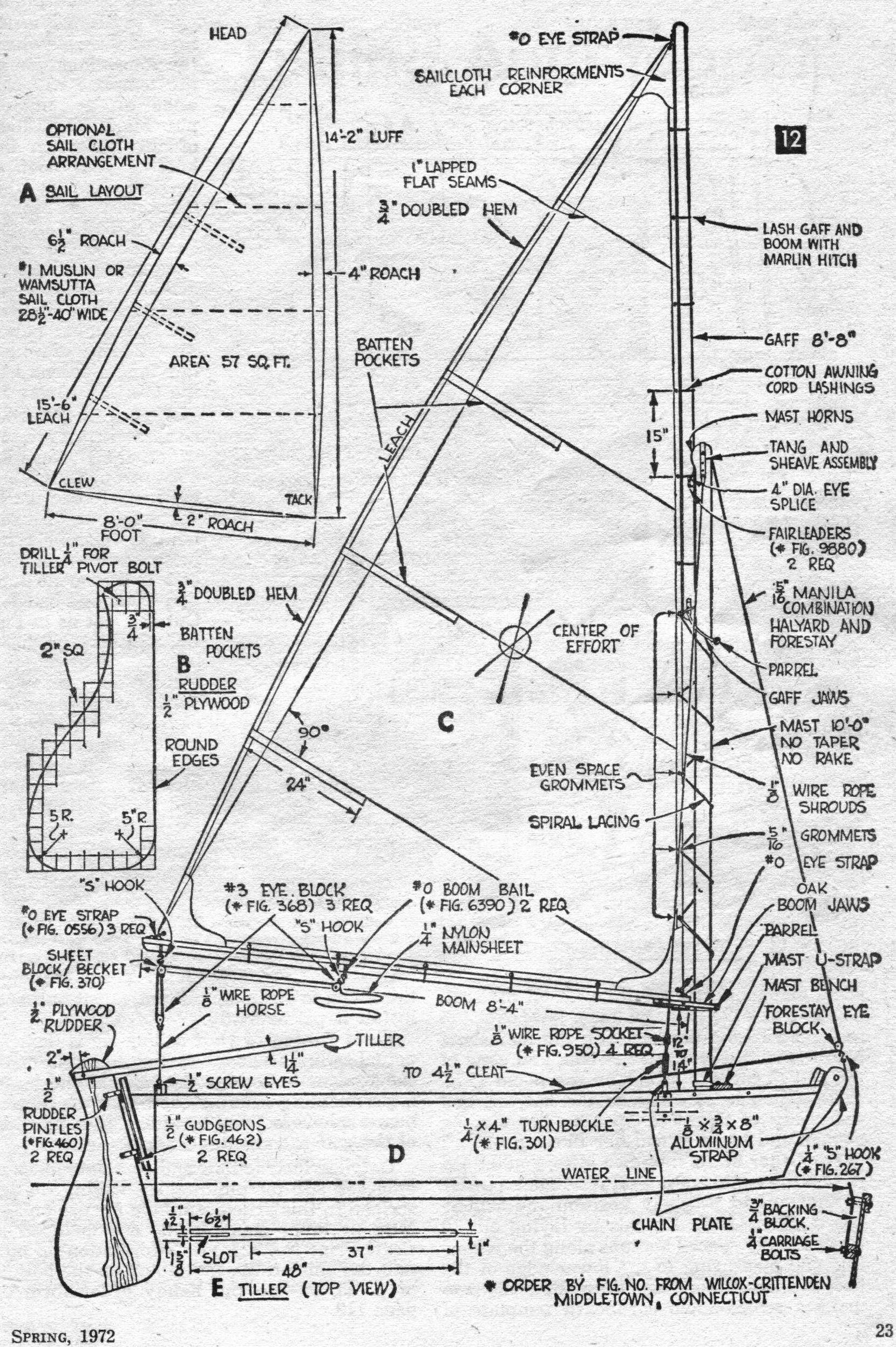

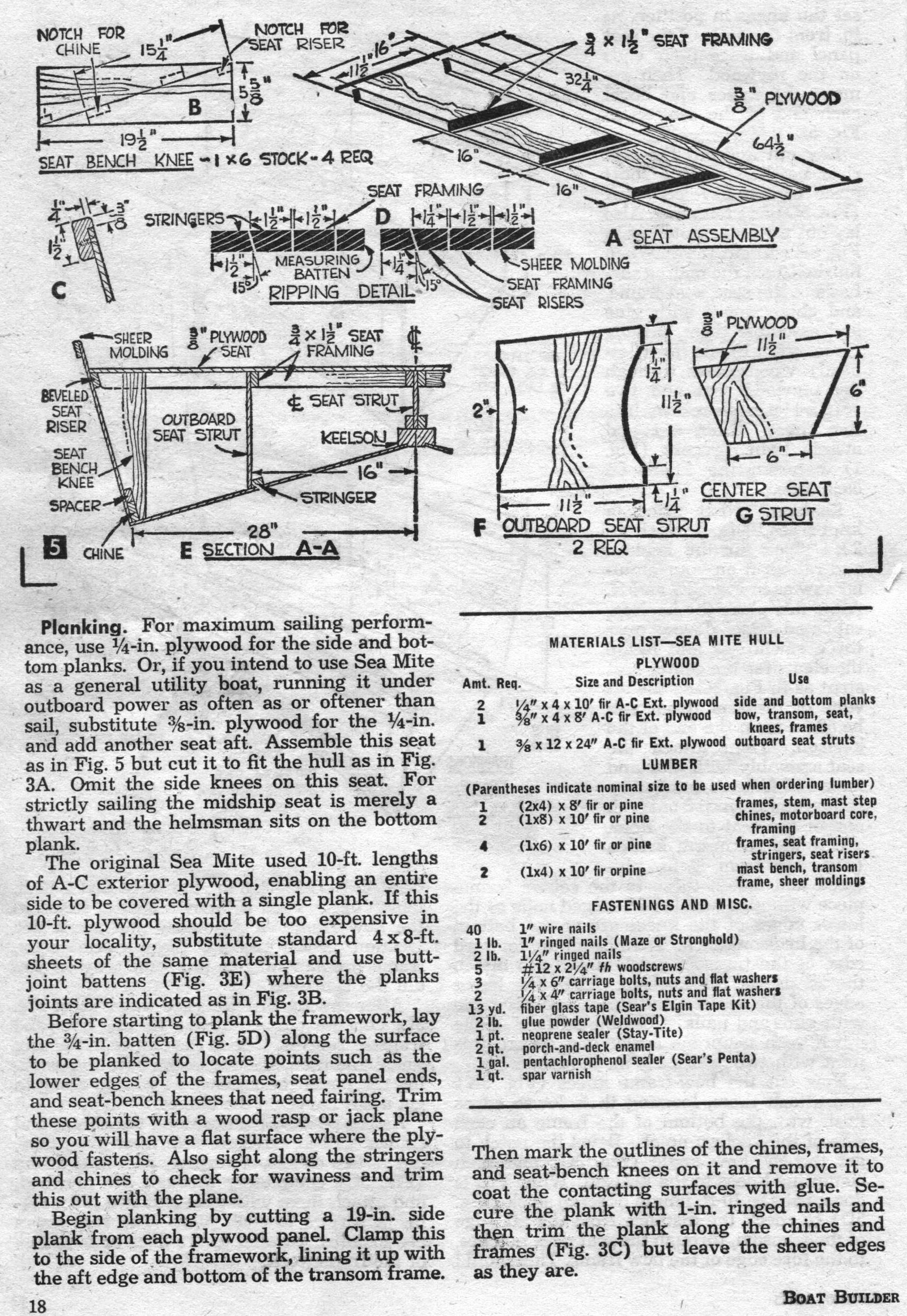

Plan sheets 12
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
