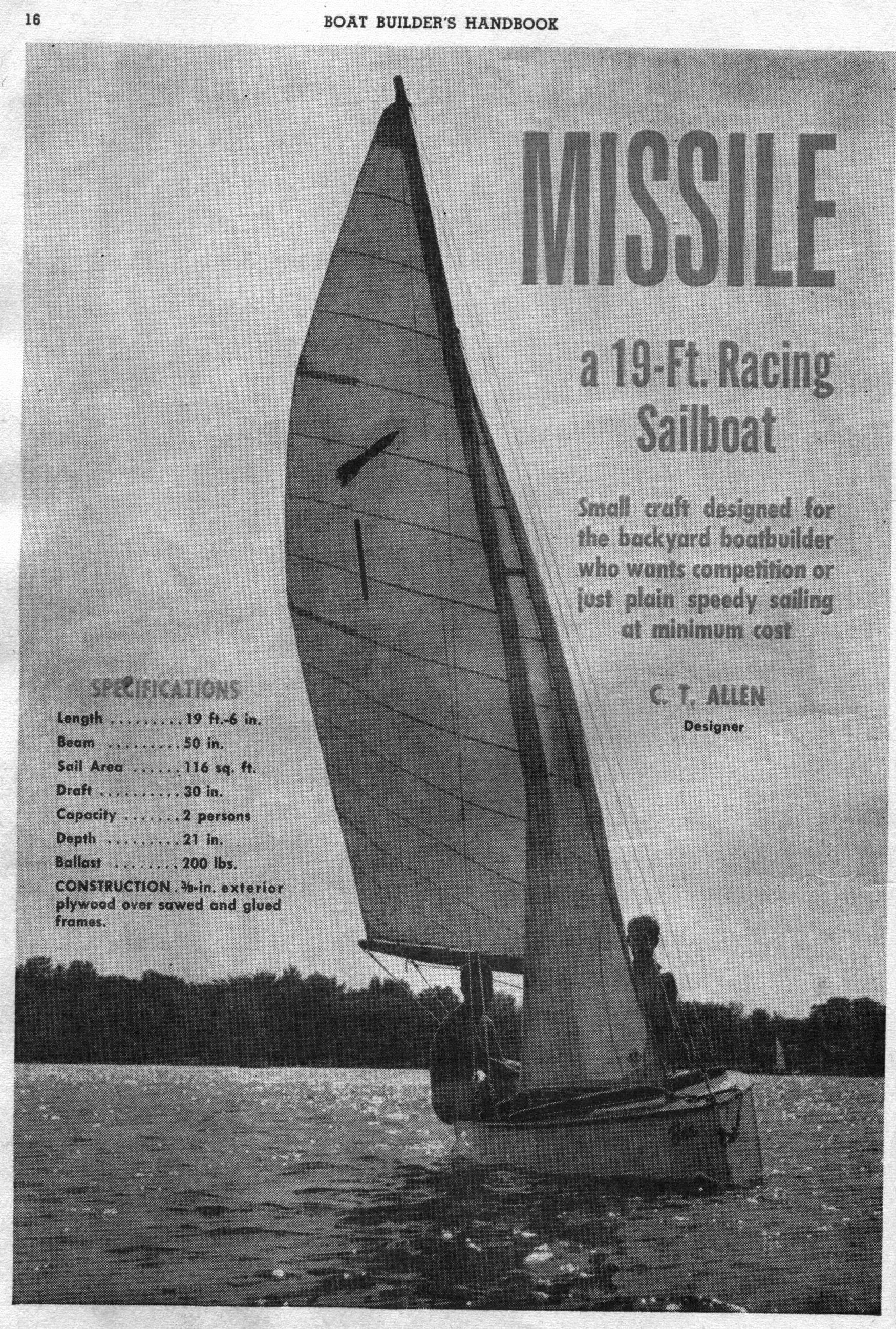

Missile
A 19-ft. racing sailboat for the backyard boatbuilder
- Category
- Sail Boats
- Designer
- C. T. Allen
- Published
- Boat Builder's Handbook, p. 16

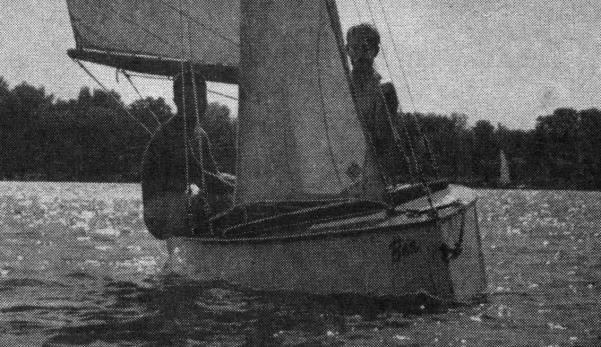

A small racing sailboat designed for the backyard boatbuilder who wants competition, or just plain speedy sailing, at minimum cost. It carries 116 sq ft of sail and 200 lb of ballast, with 3/8 in. exterior plywood over sawed and glued frames.
Specifications
- Length
- 19 ft 6 in
- Beam
- 50 in
- Depth
- 21 in
- Draft
- 30 in
- Capacity
- 2 persons
- Construction
- 3/8 in. exterior plywood over sawed and glued frames; 200 lb ballast
- Power
- Sail: 116 sq ft
Downloads

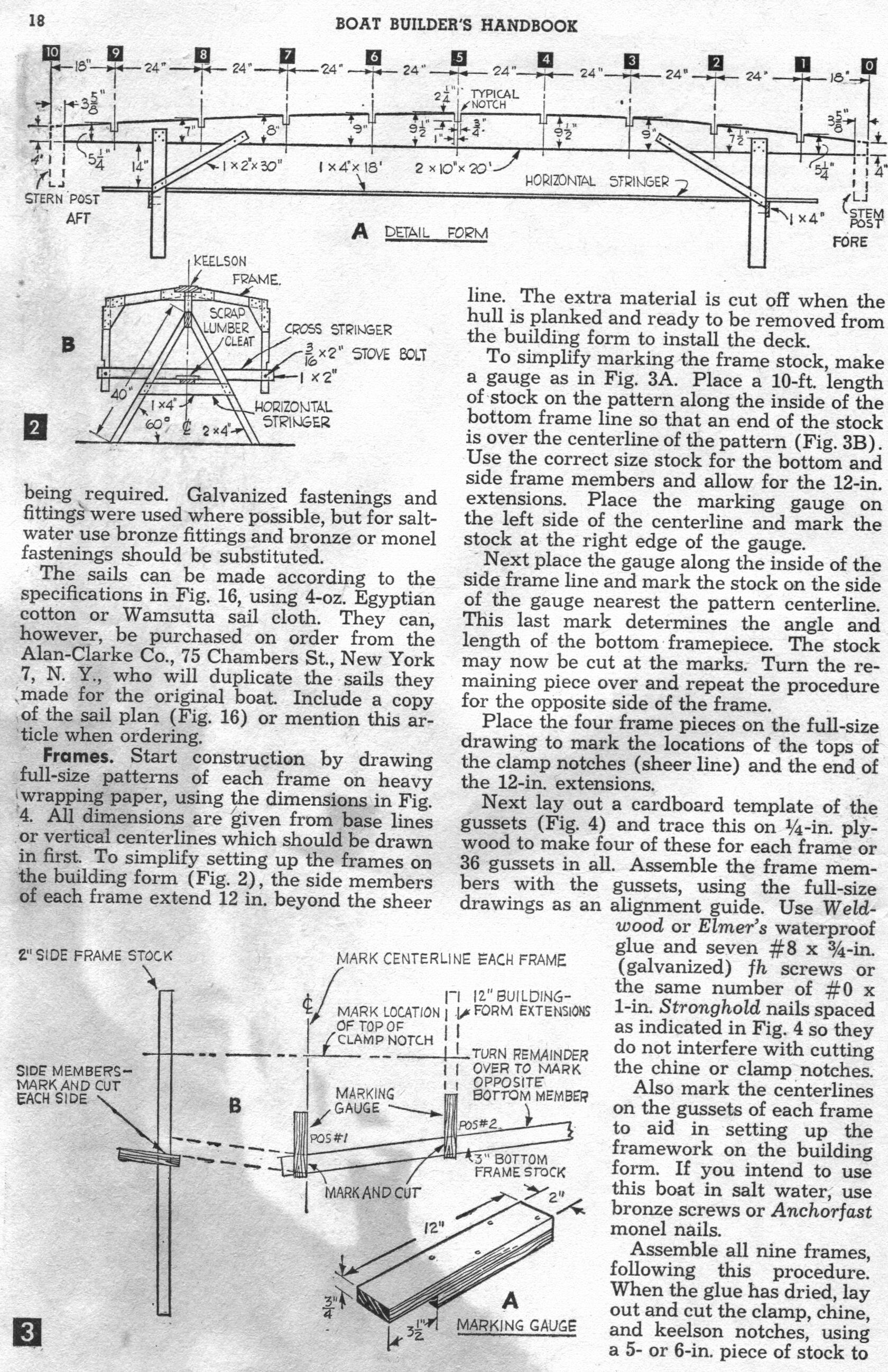

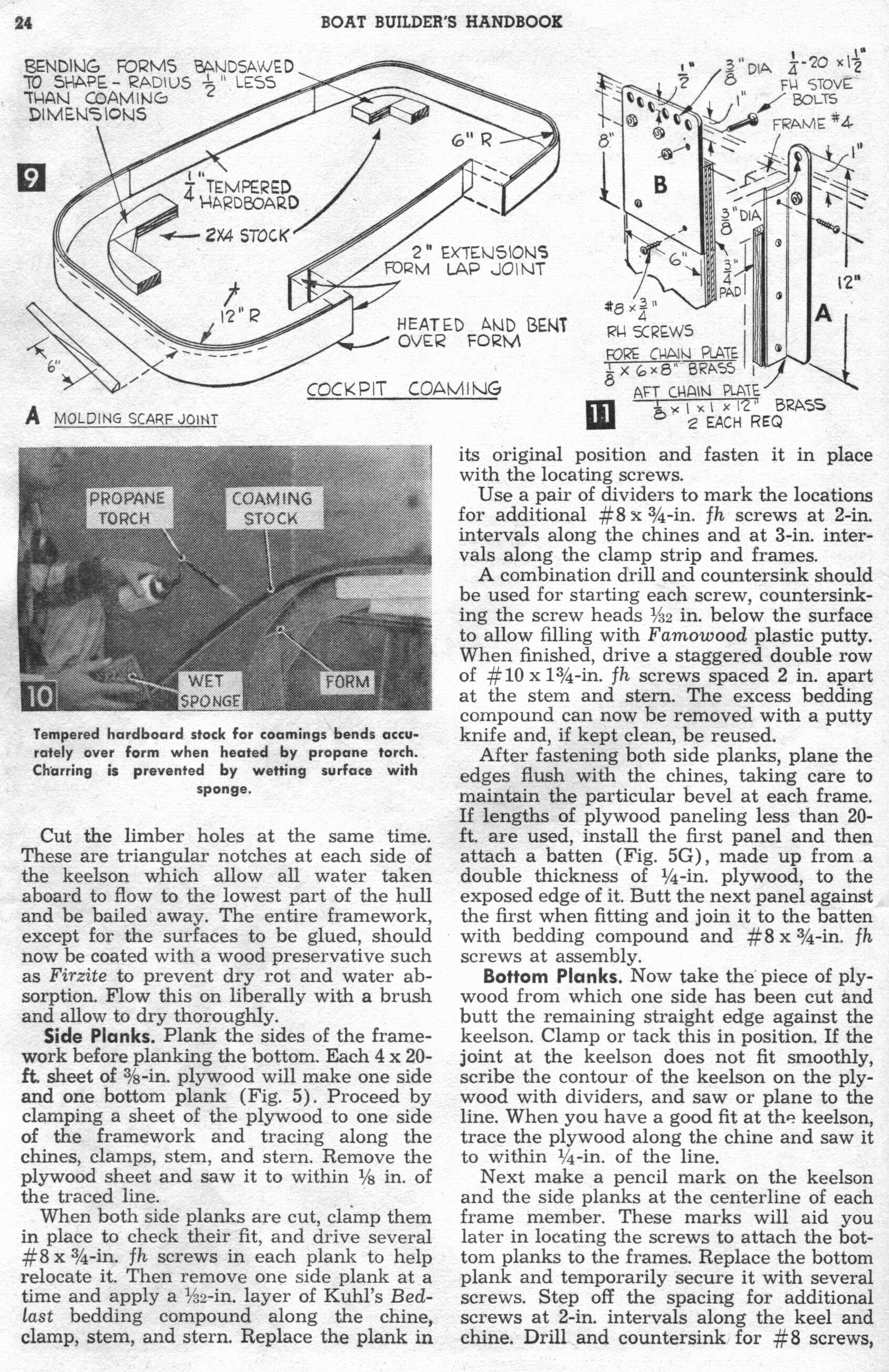

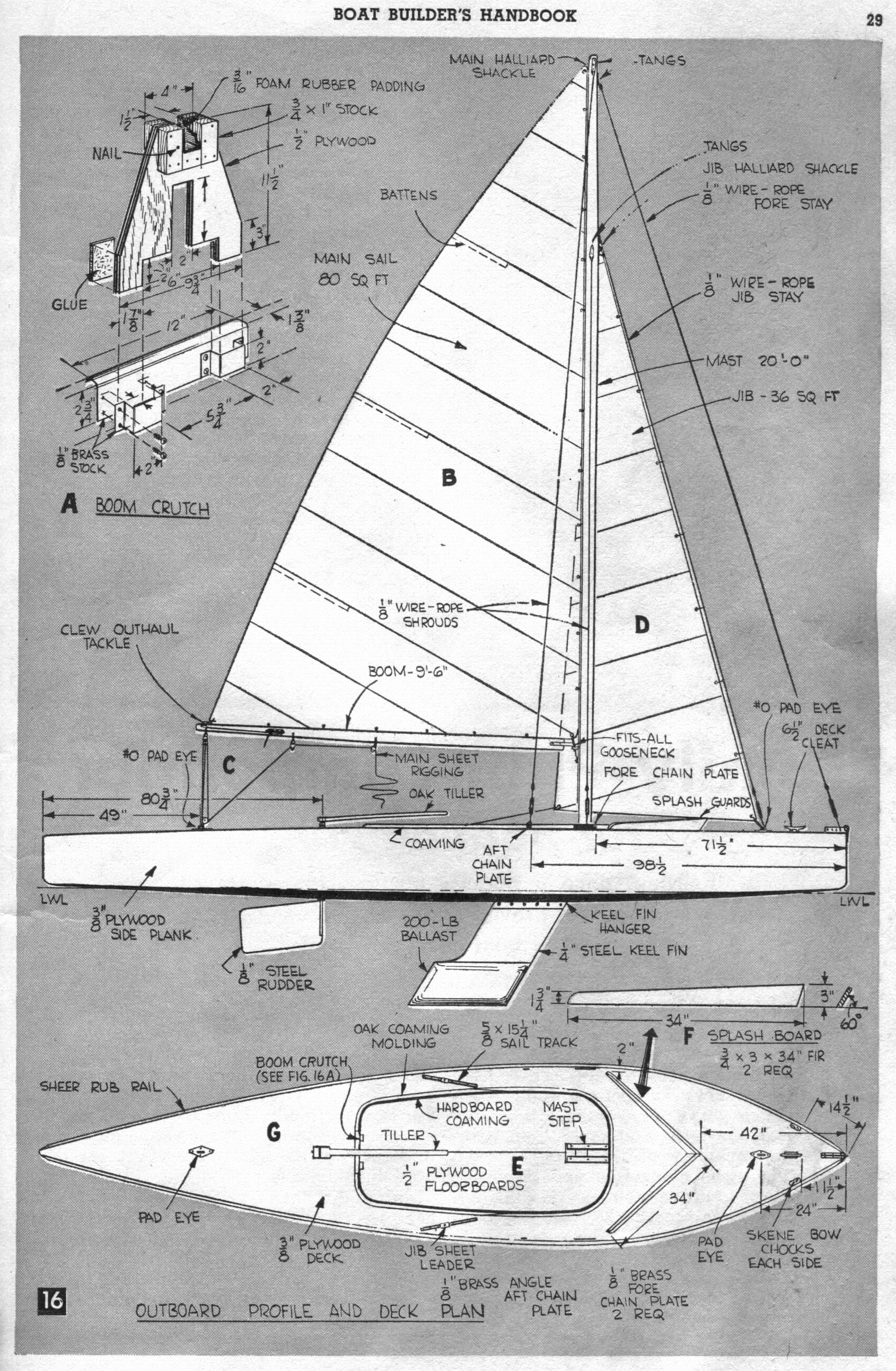

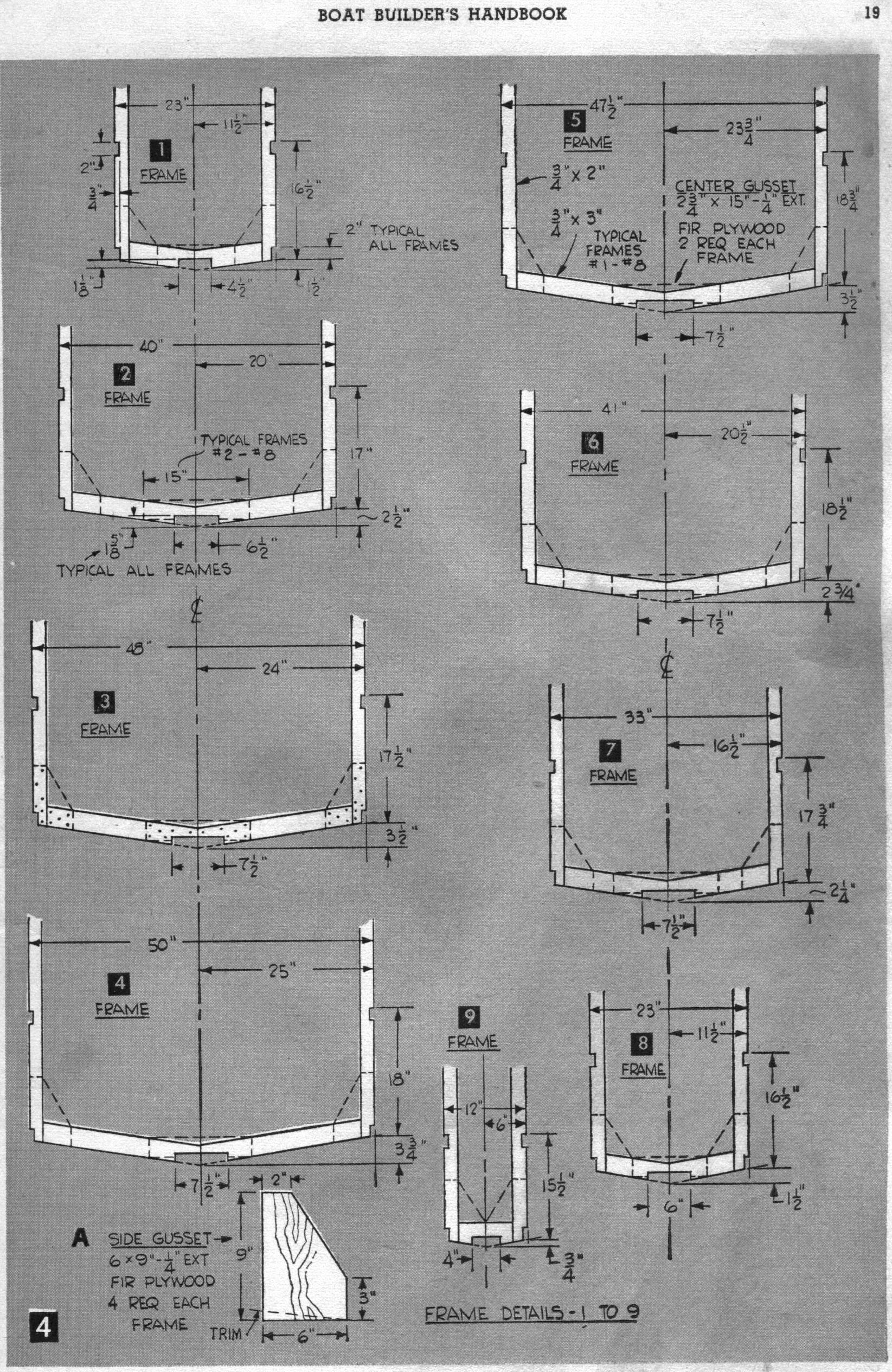

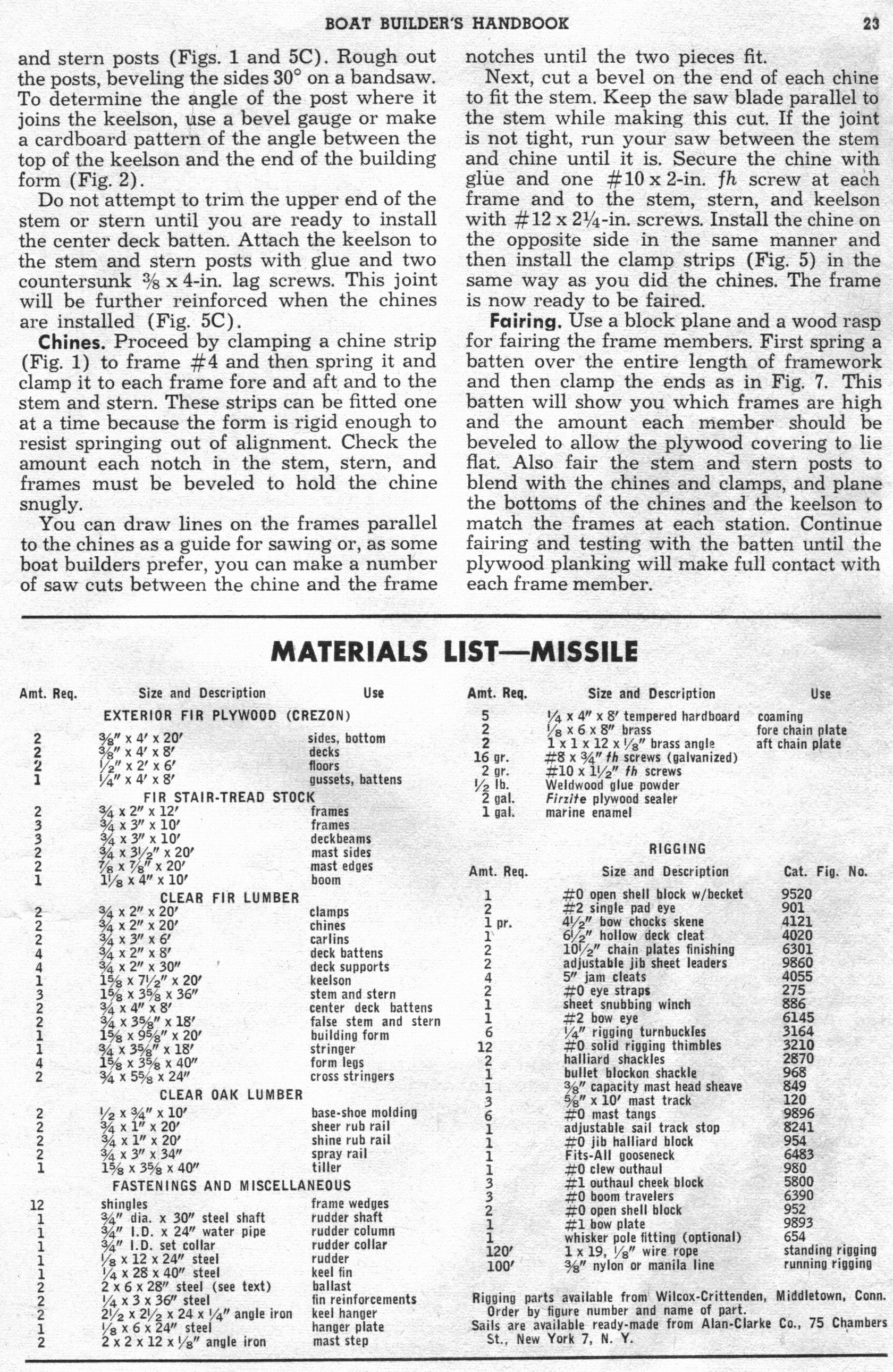

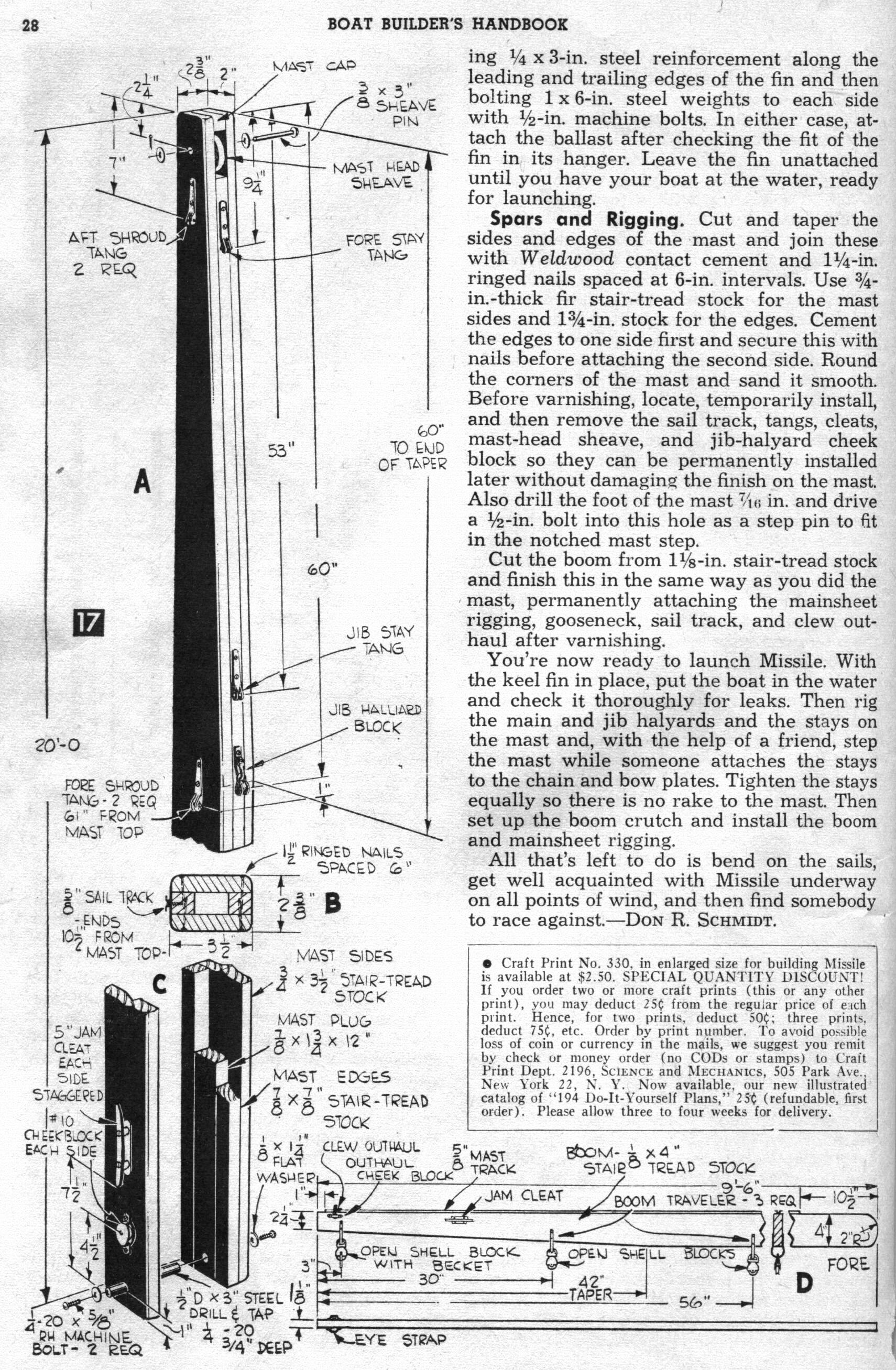

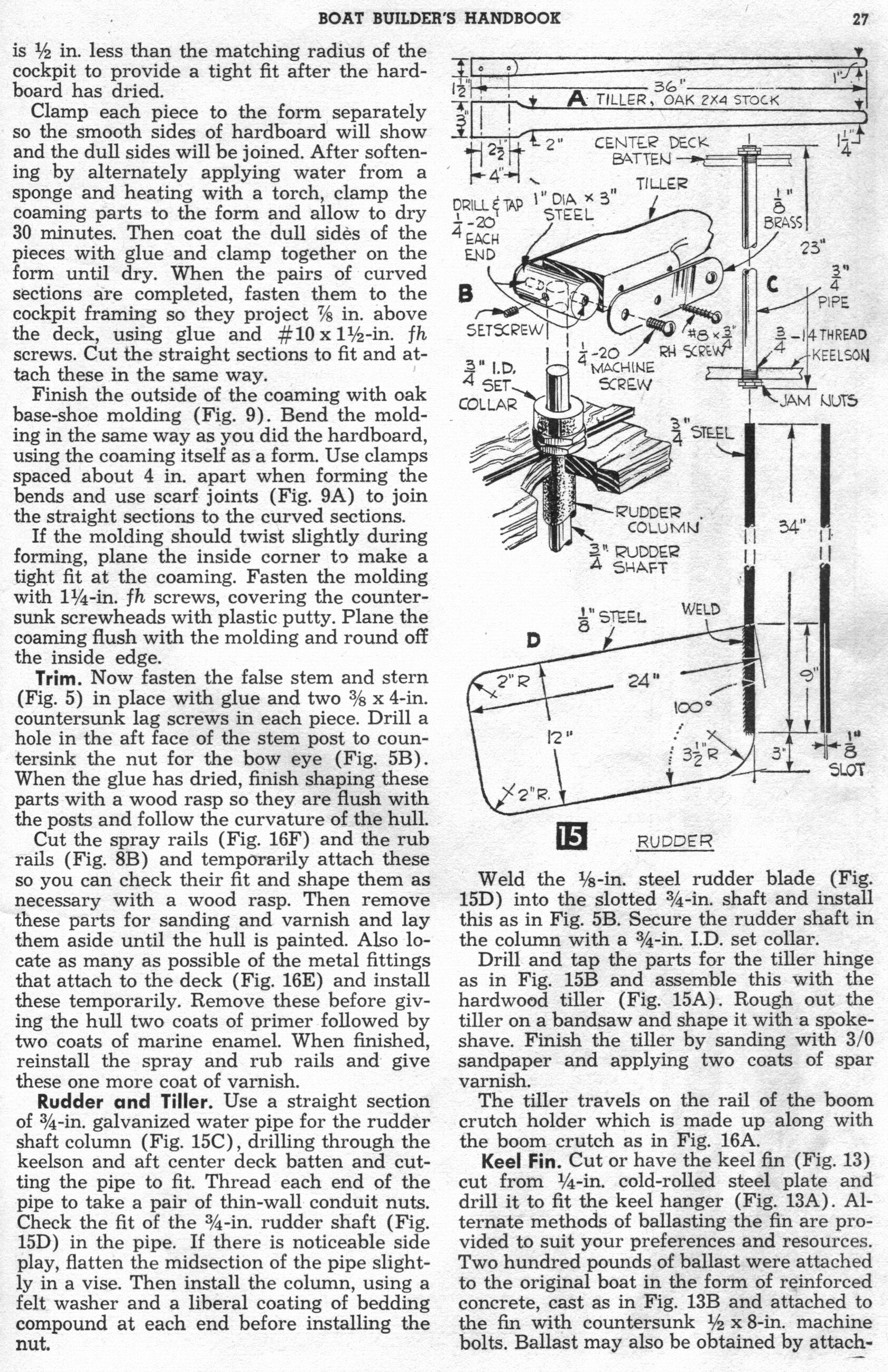

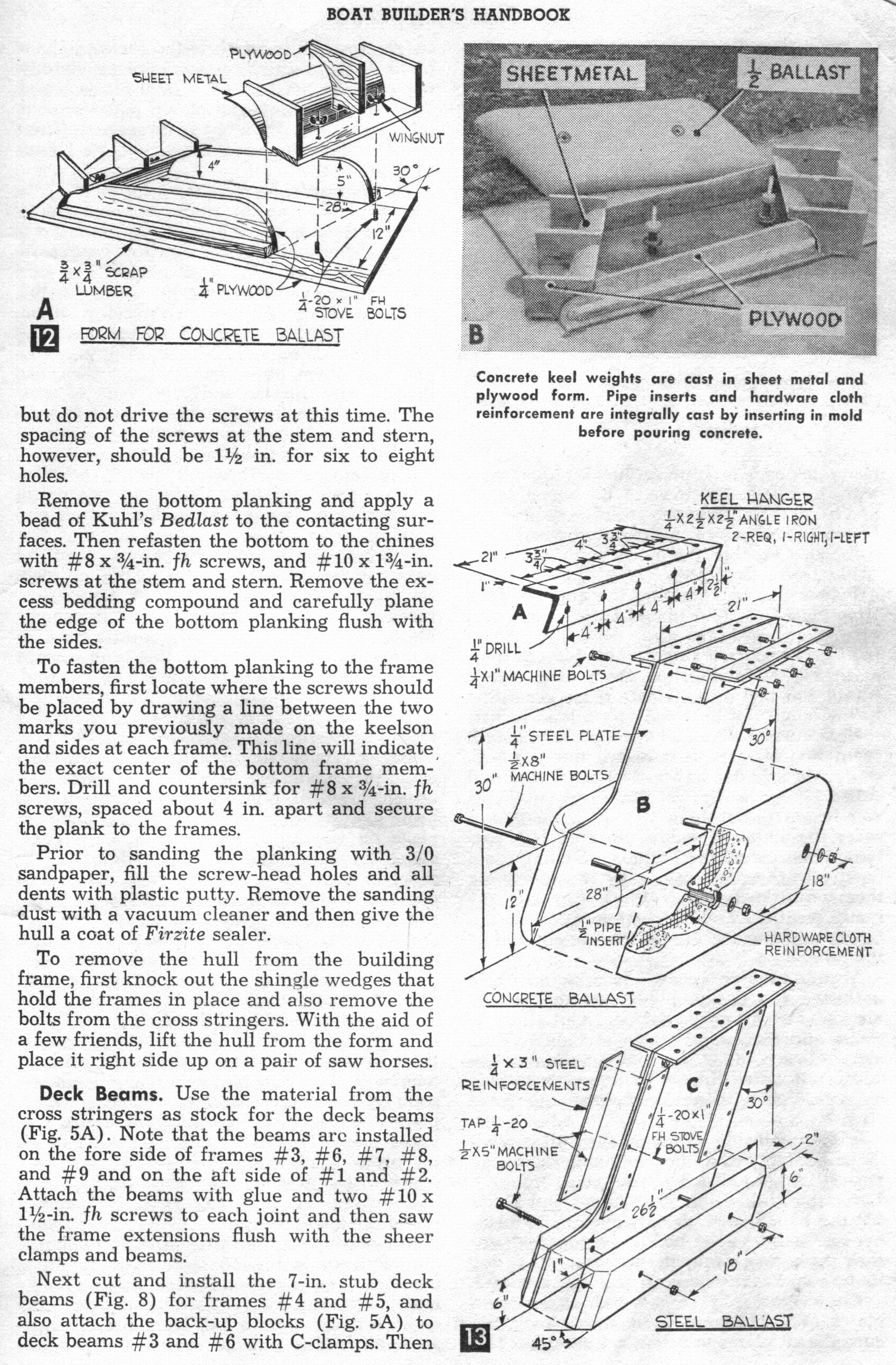

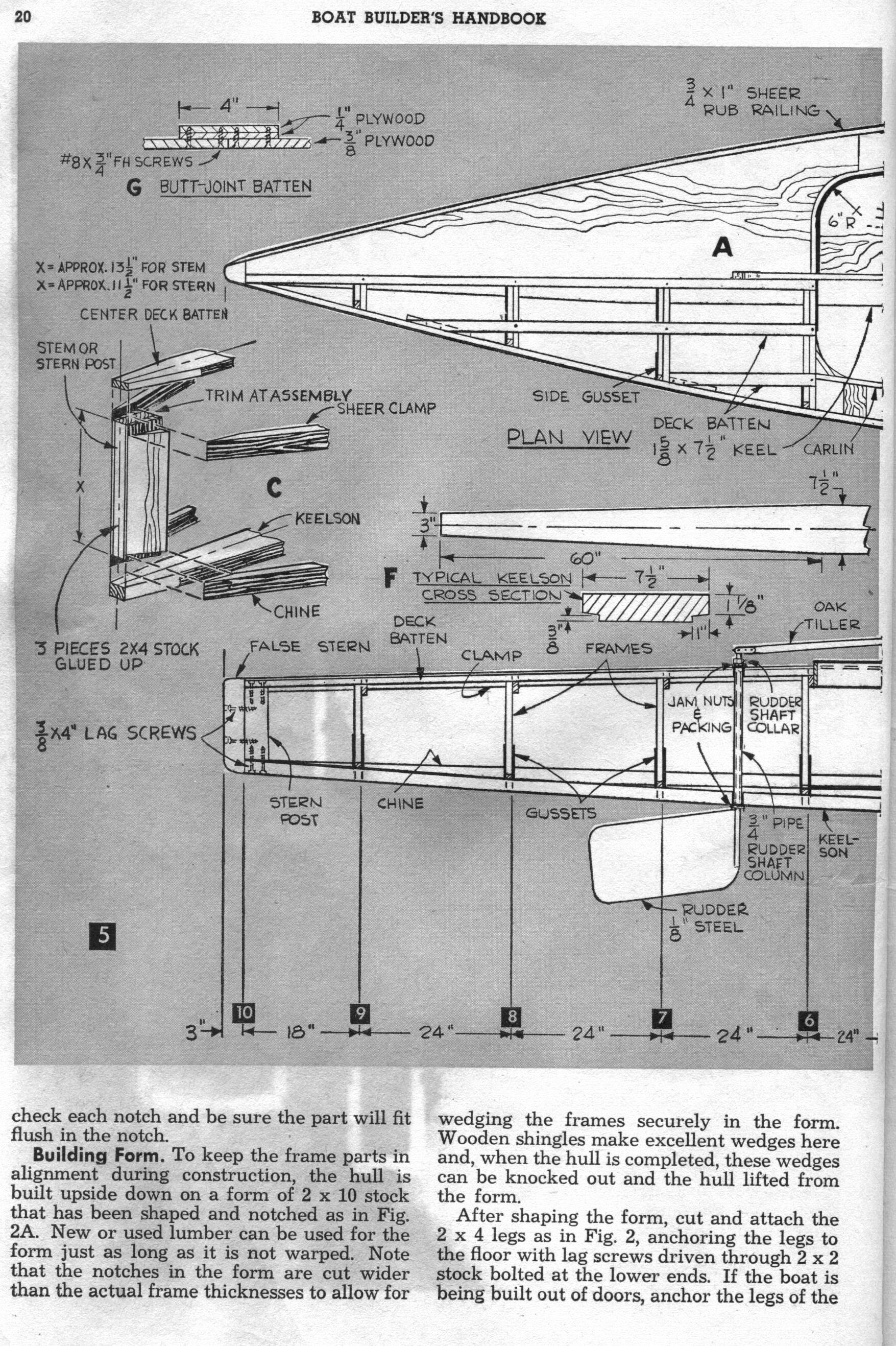

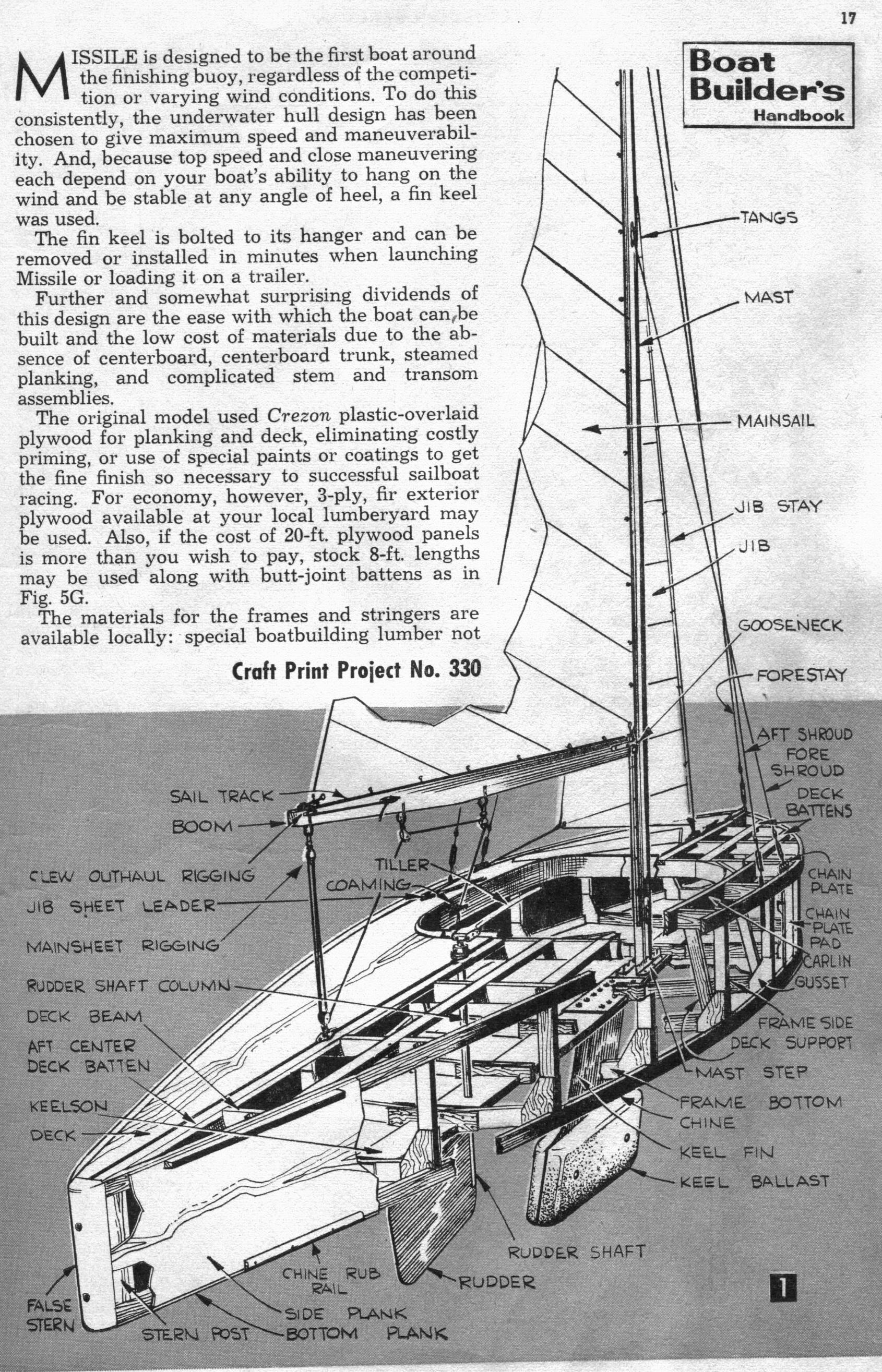

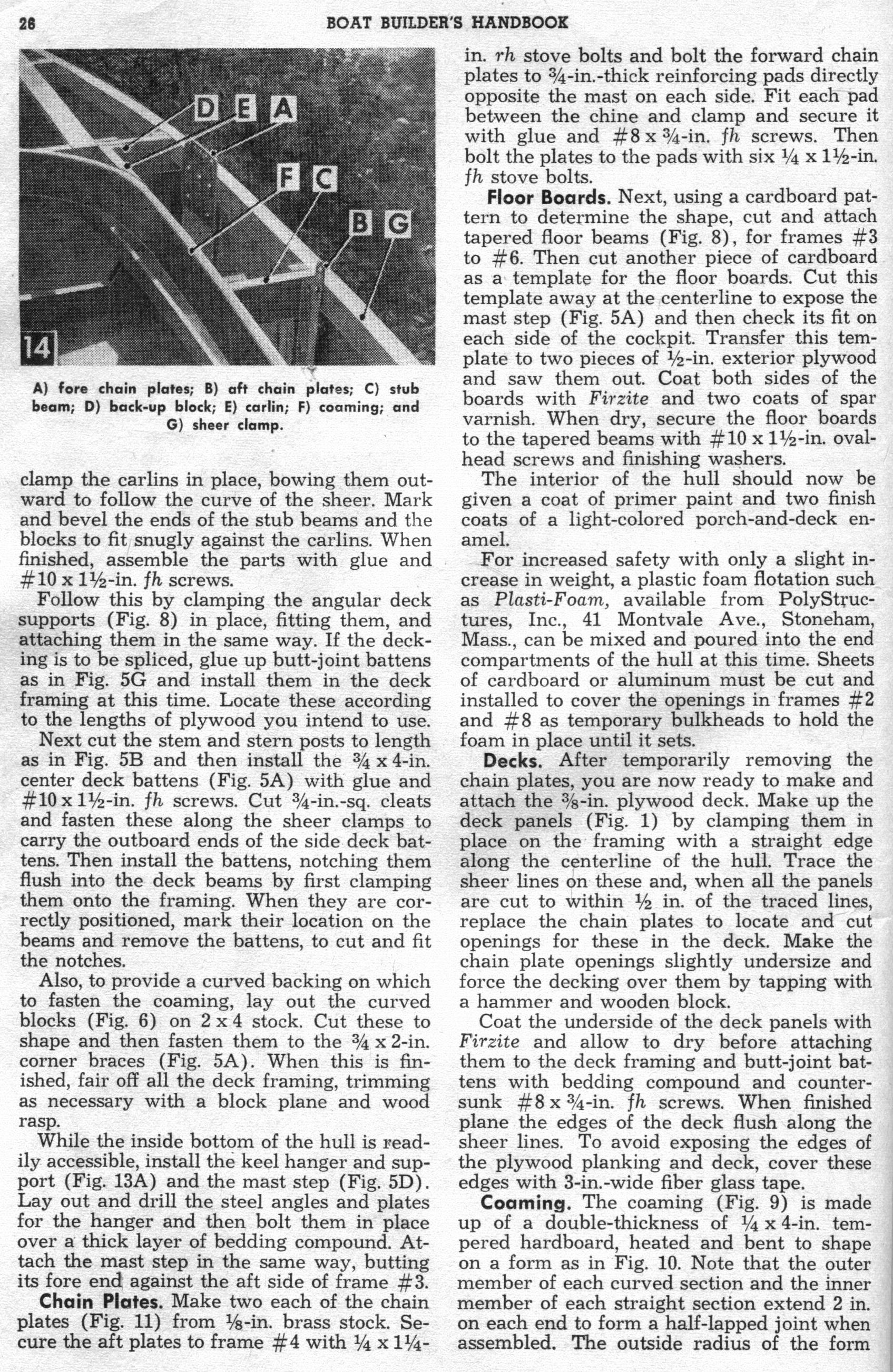

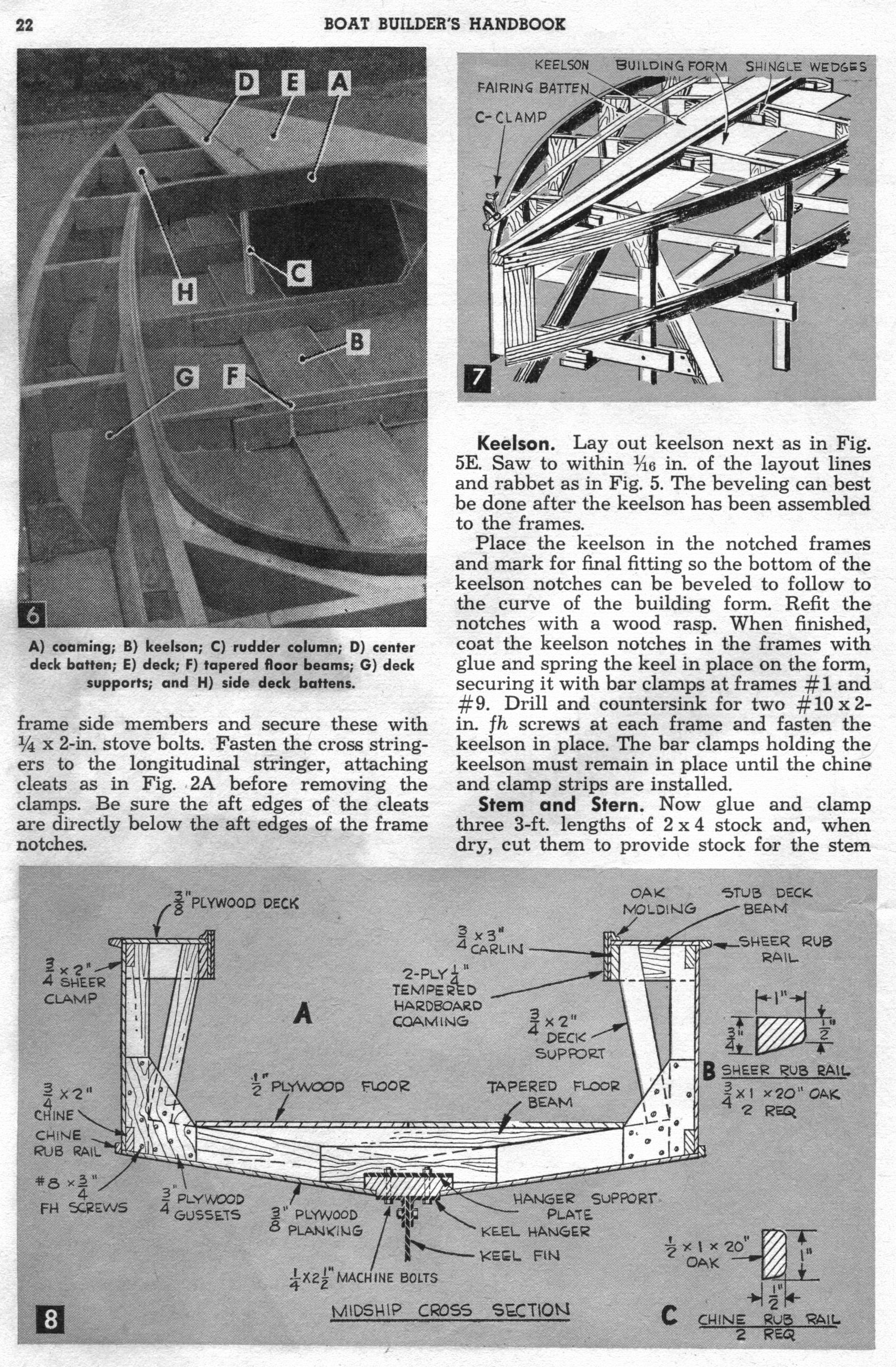

Plan sheets 15
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
