Manu
Speedy planing-type sailboat
- Category
- Sail Boats
- Published

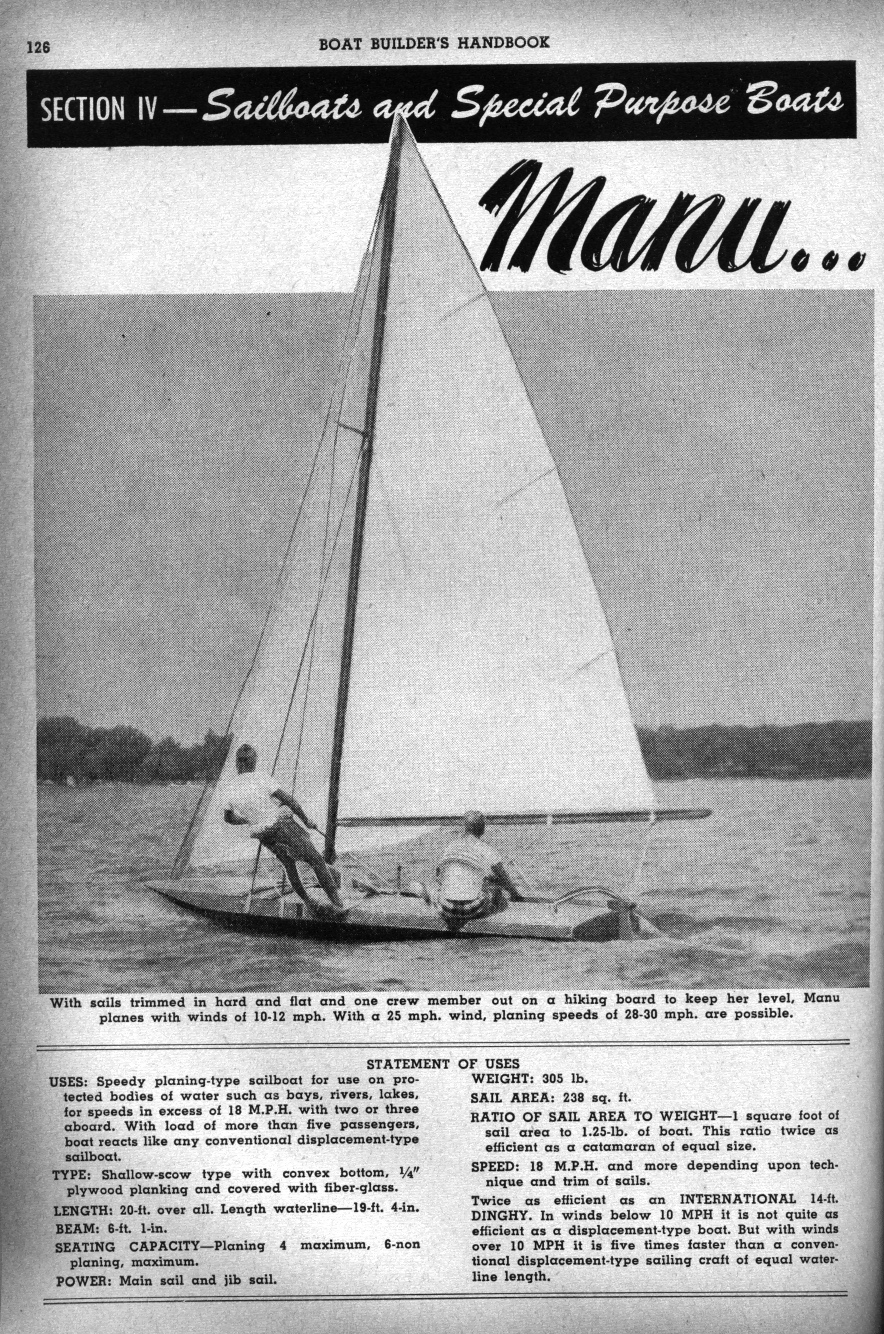

- Boat Builder's Handbook, p. 126
- Craft Print
- 292

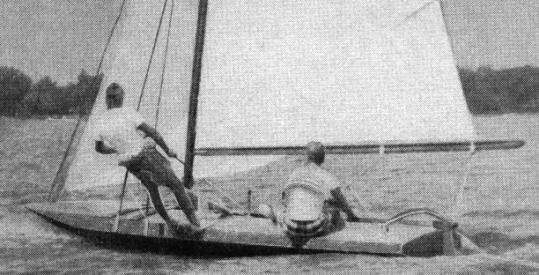

A speedy planing scow for bays, rivers and lakes, with 238 sq ft of sail on a 305 lb hull, twice the efficiency of an International 14 dinghy. It planes in 10–12 mph winds and can reach 28–30 mph in a 25 mph wind, five times faster than a displacement boat of equal length.
Specifications
- Length
- 20 ft (19 ft 4 in waterline)
- Beam
- 6 ft 1 in
- Weight
- 305 lb
- Capacity
- 4 planing, 6 non-planing
- Construction
- Shallow scow with convex bottom, 1/4 in. plywood planking covered with fiberglass
- Power
- Main and jib: 238 sq ft; 18 mph and more, 28–30 mph in a 25 mph wind
Downloads

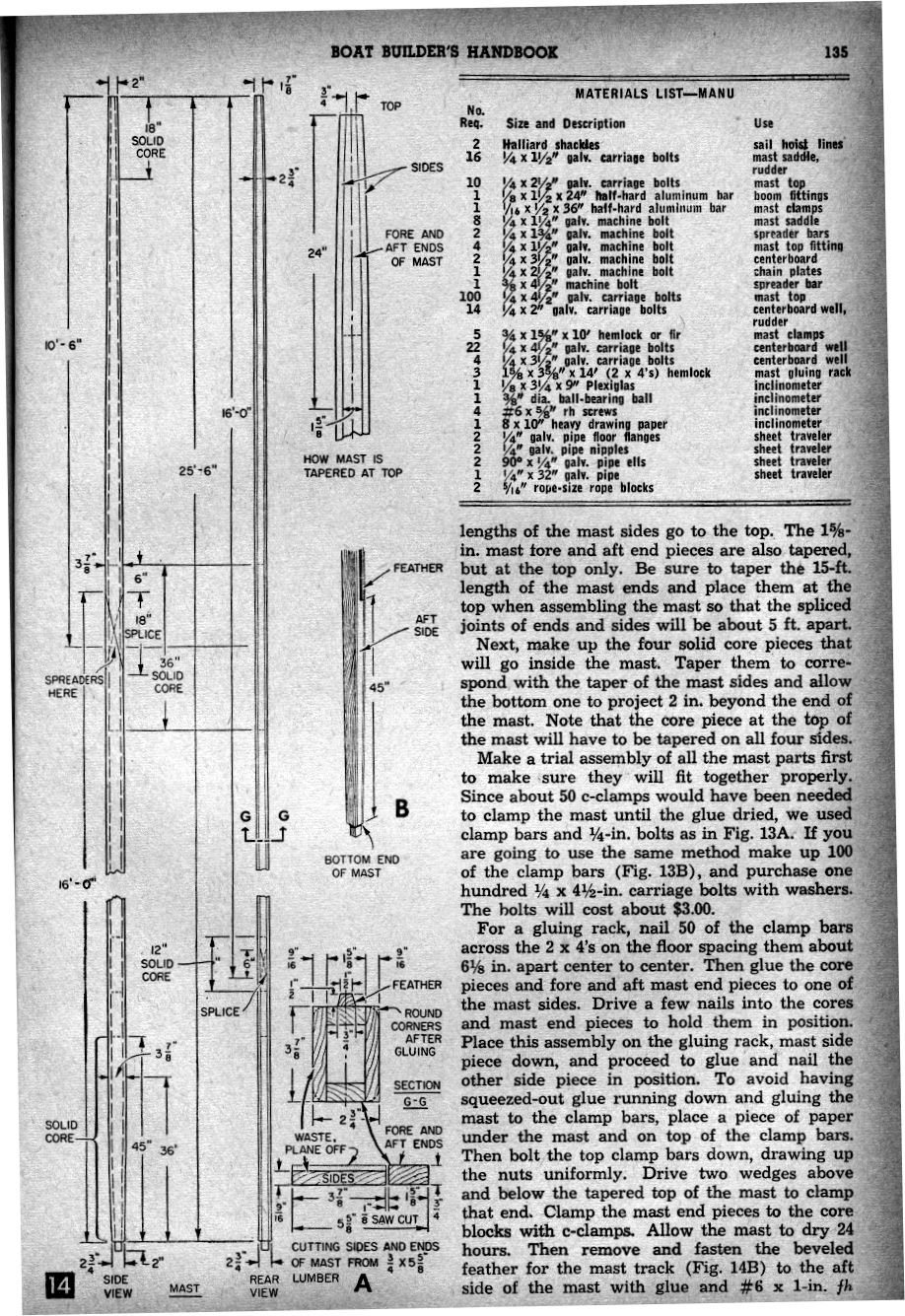

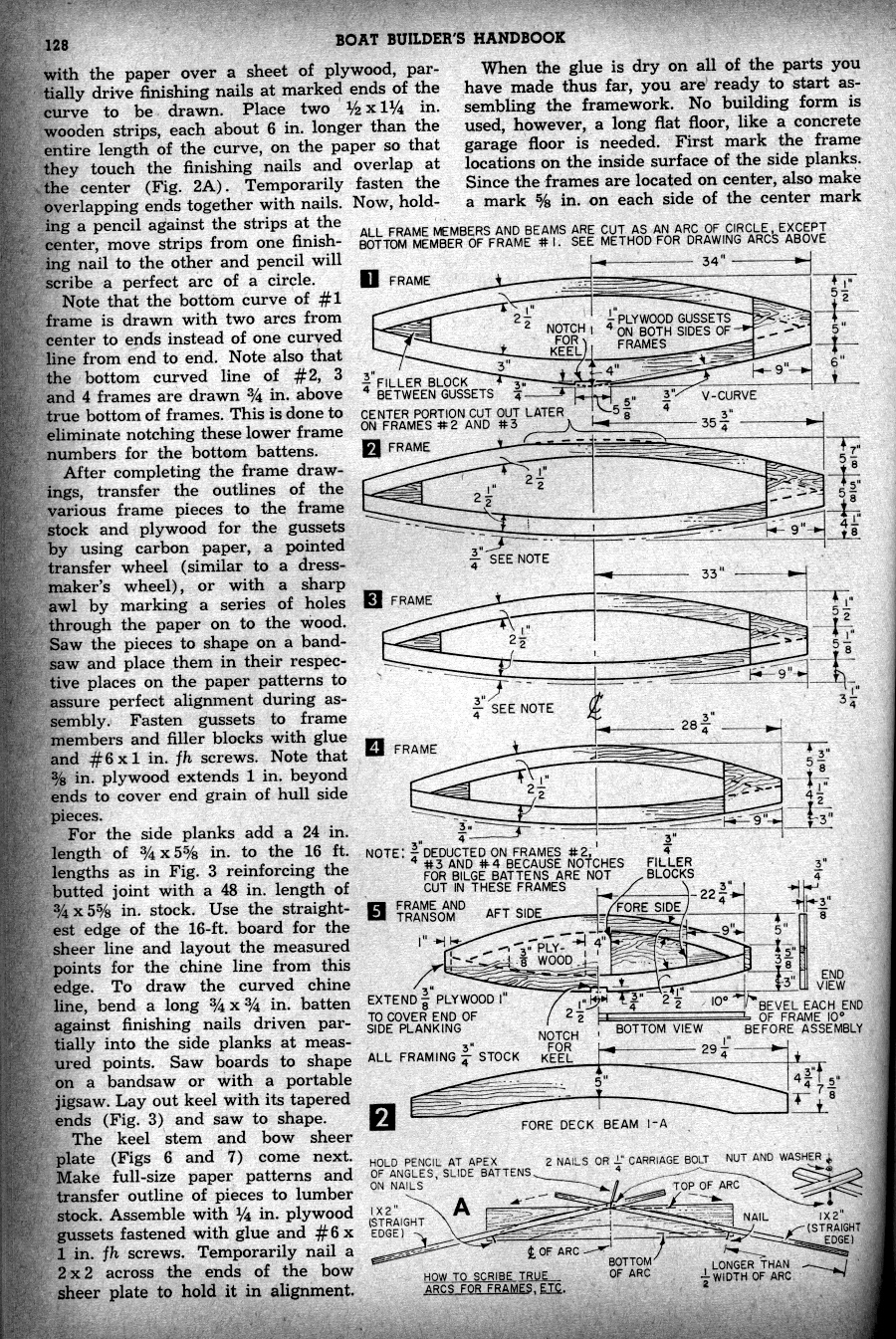

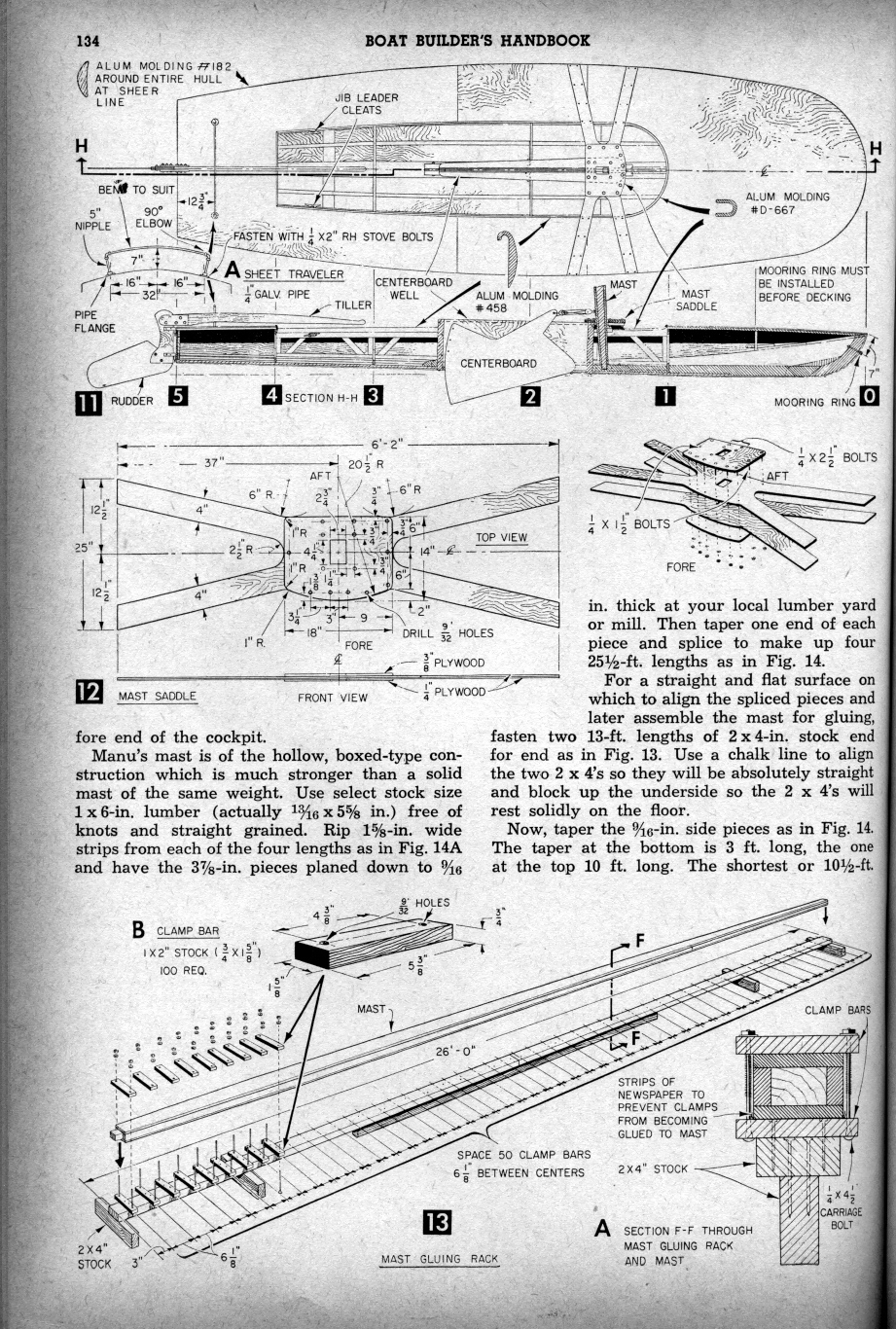

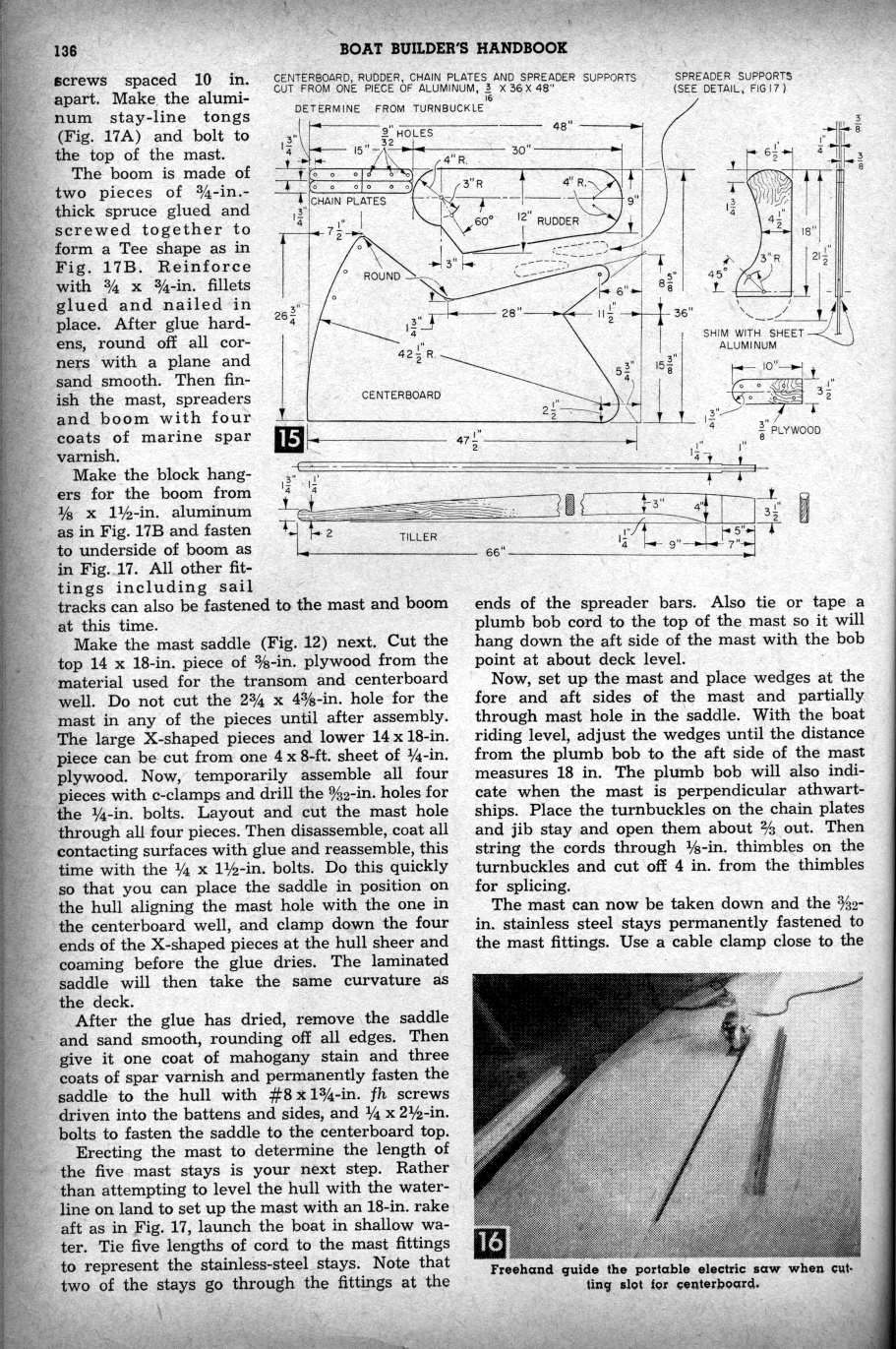

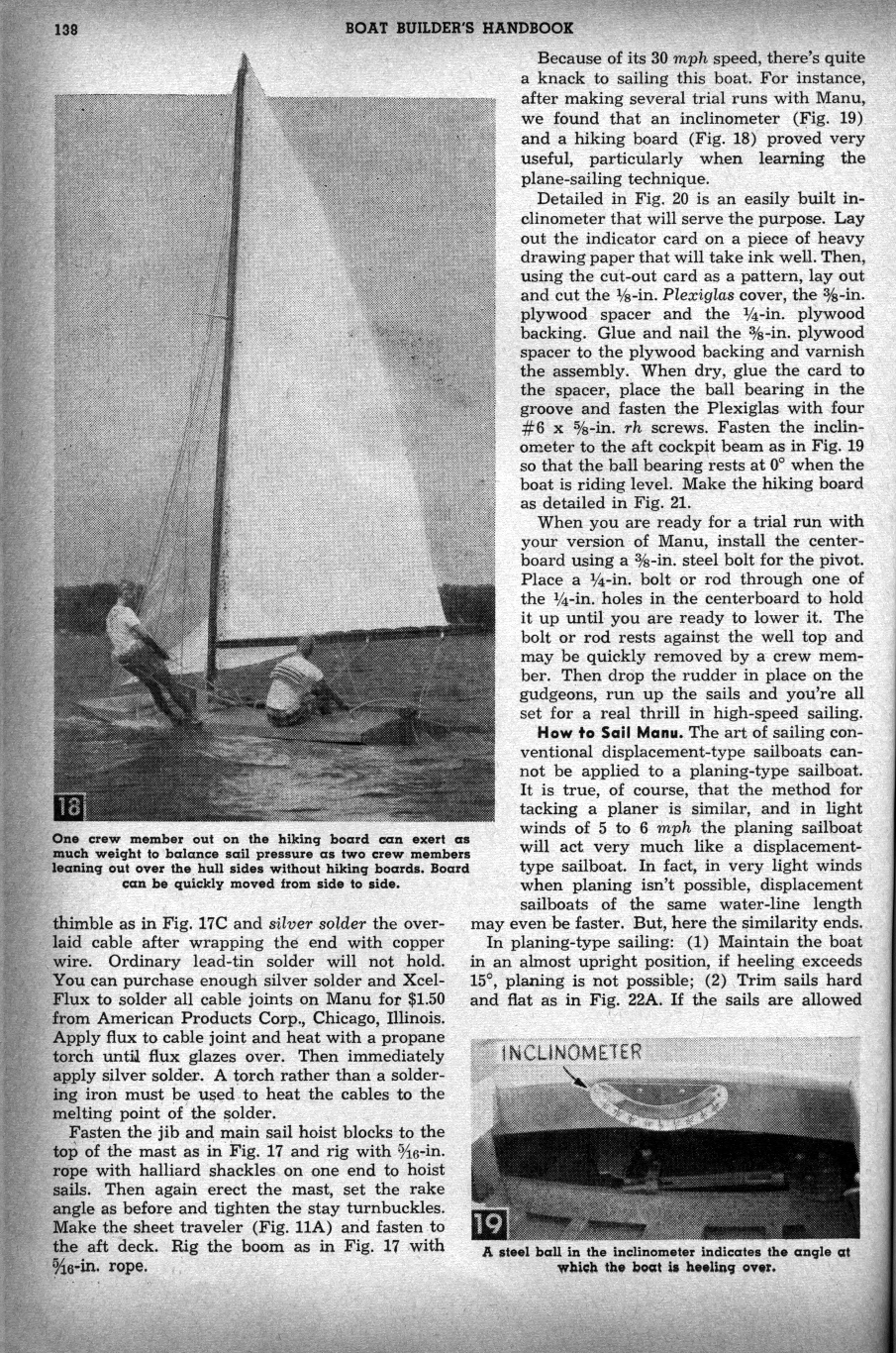

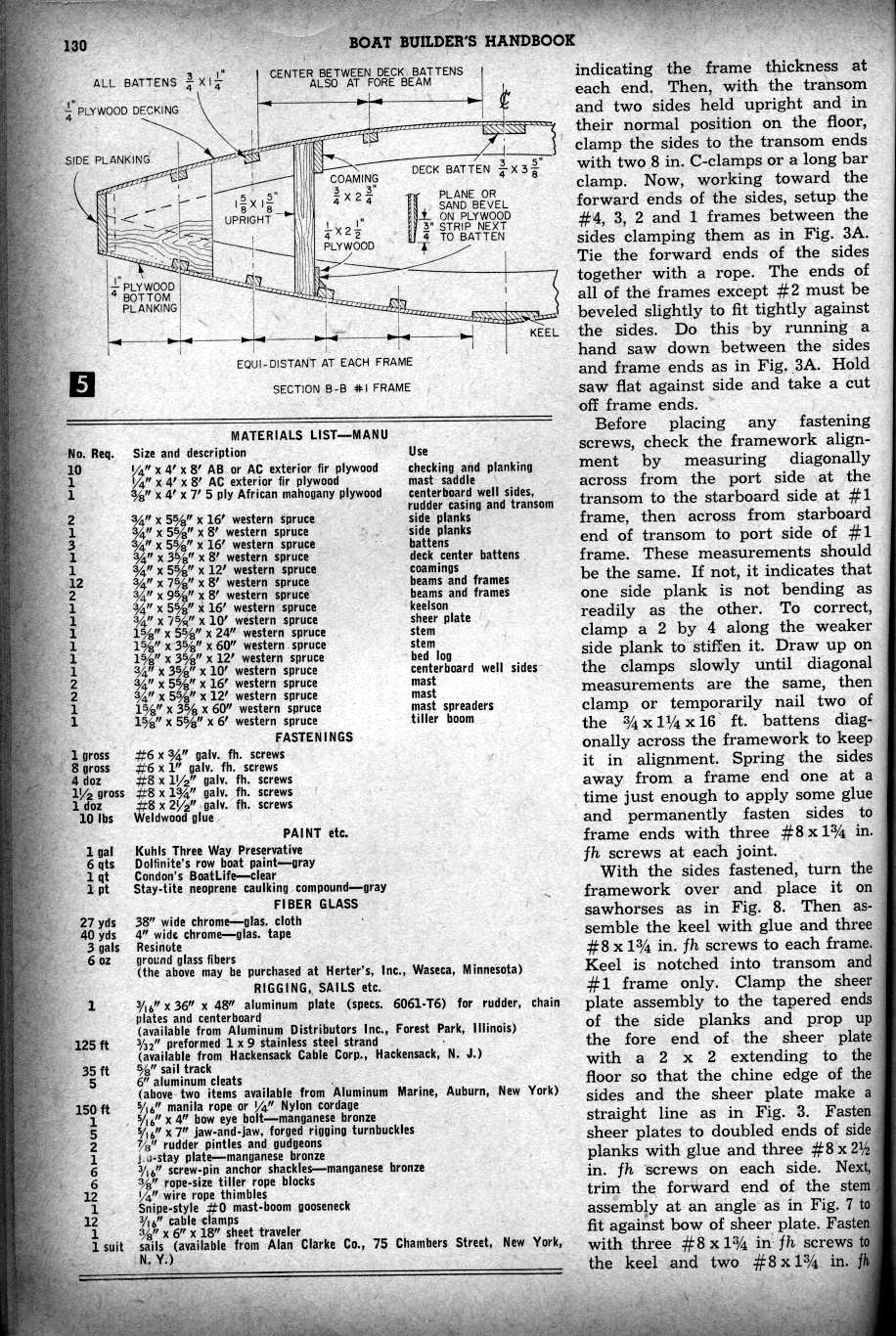

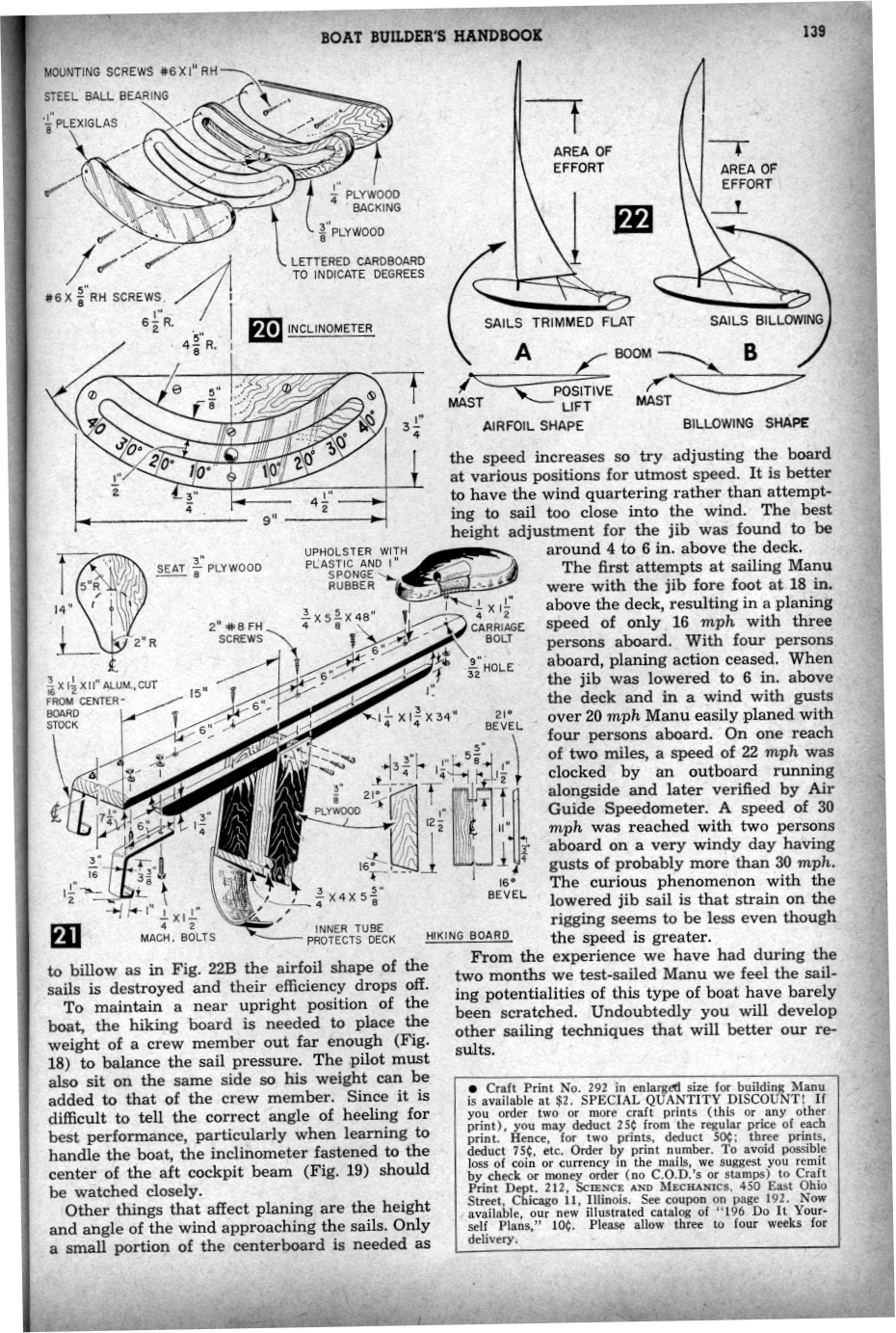

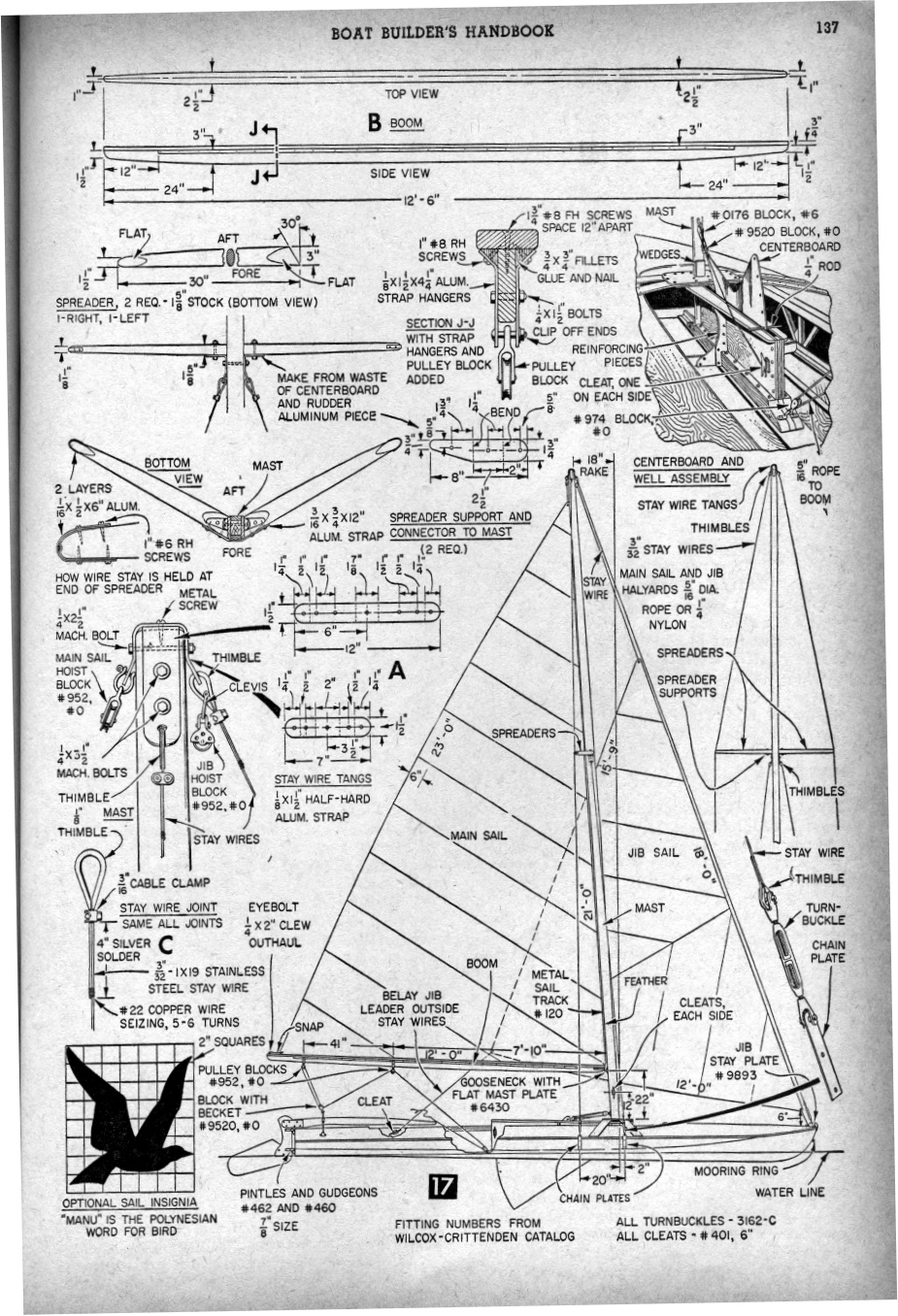

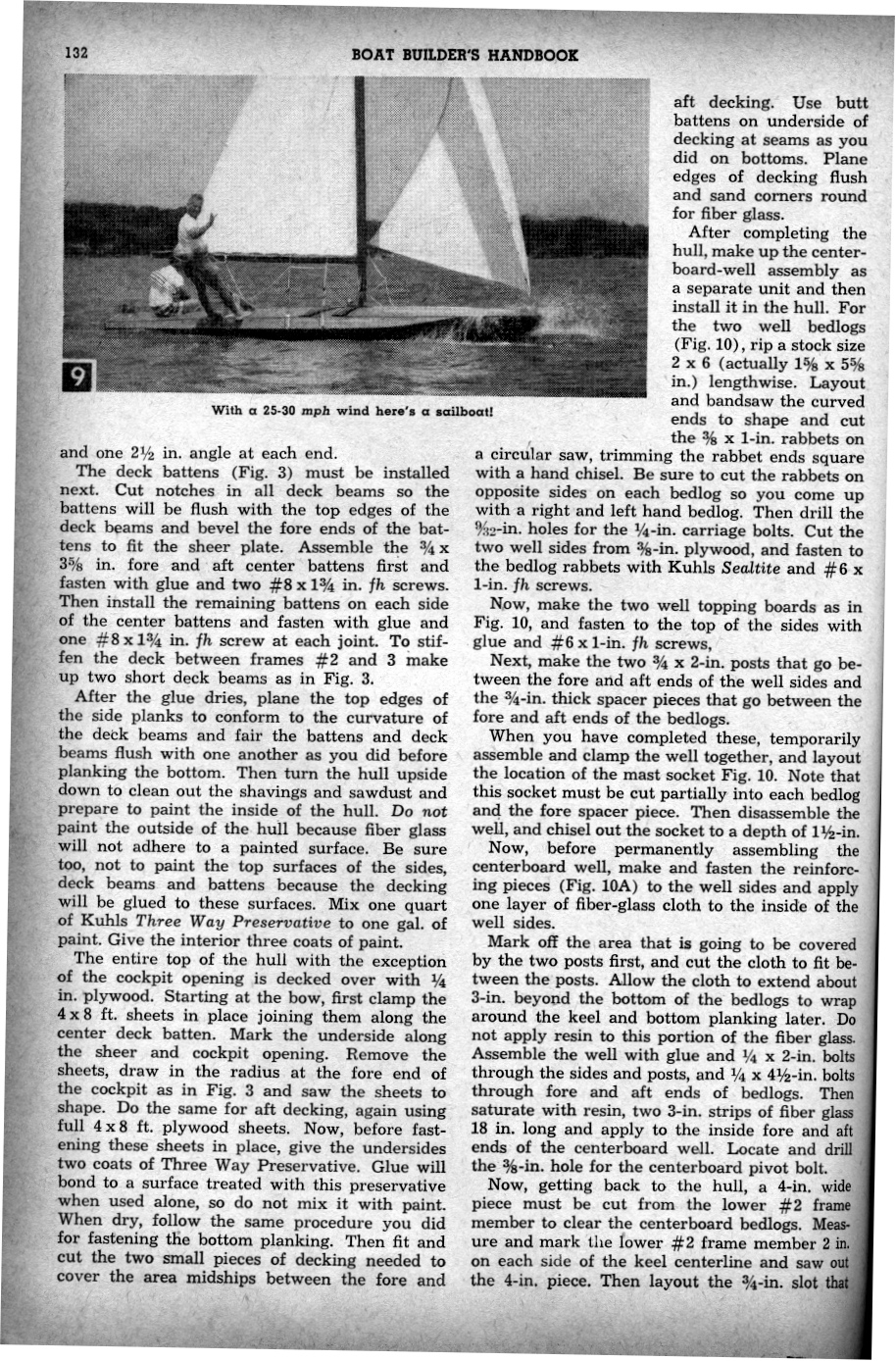

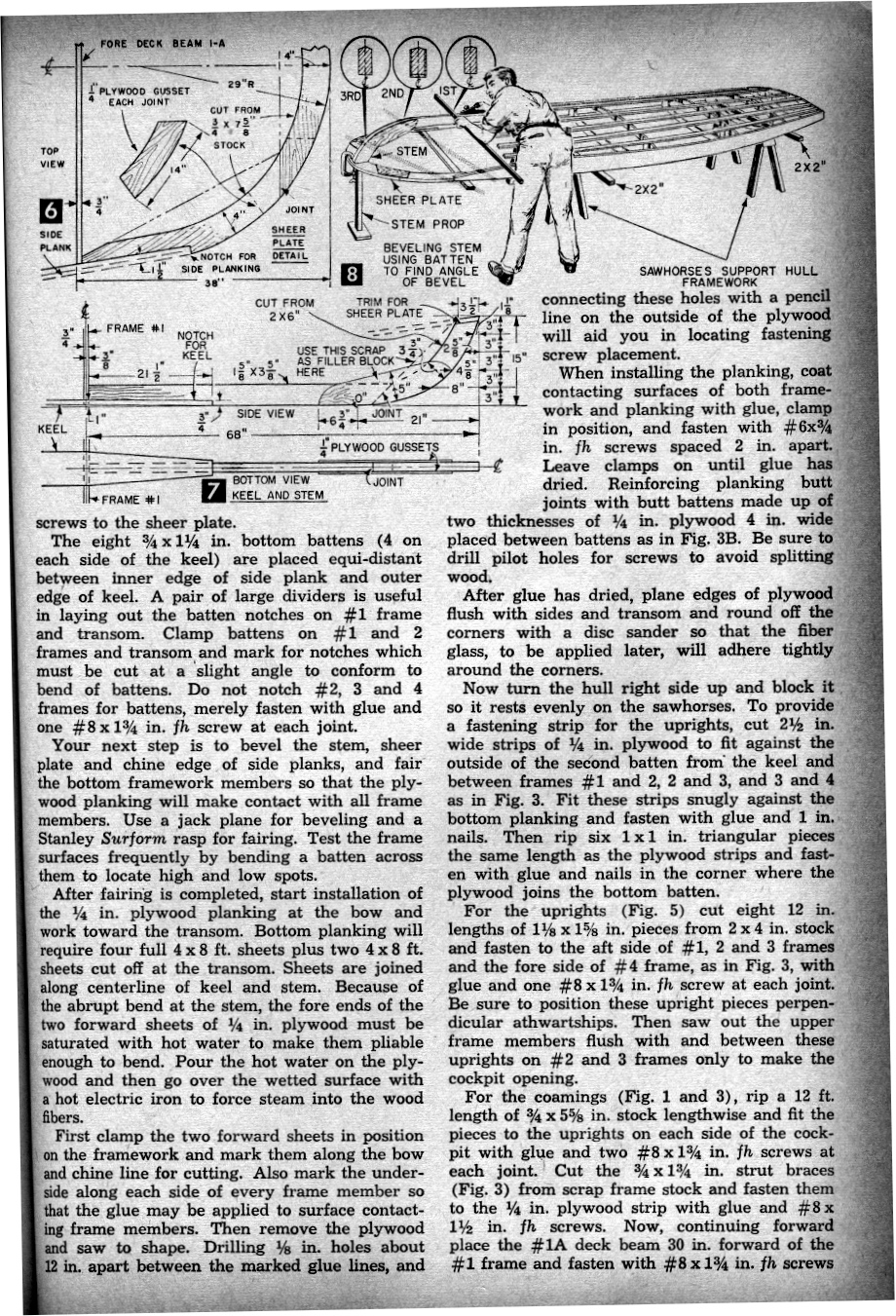

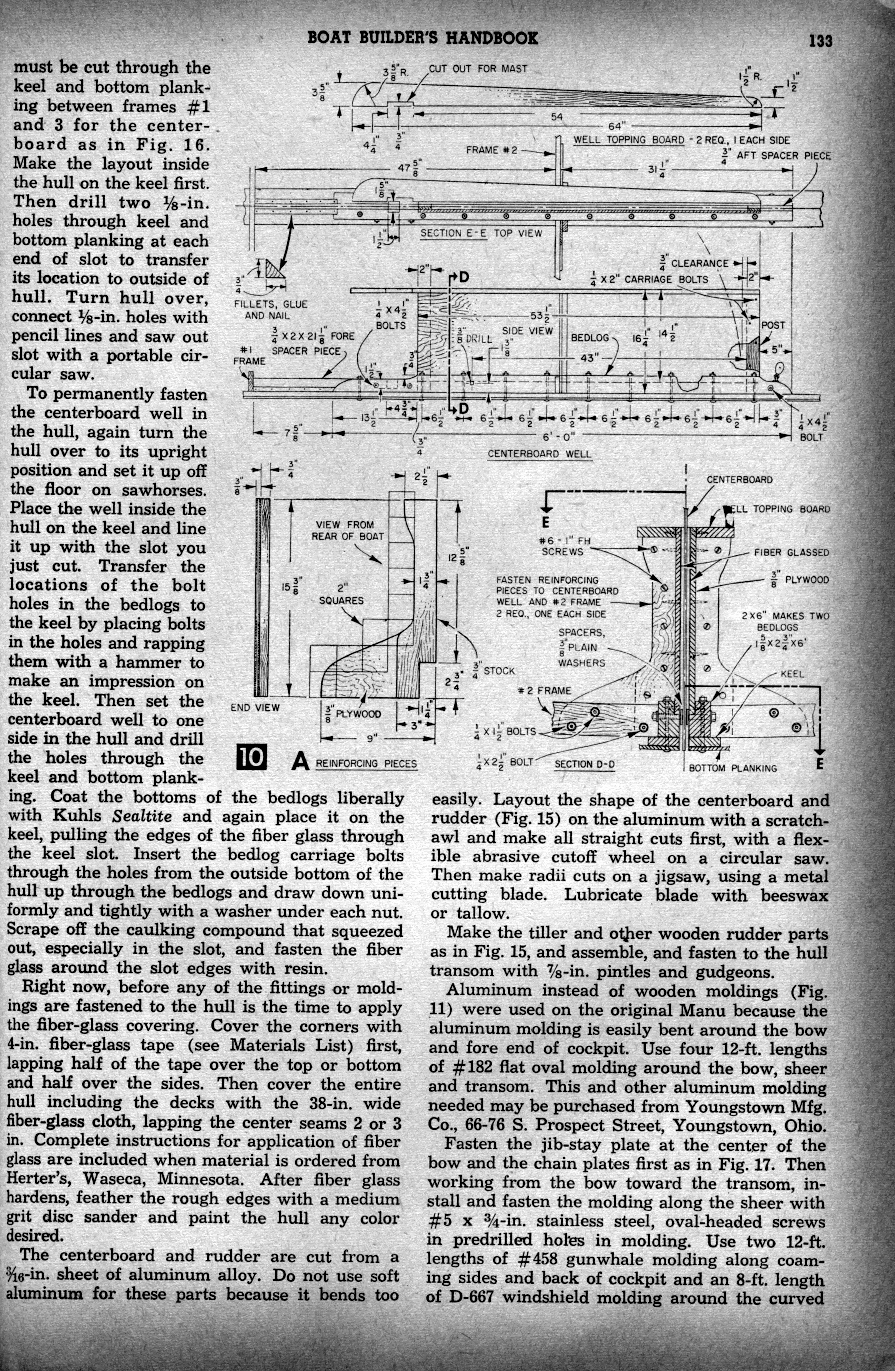

Plan sheets 15
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
