Dart
A fast 13-foot sailboat
- Category
- Sail Boats
- Published
- Boat Builder's Annual, p. 129
- Craft Print
- 76

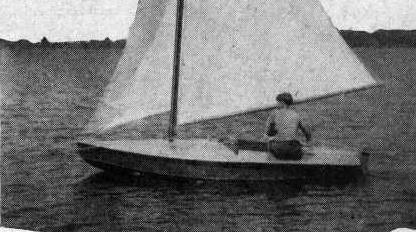

A small, fast two- or three-person sailboat for protected waters, usable as a one-design class or general-purpose boat. The jib and main are easy to handle, it points closely and foots quickly, and it can also take a small outboard. All difficult joinery has been eliminated.
Specifications
- Length
- 13 ft 4 in
- Beam
- 5 ft
- Depth
- 18 in
- Weight
- 275 lb
- Capacity
- 3 persons
- Construction
- Planking or Super-Harbord marine plywood sides and bottom; semi-vee bottom, pointed bow
- Power
- Sail: 100 sq ft (jib and main); small outboard possible
Downloads

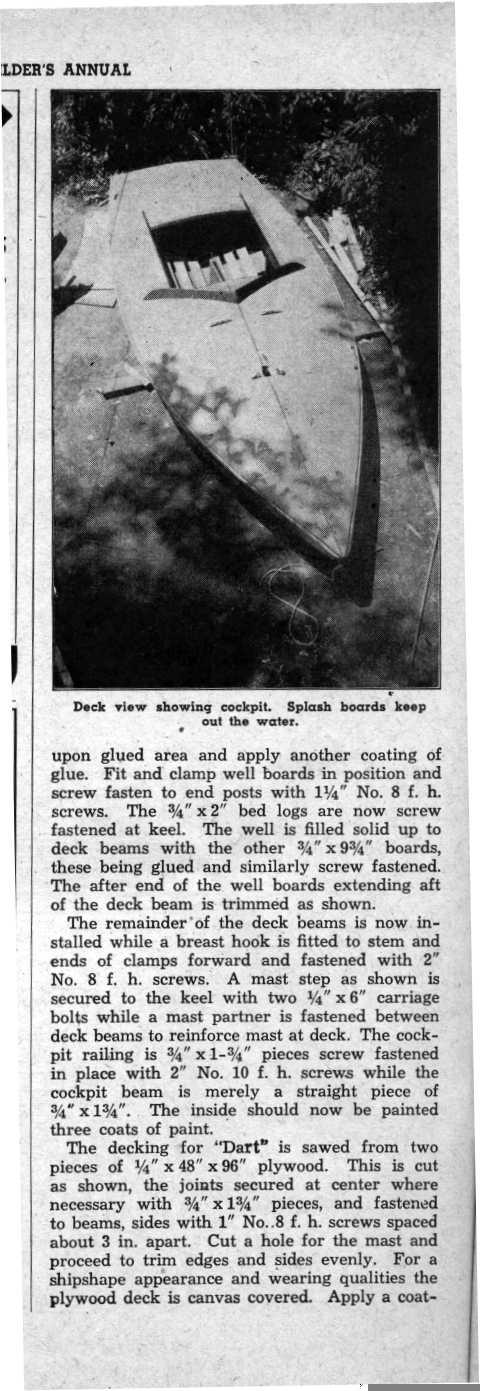

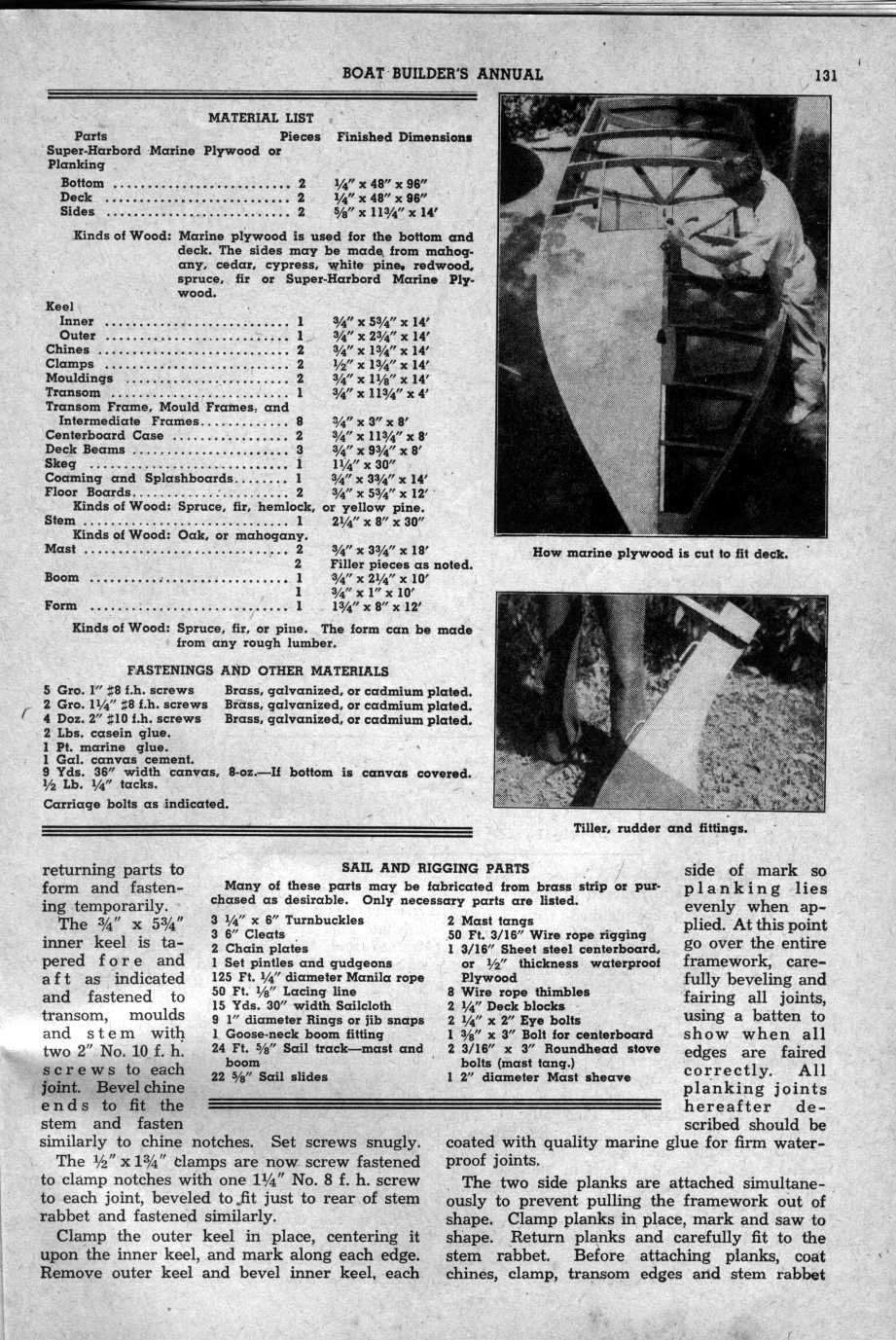

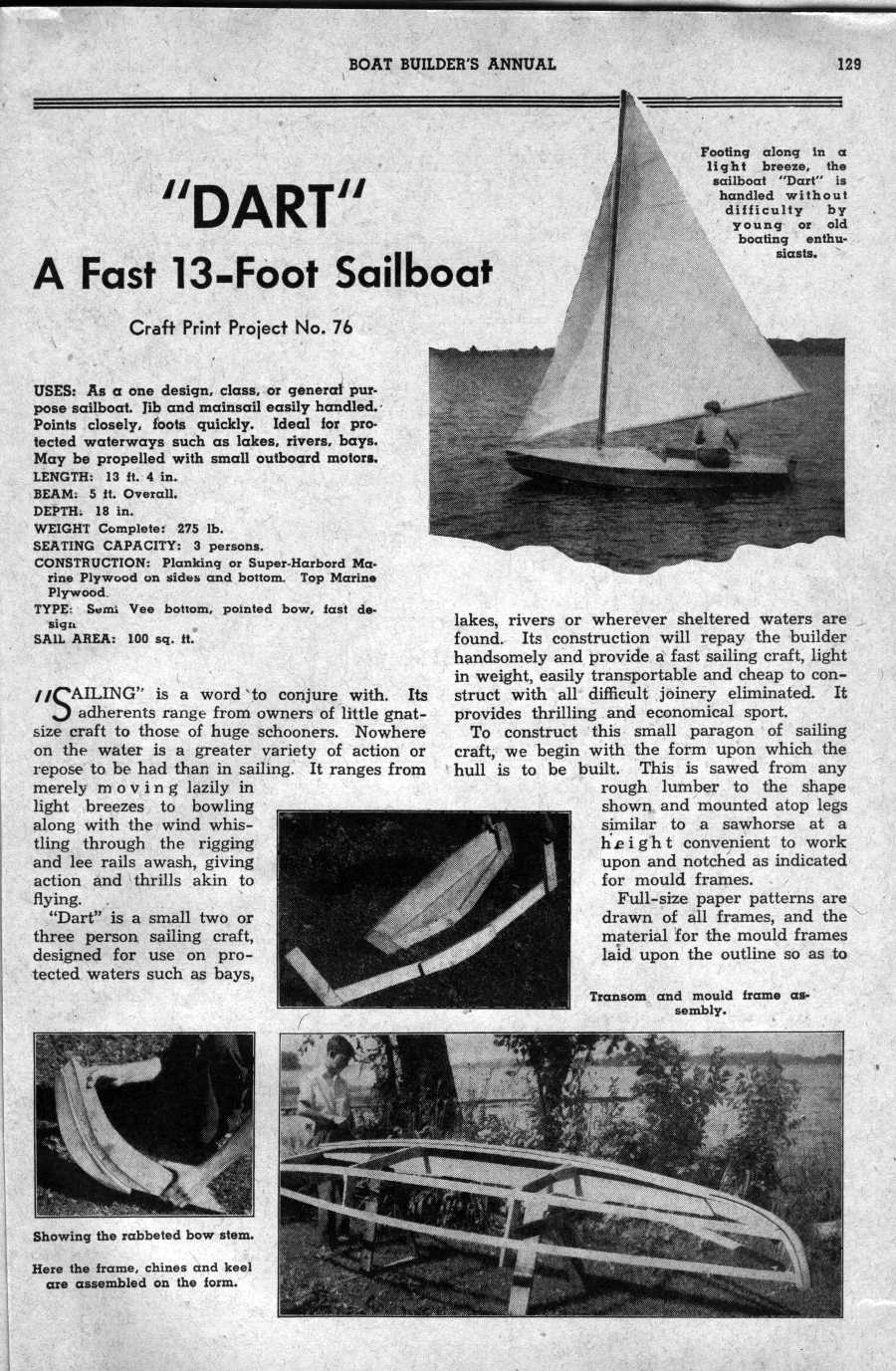

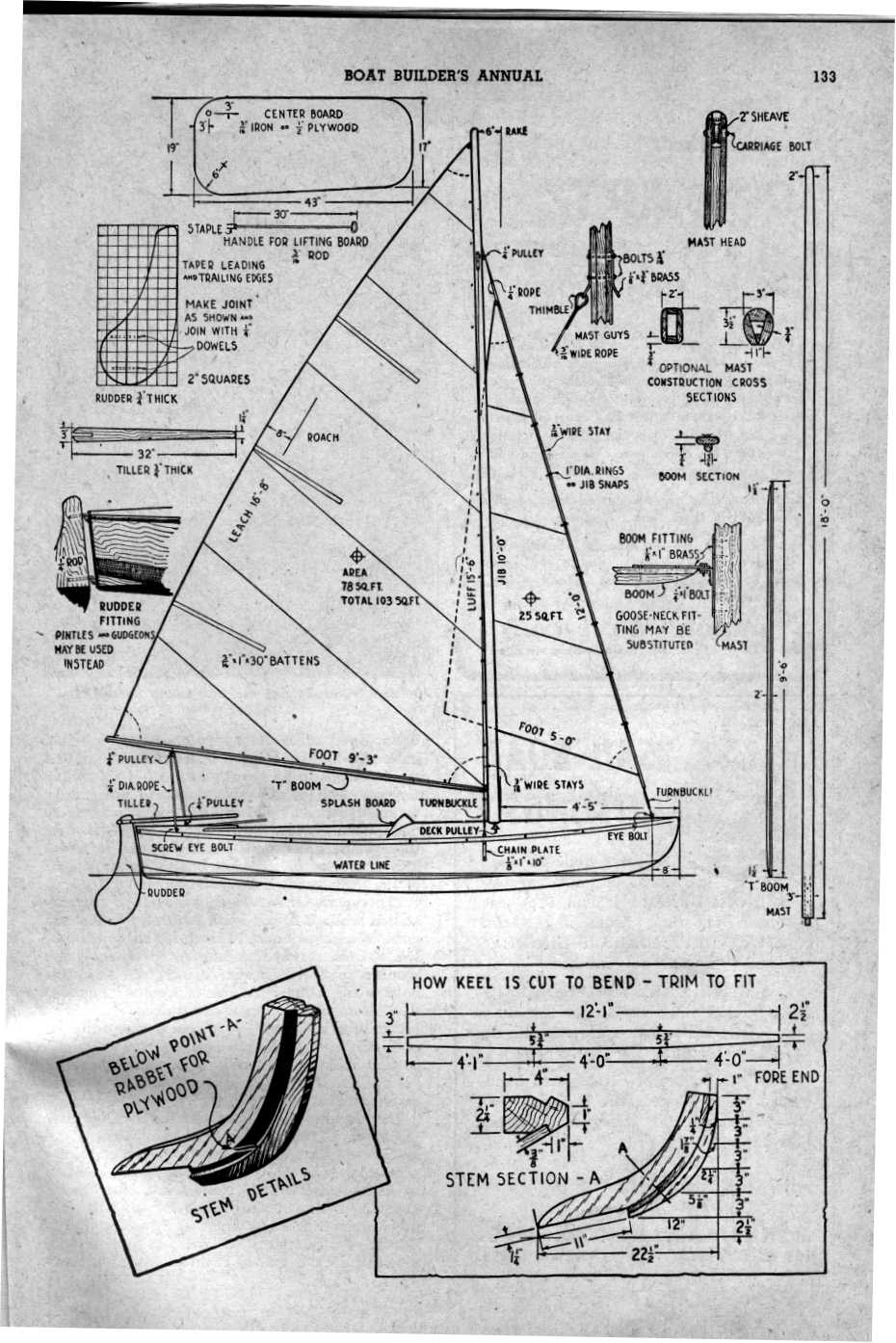

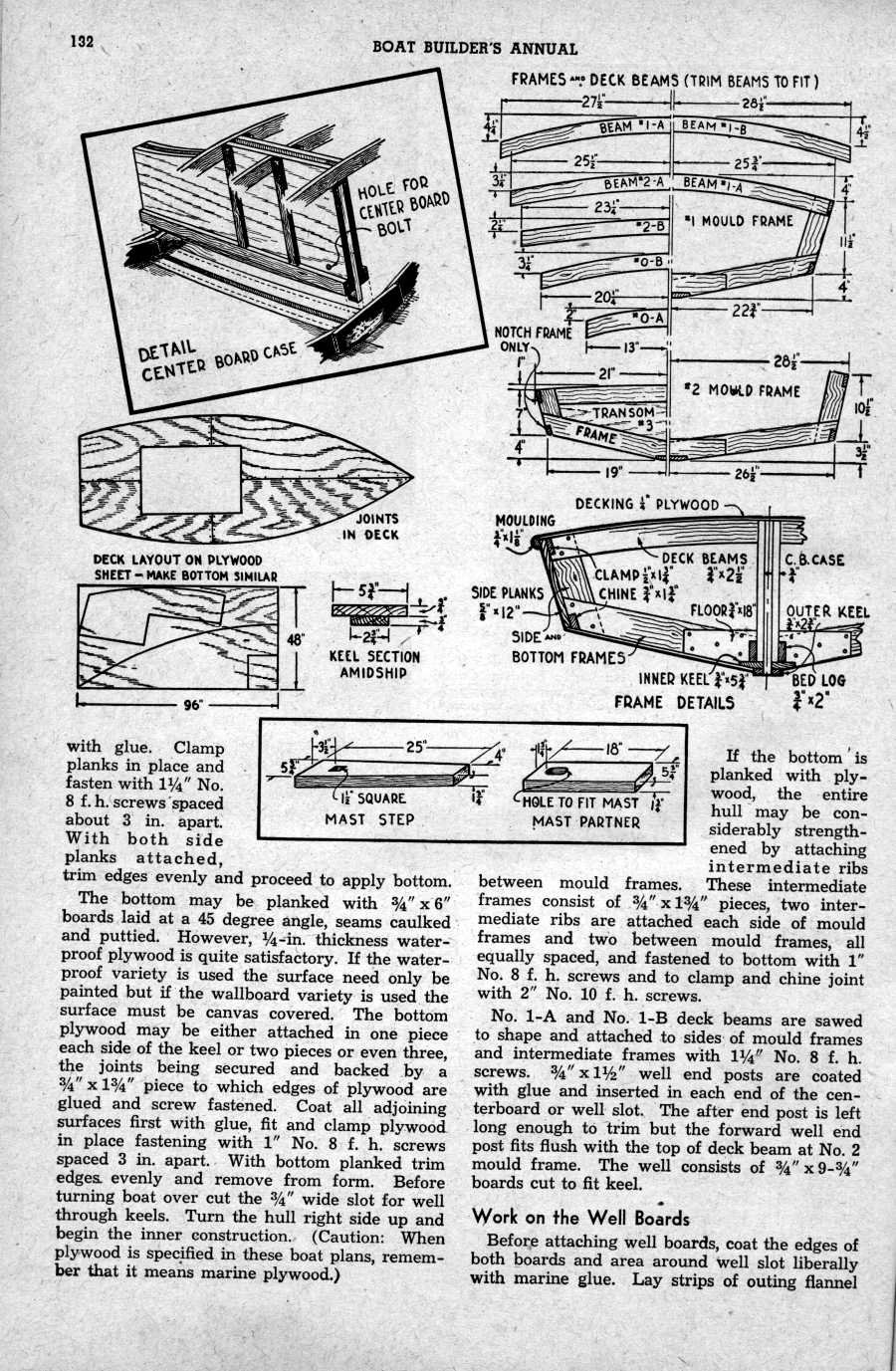

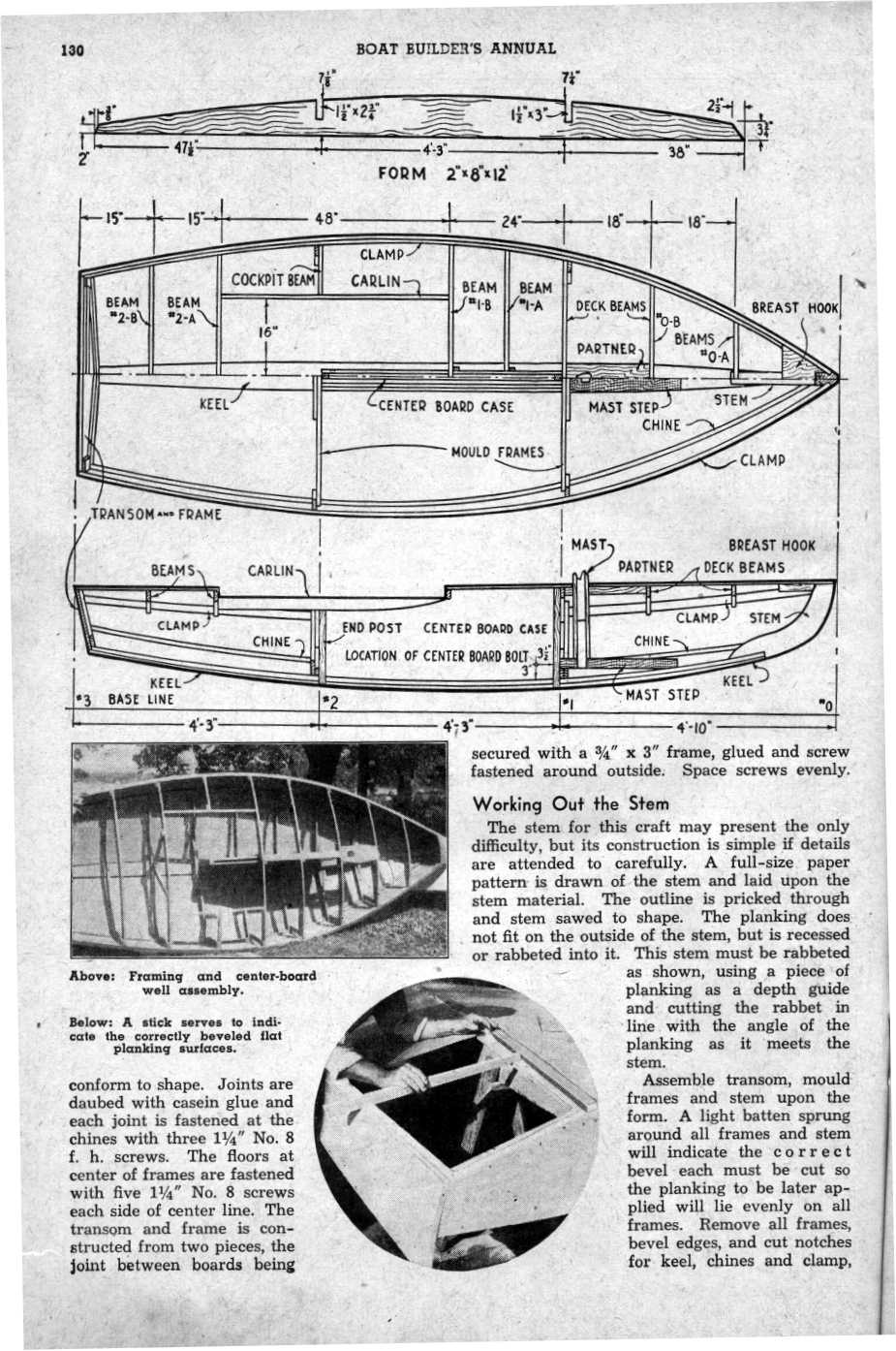

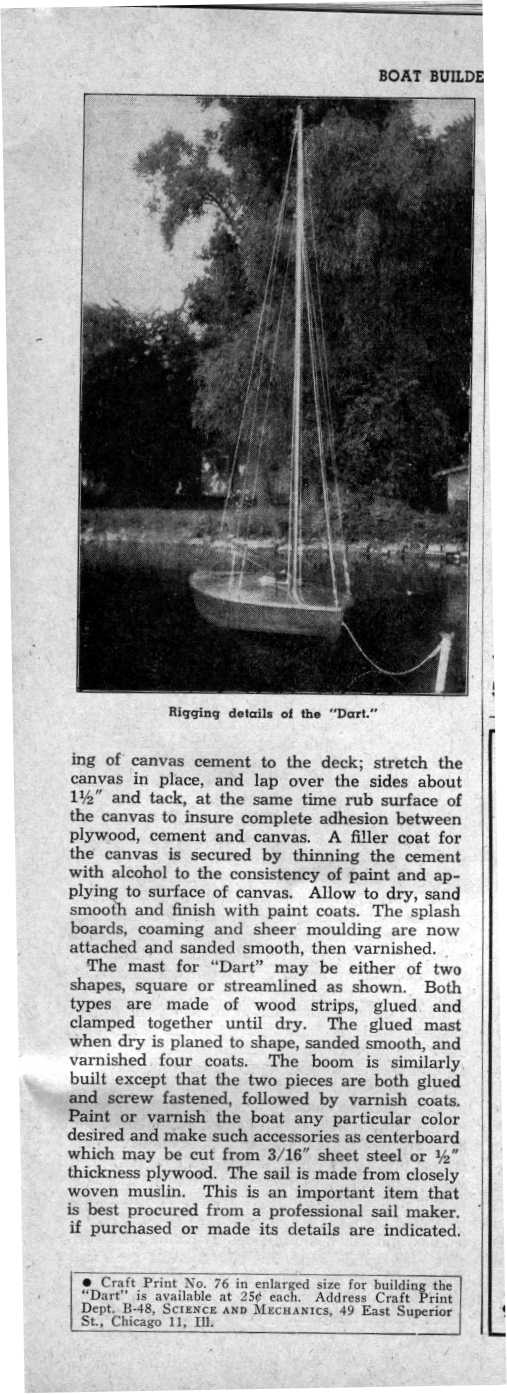

Plan sheets 8
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
