Crescent
Vee-bottom centerboard family day sailer
- Category
- Sail Boats
- Designer
- C. T. Allen
- Published
- Boat Builder's Handbook, p. 84
- Craft Print
- 278

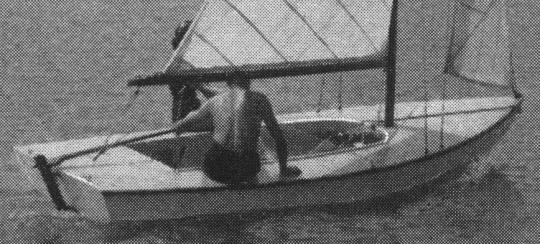

An ideal family day sailer for lakes, rivers and protected bays. The centerboard keeps draft shallow, and a beam over 5 1/2 ft makes room for a cockpit that seats four adults. A breeze of only 4 mph fills its sails.
Specifications
- Length
- 15 ft 6 in
- Beam
- 67 in
- Weight
- 450 lb
- Capacity
- 4 adults
- Construction
- 3/8 in. exterior plywood over wooden framework; vee bottom with centerboard
- Power
- Sail: 135 sq ft
Downloads

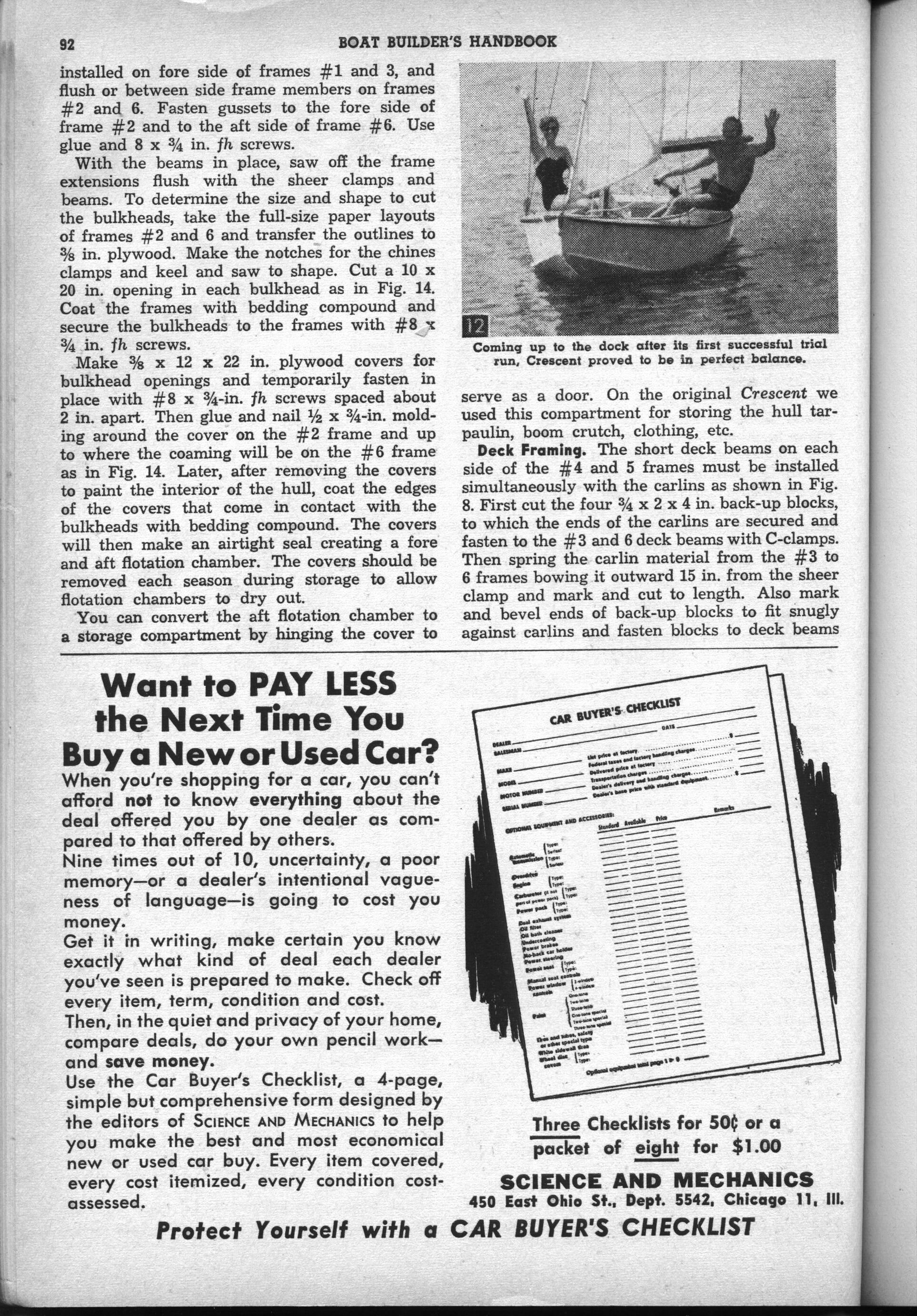

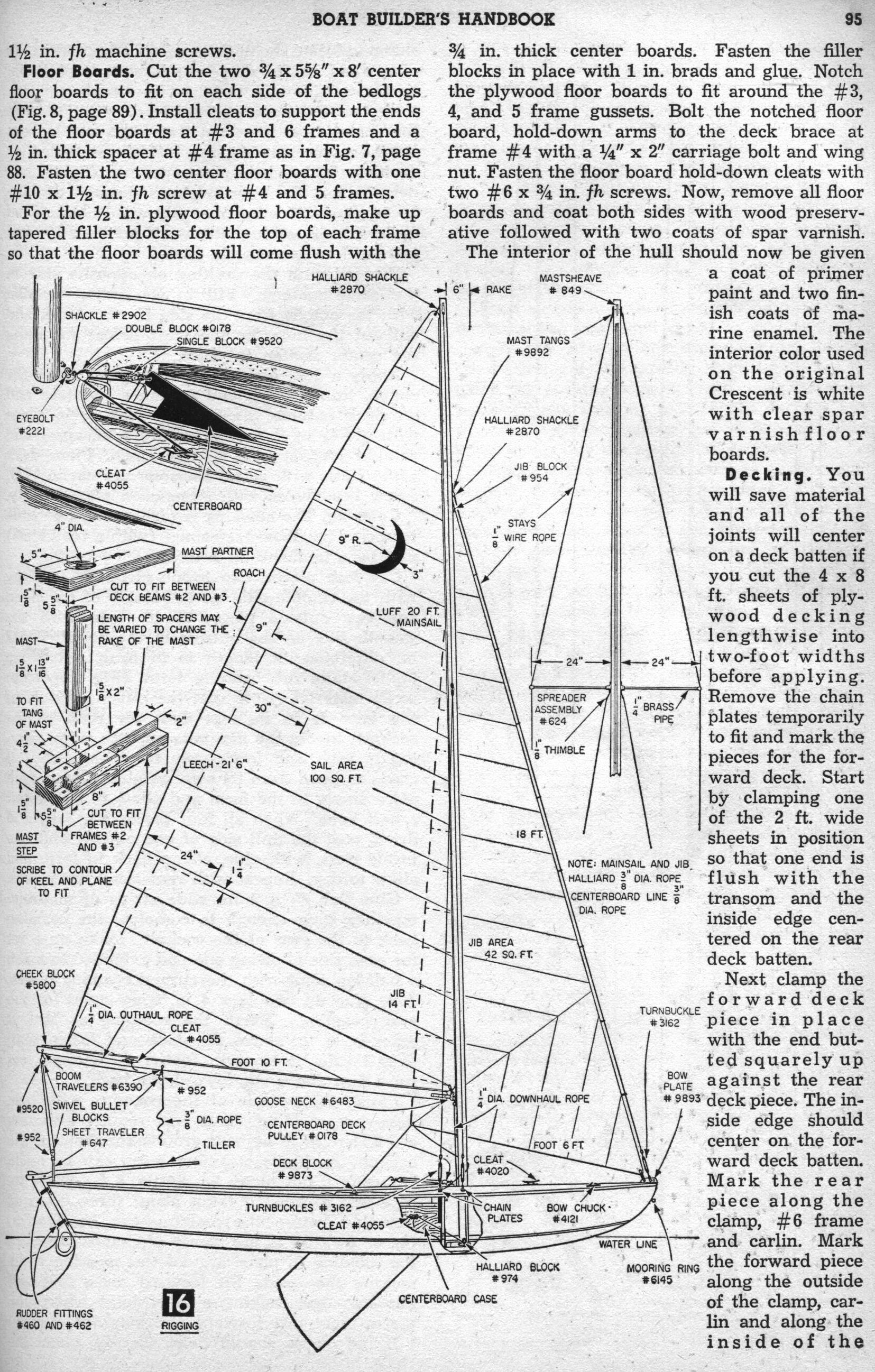

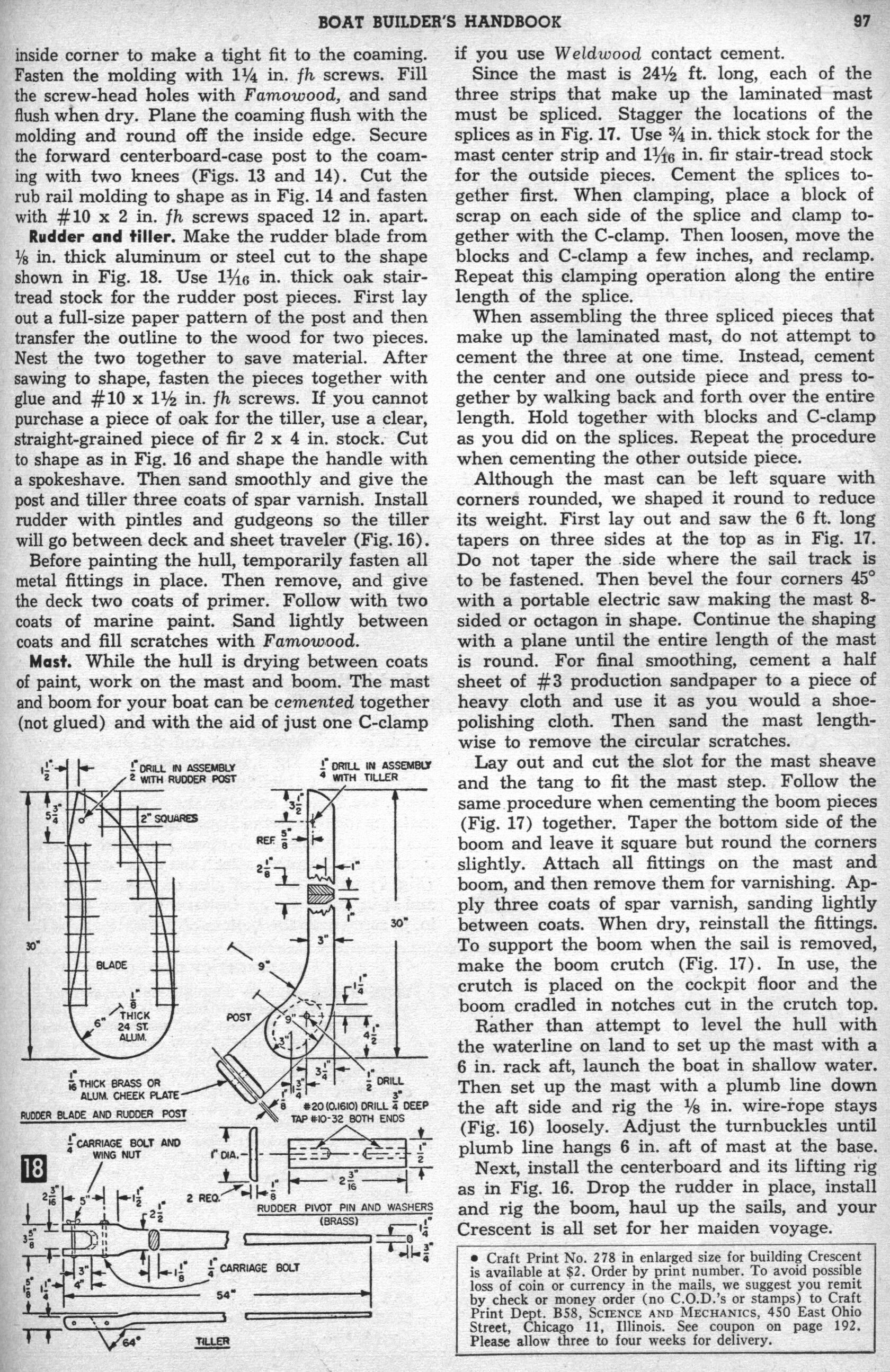

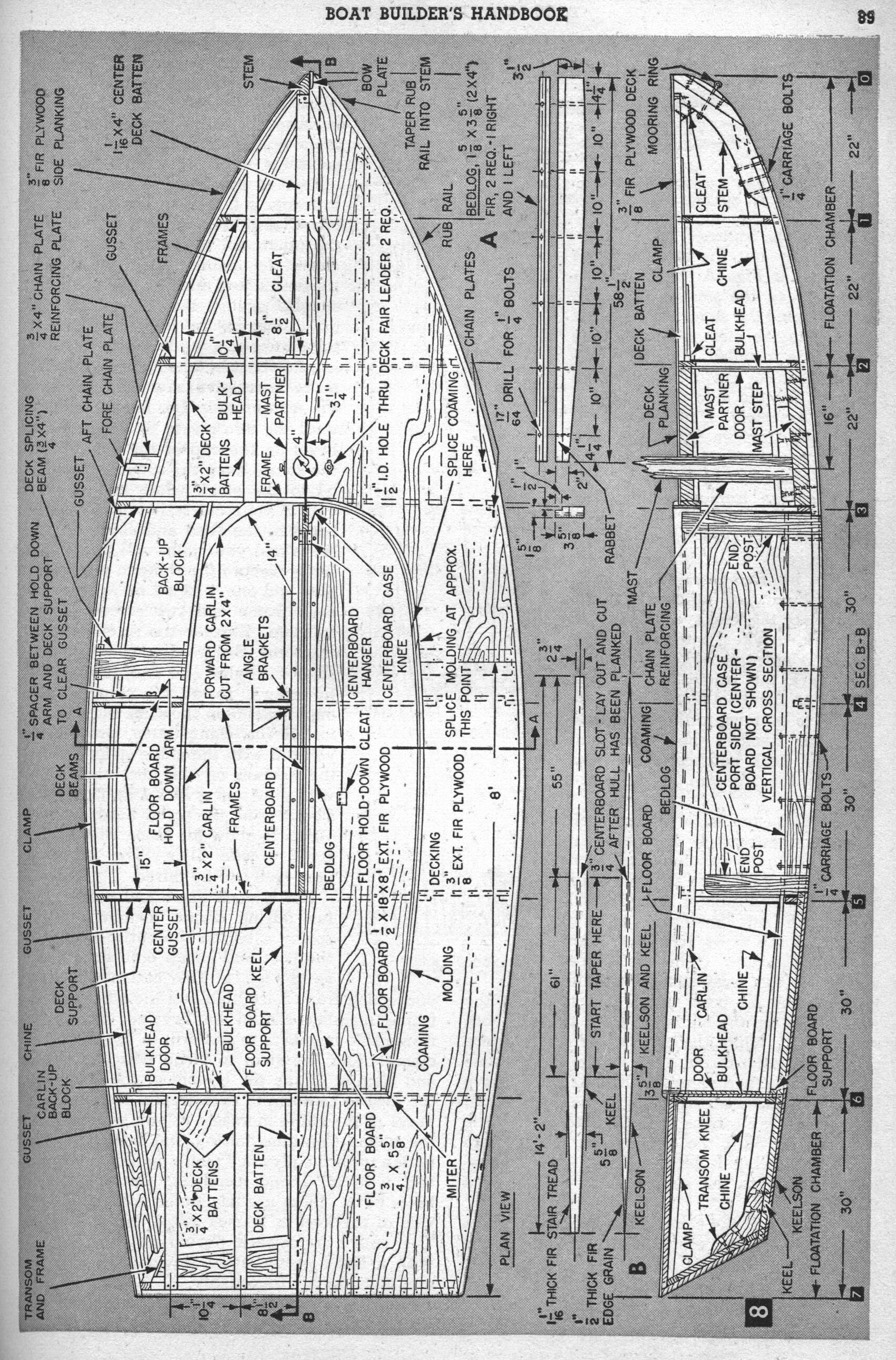

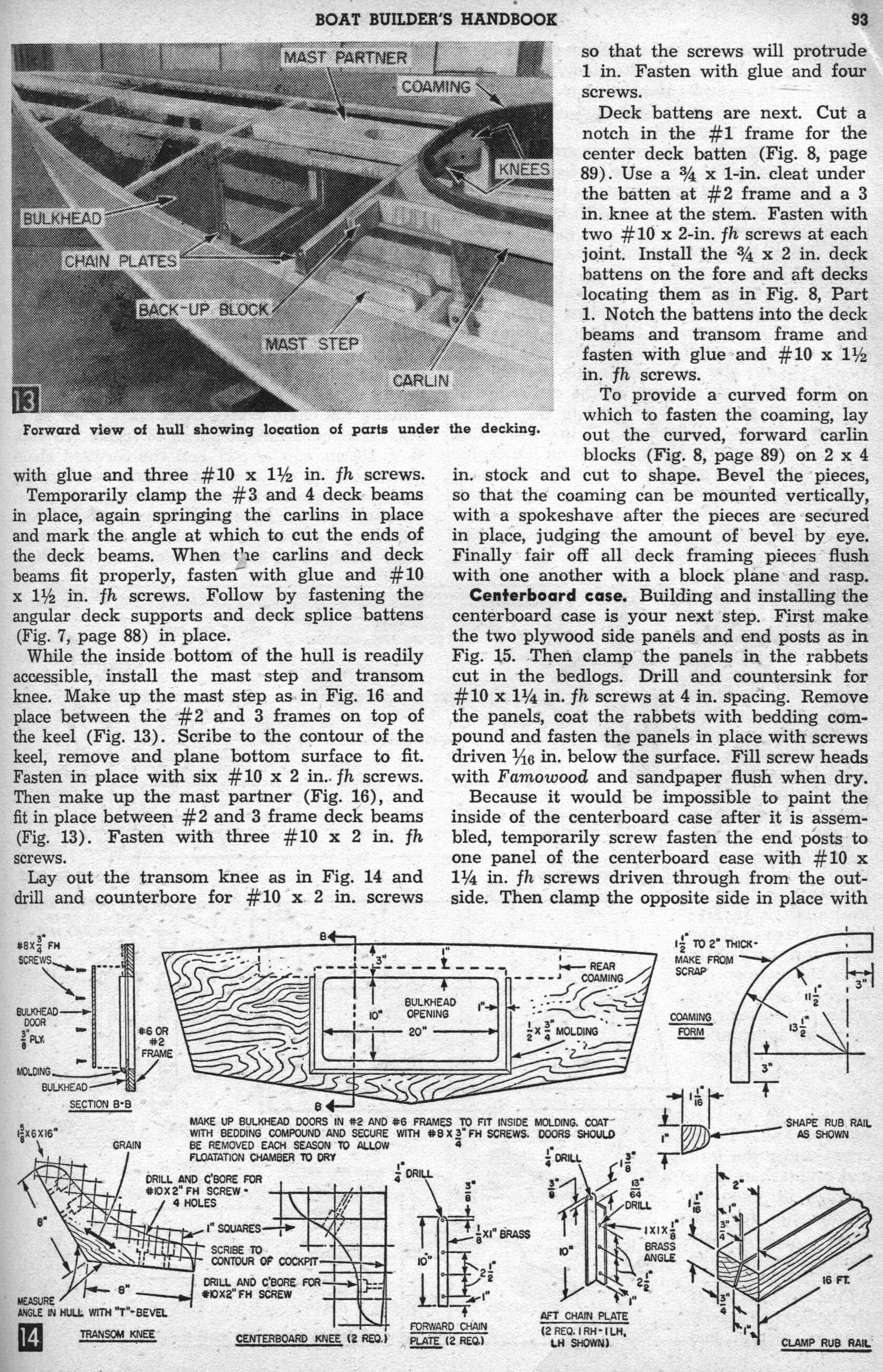

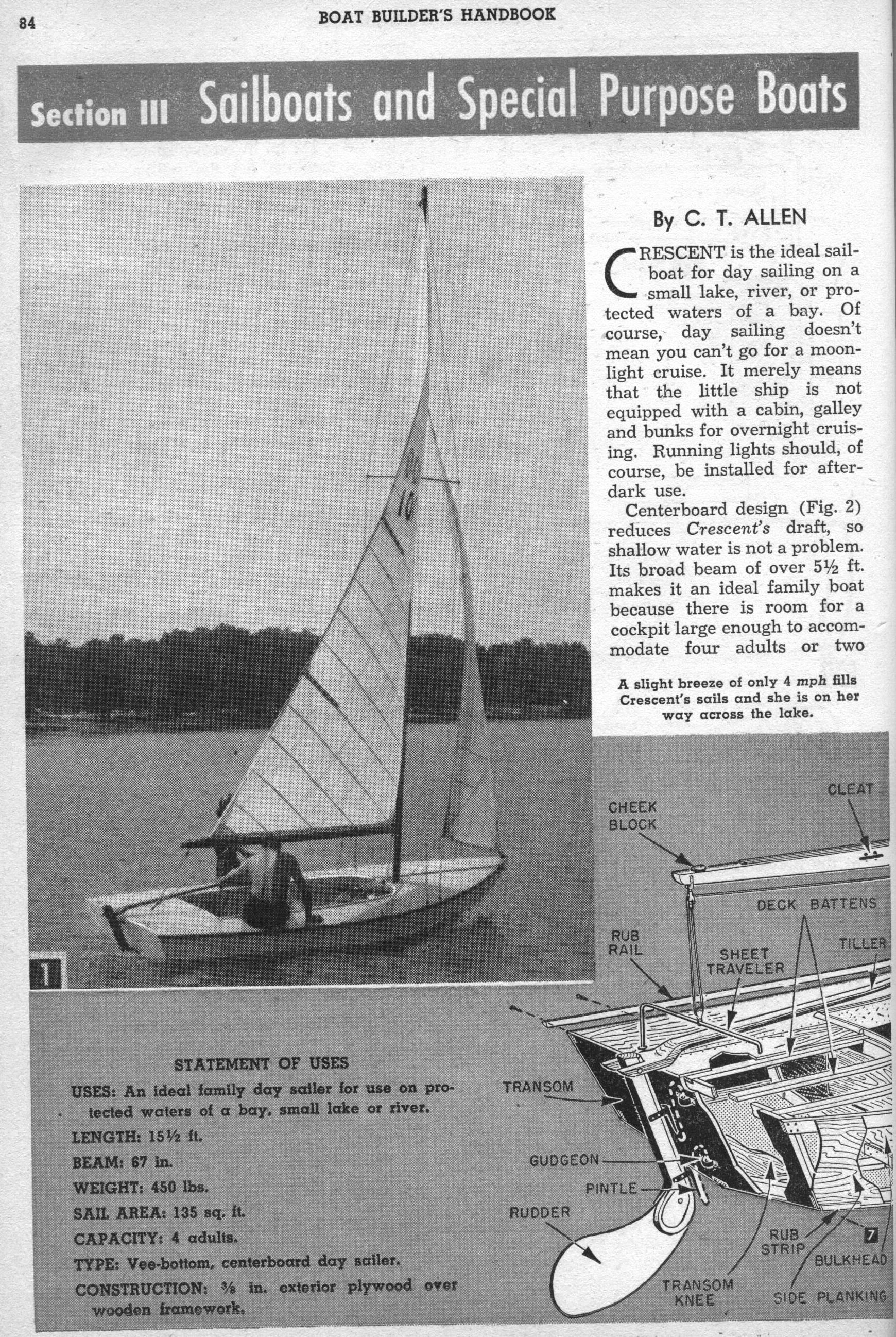

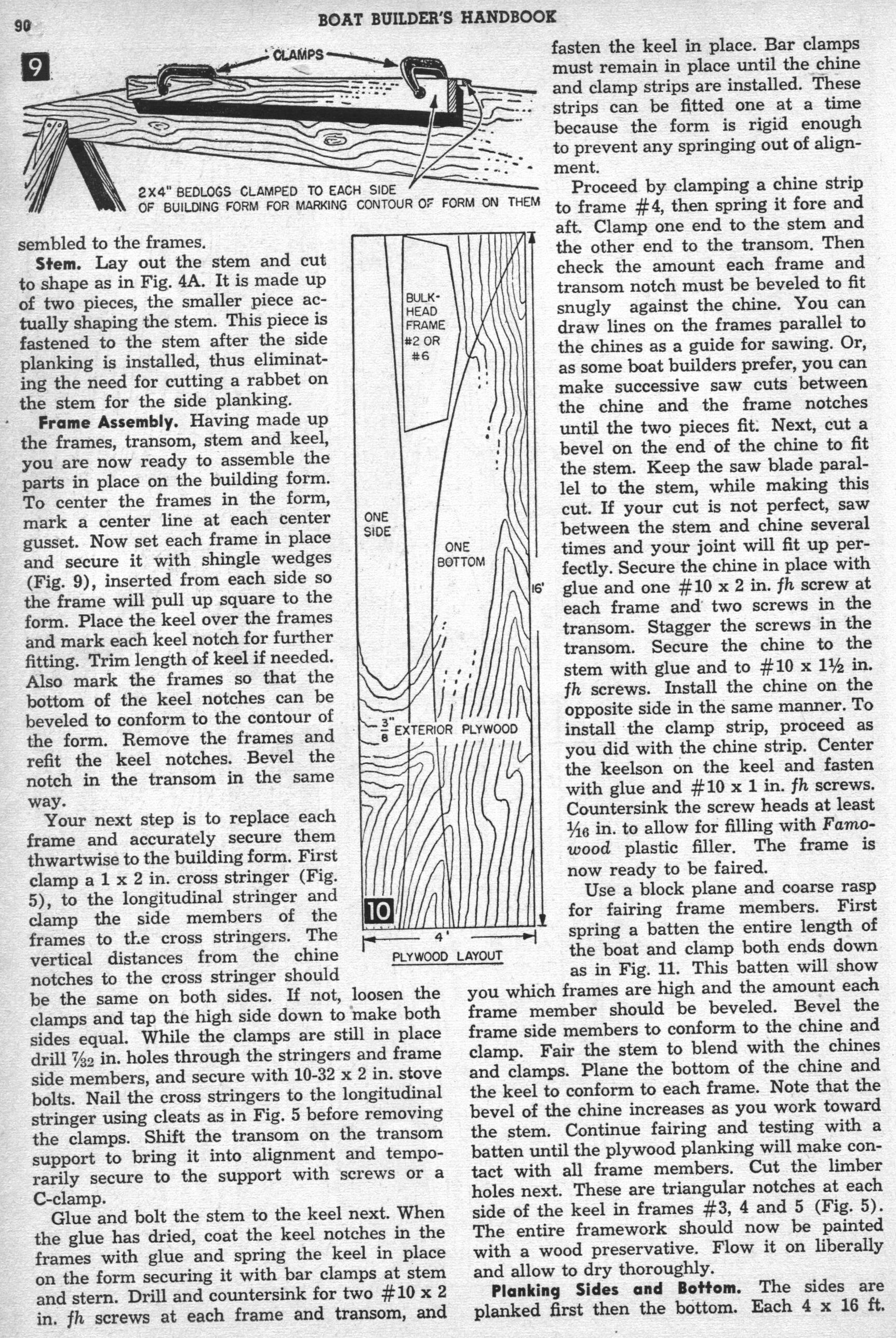

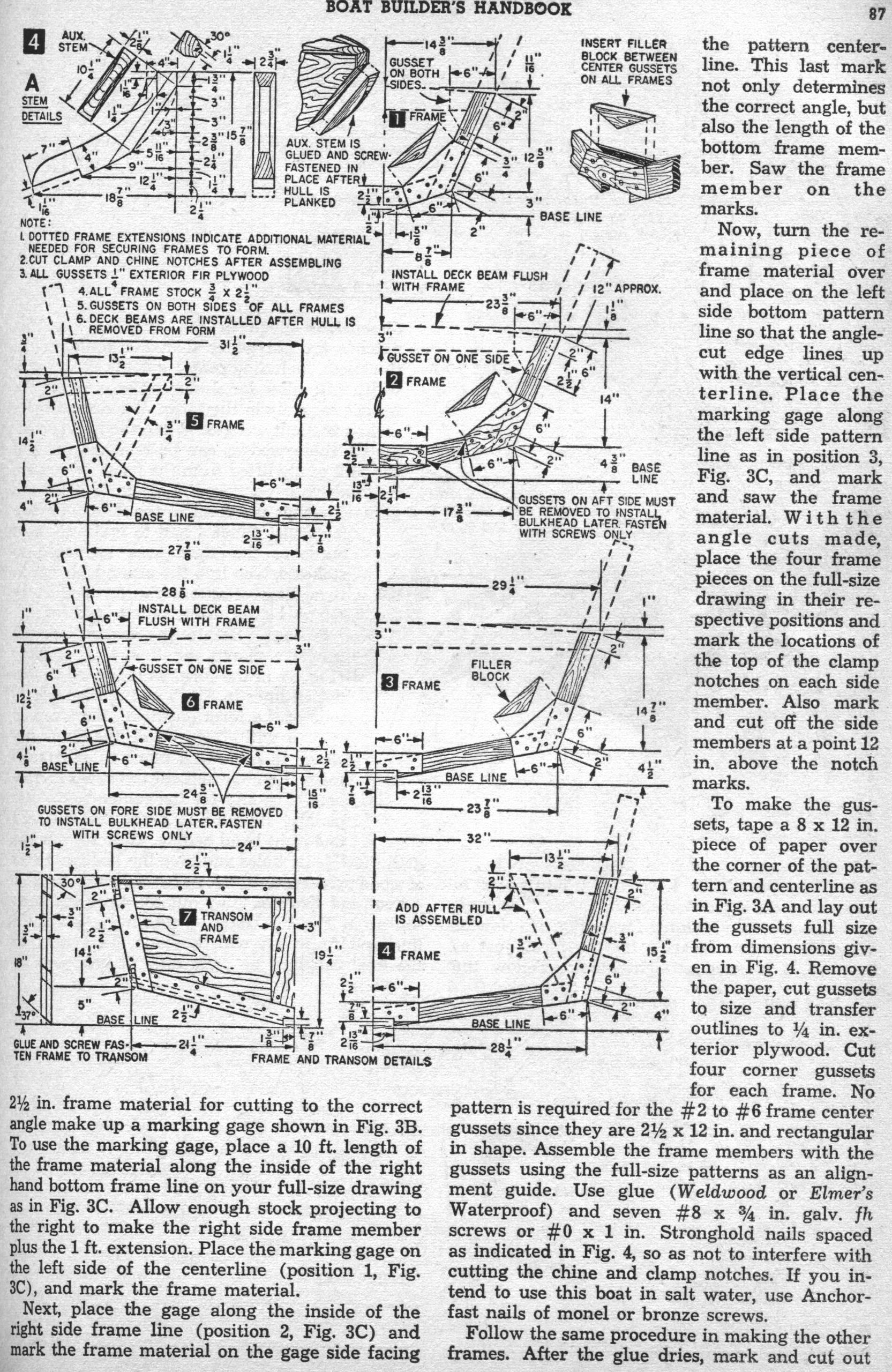

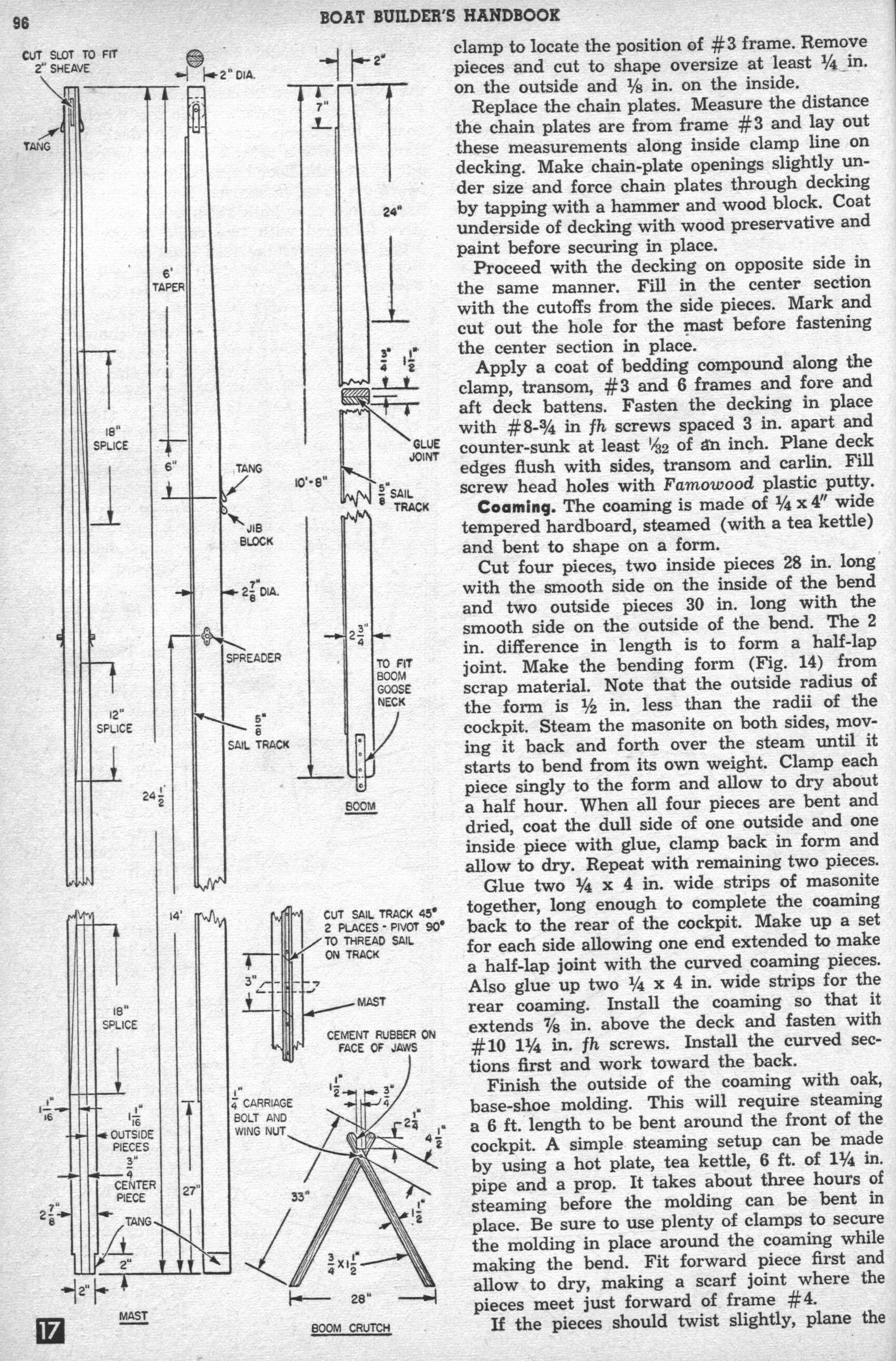

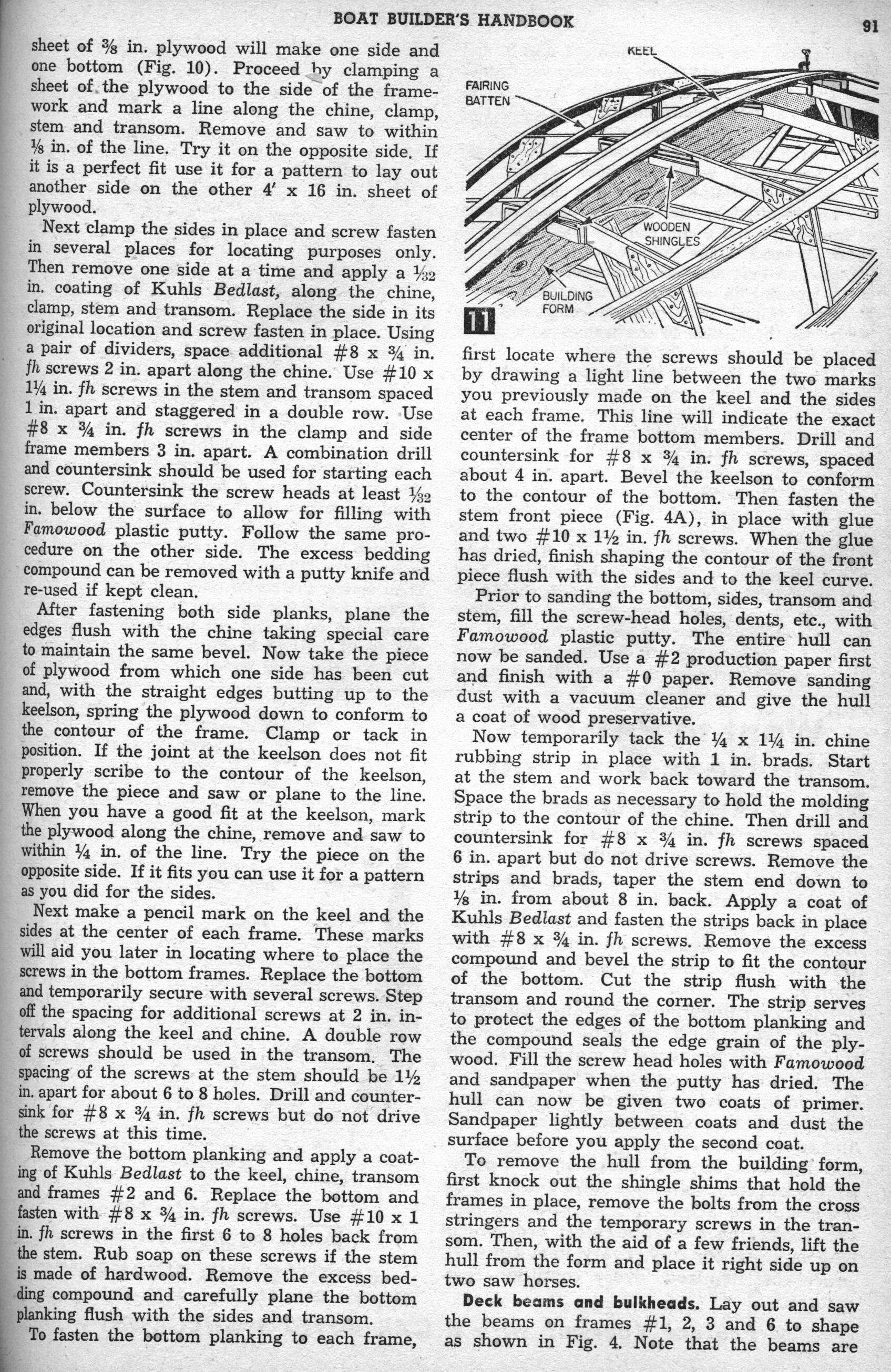

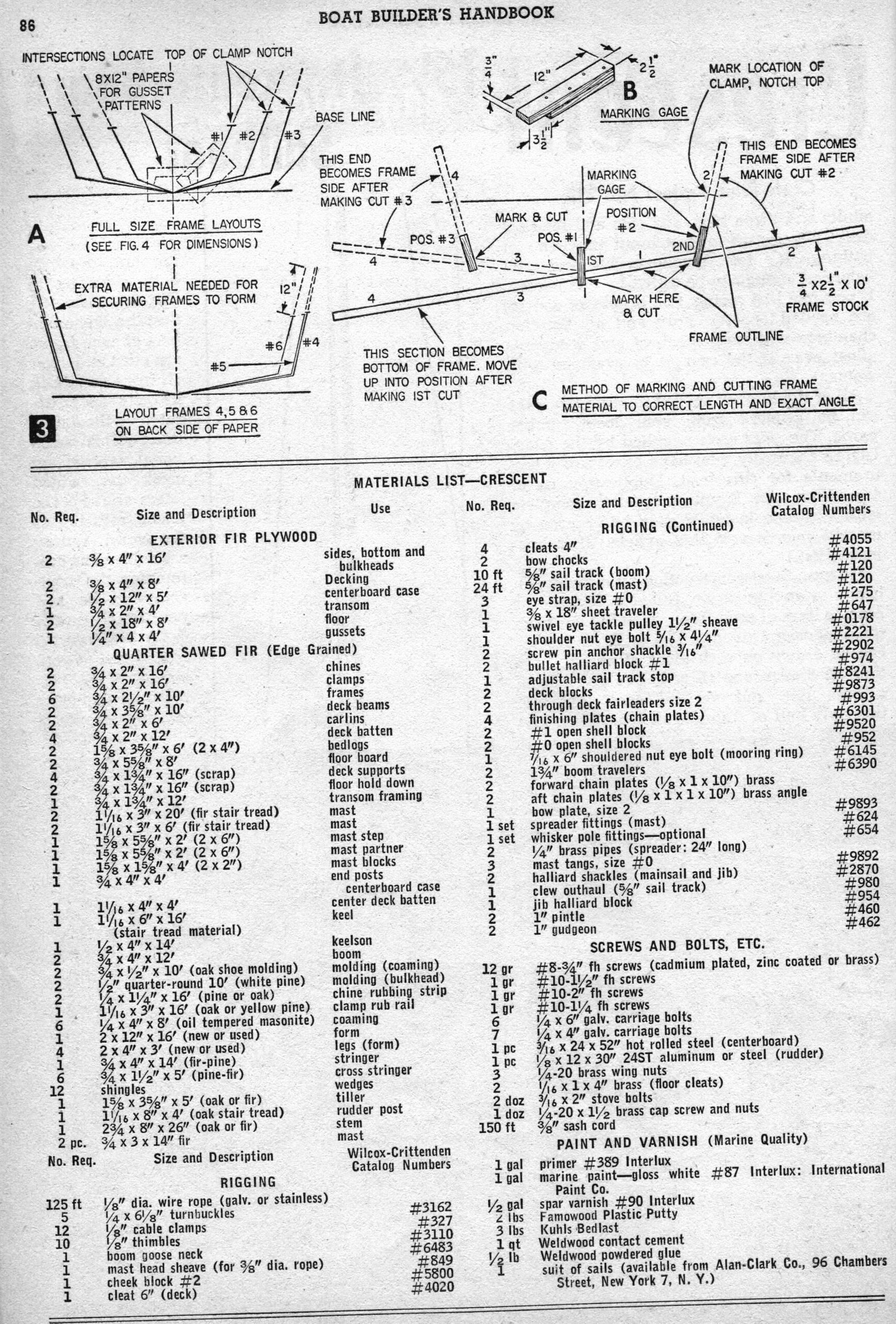

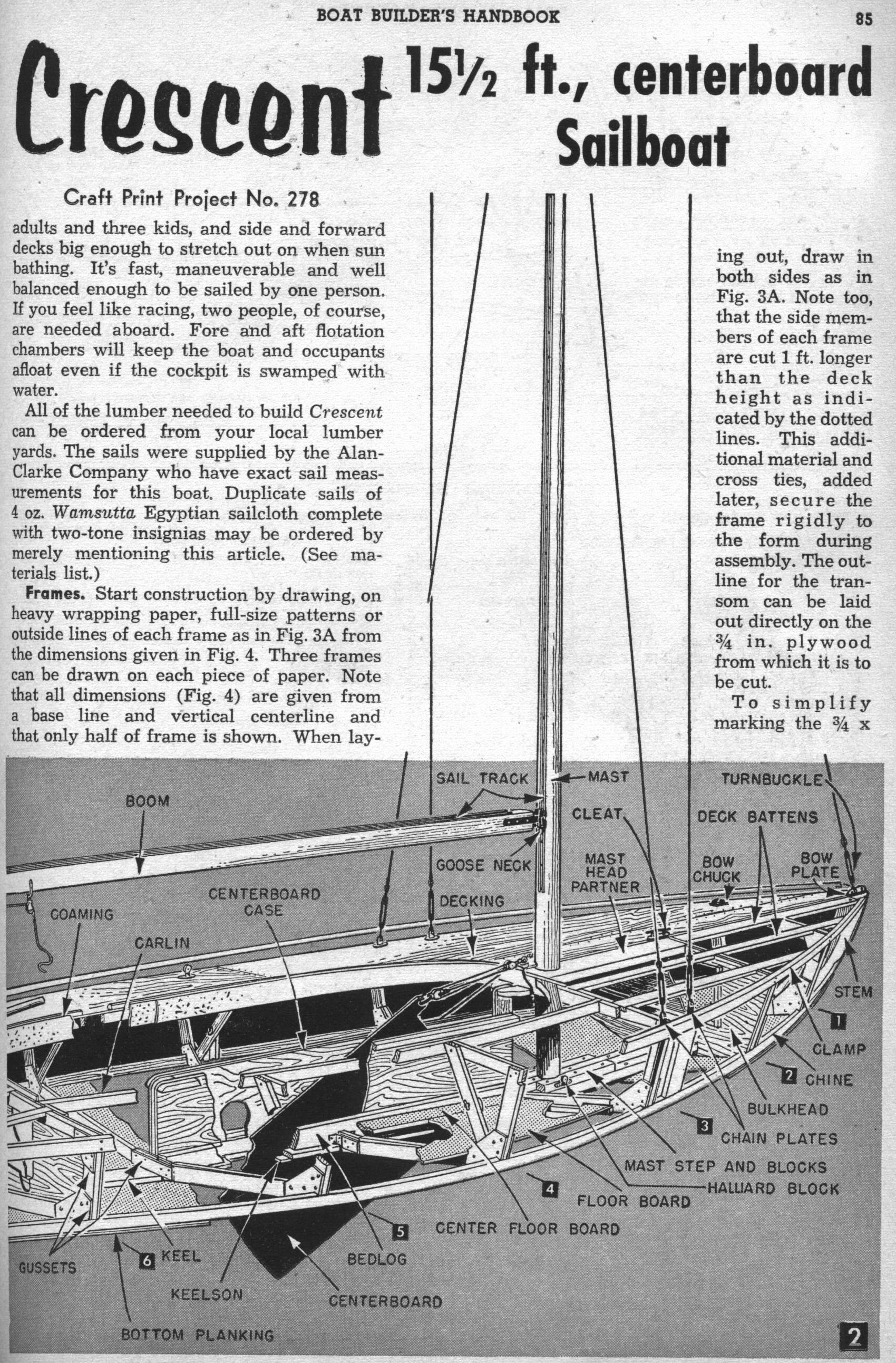

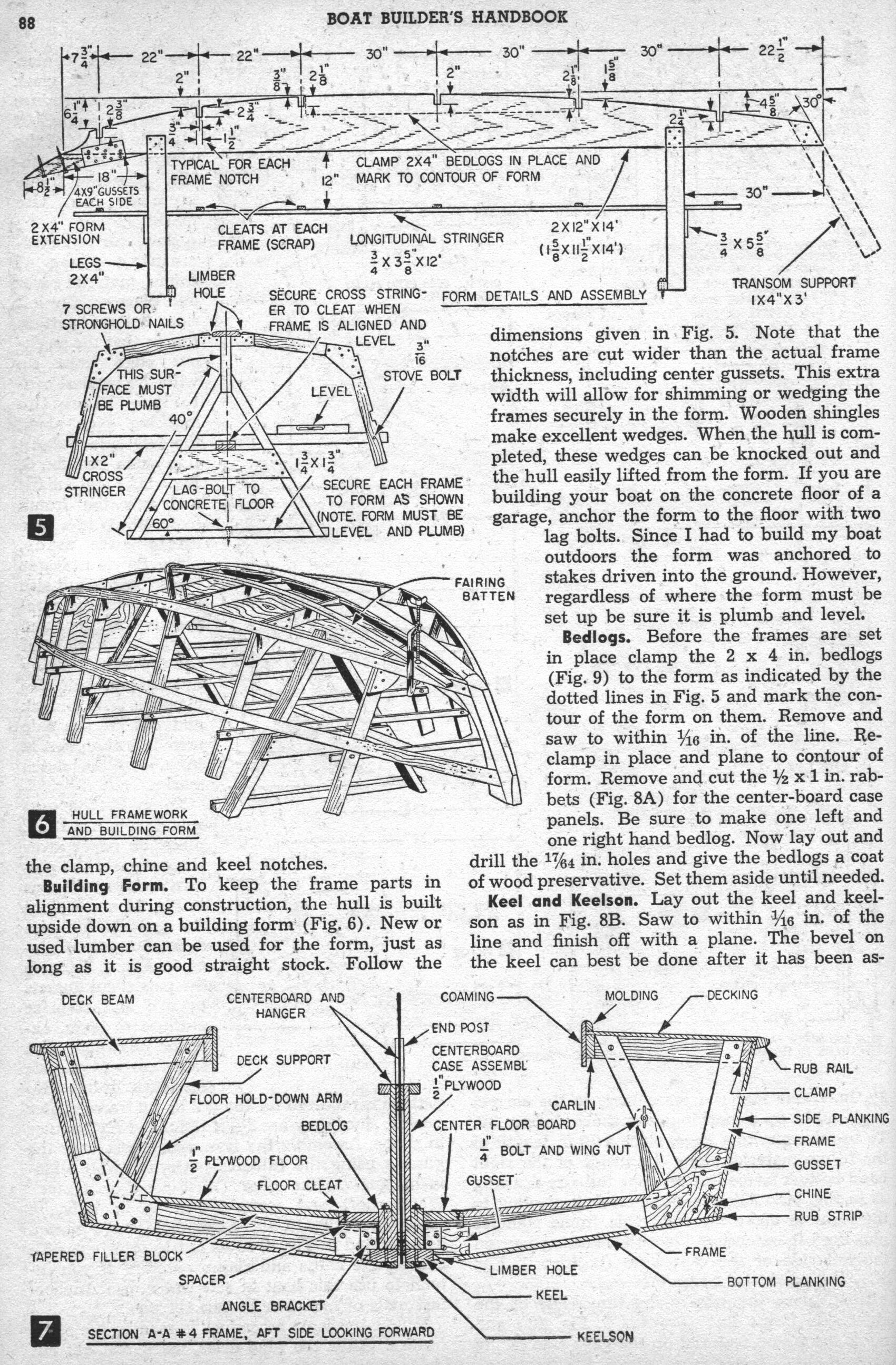

Plan sheets 15
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
