Victory
A 12-14-16-foot runabout
- Category
- Outboard Runabouts
- Published
- Boat Builder's Handbook, p. 43
- Craft Print
- 112

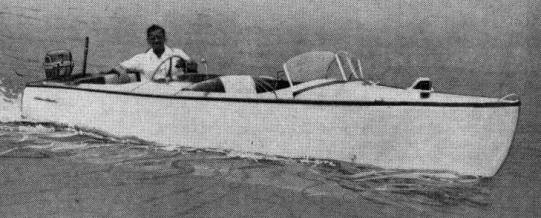

An all-round outboard sport runabout that can be built in 12, 14 or 16 ft lengths from the same plans. A new semi-vee bottom design makes it fast and stable at all speeds with different motors; the first one did 30 mph with a light 10 hp motor at Bass Lake, Indiana.
Specifications
- Length
- 12, 14 or 16 ft
- Beam
- 56 in (12 ft)
- Depth
- 24 in amidships
- Weight
- 200 lb
- Capacity
- 4 or more
- Construction
- 1/2 in. marine plywood over sawed and longitudinal frames; semi-vee bottom
- Power
- Outboard; 30 mph with a light 10 hp
Downloads

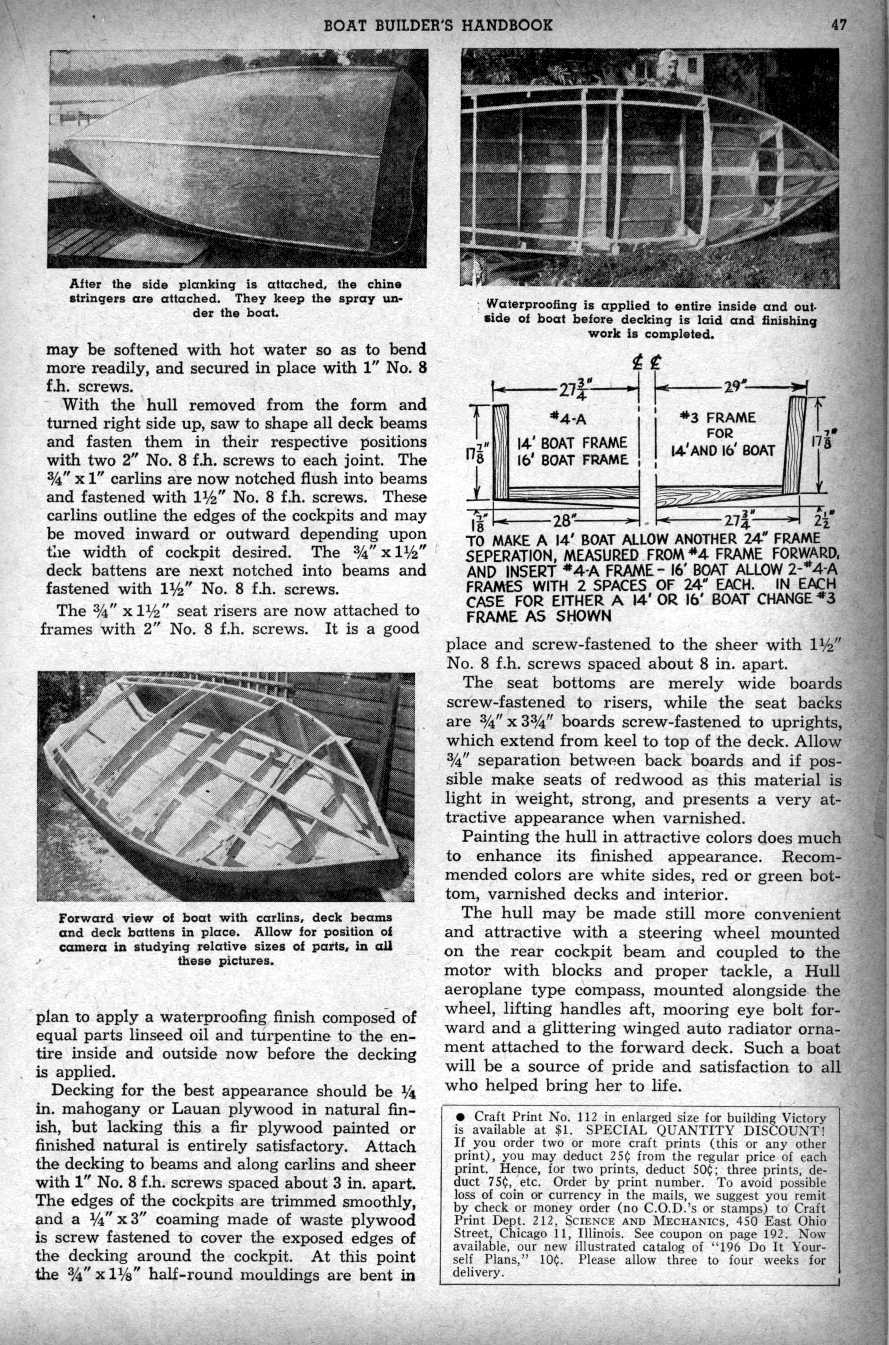

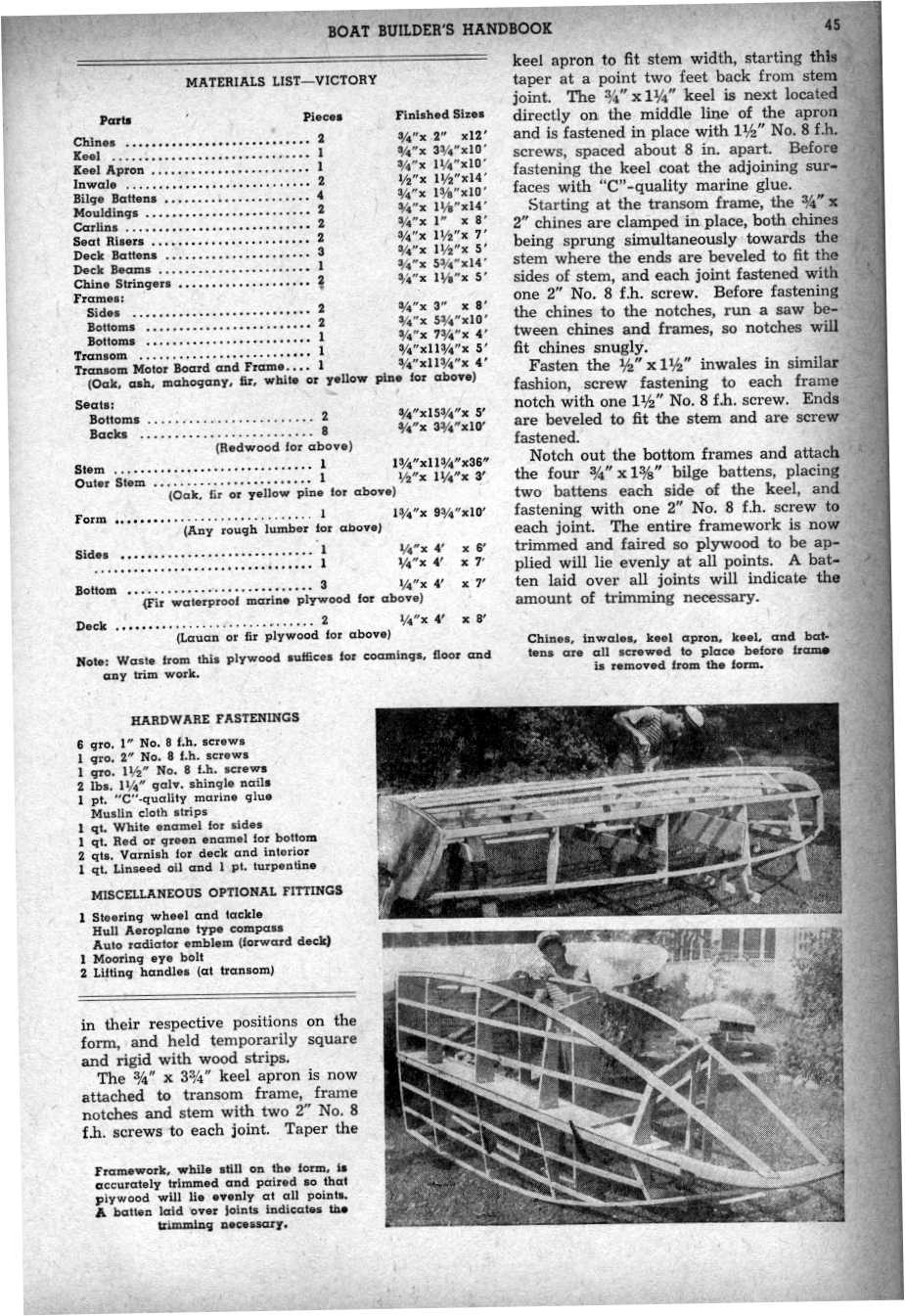

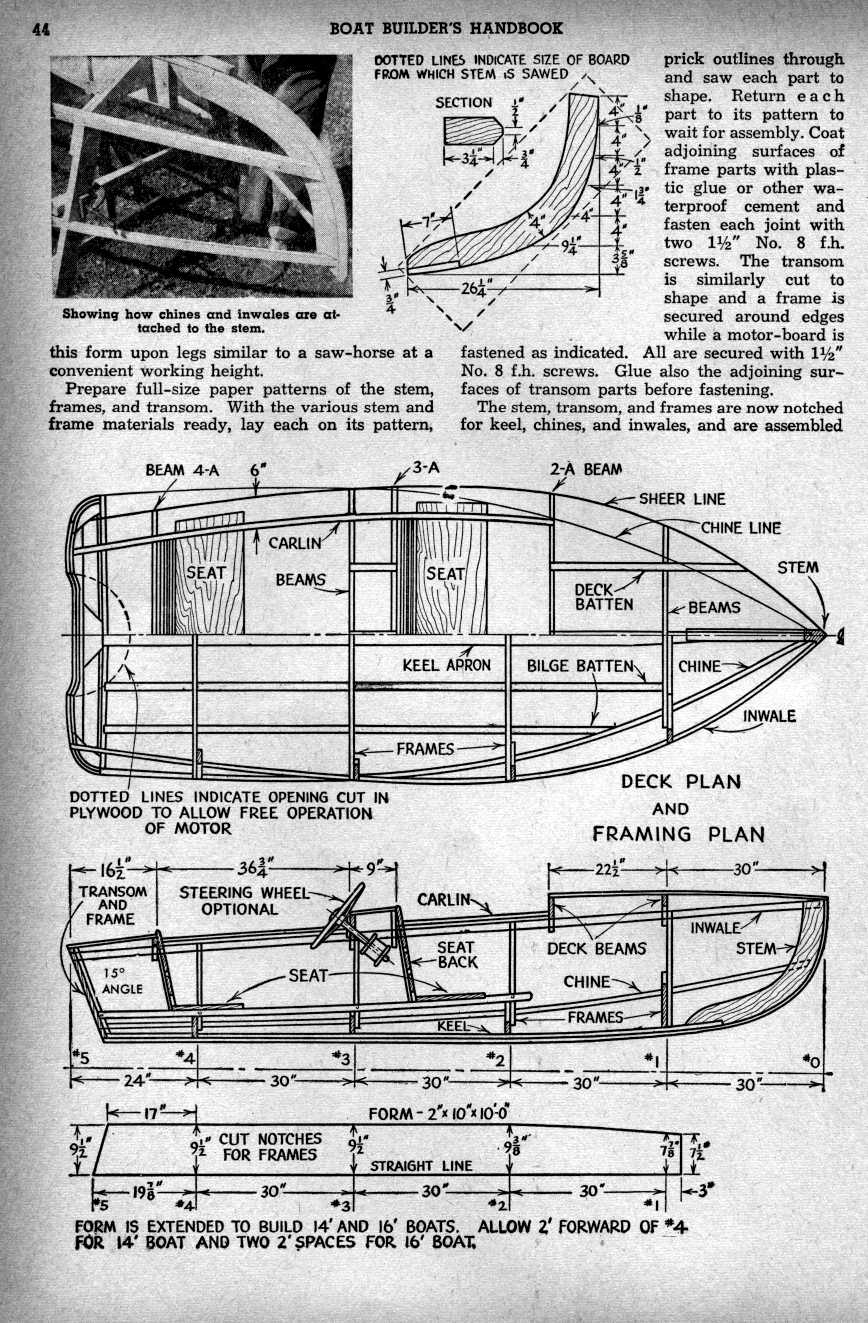

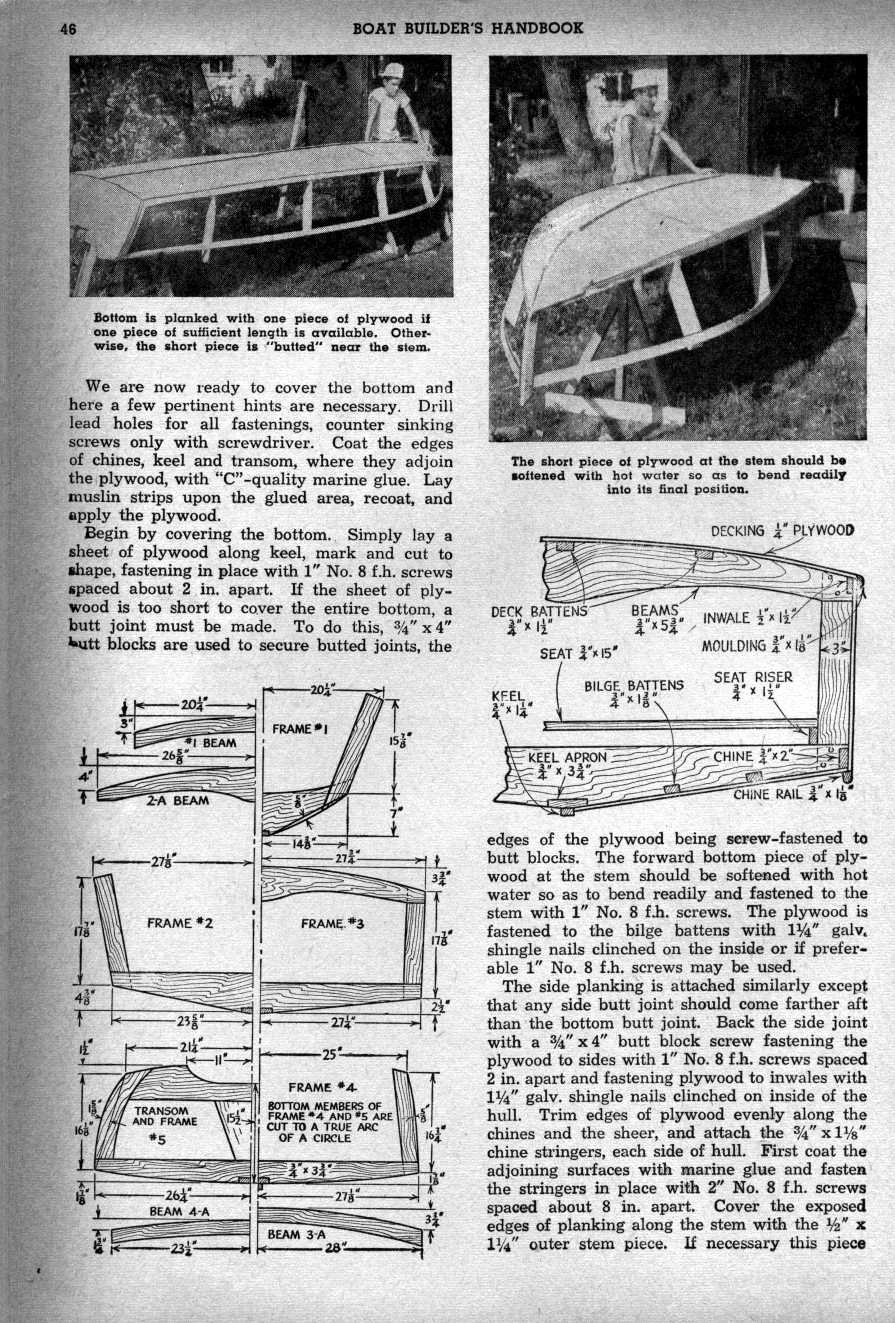

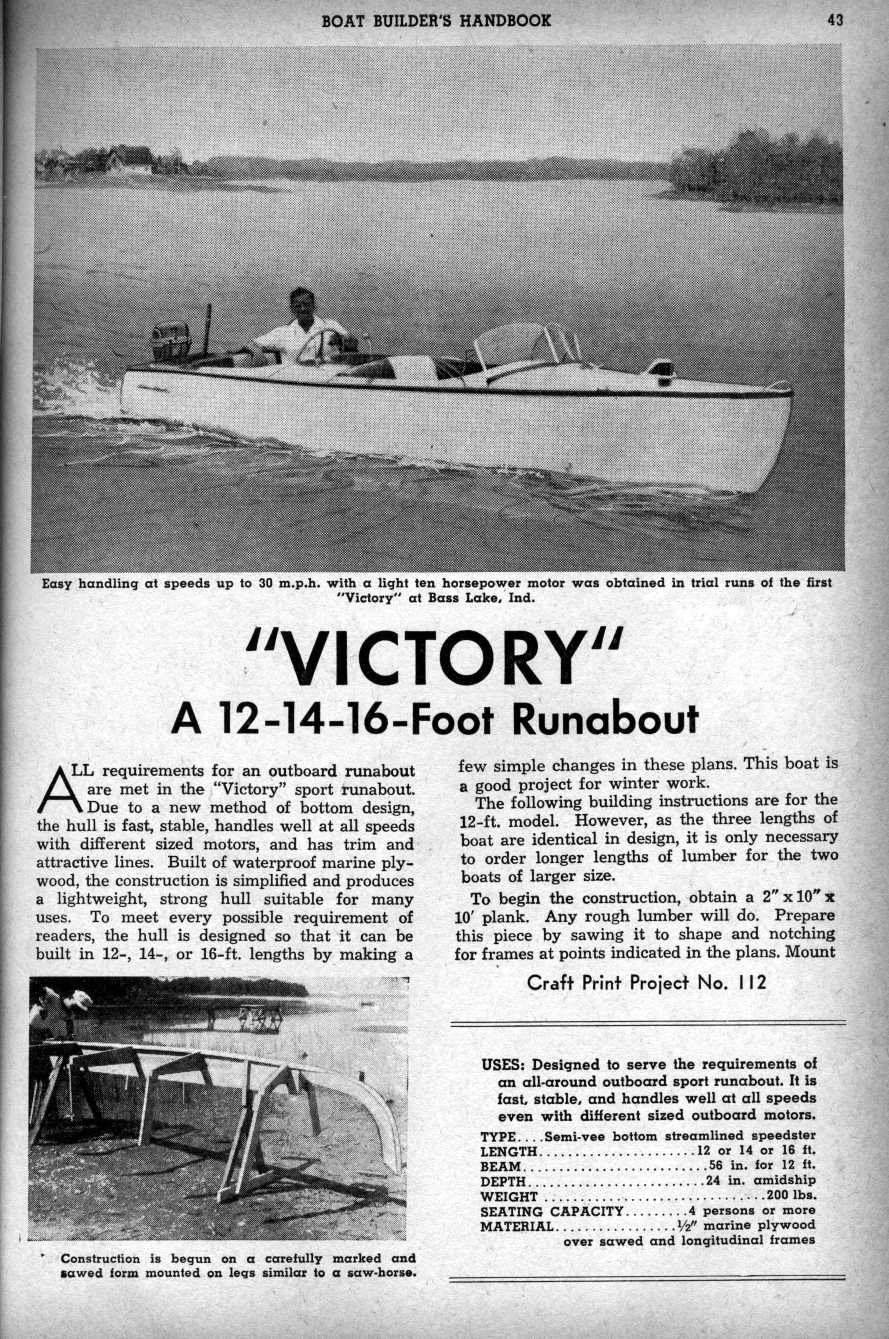

Plan sheets 17
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
