Torpedo
A fast 13 1/2-foot runabout
- Category
- Outboard Runabouts
- Published
- Boat Builder's Annual, p. 98
- Craft Print
- 105

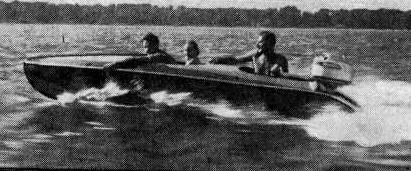

A streamlined plywood speedster that skims the water at race-boat speeds yet carries four passengers in a roomy, leakproof hull. Designed to eliminate difficult joinery, it's inexpensive to build and economical to run with 10 to 30 hp outboards.
Specifications
- Length
- 13 ft 6 in
- Beam
- 4 ft 6 in
- Depth
- 22 in amidships
- Weight
- 200 lb complete
- Capacity
- 4 passengers
- Construction
- 1/4 in. Super-Harbord marine plywood over sawed and longitudinal frames; semi-vee bottom
- Power
- 10–30 hp outboard
Downloads

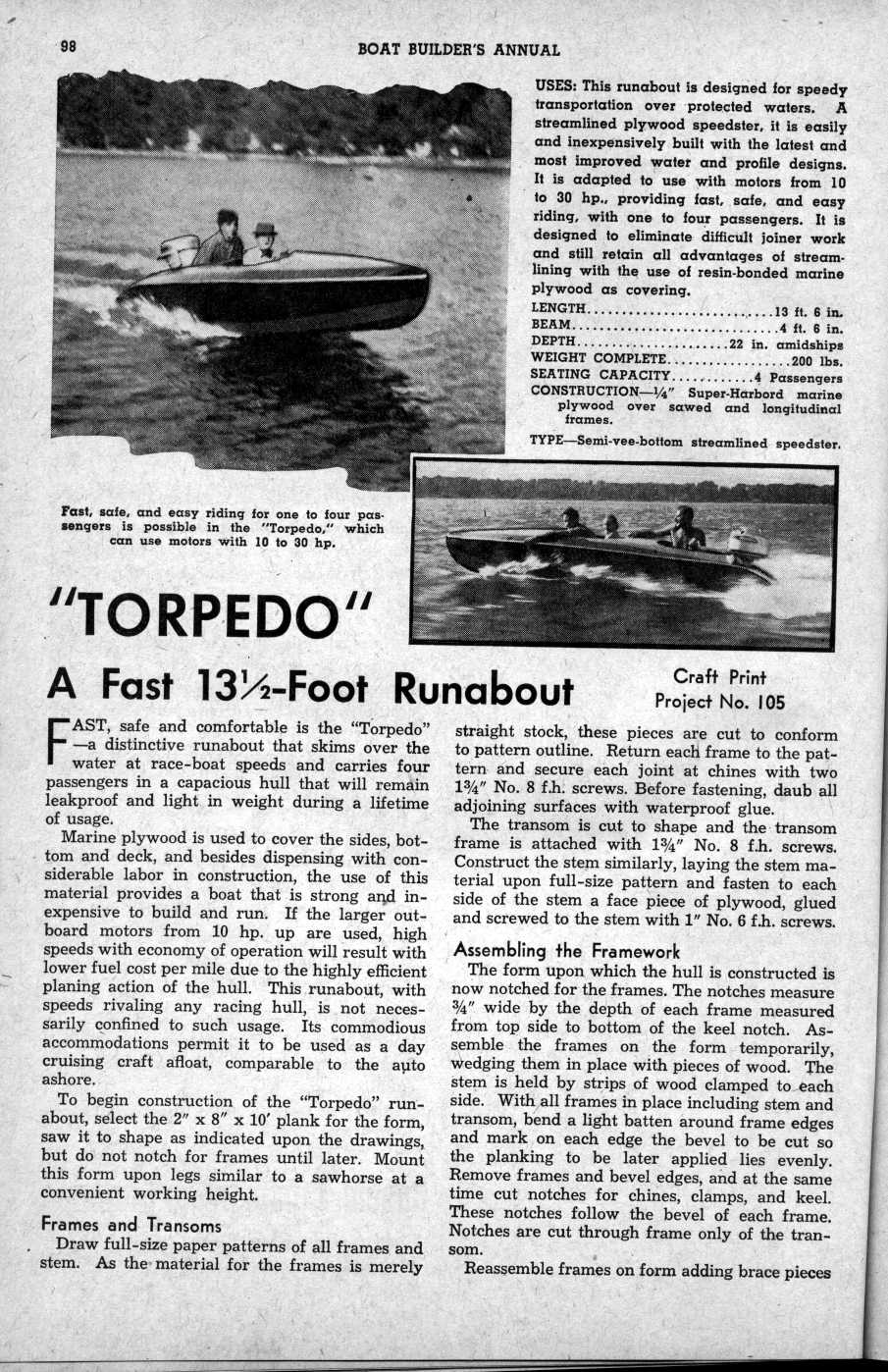

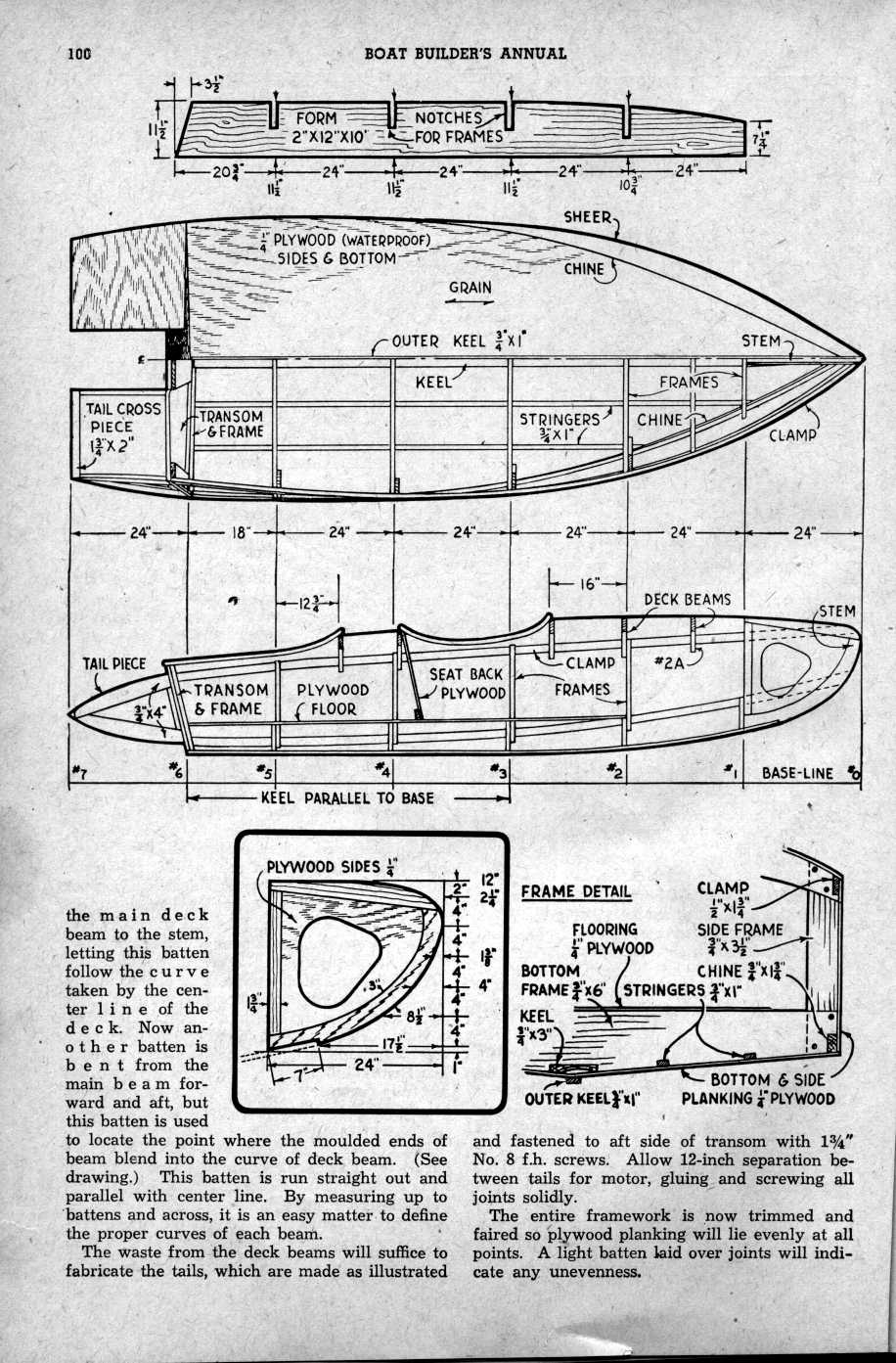

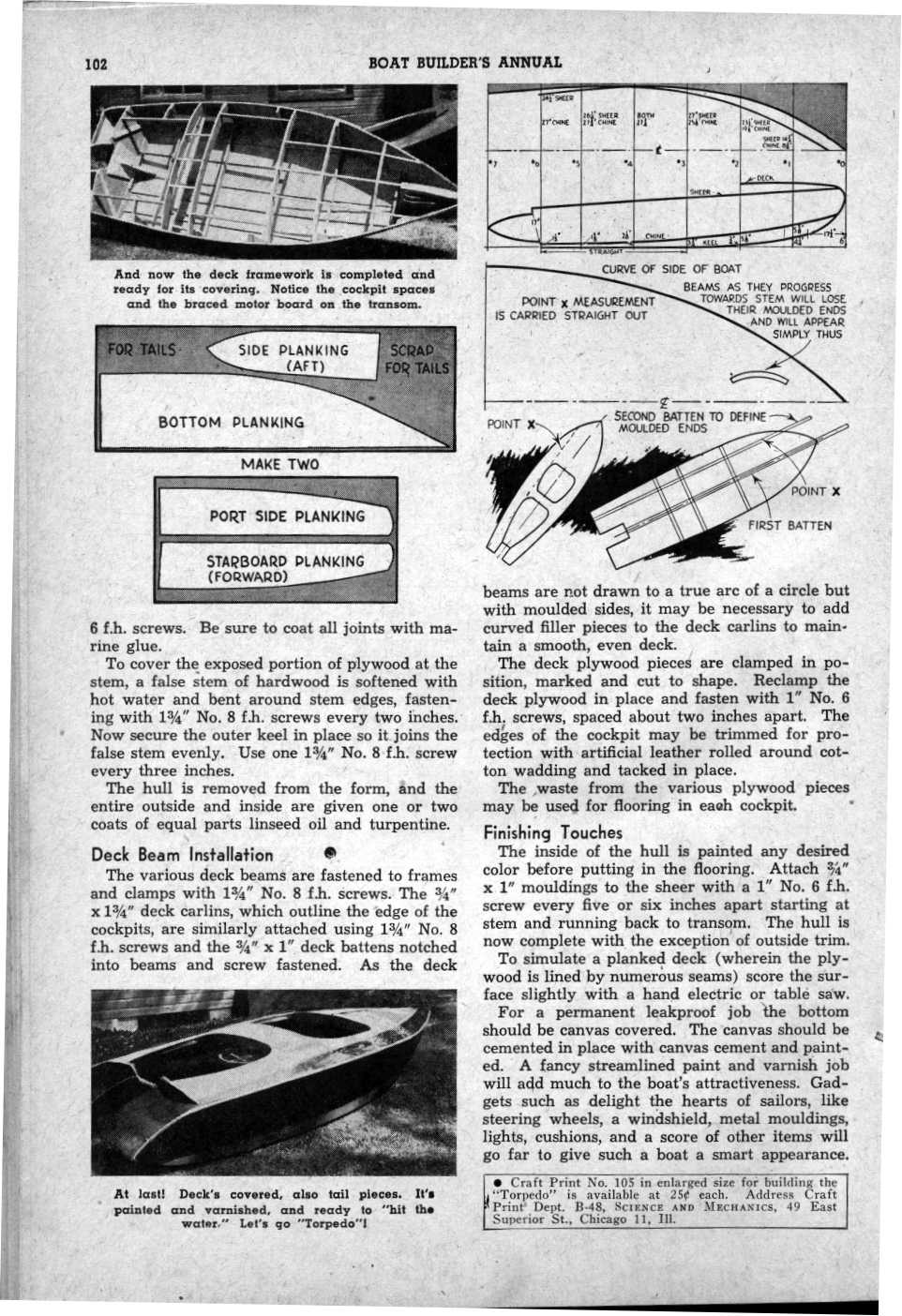

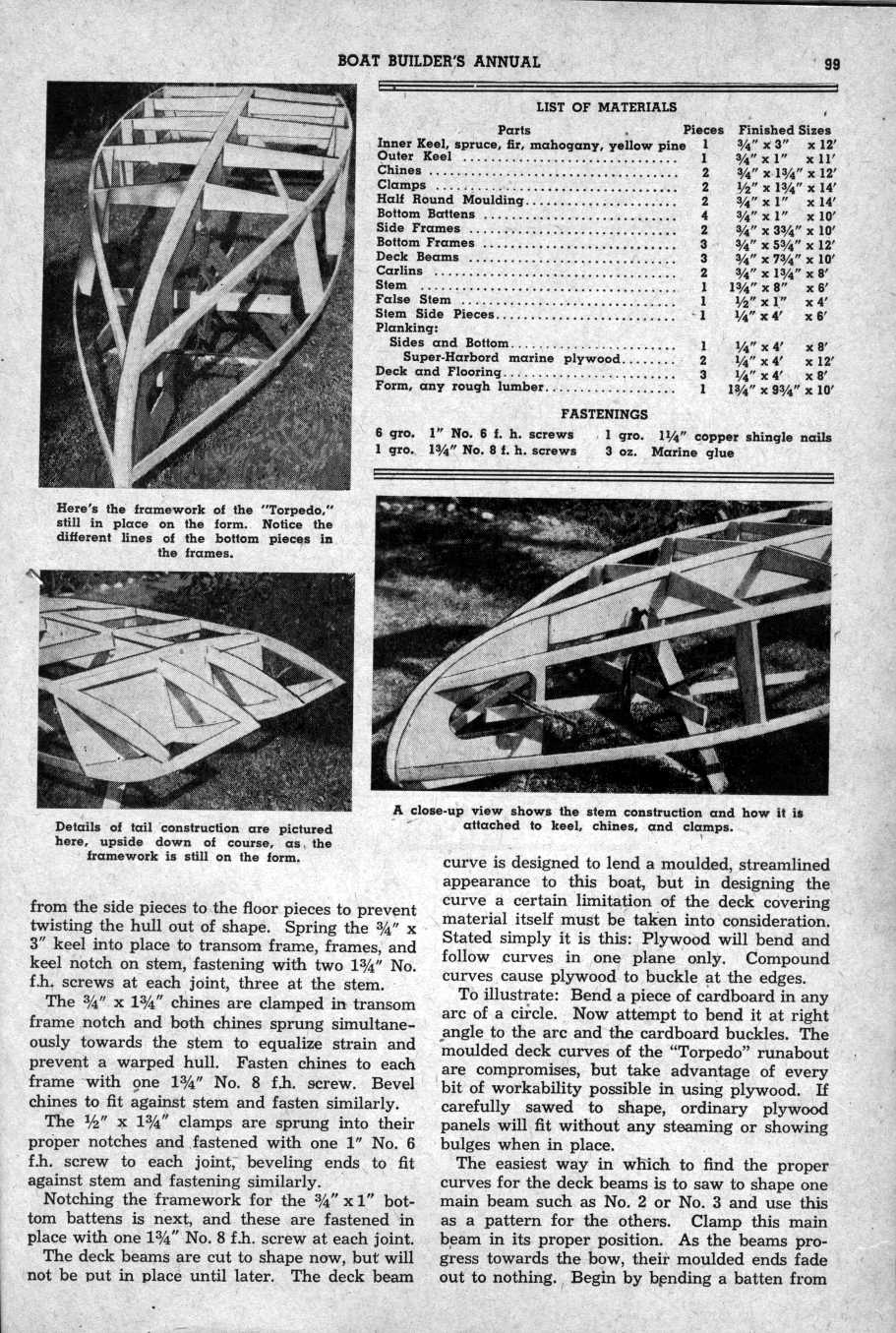

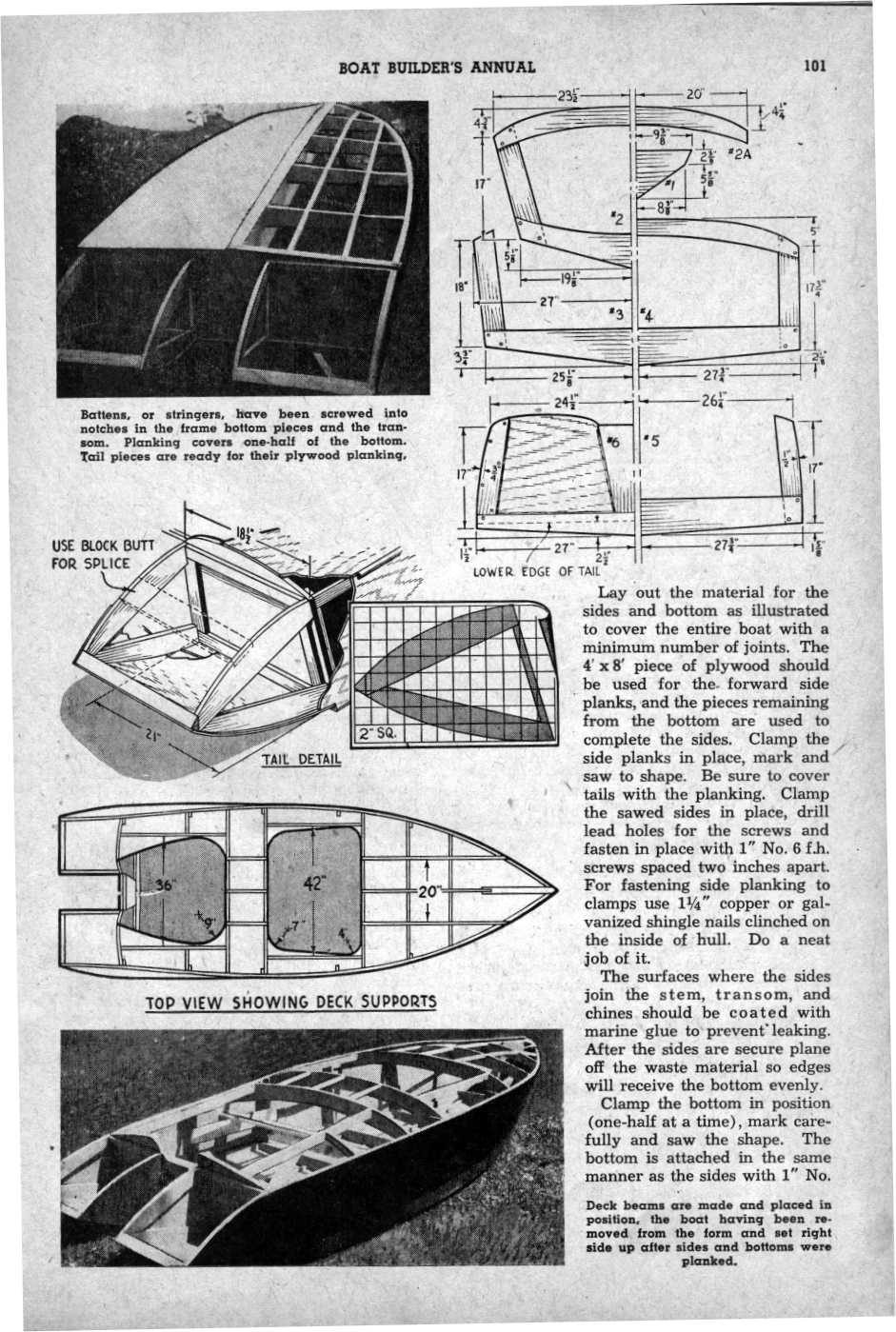

Plan sheets 6
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
