Dragonfly II
Redesigned 10 ft racing hydroplane: speedier and more stable than the original
- Category
- Outboard Runabouts
- Designer
- William D. Jackson
- Published
- Boat Builder's Handbook, p. 17
- Craft Print
- 216

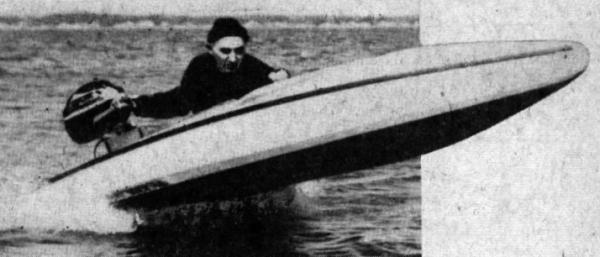

Fifteen years after the original Dragonfly, the most popular design the magazine ever published, came this redesign with improved bottom lines for more speed and stability. It's a streamlined one-person outboard hydroplane whose tail appendages lift clear at speed and keep the hull from flipping when getting underway.
Specifications
- Length
- 10 ft
- Beam
- 4 ft
- Weight
- 115 lb without motor
- Capacity
- 1 person
- Construction
- 1/4 in. plywood over fir or spruce frame; convex planing surfaces with tail appendages
Downloads

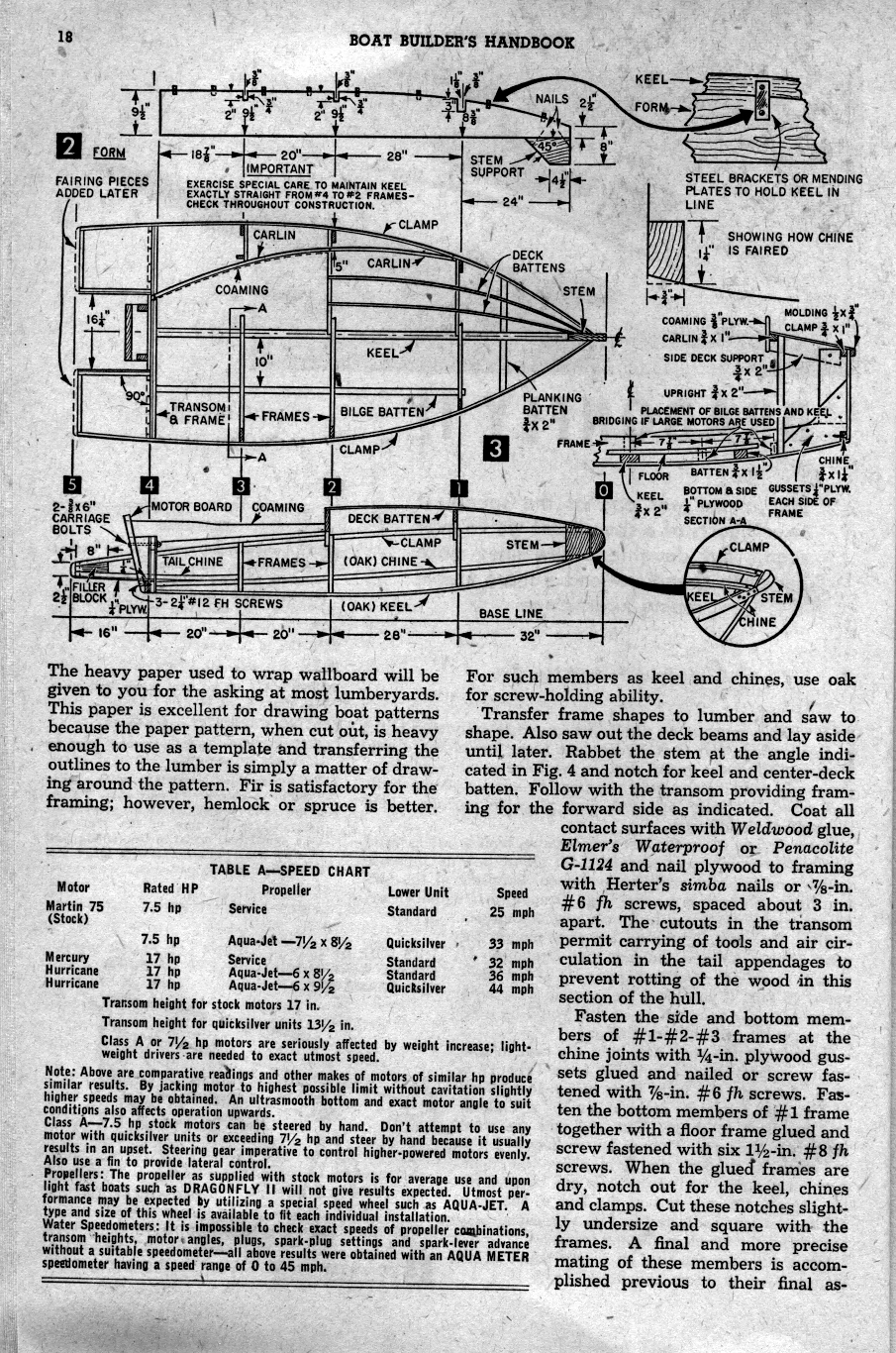

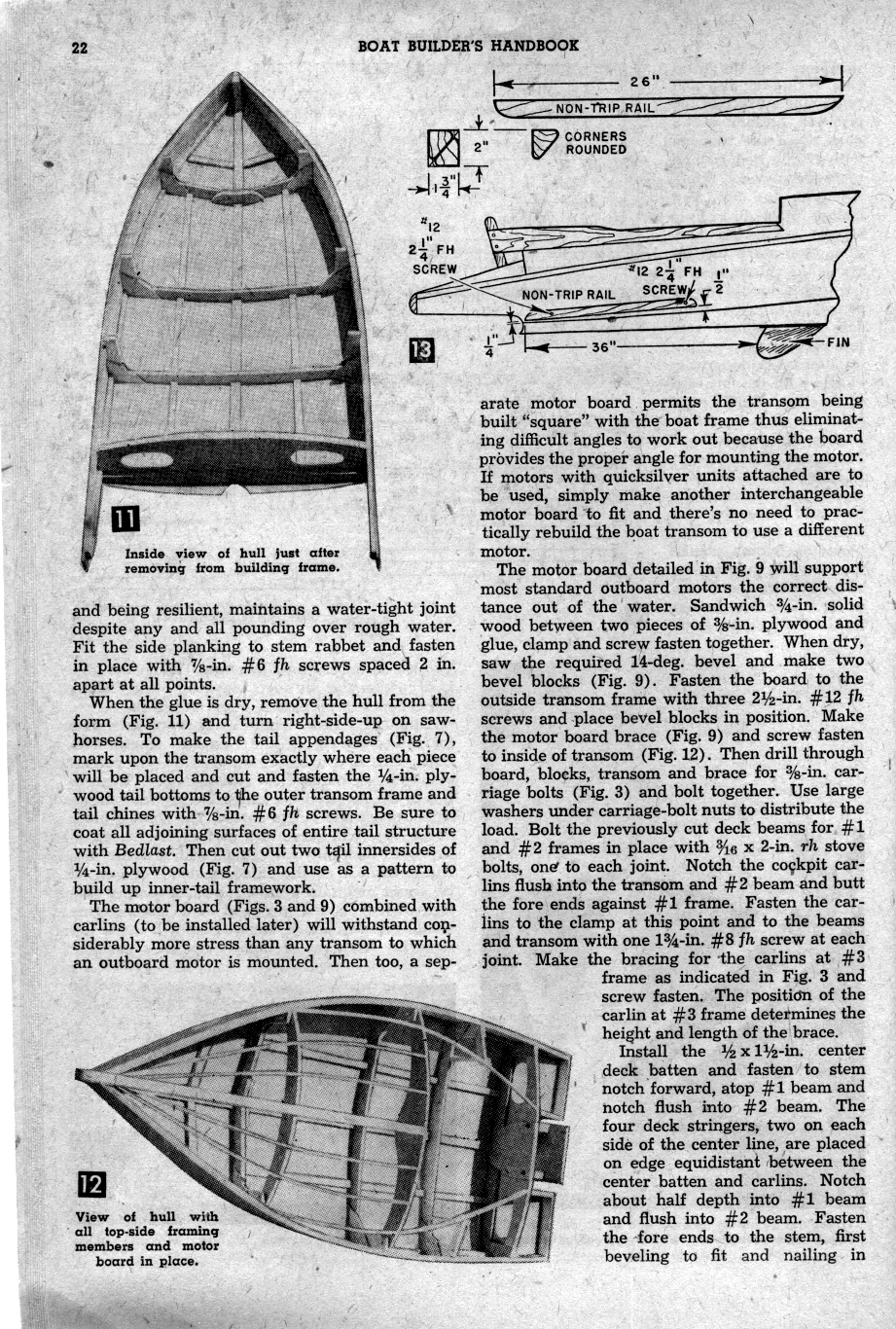

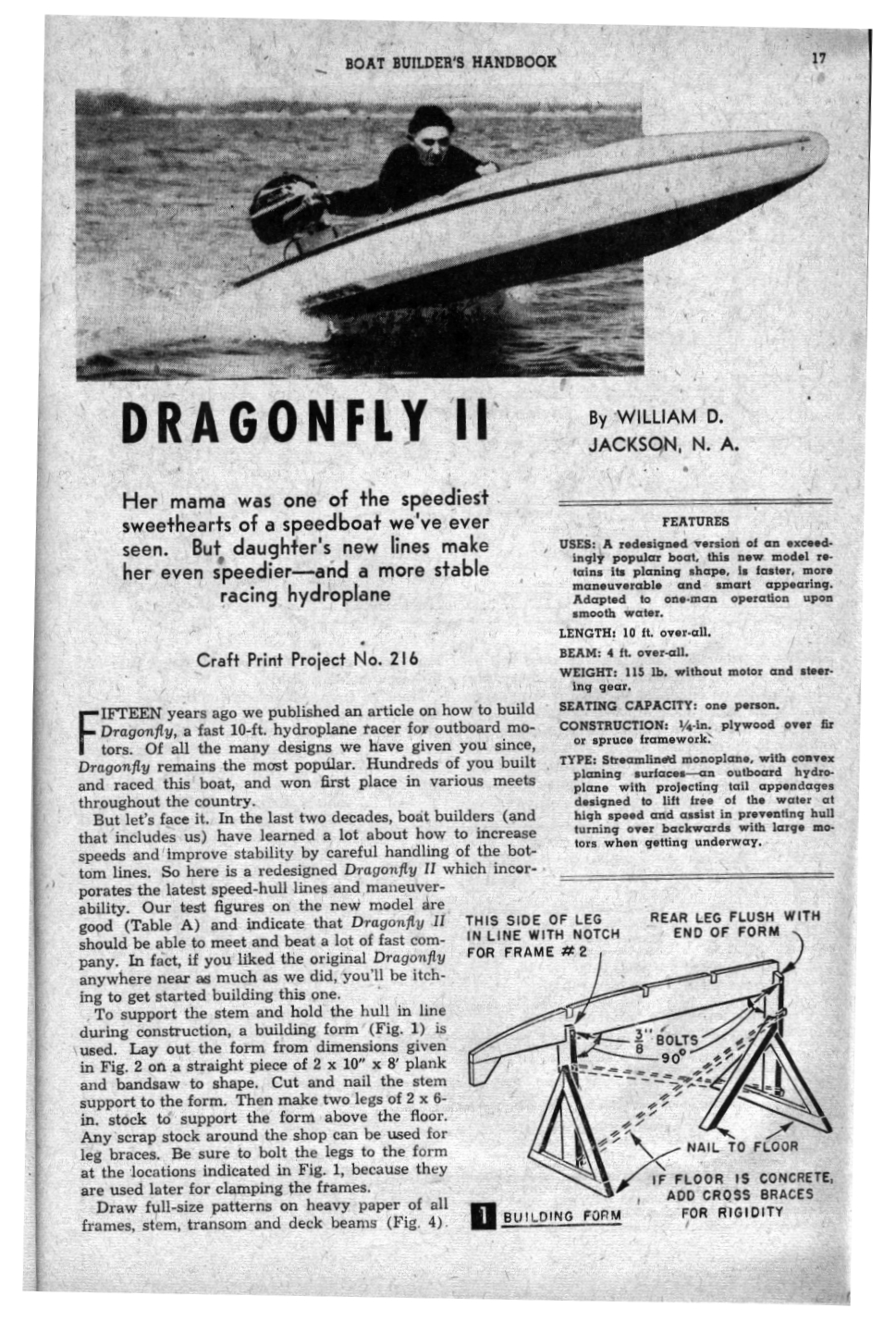

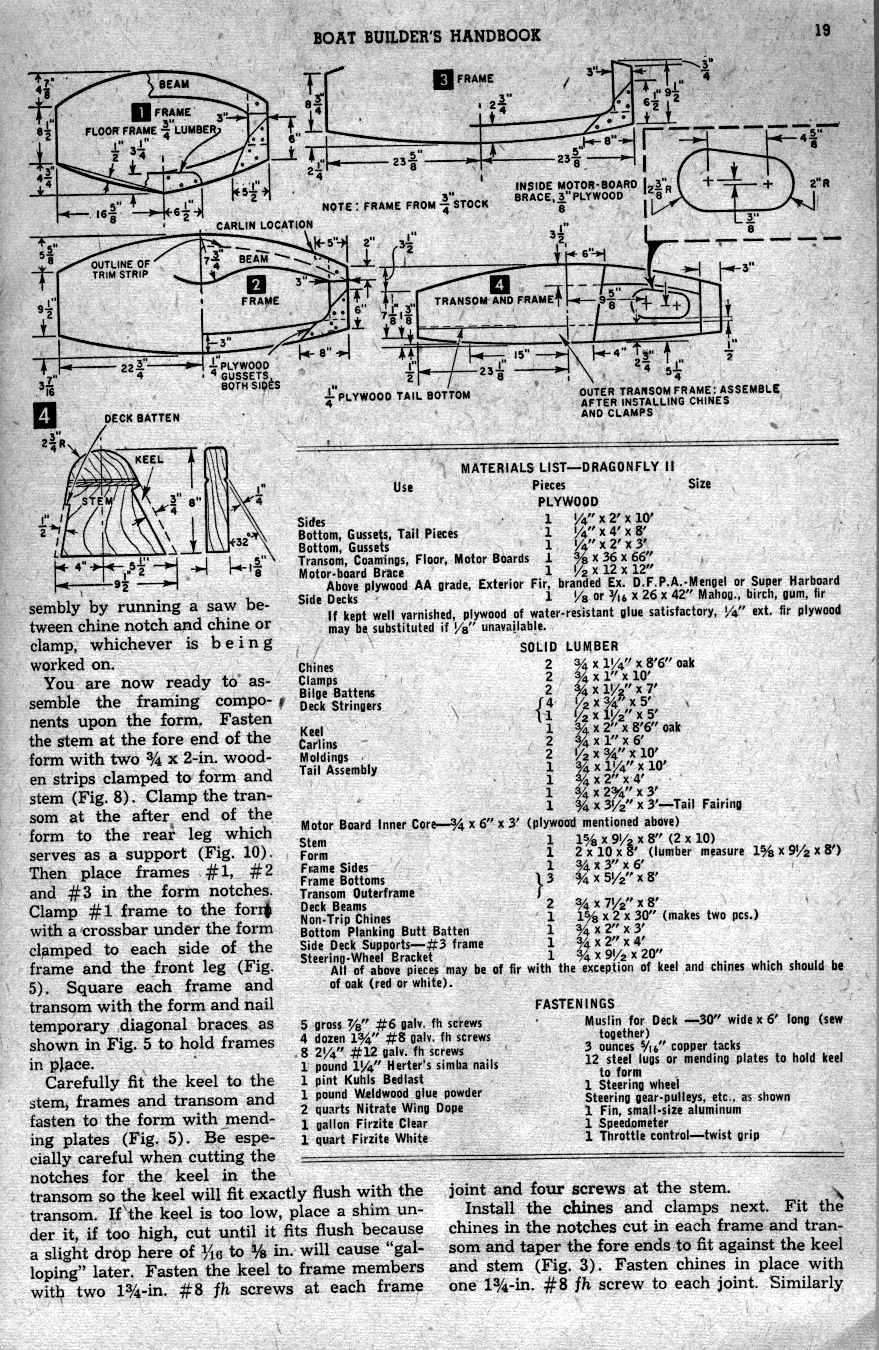

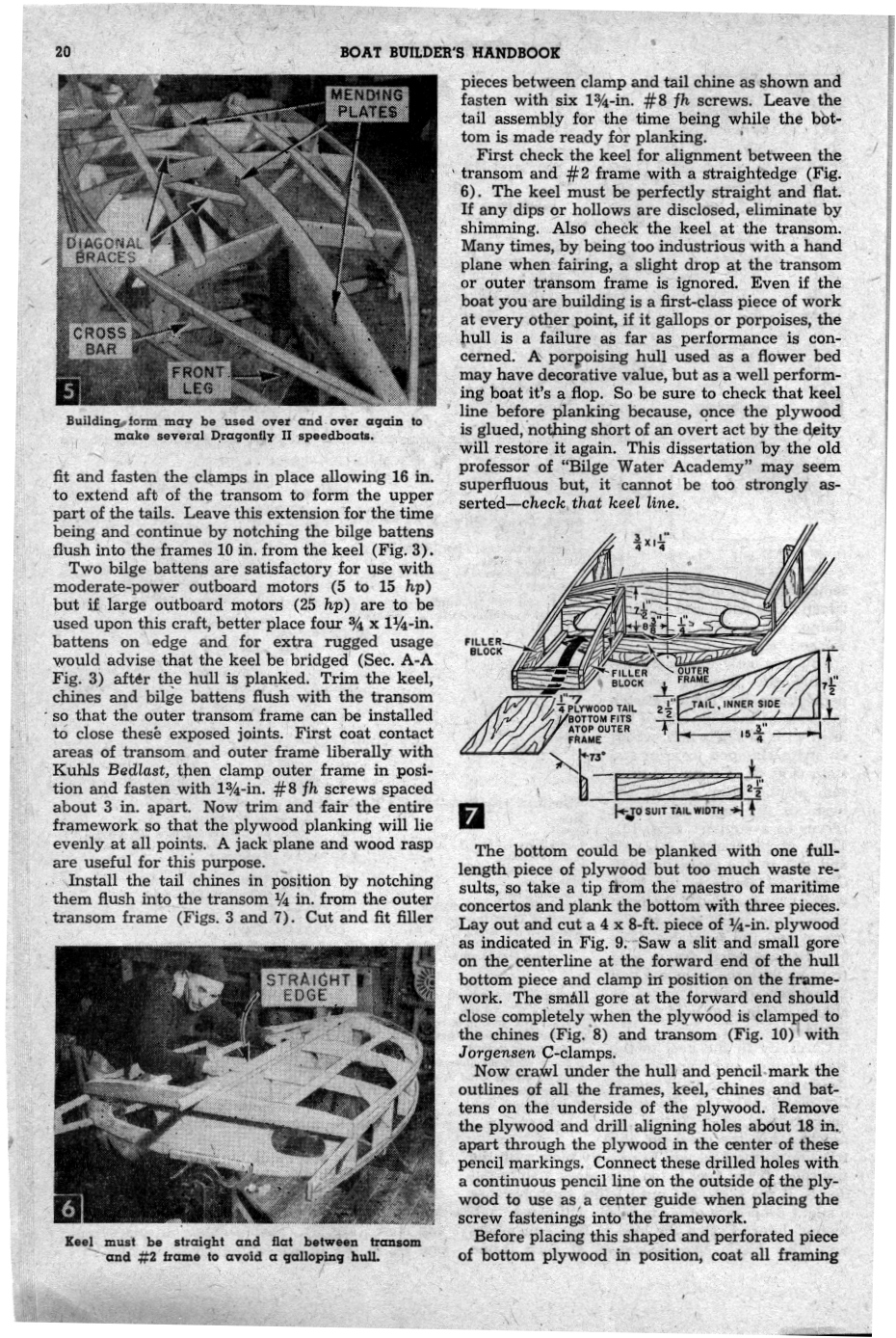

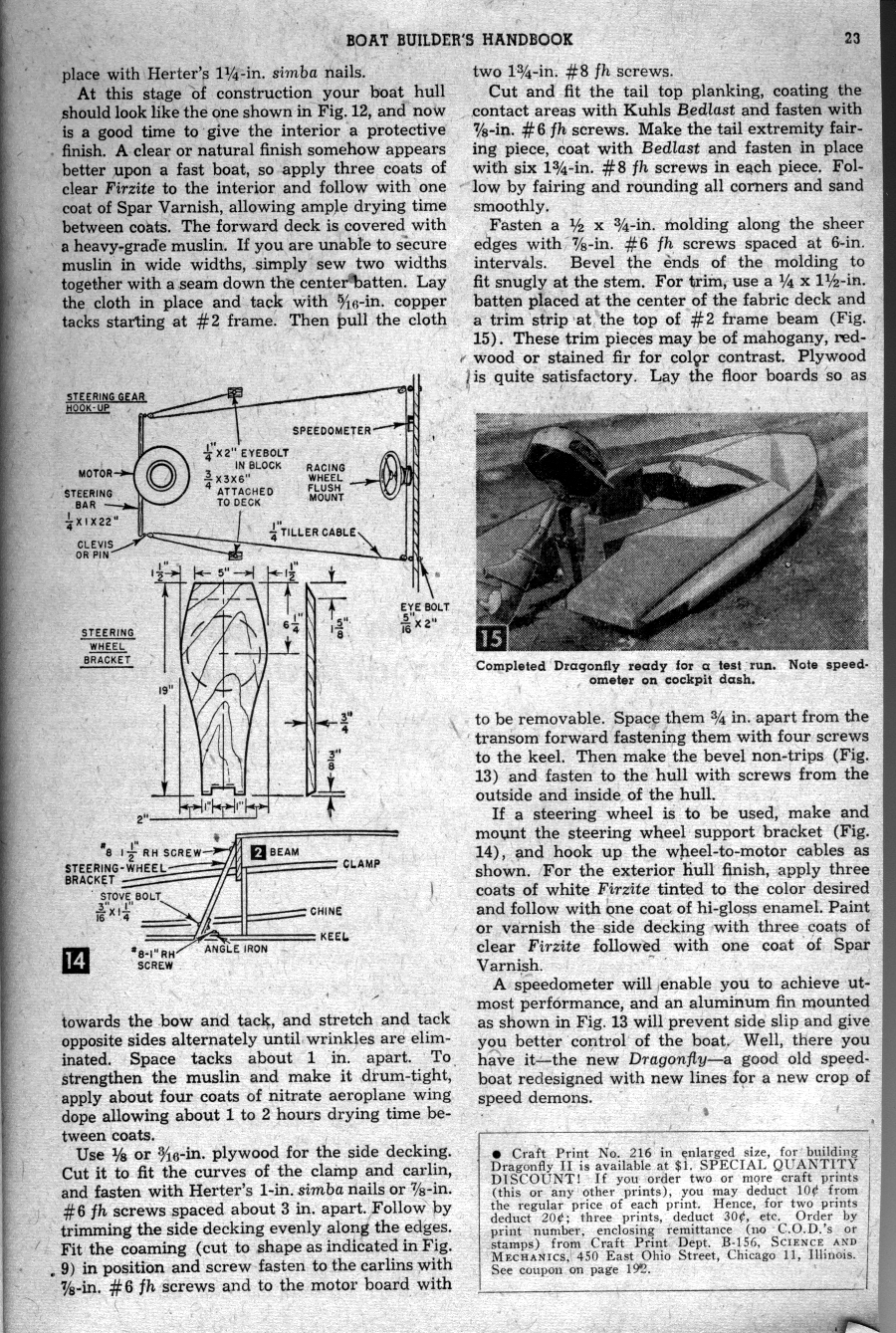

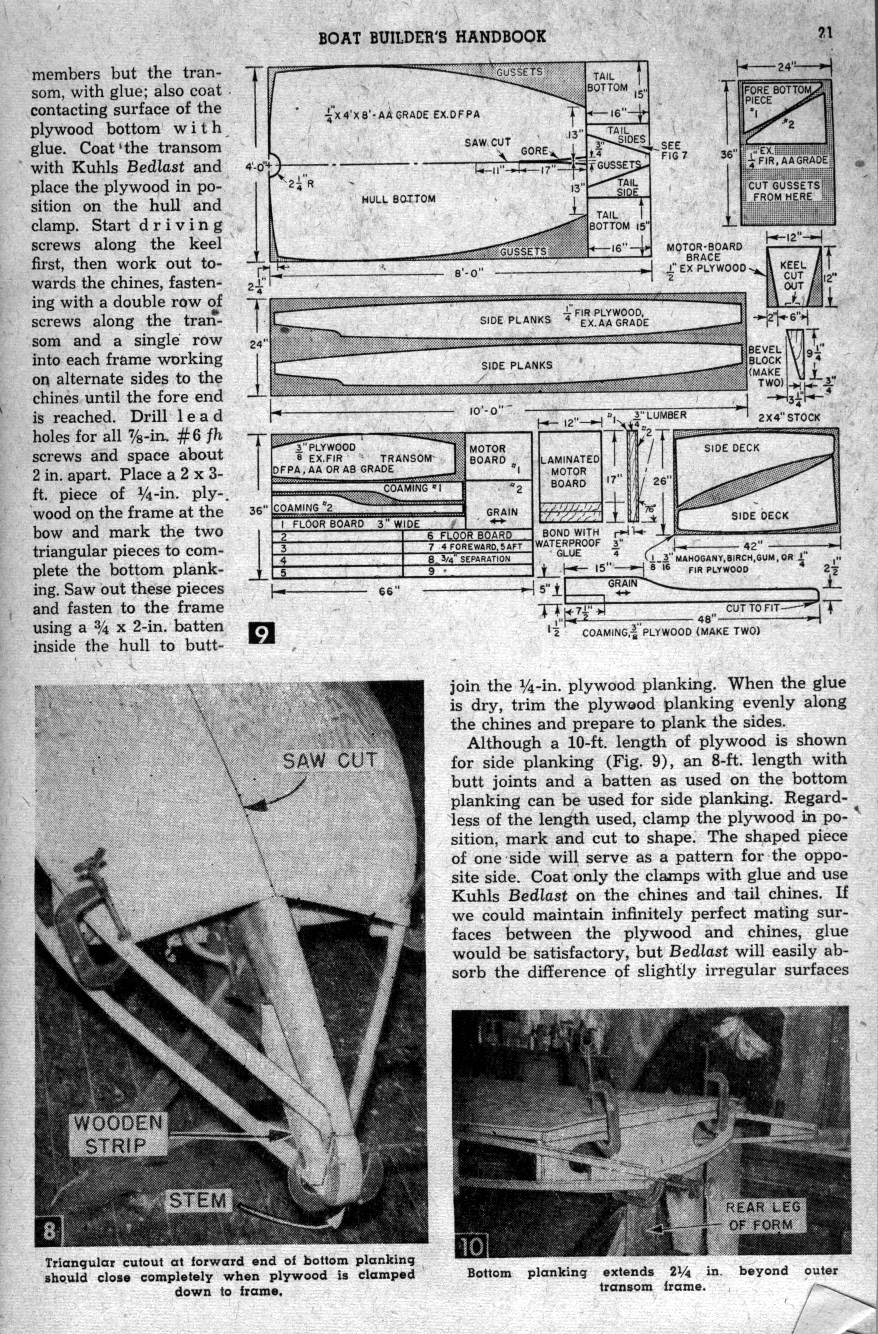

Plan sheets 8
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
