Ace
Speedy two-cockpit outboard runabout
- Category
- Outboard Runabouts
- Designer
- William D. Jackson
- Published
- Boat Builder's Handbook, p. 65
- Craft Print
- 233

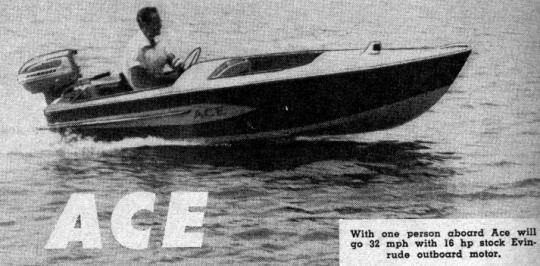

A speedy two-cockpit outboard runabout for towing water skiers and family boating. Its hi-lift bottom and longitudinal-beam frame let a 16 hp Evinrude outrun boats with 25 hp, and it hit 50 mph with a 40 hp Mercury. No building form is needed, which makes it ideal for backyard builders or small-scale production.
Specifications
- Length
- 12 ft 4 in
- Beam
- 5 ft 9 in
- Depth
- 27 in forward, 15 in aft
- Weight
- 200 lb
- Capacity
- 5 persons
- Construction
- Plywood planking over a two-frame longitudinal-beam frame; hi-lift bottom; no building form
- Power
- 16 hp Evinrude: 32 mph; 25 hp: 36 mph; 40 hp Mercury: 50 mph
Downloads

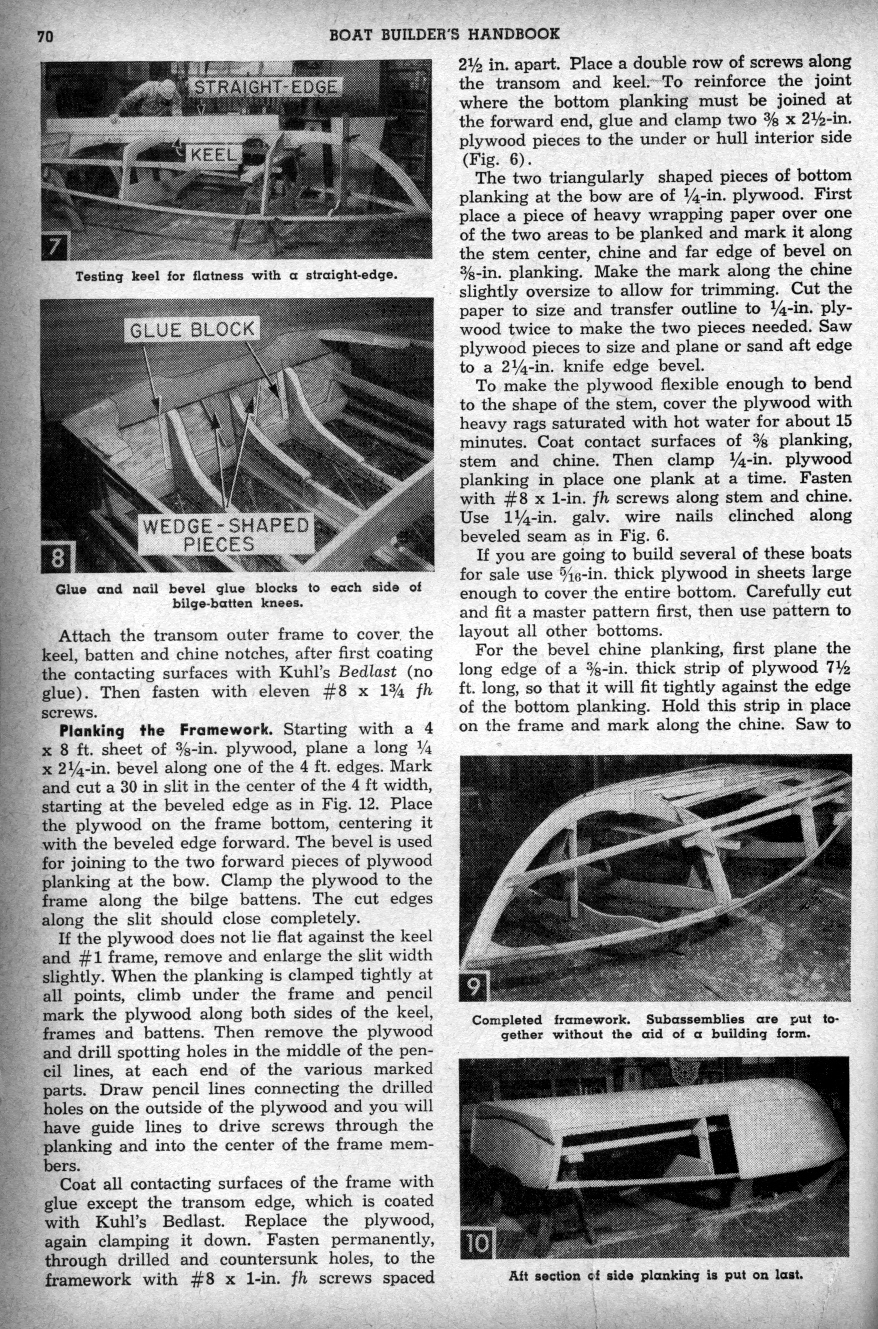

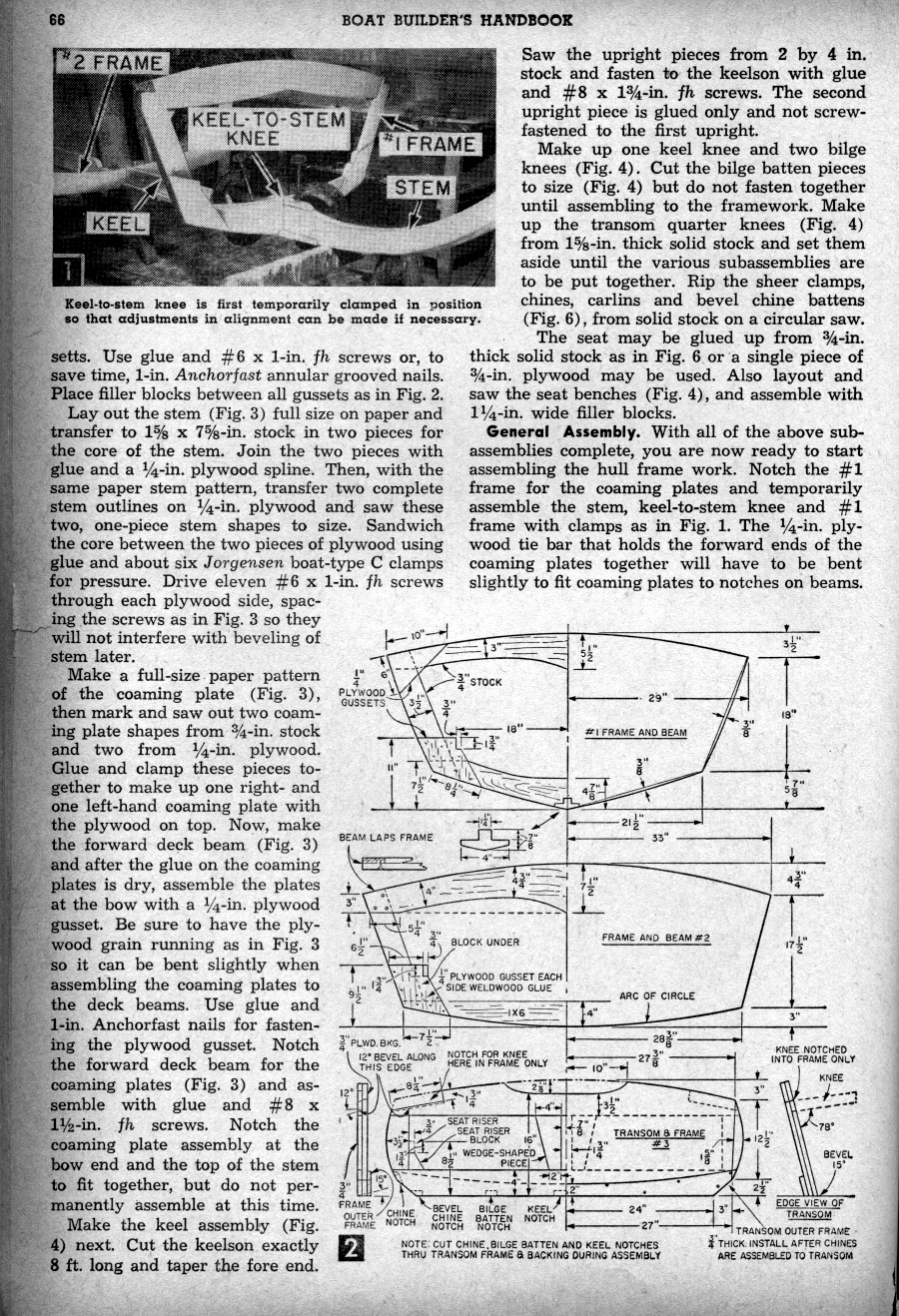

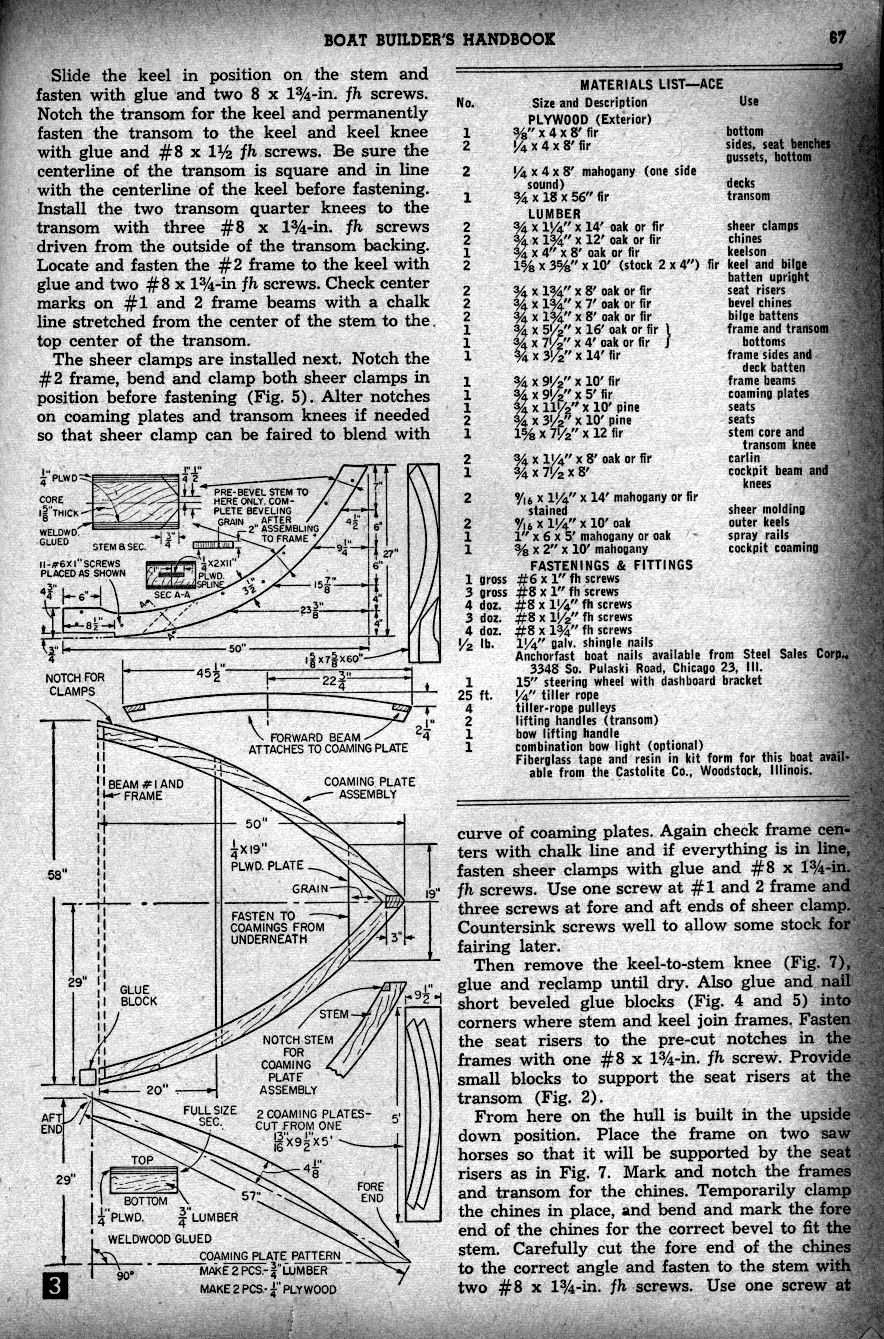

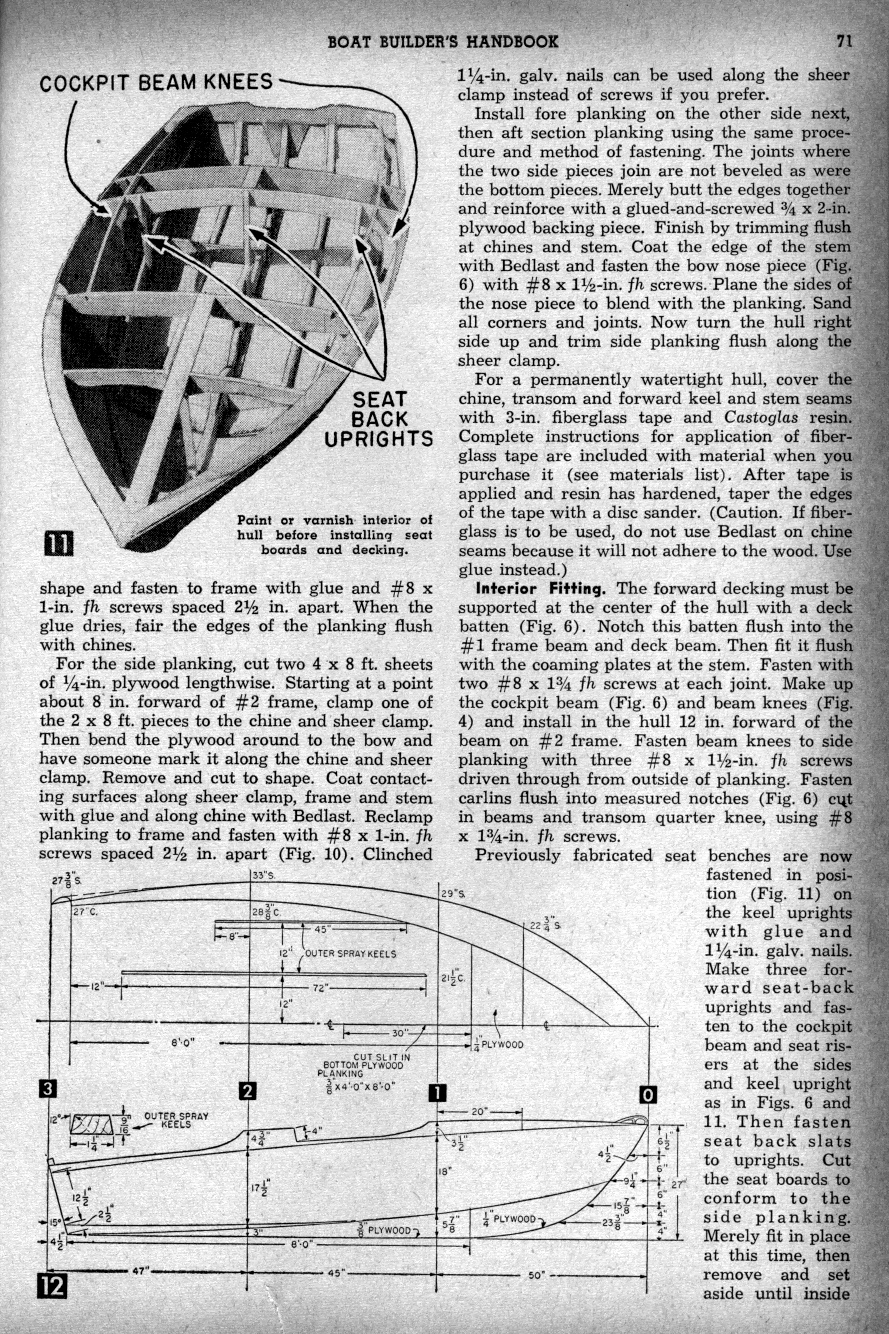

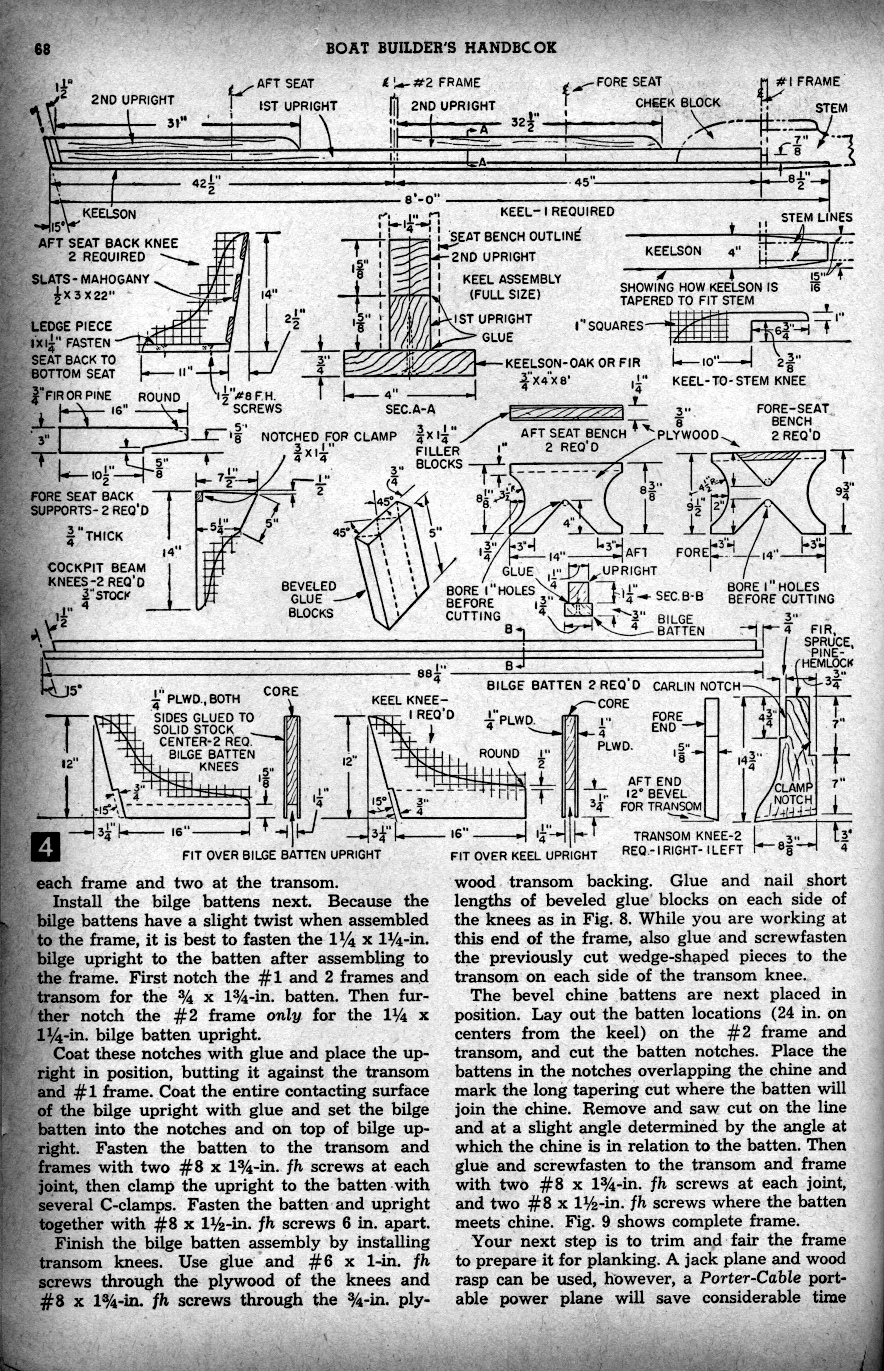

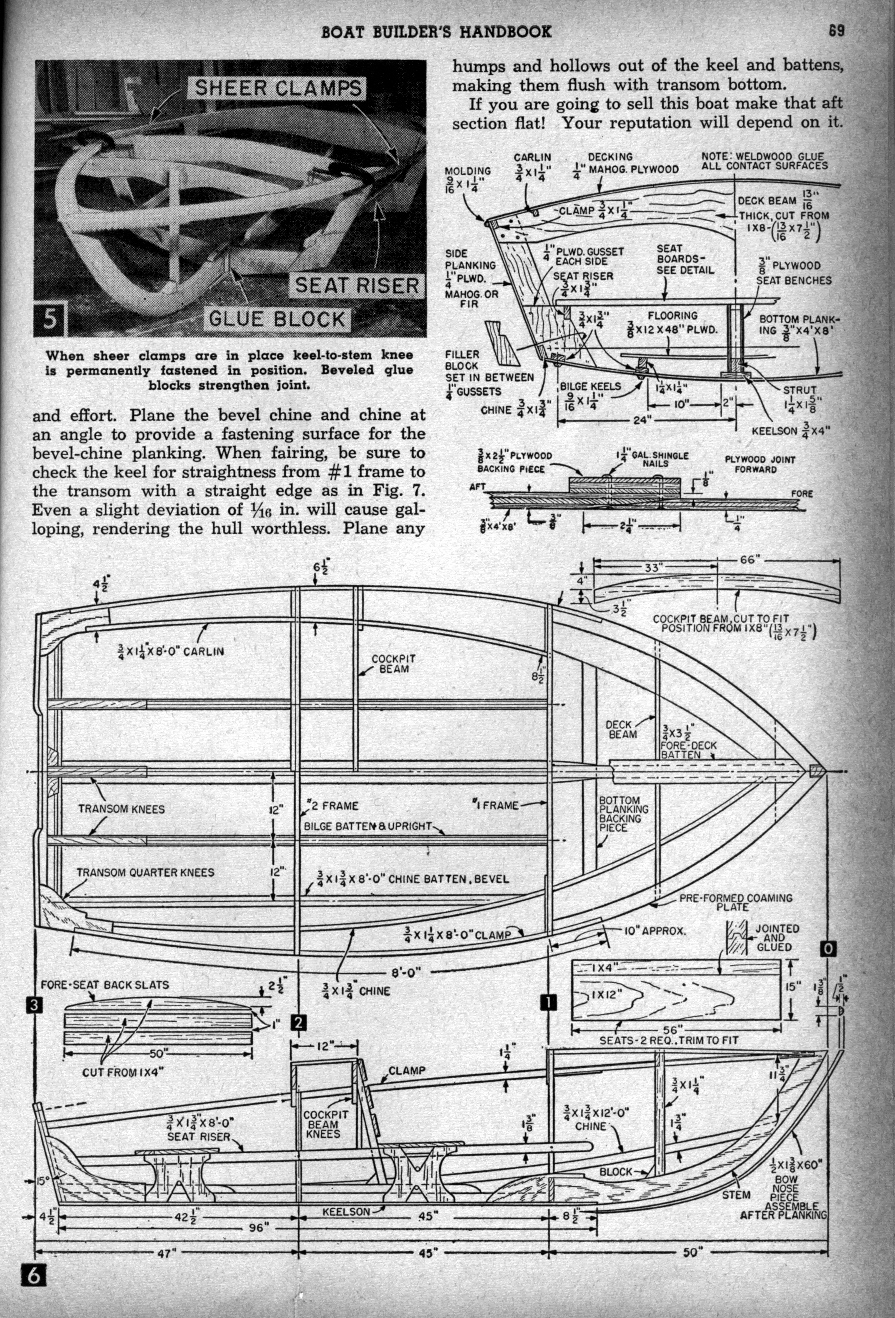

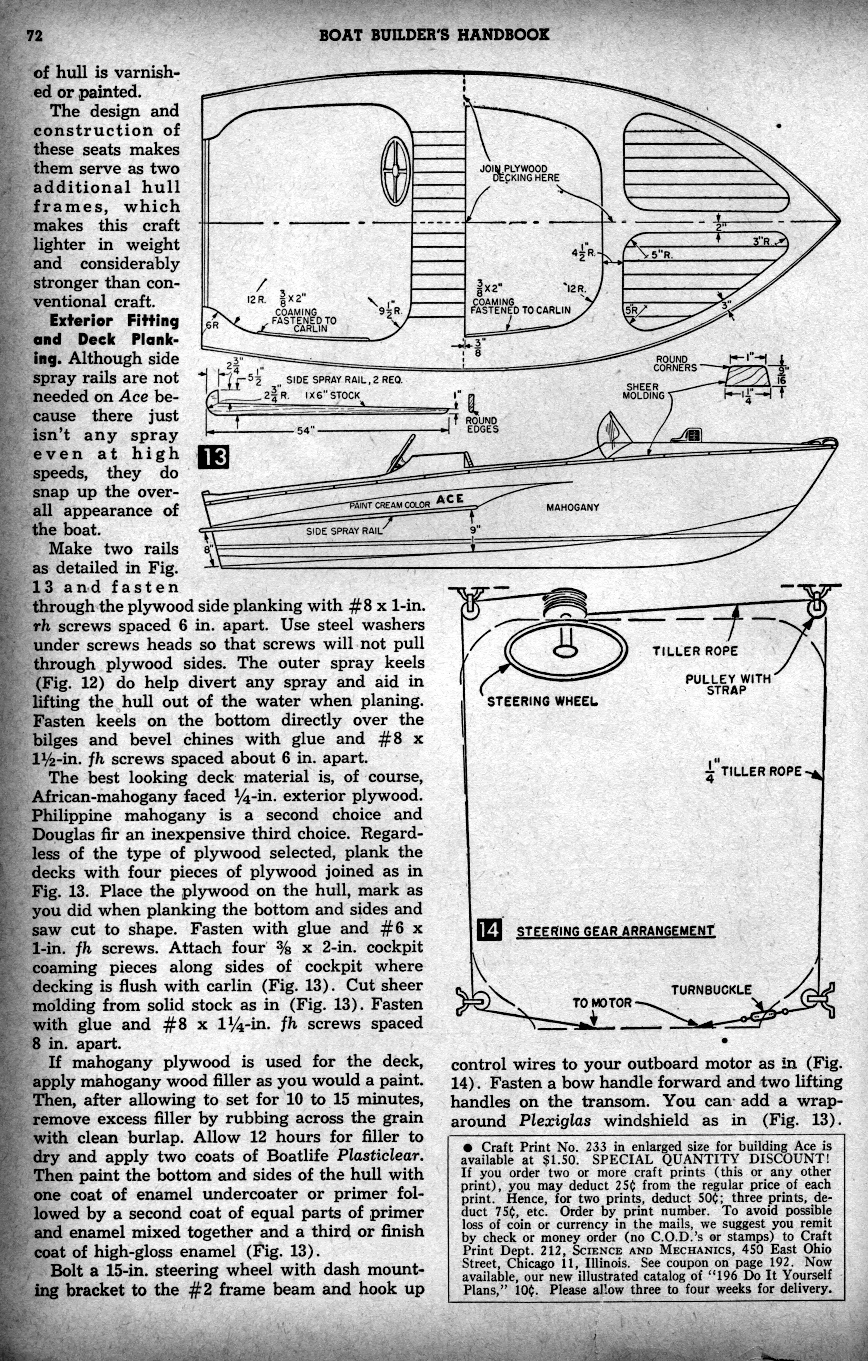

Plan sheets 12
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
