Unusual Small Boat (Three-Piece Boat)
A boat that divides into three nesting sections
- Category
- Row Boats
A safe little 7 ft boat for children that divides into three sections, which nest together to fit in a car trunk. The flat bottom and wide beam make it very stable, and on land it works as a picnic table or backyard wading pool. All the plywood comes from one sheet.
Specifications
- Length
- 7 ft
- Weight
- 76 lb total, heaviest section 32 lb
- Construction
- 1/4 in. exterior plywood from one 4 x 16 ft sheet; hardwood frame
Downloads

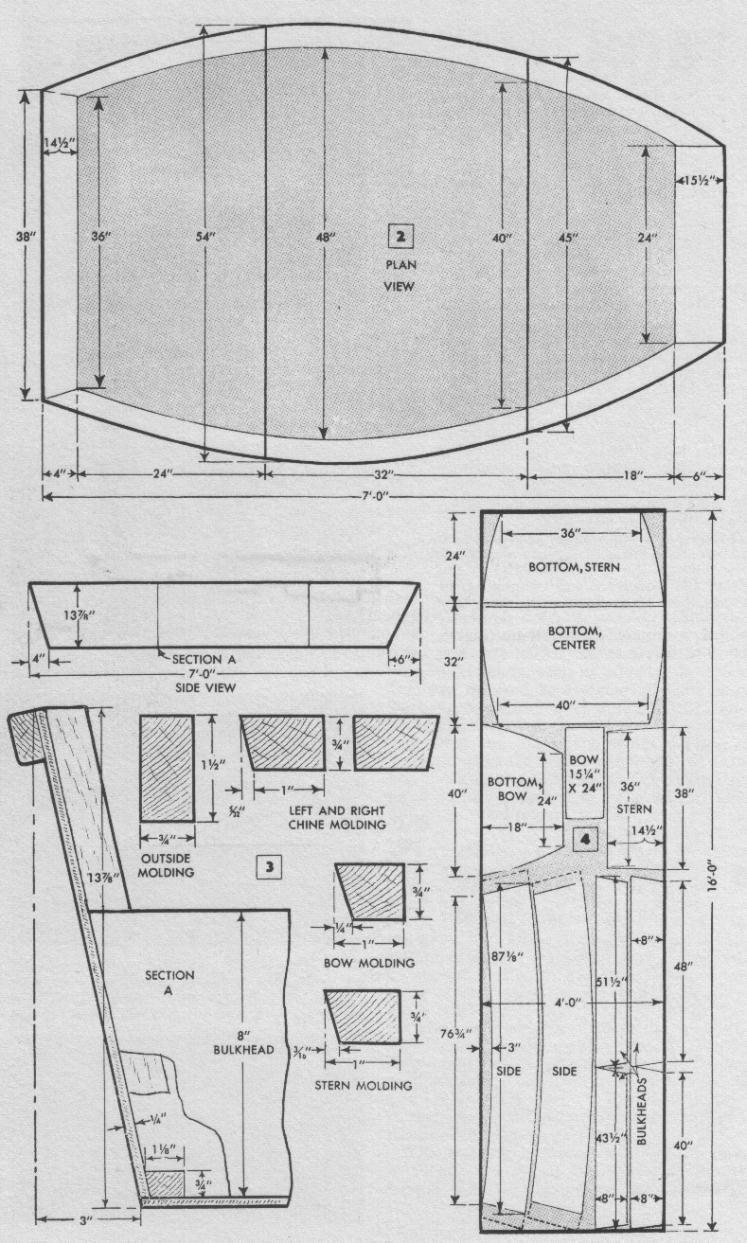

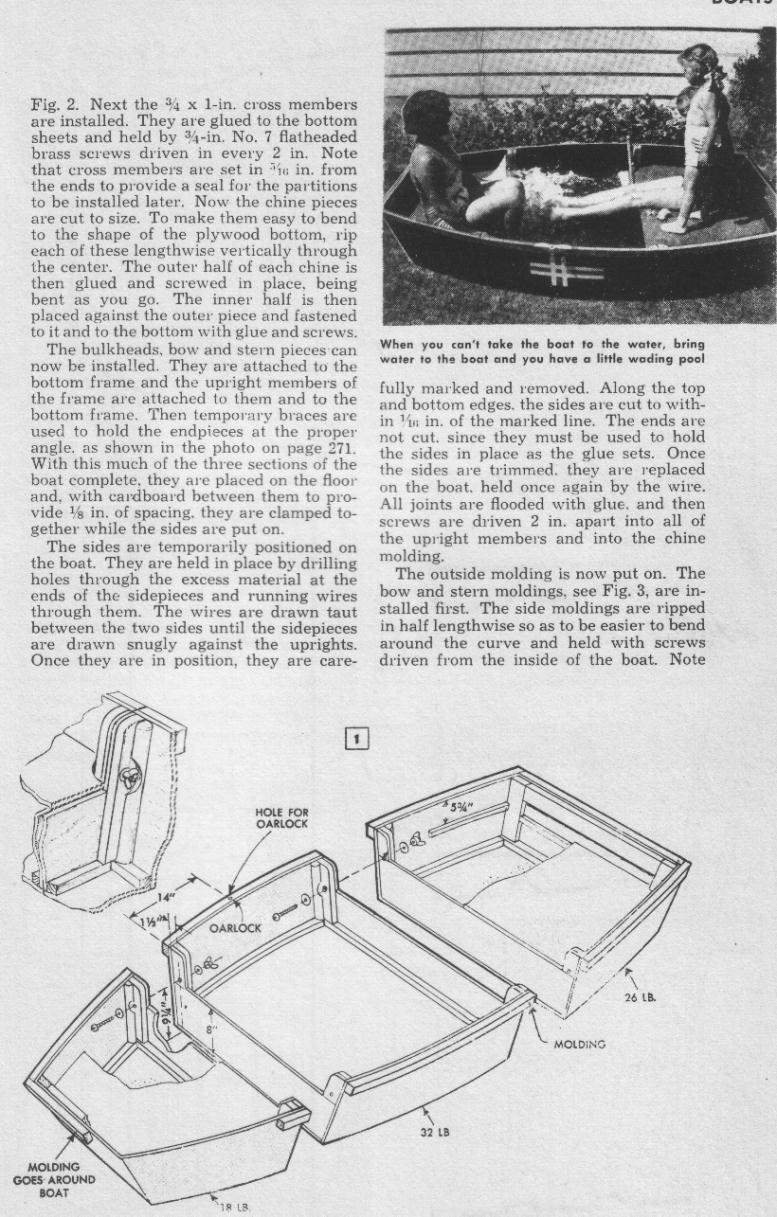

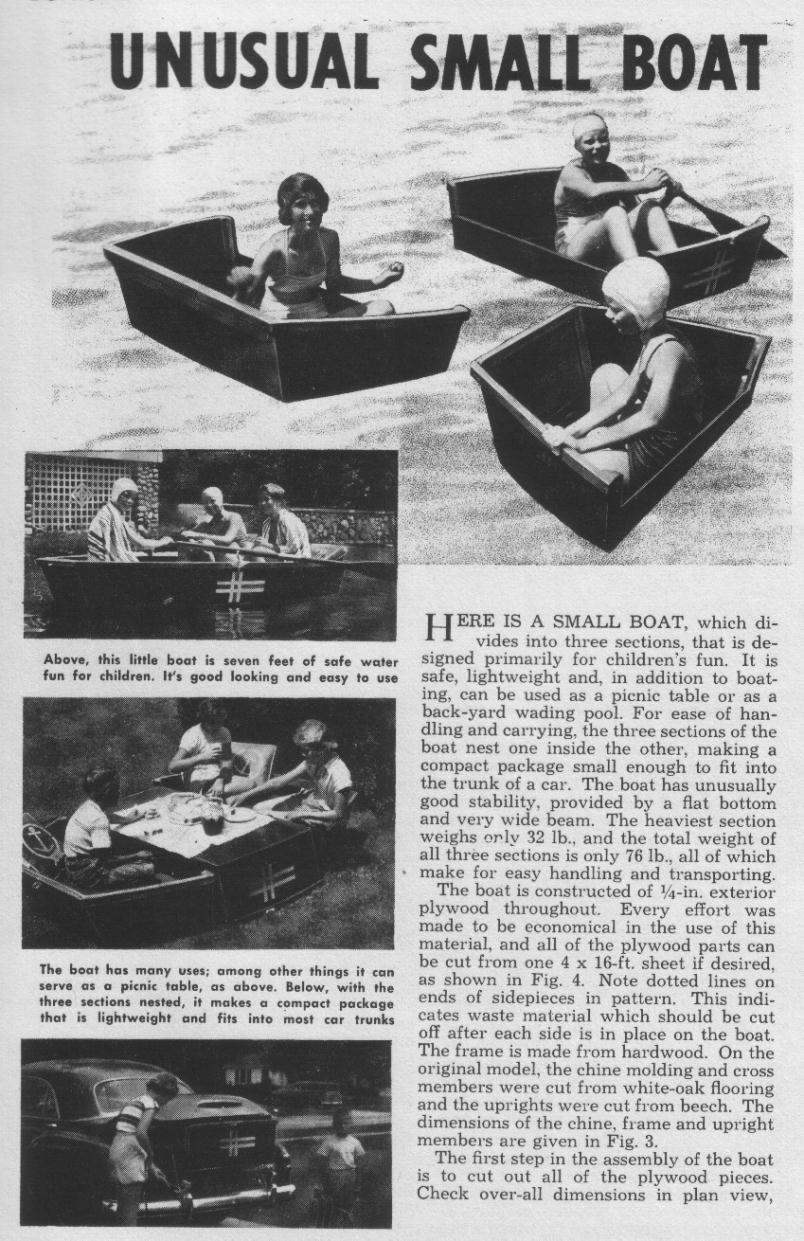

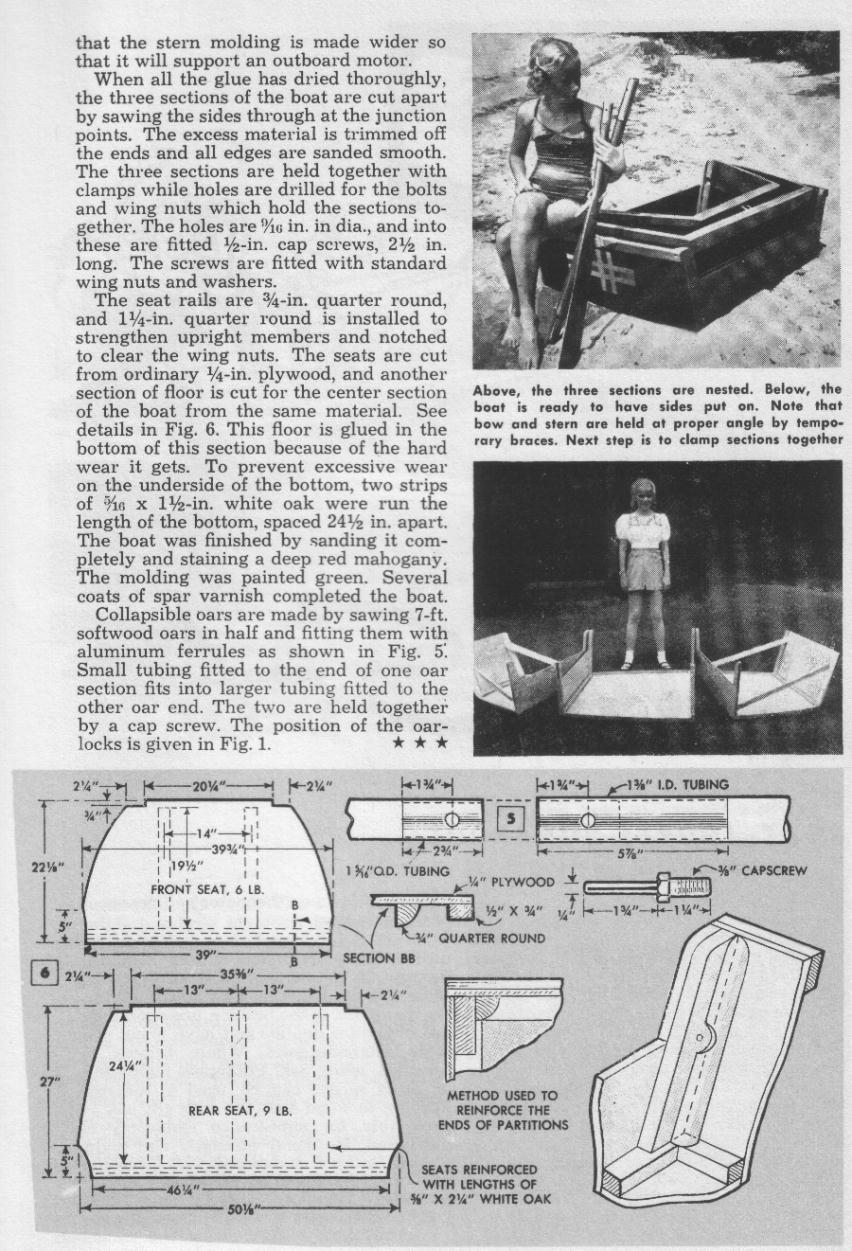

Plan sheets 5
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
