Can't Sink
9 1/2 ft. fiber-glass dinghy
- Category
- Row Boats
- Designer
- C. T. Allen
- Published
- Boat Builder's Handbook, p. 123
- Craft Print
- 288

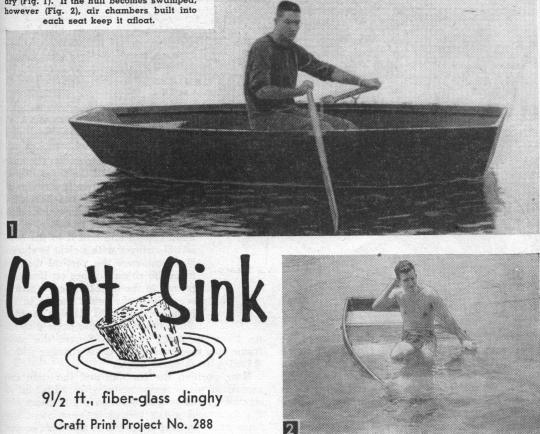

A sturdy, lightweight fishing dinghy with its wooden frame encased in fiberglass, so color goes all the way through and there's no hull painting. Air chambers in each seat give about 3,000 cu in. of flotation, keeping it afloat even when swamped.
Specifications
- Length
- 9 ft 6 in
- Beam
- 47 in
- Weight
- 85 lb
- Capacity
- 3 adults
- Construction
- Fiberglass hull over a wooden framework; air chambers in the seats; two mold frames
Downloads

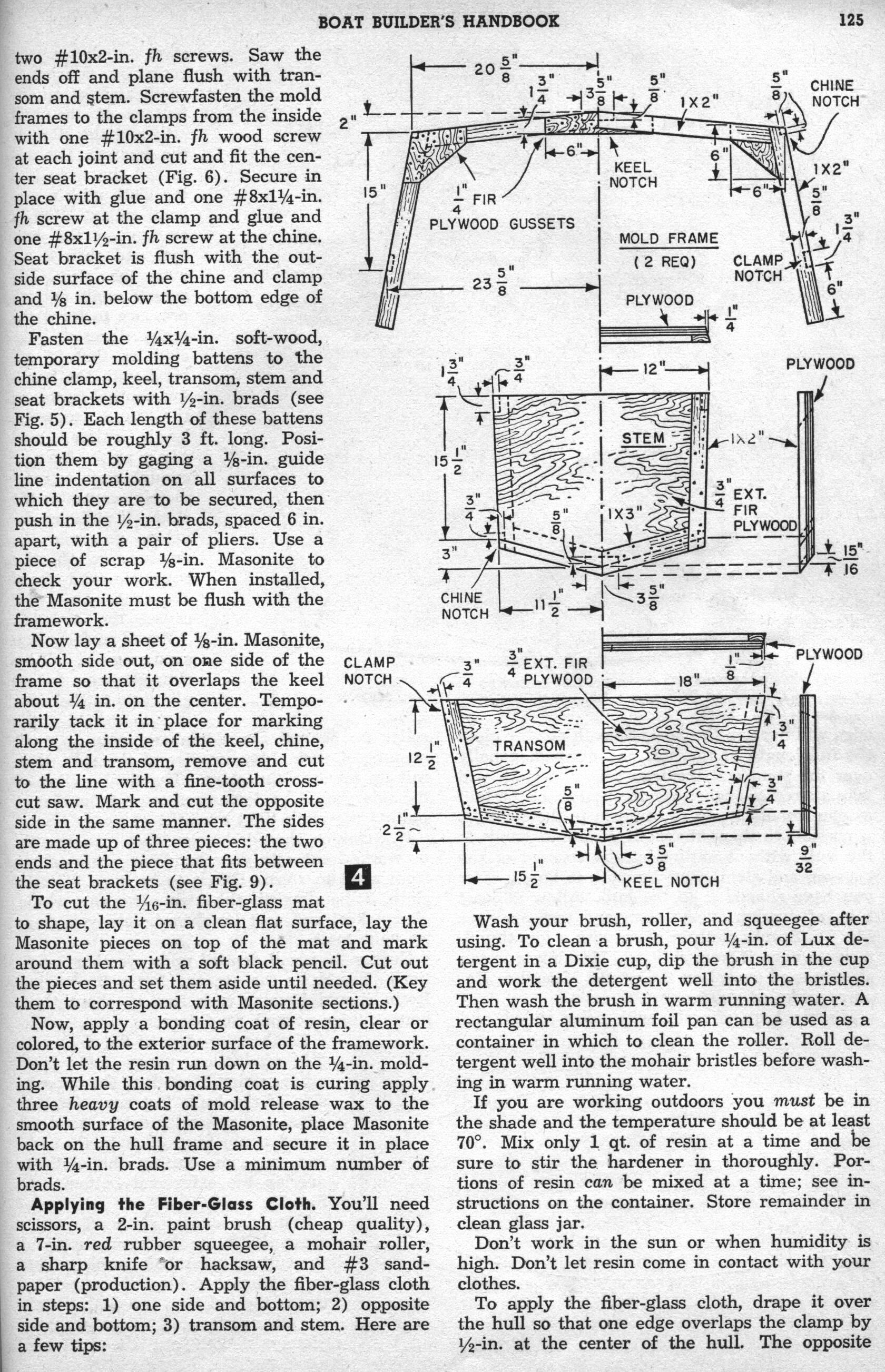

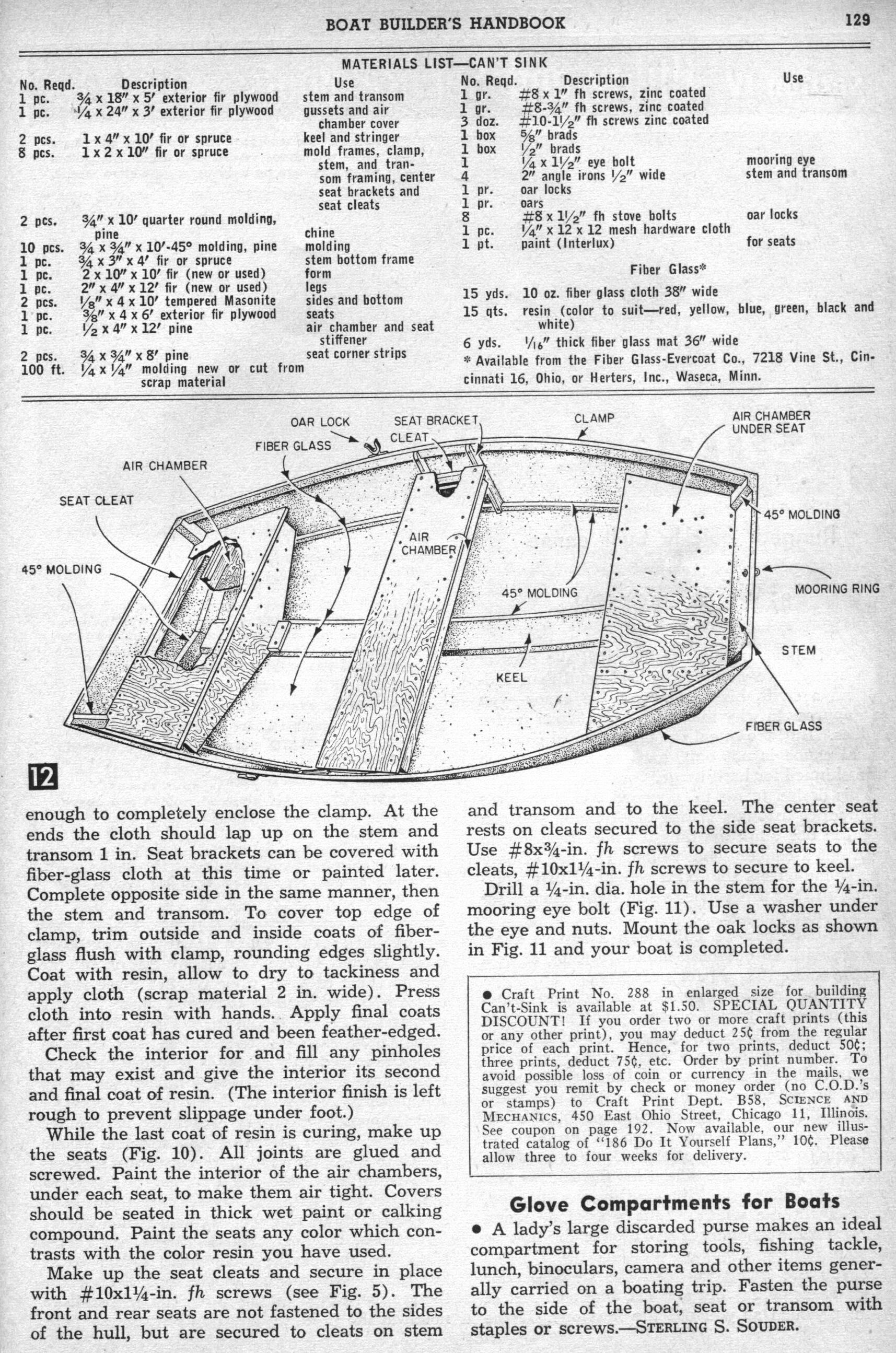

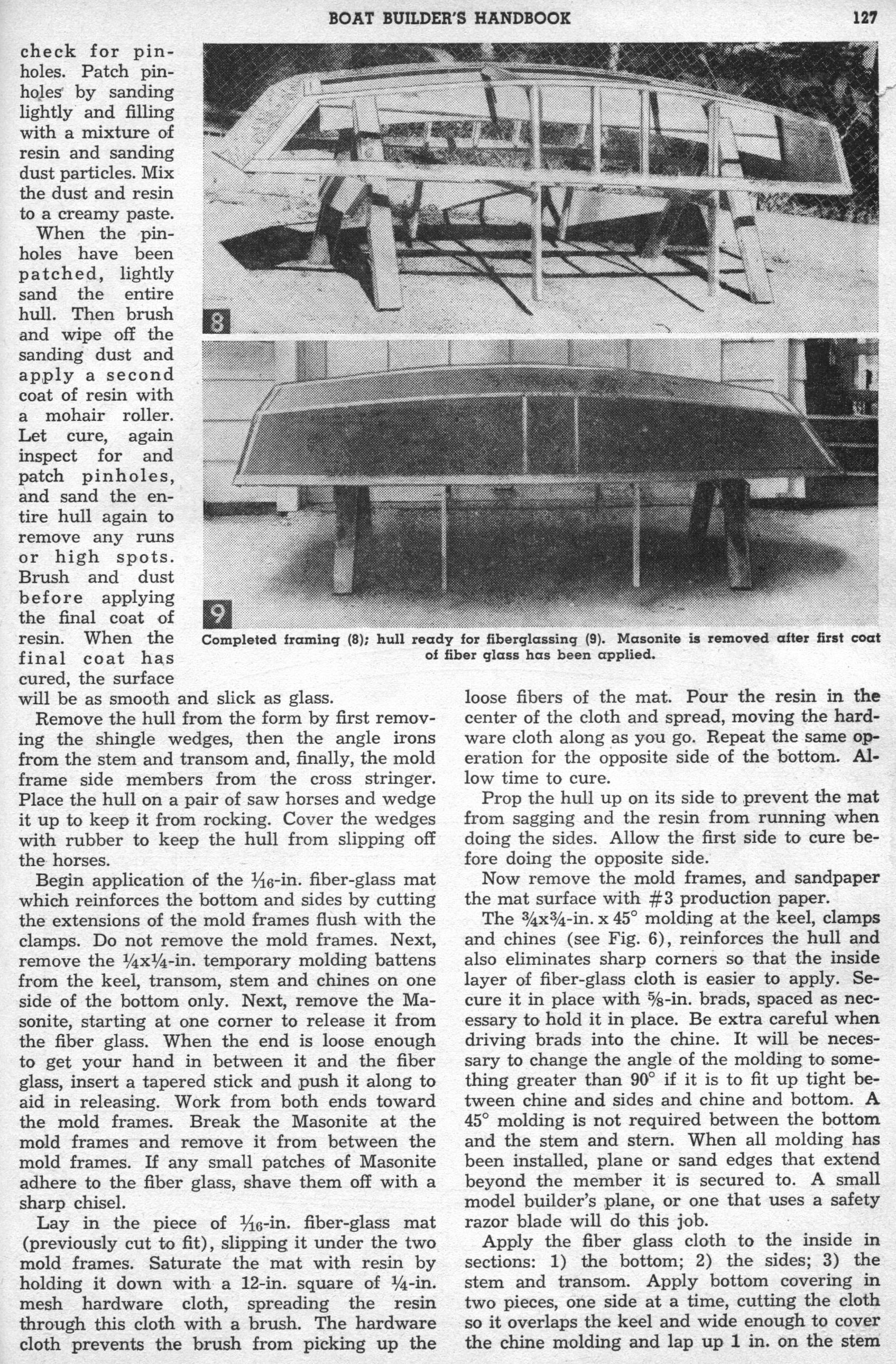

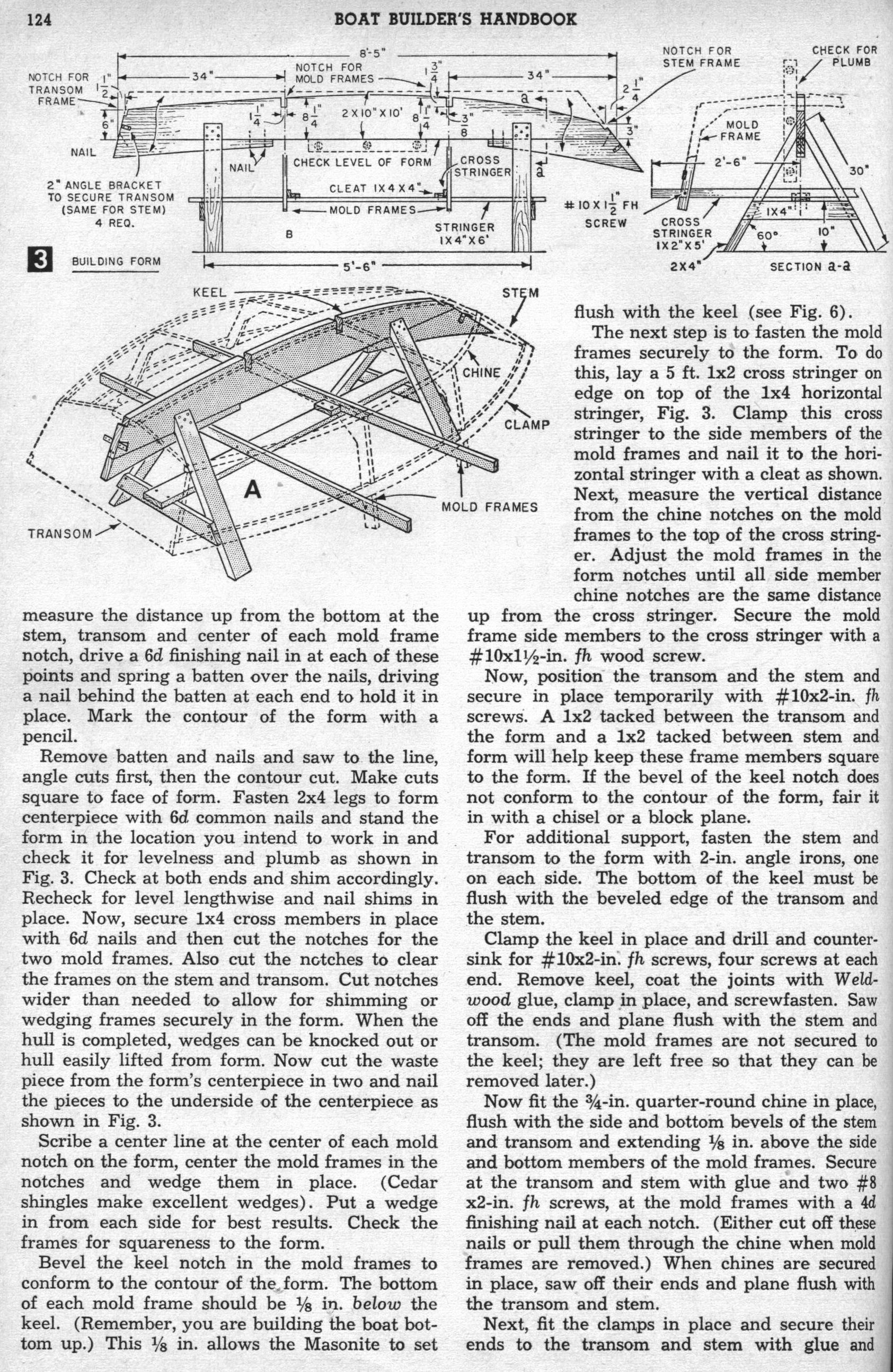

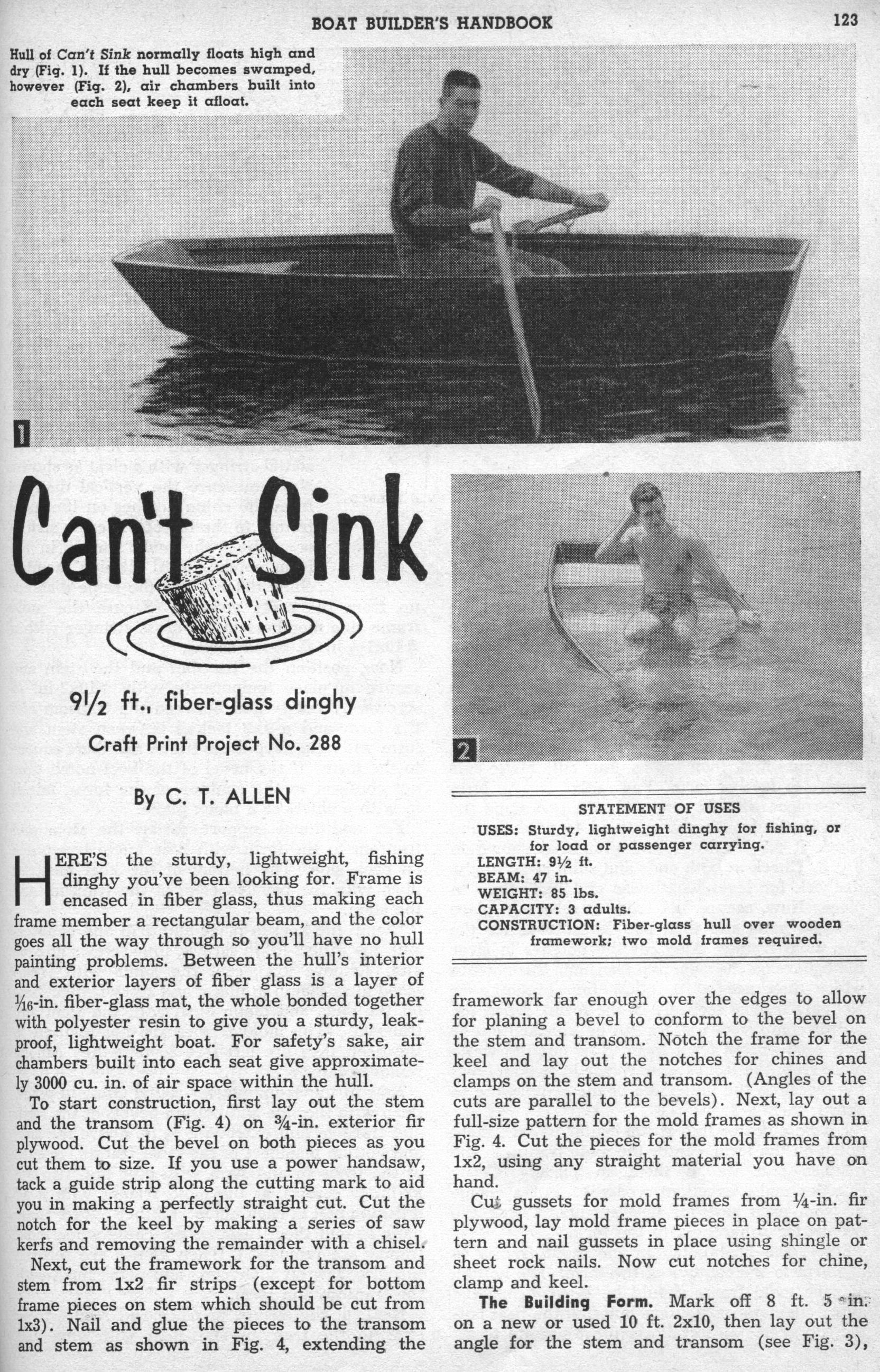

Plan sheets 8
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
