Boating Projects and Tips
Mooring buoy, canoe motor bracket, outboard test tank and more
- Category
- Other
- Published
- Boat Builder, Spring 1972
A collection of small boating projects and tips: an inexpensive mooring buoy made from a used tire and plywood discs, a bracket for putting a small outboard on a canoe or kayak, an outboard motor test tank from a 50-gallon drum, a rope swim ladder, sculling with one oar and more.
Specifications
- Construction

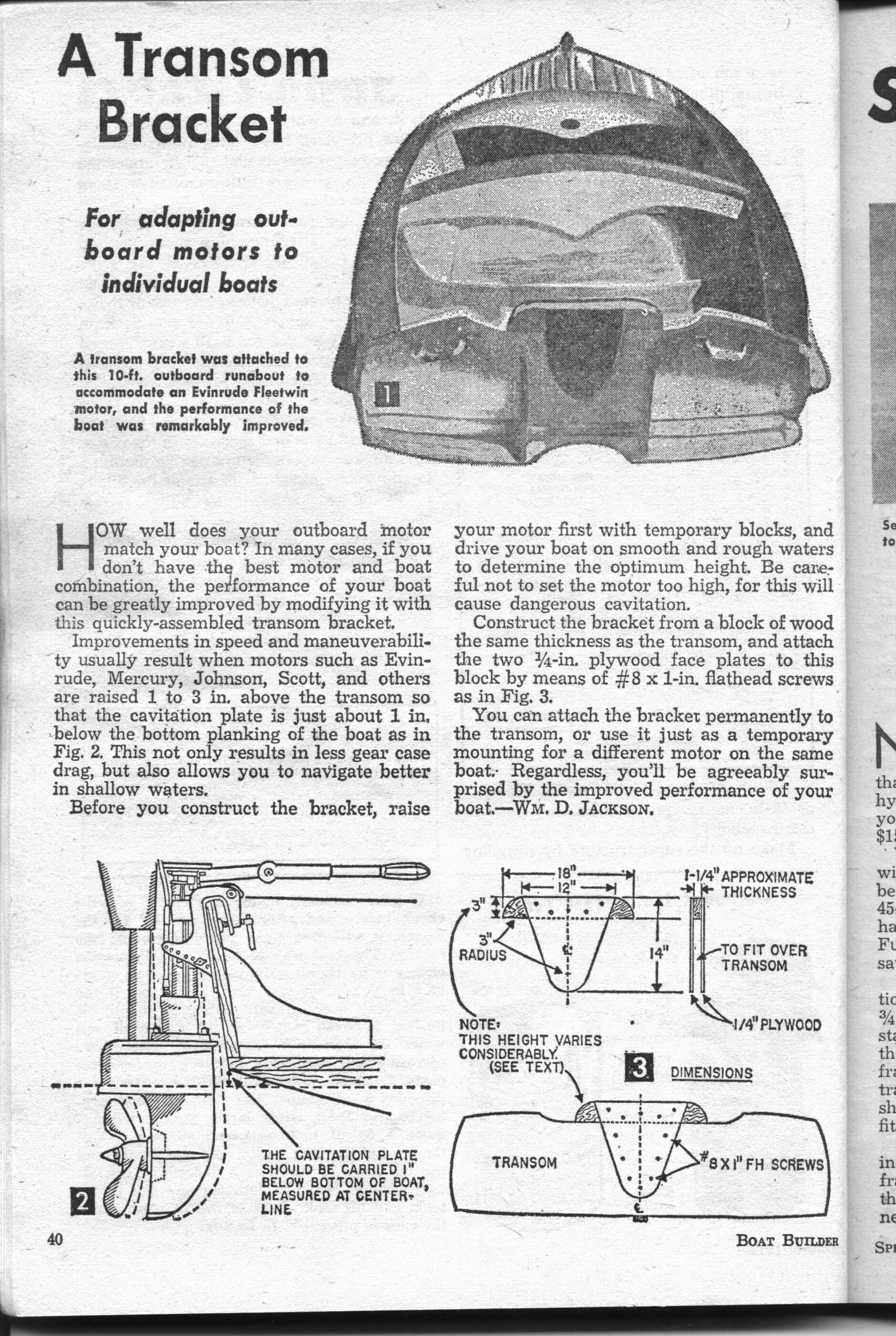

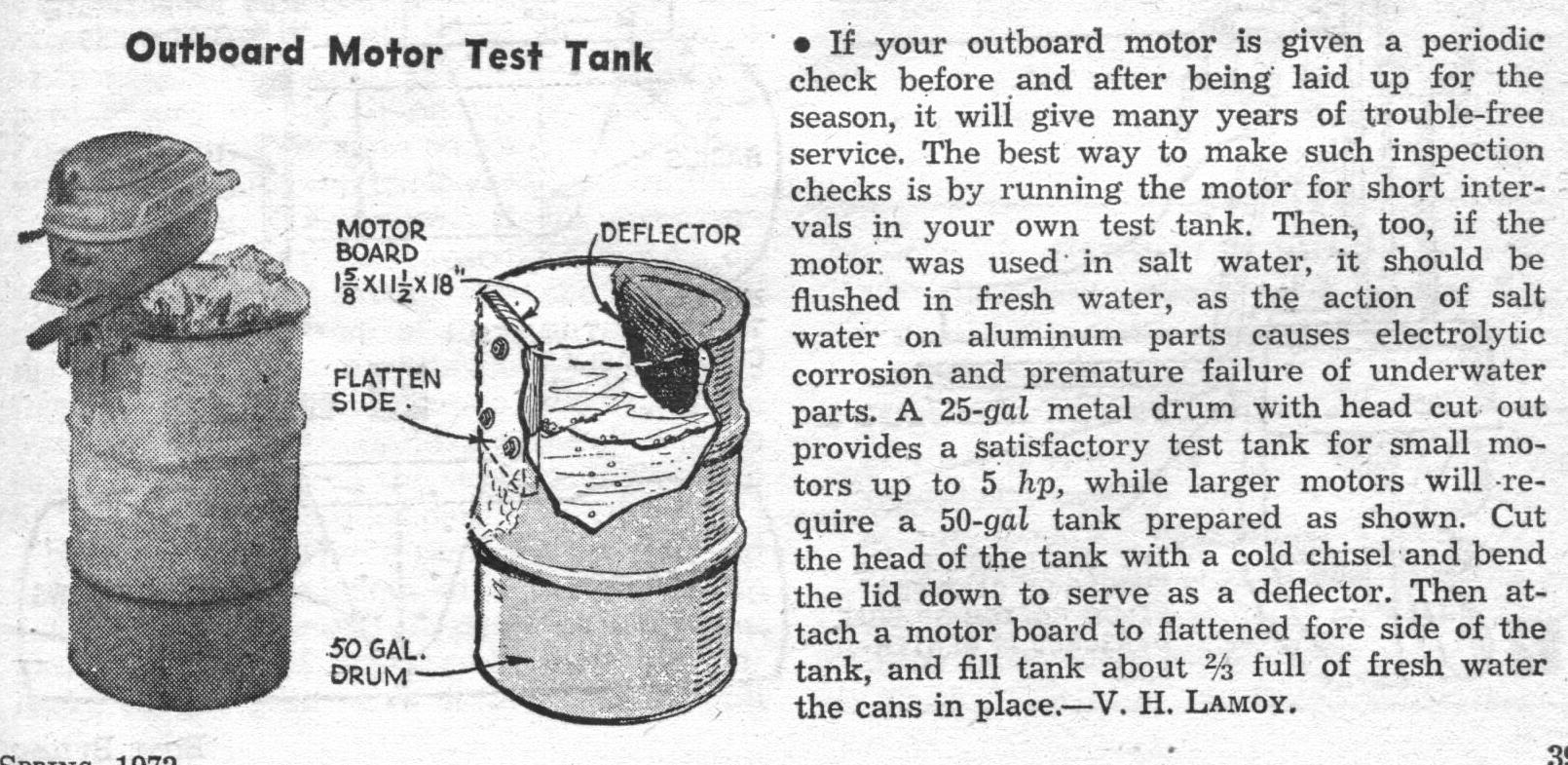

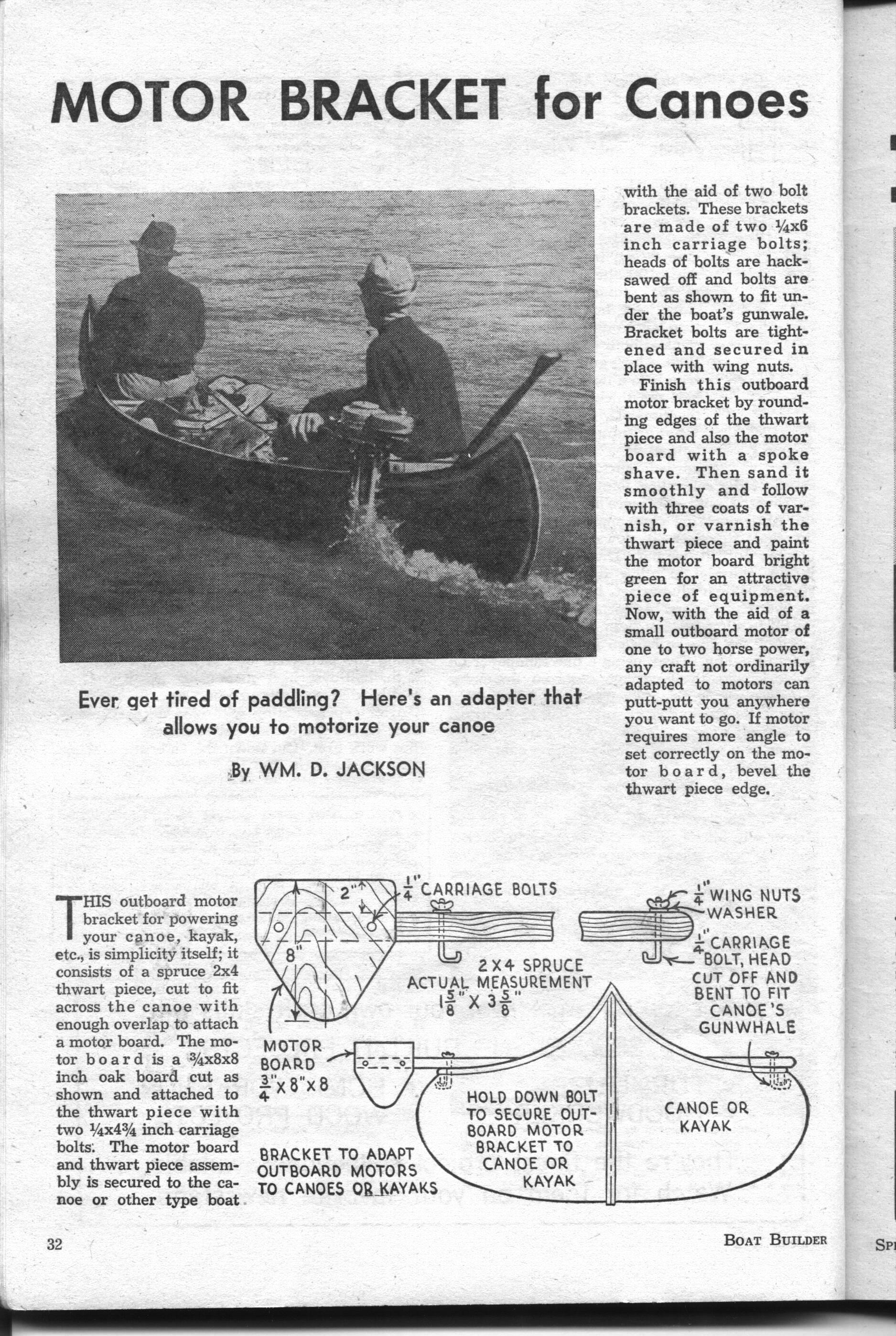

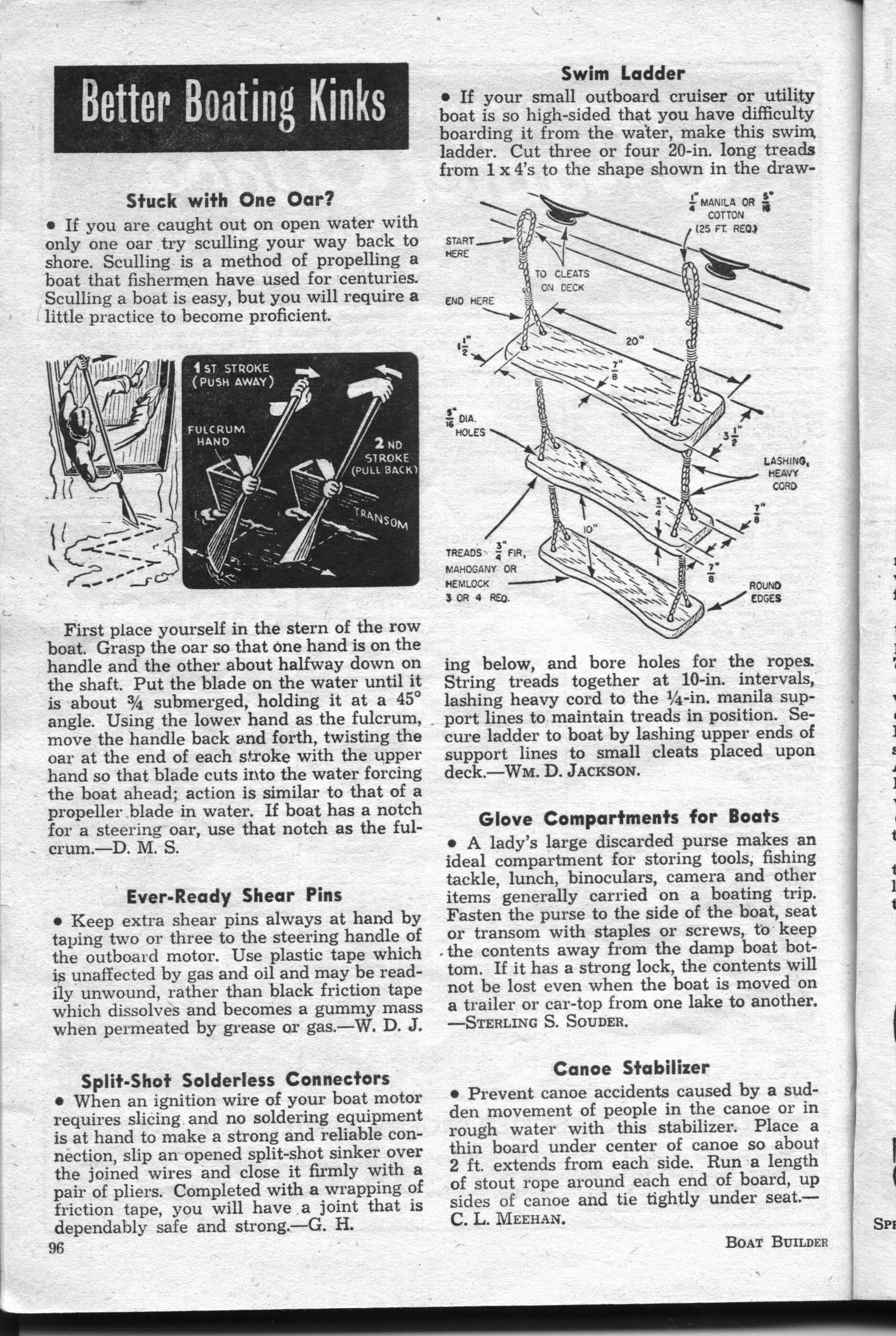

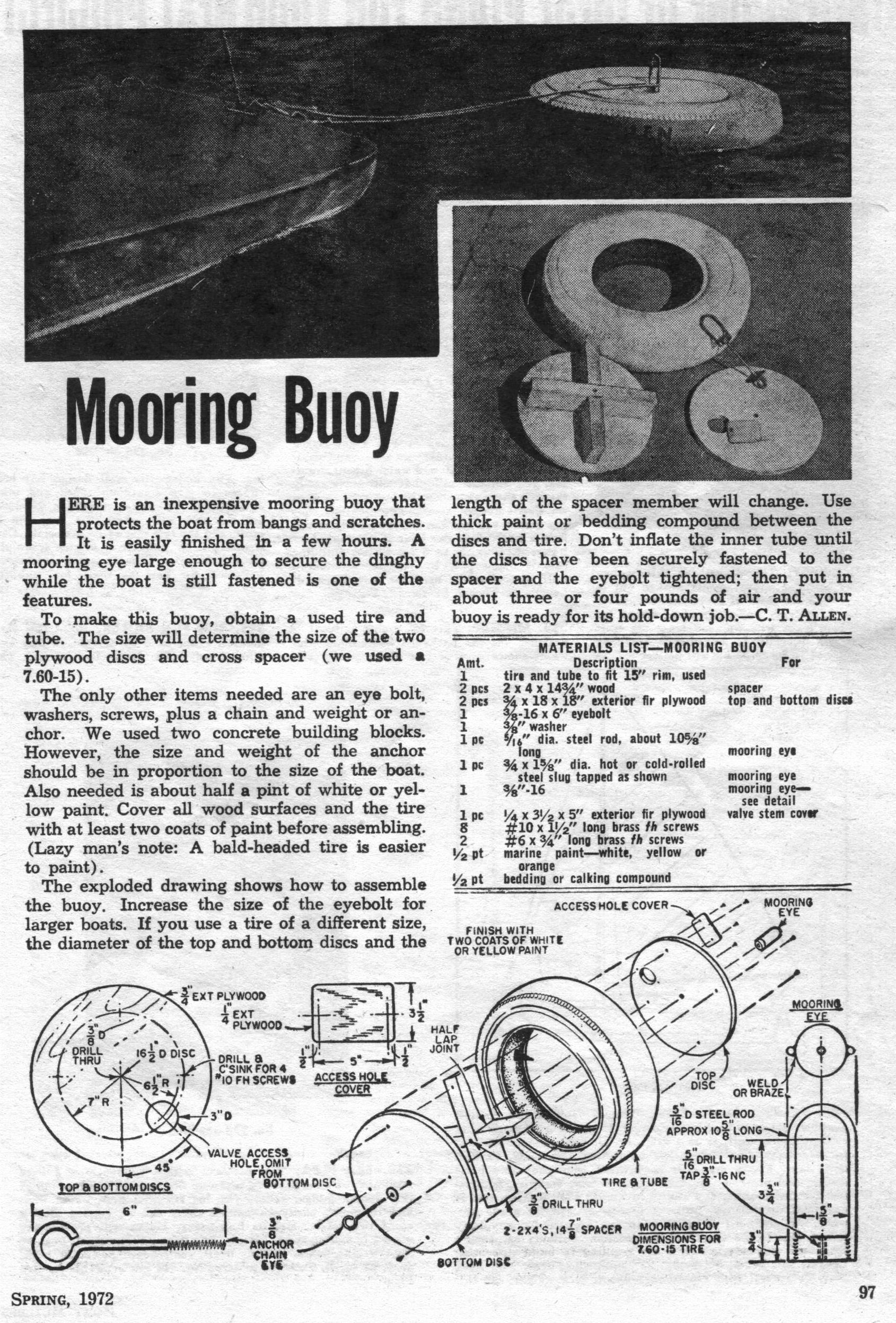

- Small projects: tire-and-plywood mooring buoy, outboard motor bracket for canoes, 50-gallon-drum outboard test tank, transom bracket, swim ladder and other boating kinks
Downloads
Plan sheets 5
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
