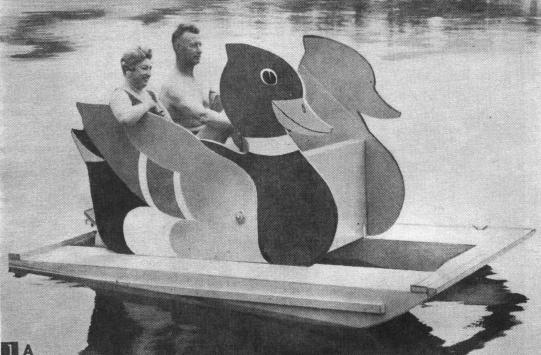

Marty the Paddle Duck
Colorful appearance and pedal-operated paddle wheels keep Marty's admirers in line for another ride
- Category
- Novelty Boats
- Designer
- Ed Hamilton
- Published
- Boat Builder's Handbook, p. 74
- Craft Print
- 322
A colorful duck-shaped paddle-wheel fun-about on twin pontoons, pedal-powered for kids and parents alike, or a fleet for a resort. Built-in Styrofoam flotation supports 1,000 lb by itself, and it doesn't need marine-grade lumber, paint or fastenings.
Specifications
- Construction
- Twin pine or fir pontoons (or 10 ft AC exterior plywood) with Styrofoam flotation supporting 1,000 lb; duck-shaped superstructure
- Power
- Pedal-operated paddle wheels
Downloads

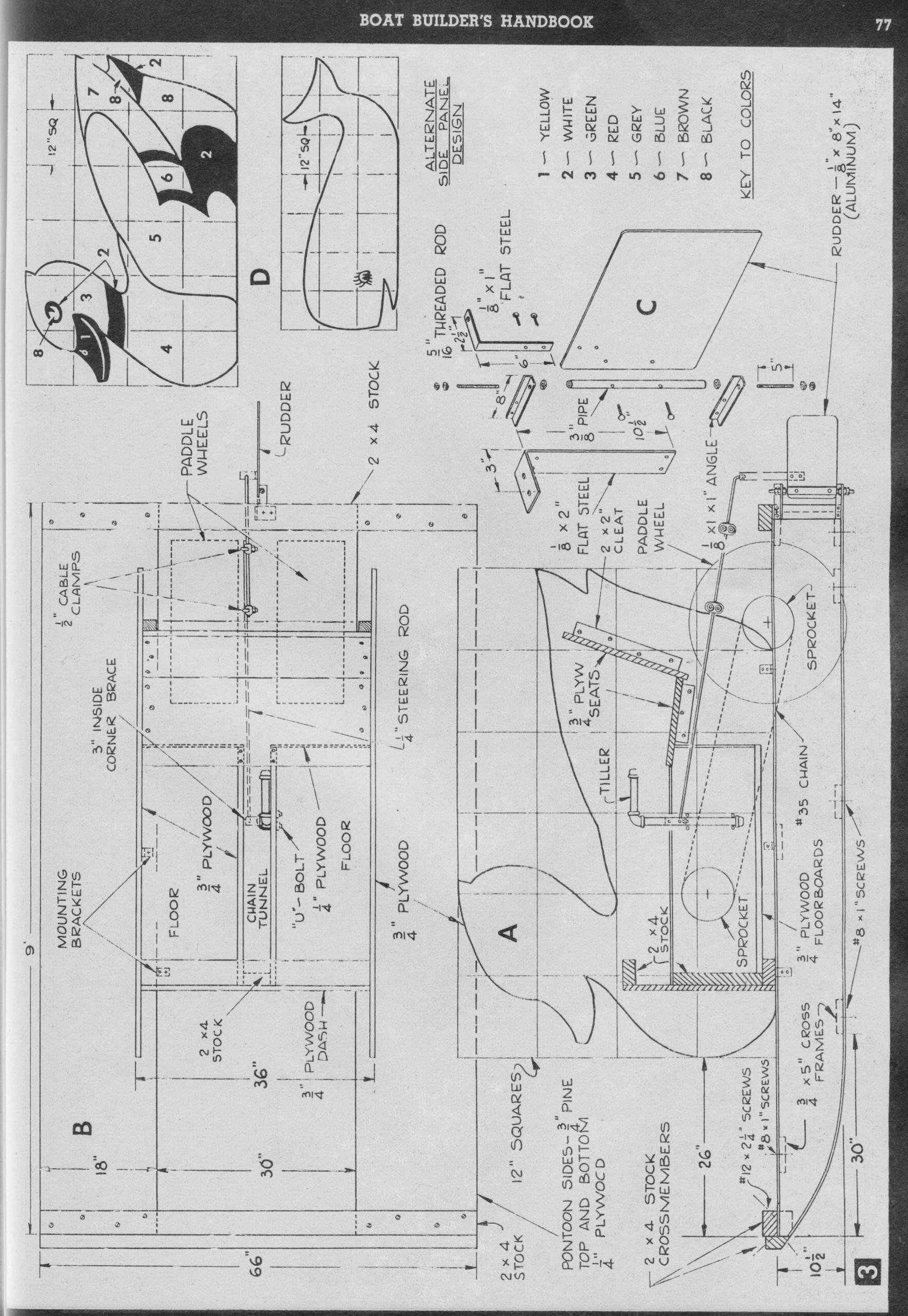

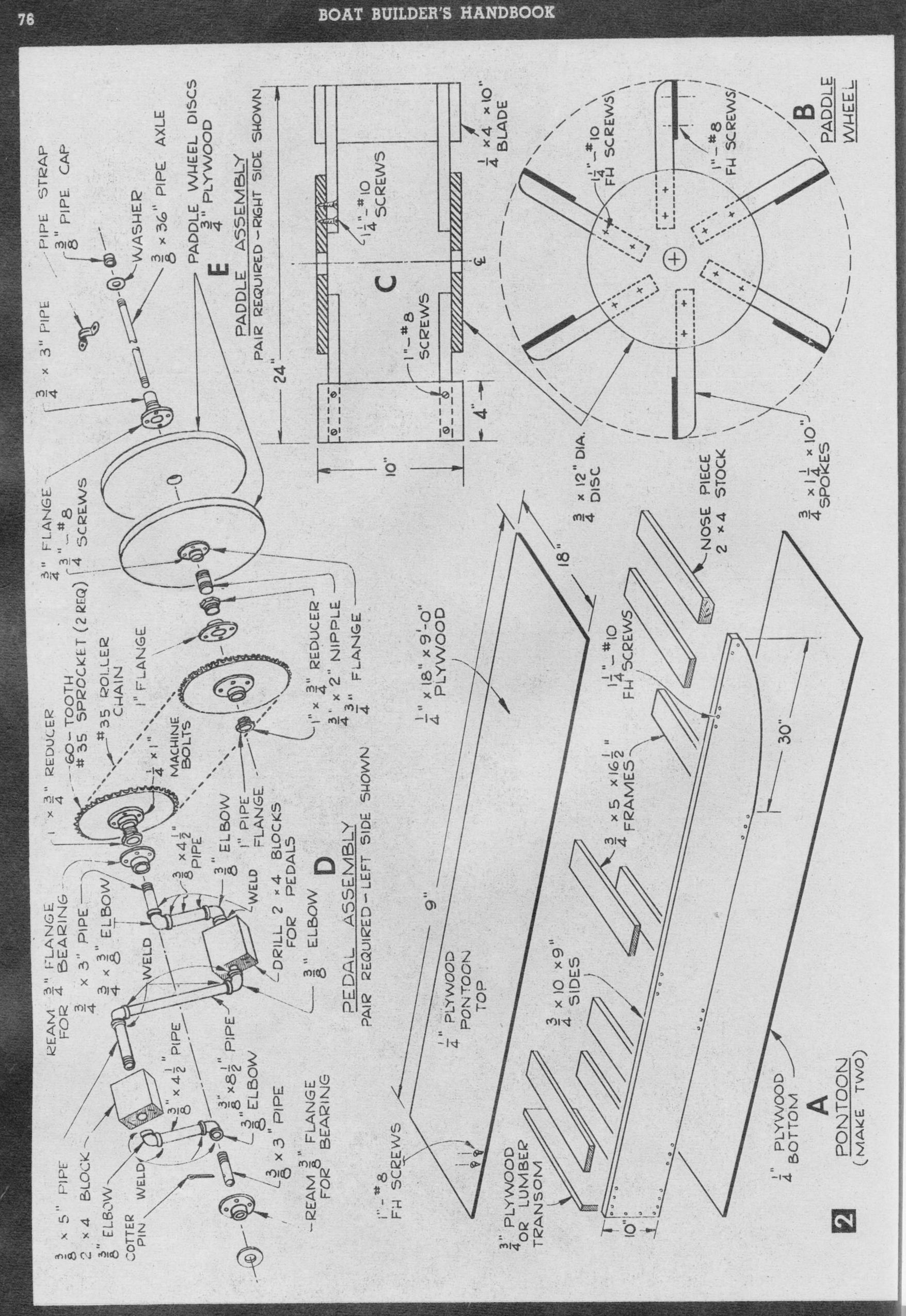

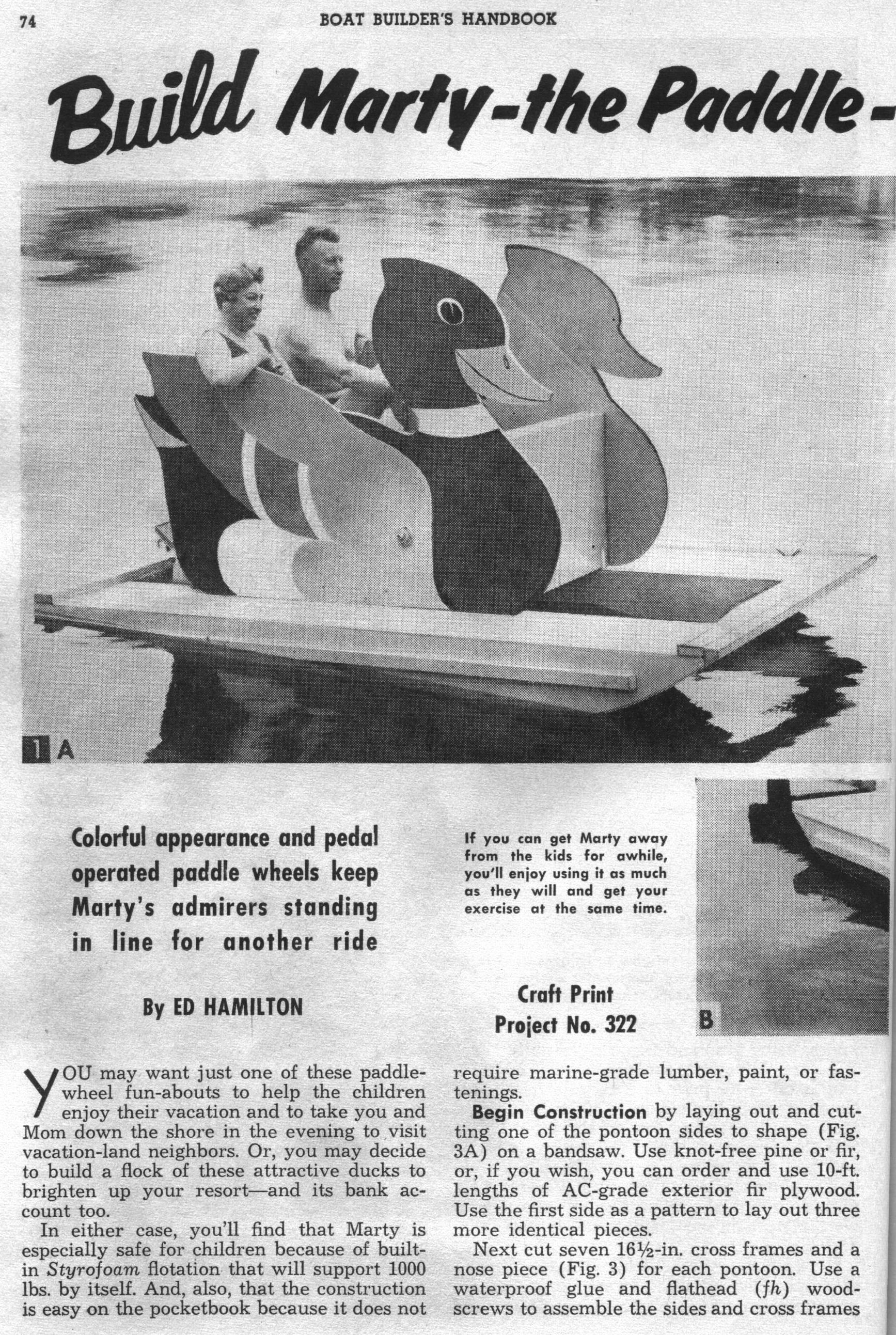

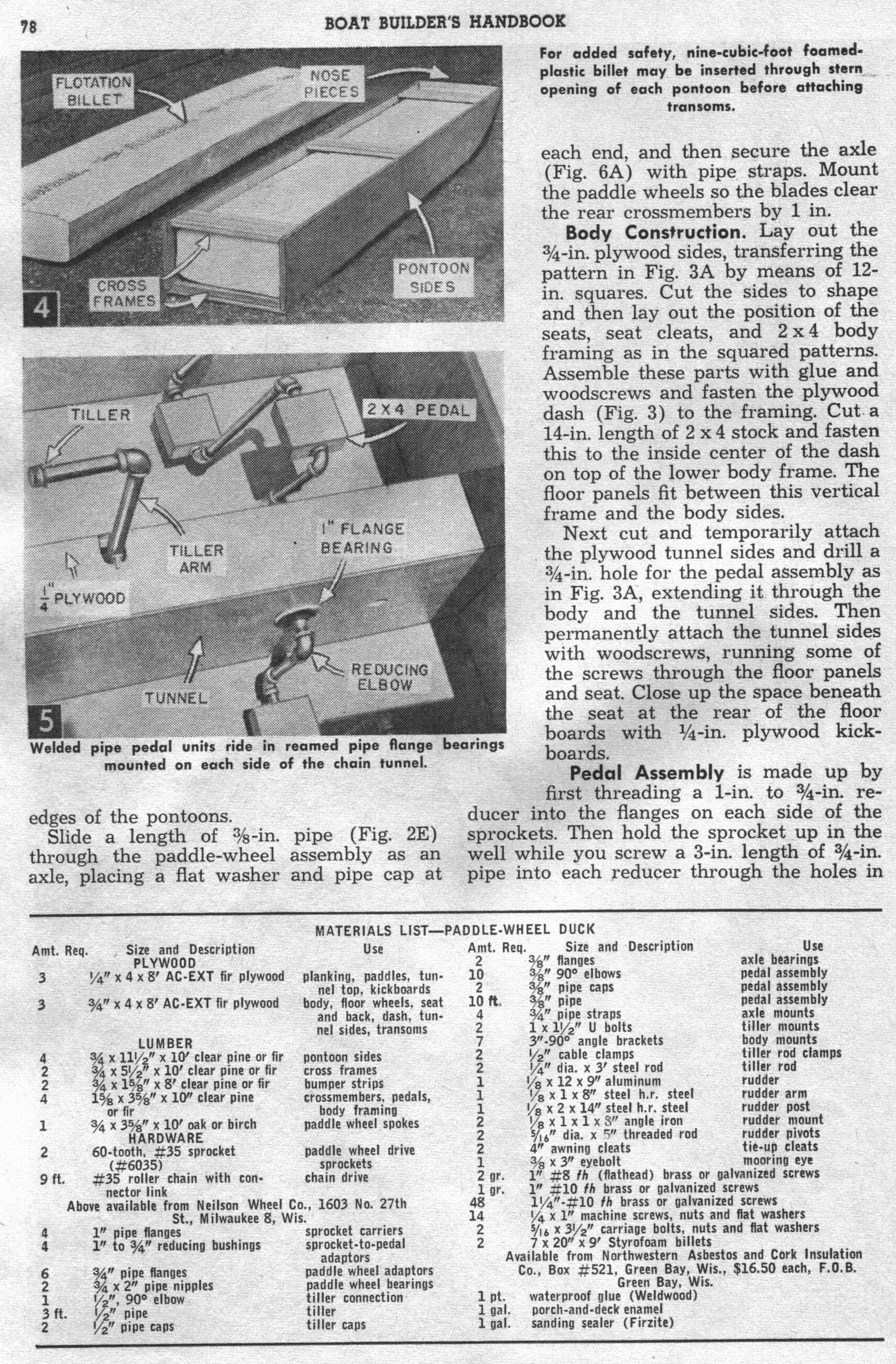

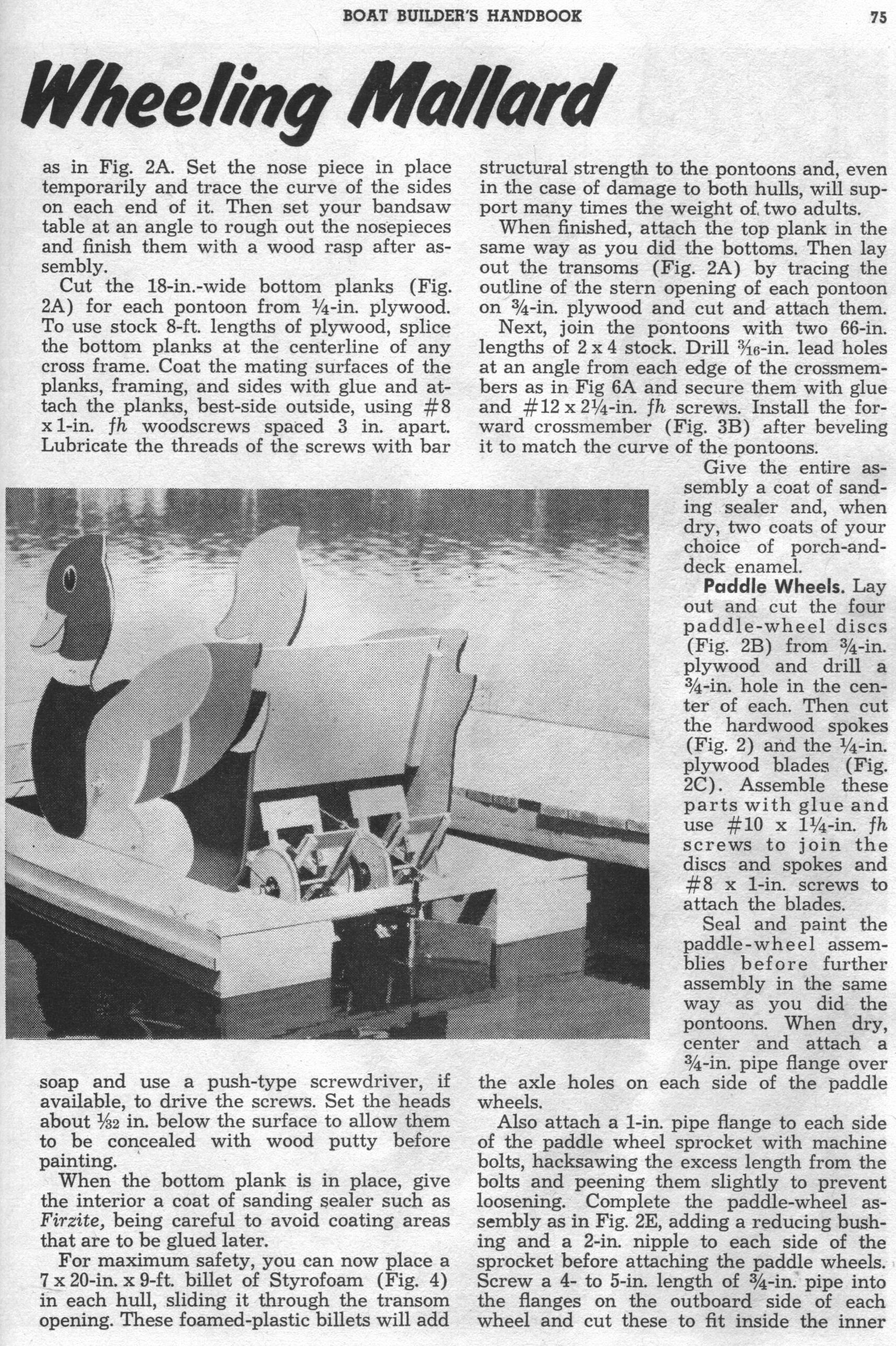

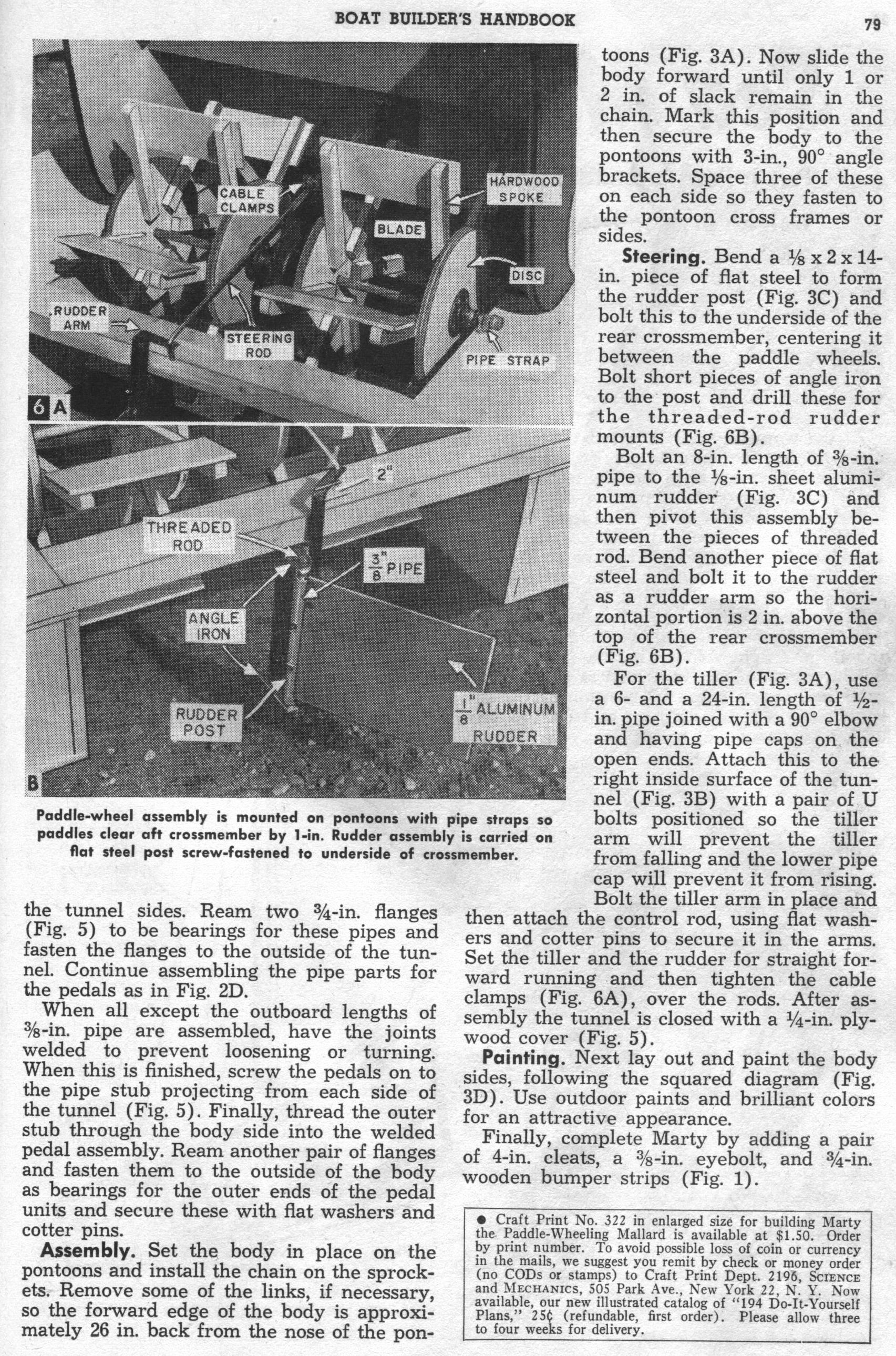

Plan sheets 7
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
