Jinx
Class B outboard racing runabout
- Category
- Mechanix Illustrated
- Published
- Mechanix Illustrated, p. 160

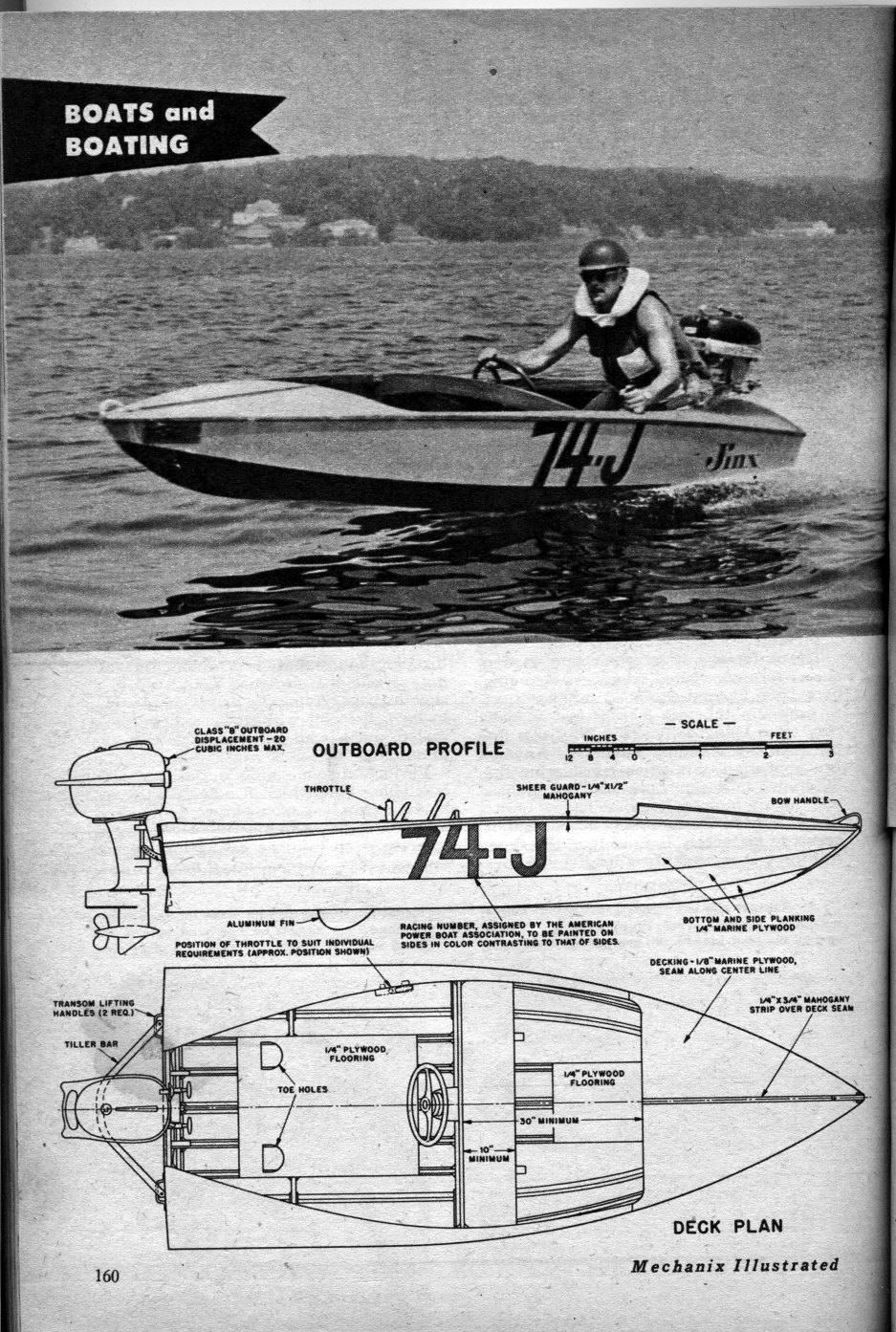

A Class B outboard racing runabout (20 cubic inch maximum displacement) with a 1/4 in. marine plywood hull, 1/8 in. plywood deck and mahogany trim. The drawings show the outboard profile and deck plan, with the APBA racing number on the sides.
Specifications
- Construction
- 1/4 in. marine plywood bottom and sides, 1/8 in. deck, mahogany sheer guard; aluminum fin
- Power
- Class B outboard (20 cu. in. maximum)
Downloads

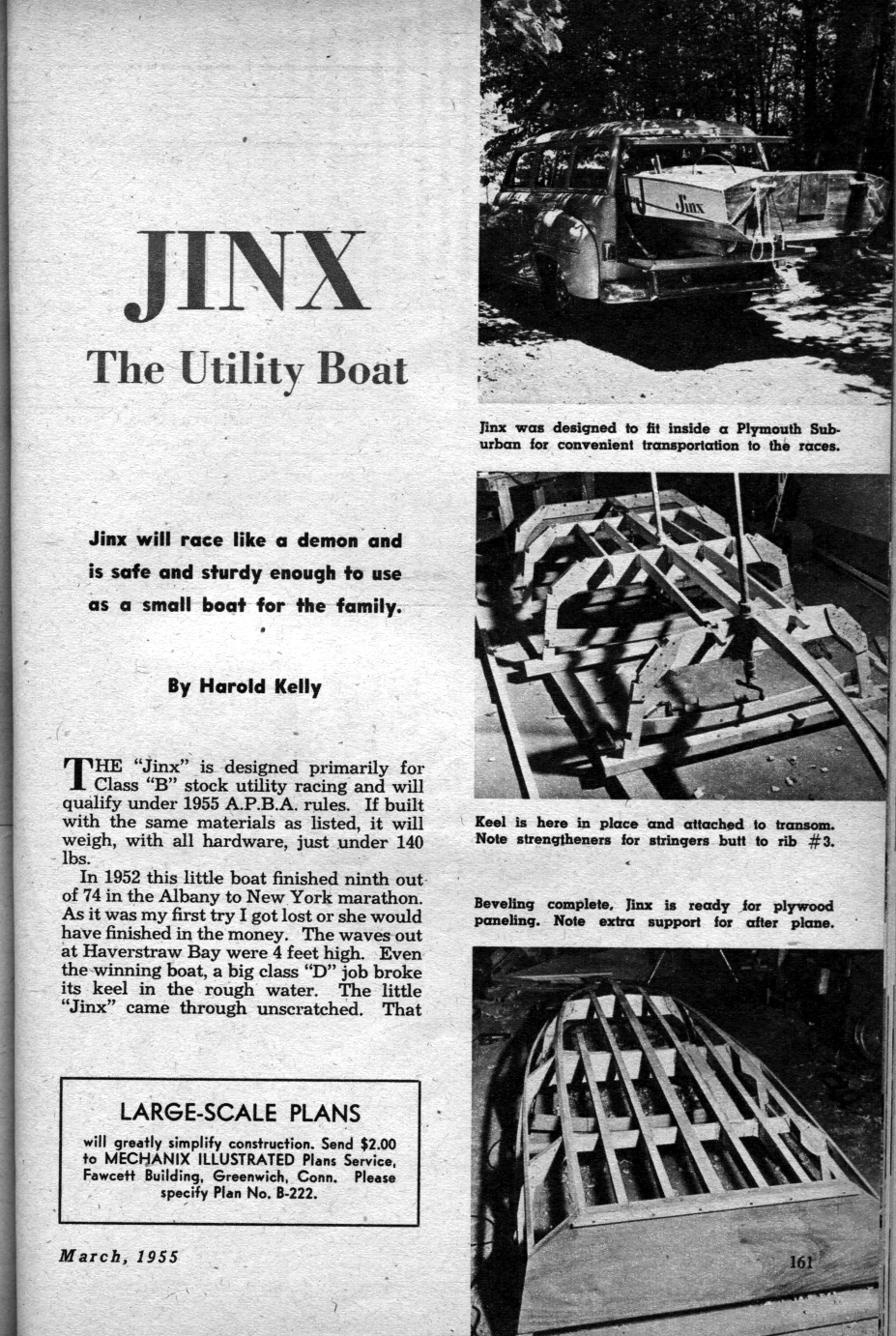

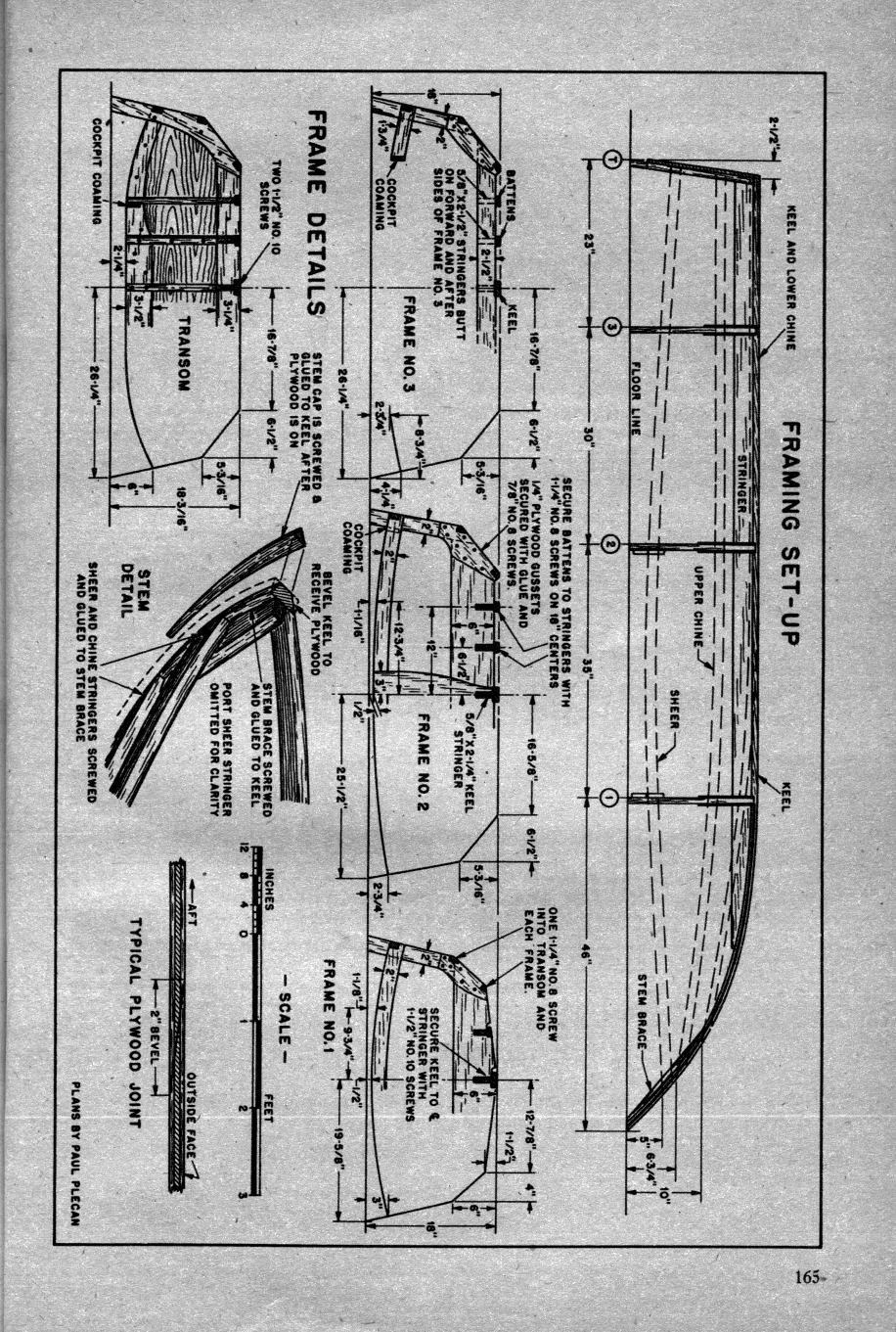

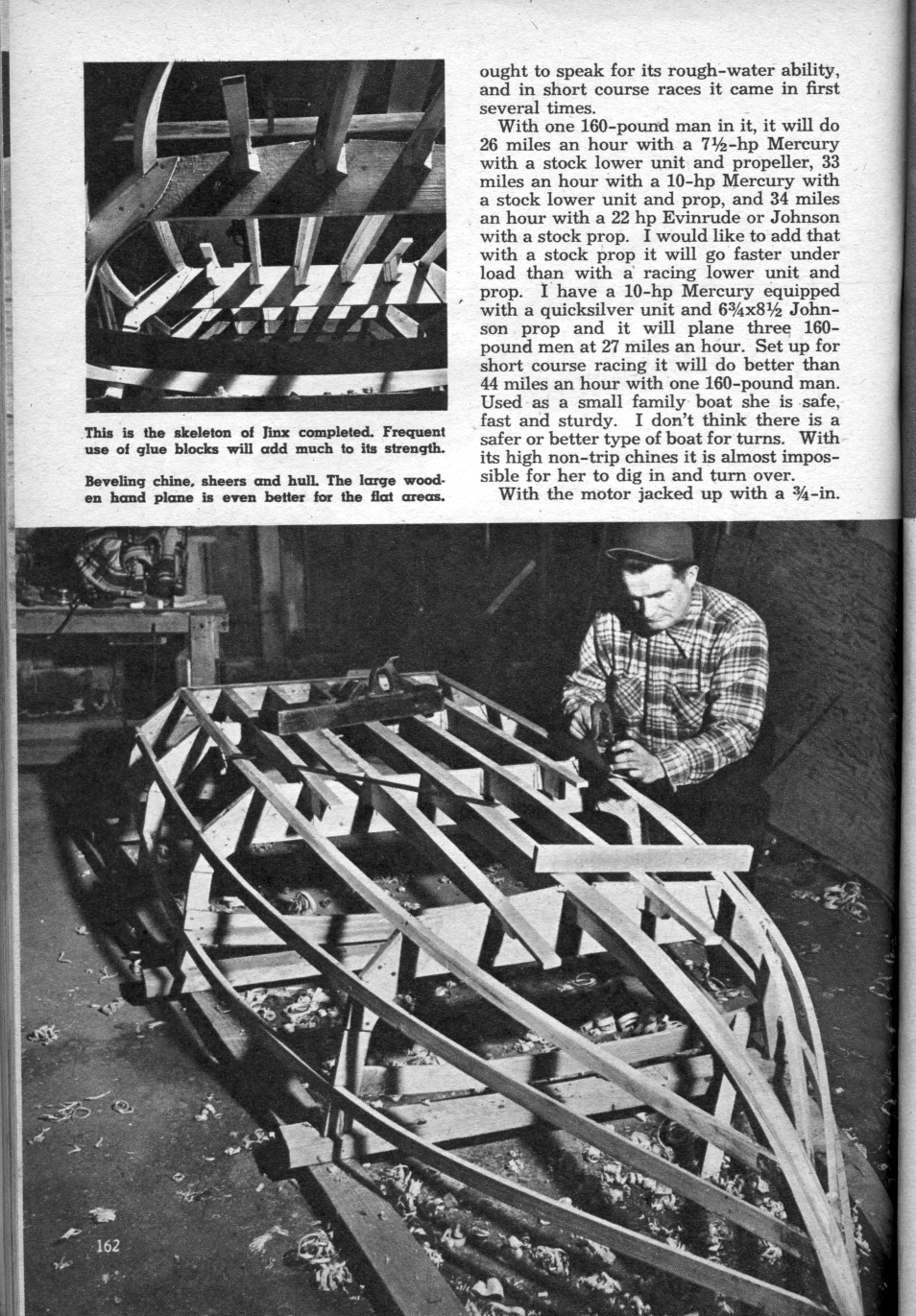

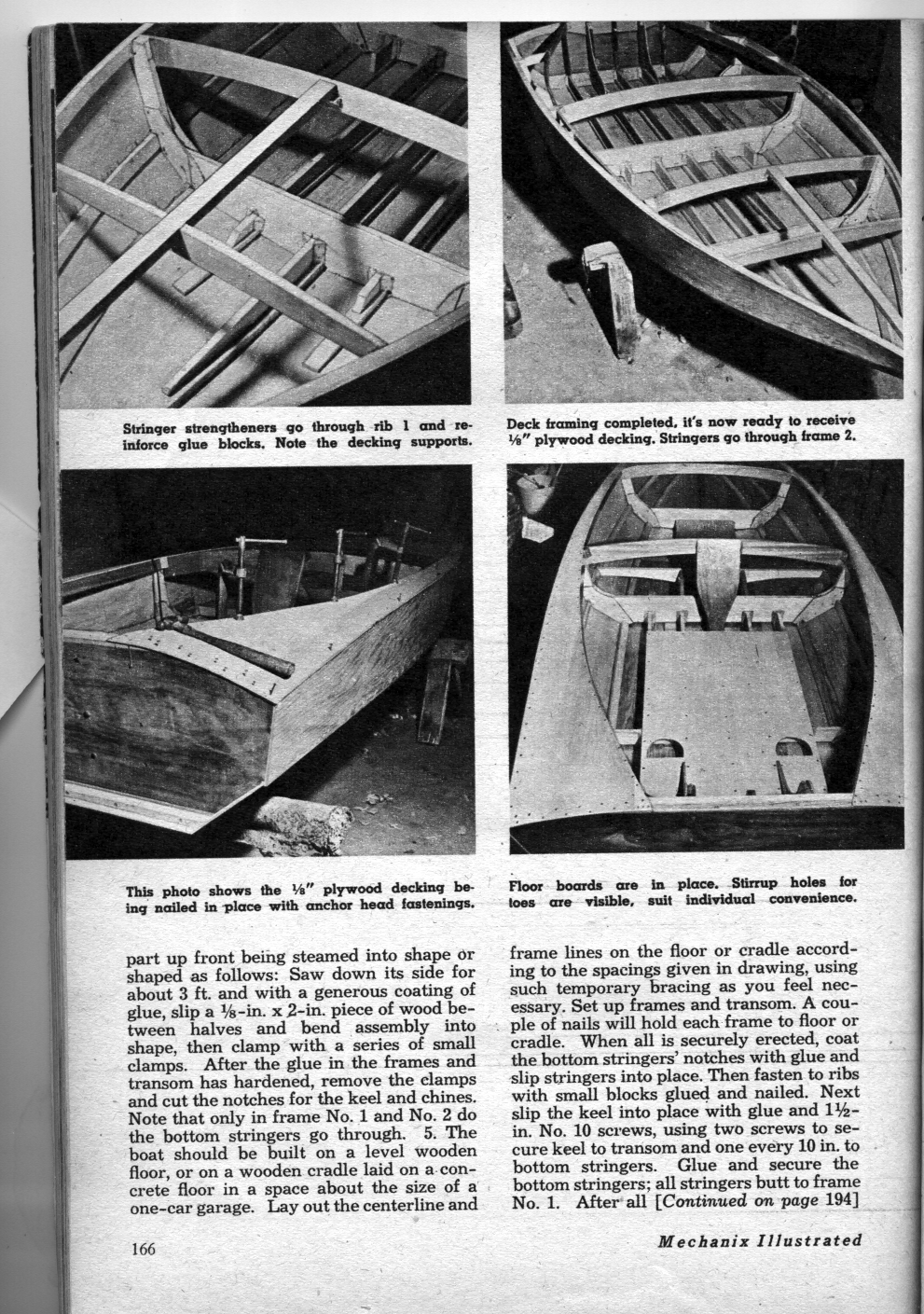

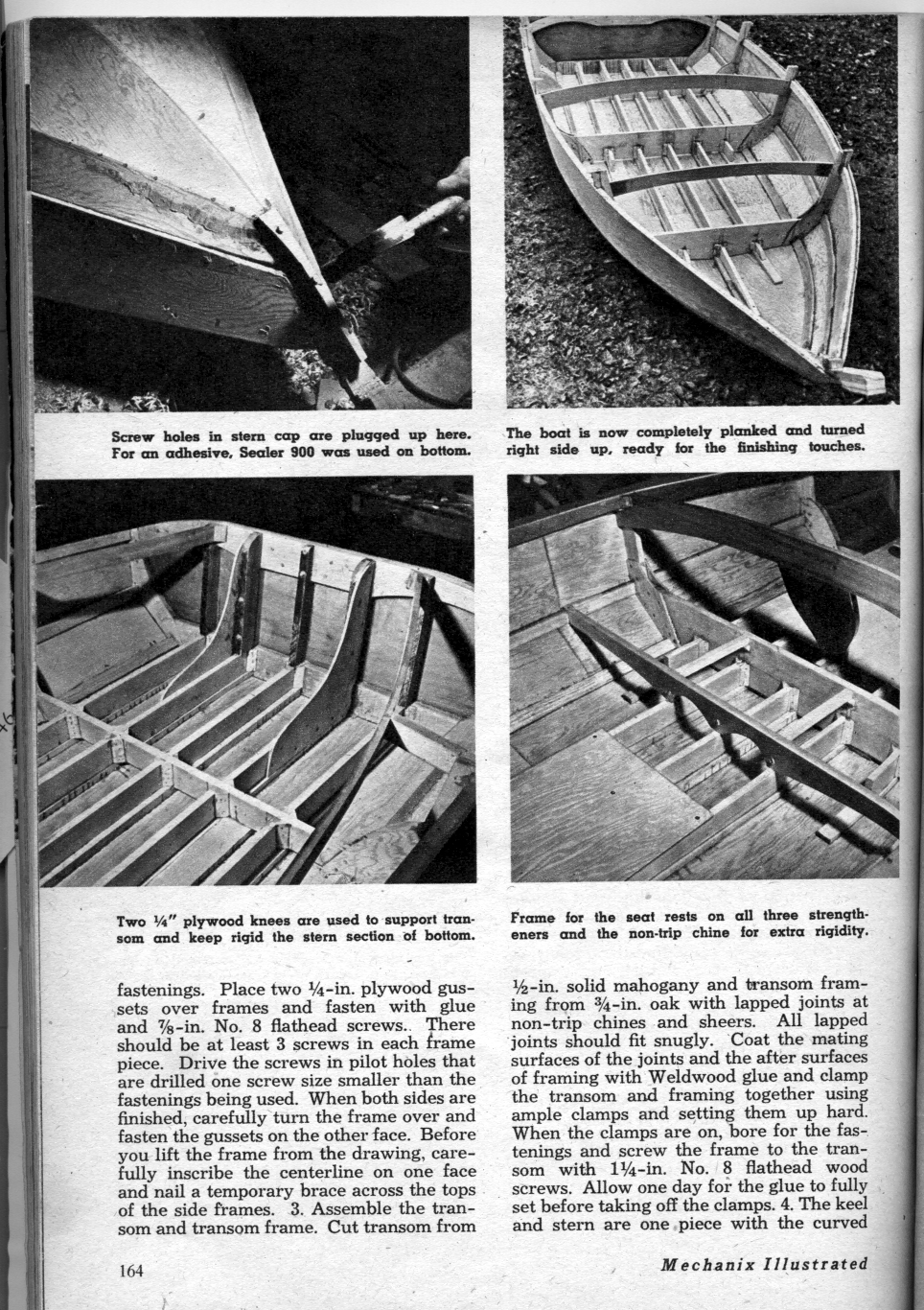

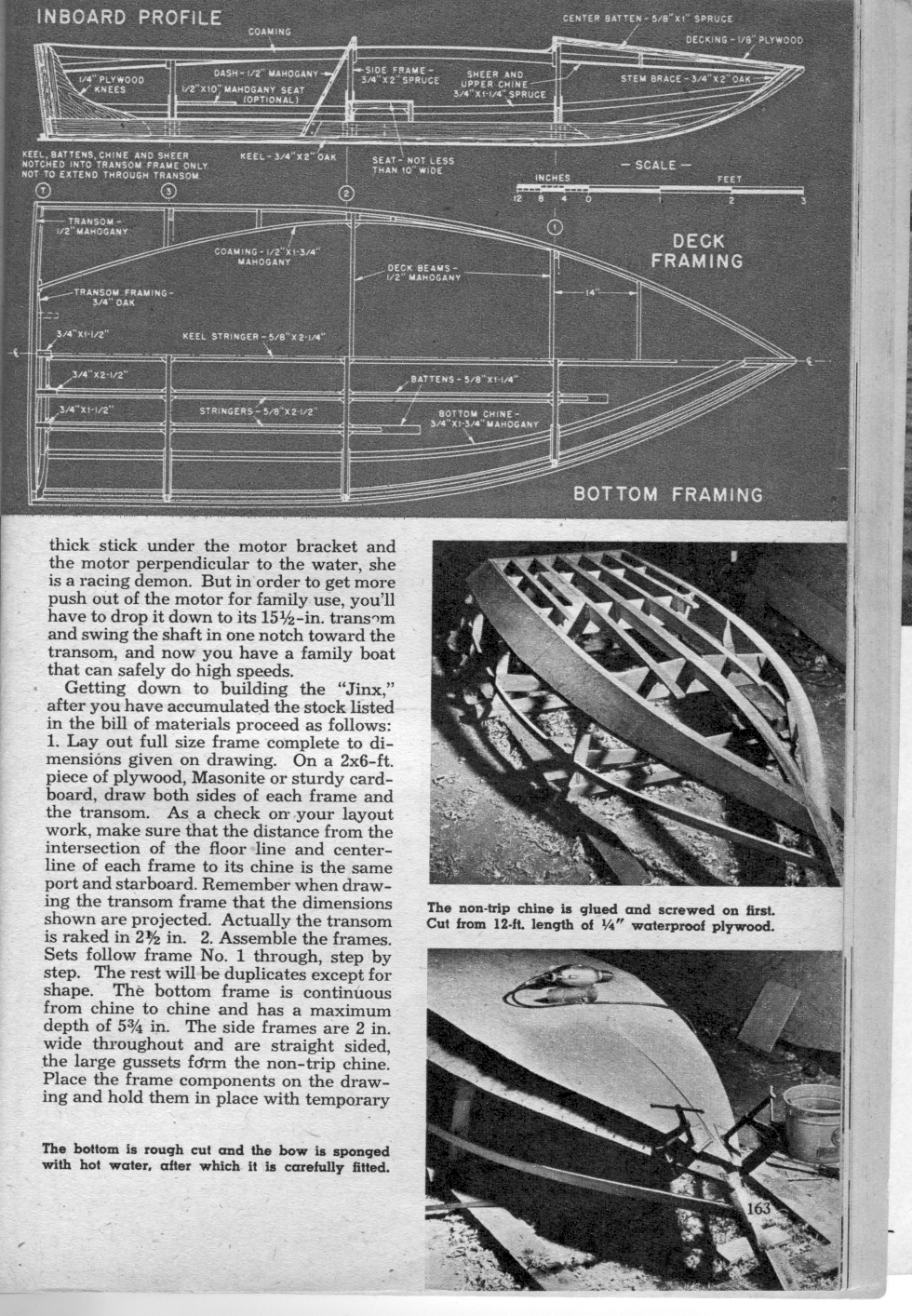

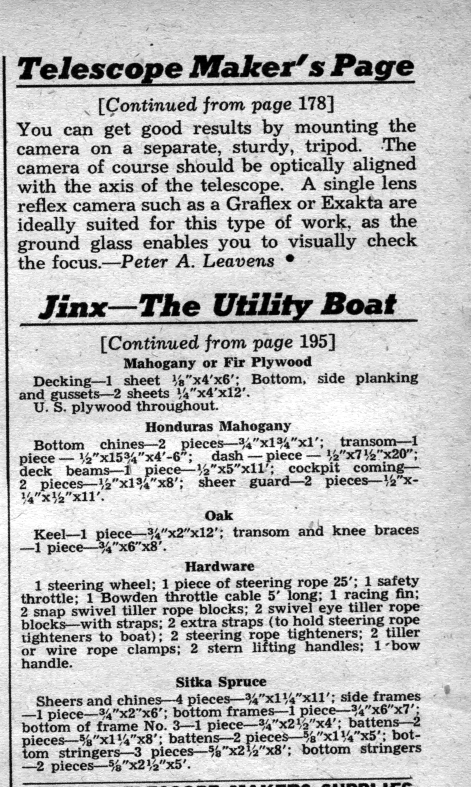

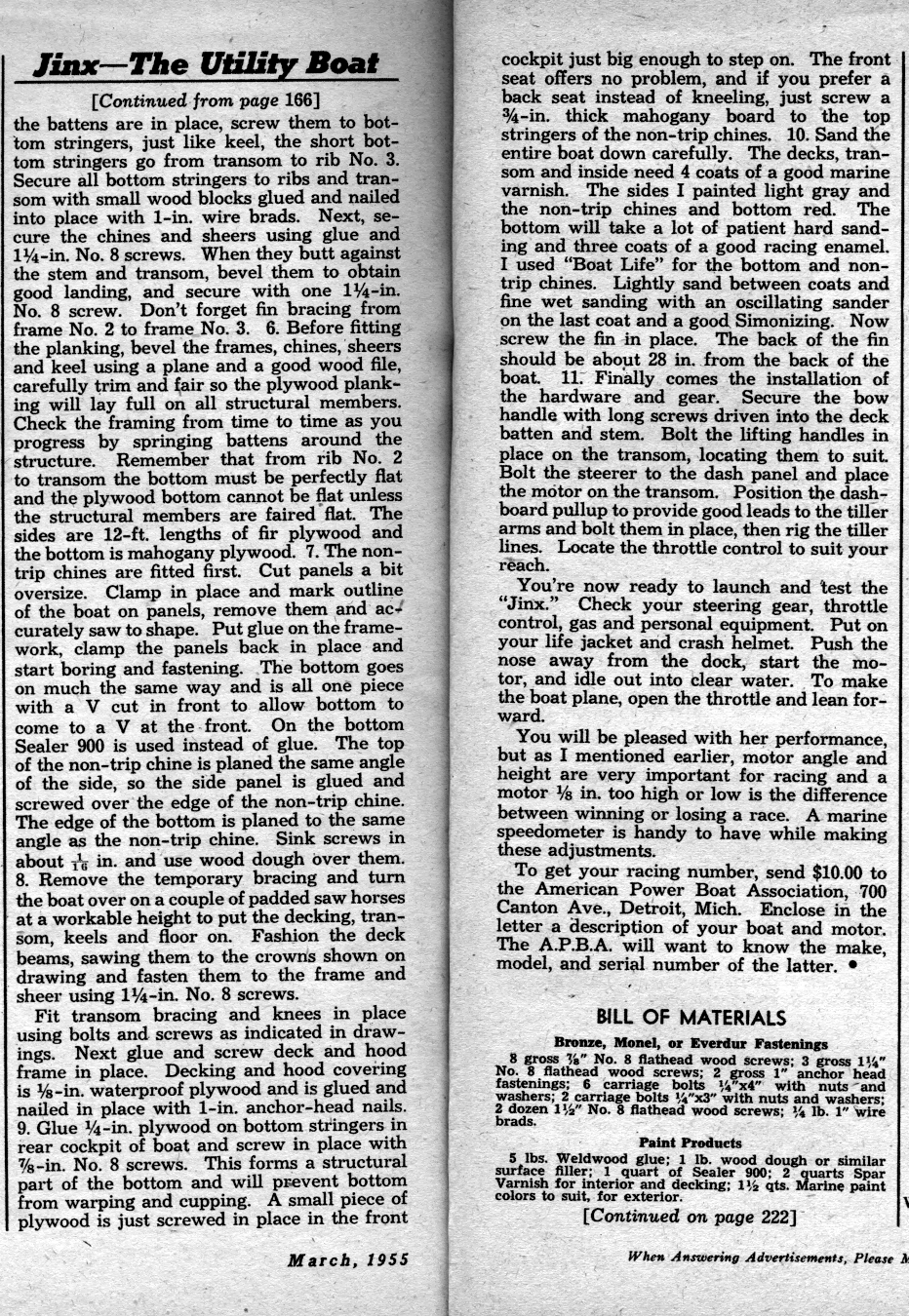

Plan sheets 10
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
