Caballero
A roomy, fast, comfortable outboard cruiser
- Category
- Mechanix Illustrated
- Designer
- Charles M. Ungerbuehler
- Published
- Mechanix Illustrated, p. 70
A roomy, fast cabin cruiser for amateur builders, without the cost of an inboard. The cabin sleeps two with a galley stove, icebox, head and storage. A flared bow and deep deadrise give excellent rough-water ability: 27 mph with two 25 hp outboards, 17 mph with one.
Specifications
- Length
- 19 ft
- Beam
- 6 ft 6 in
- Weight
- 1,750 lb displacement
- Capacity
- Sleeps 2; galley, icebox and head
- Construction
- Flared bow, maximum deadrise, constant-section afterbody
- Power
- One or two 25 hp outboards; 17–27 mph
Downloads

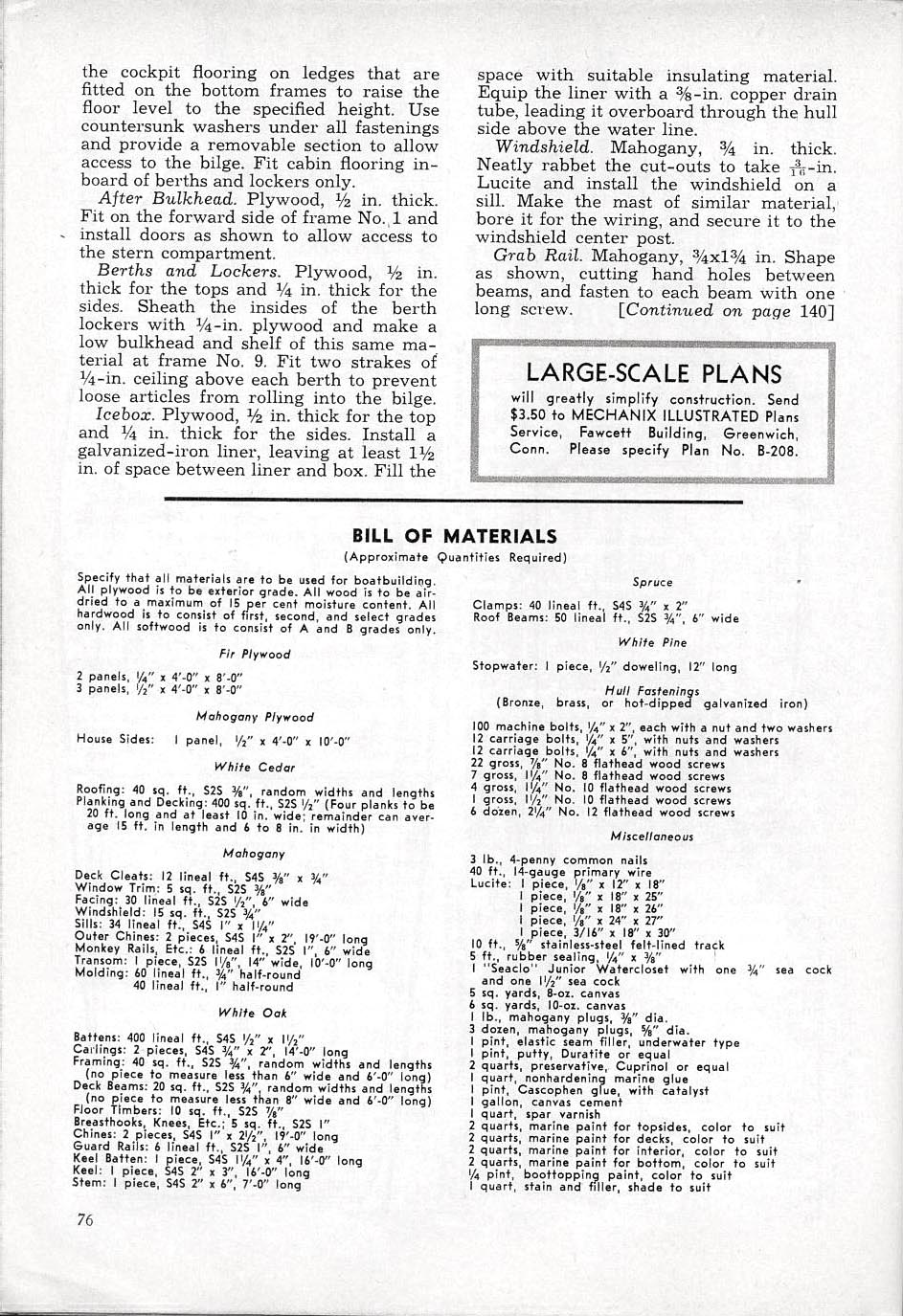

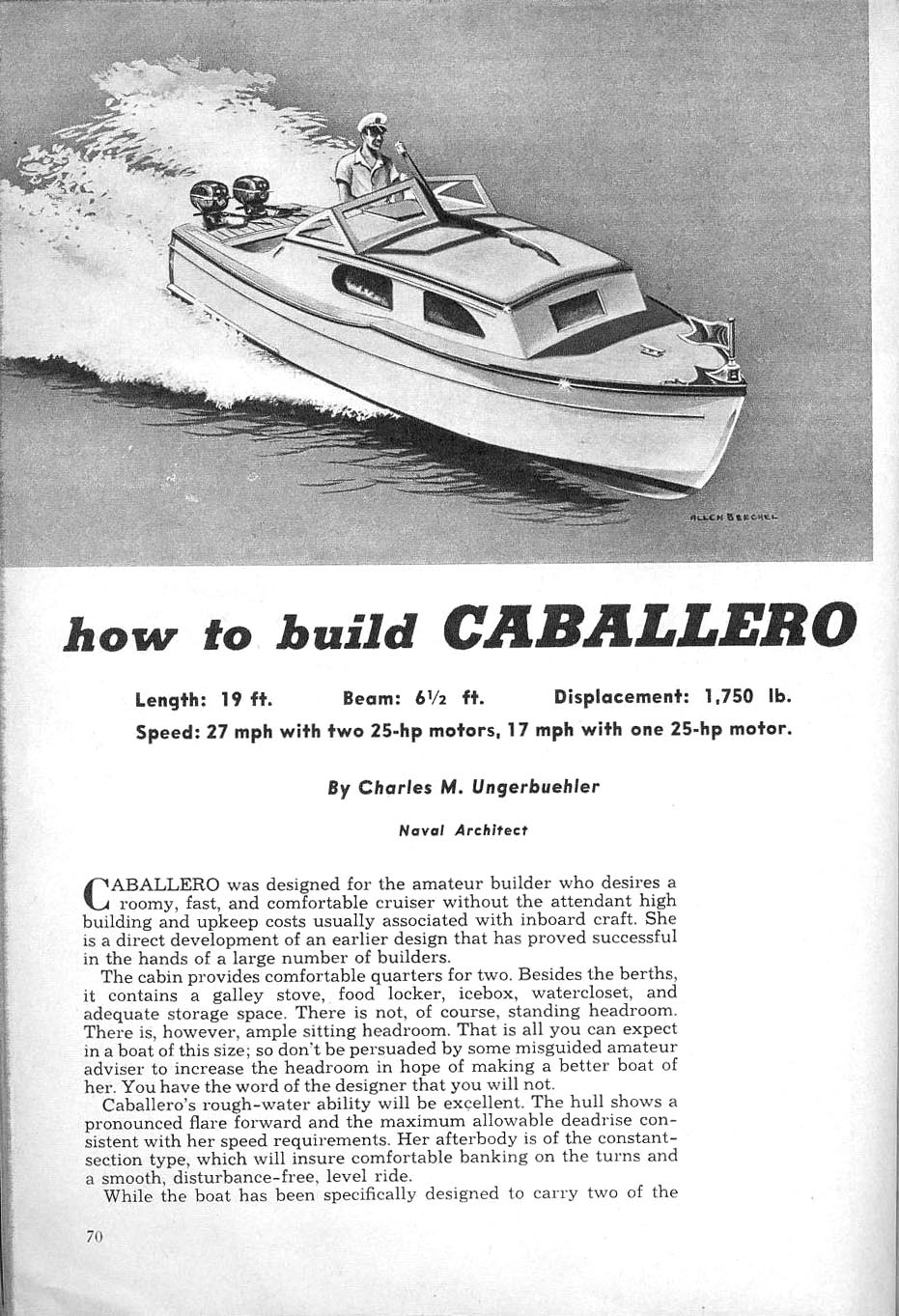

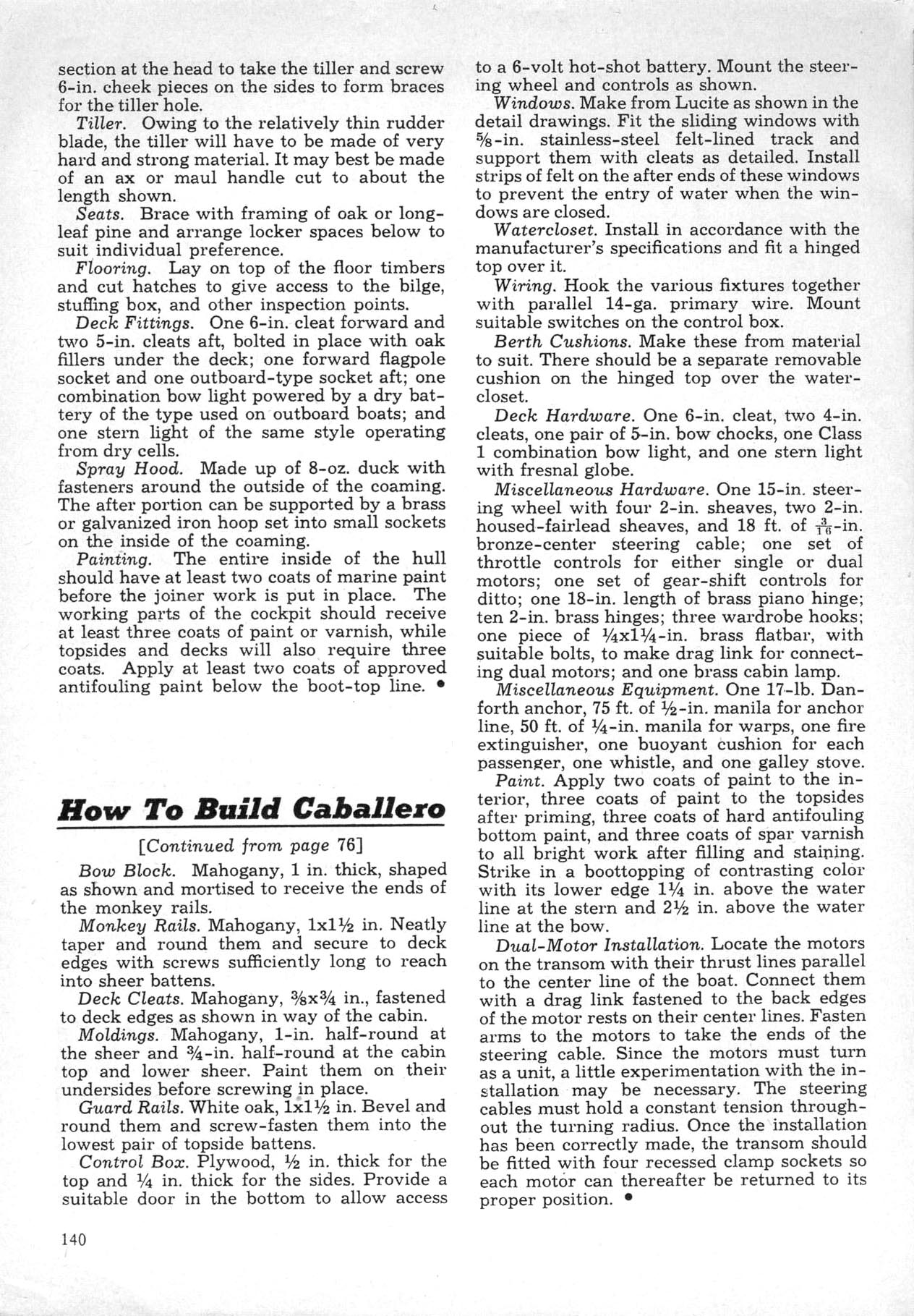

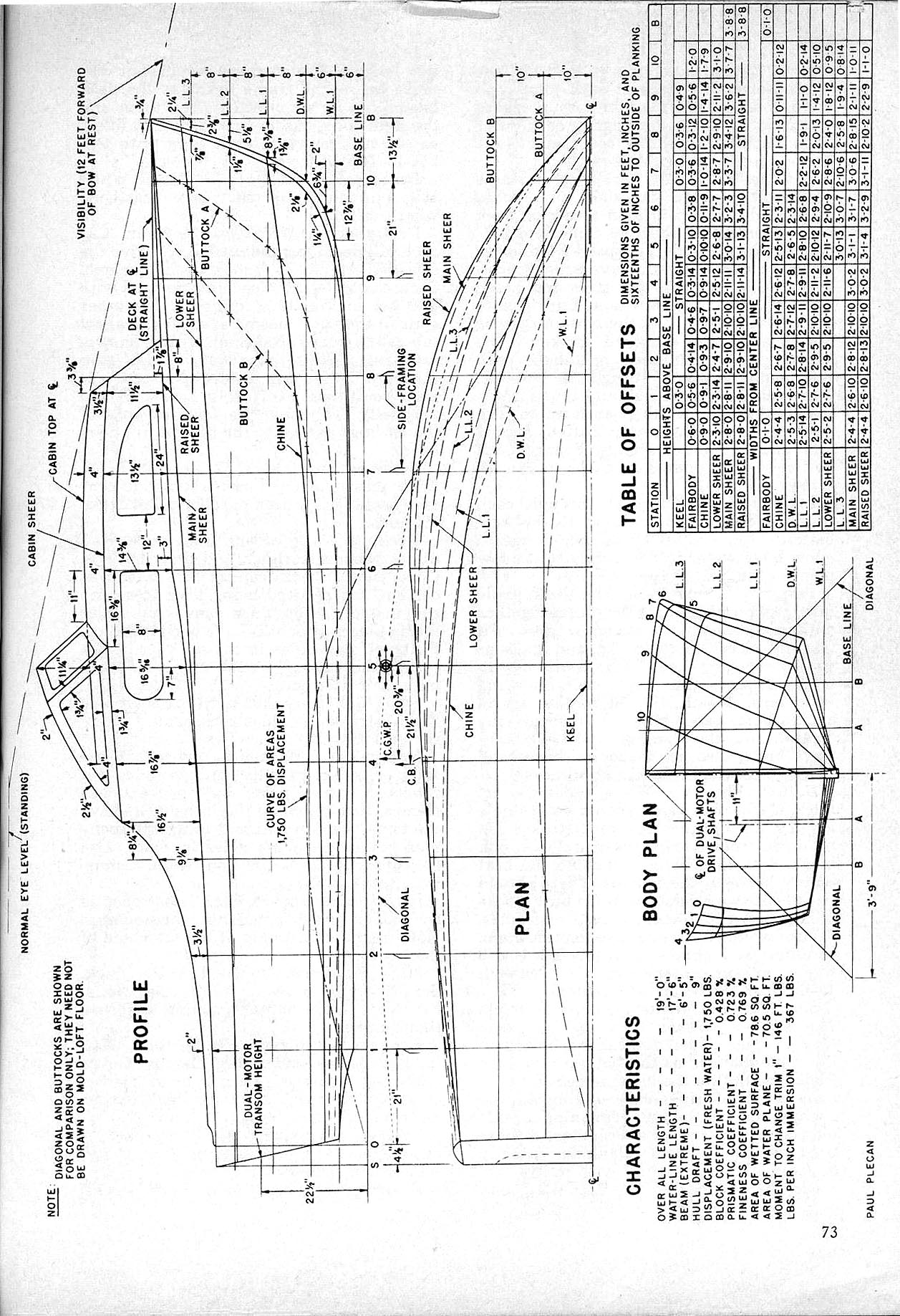

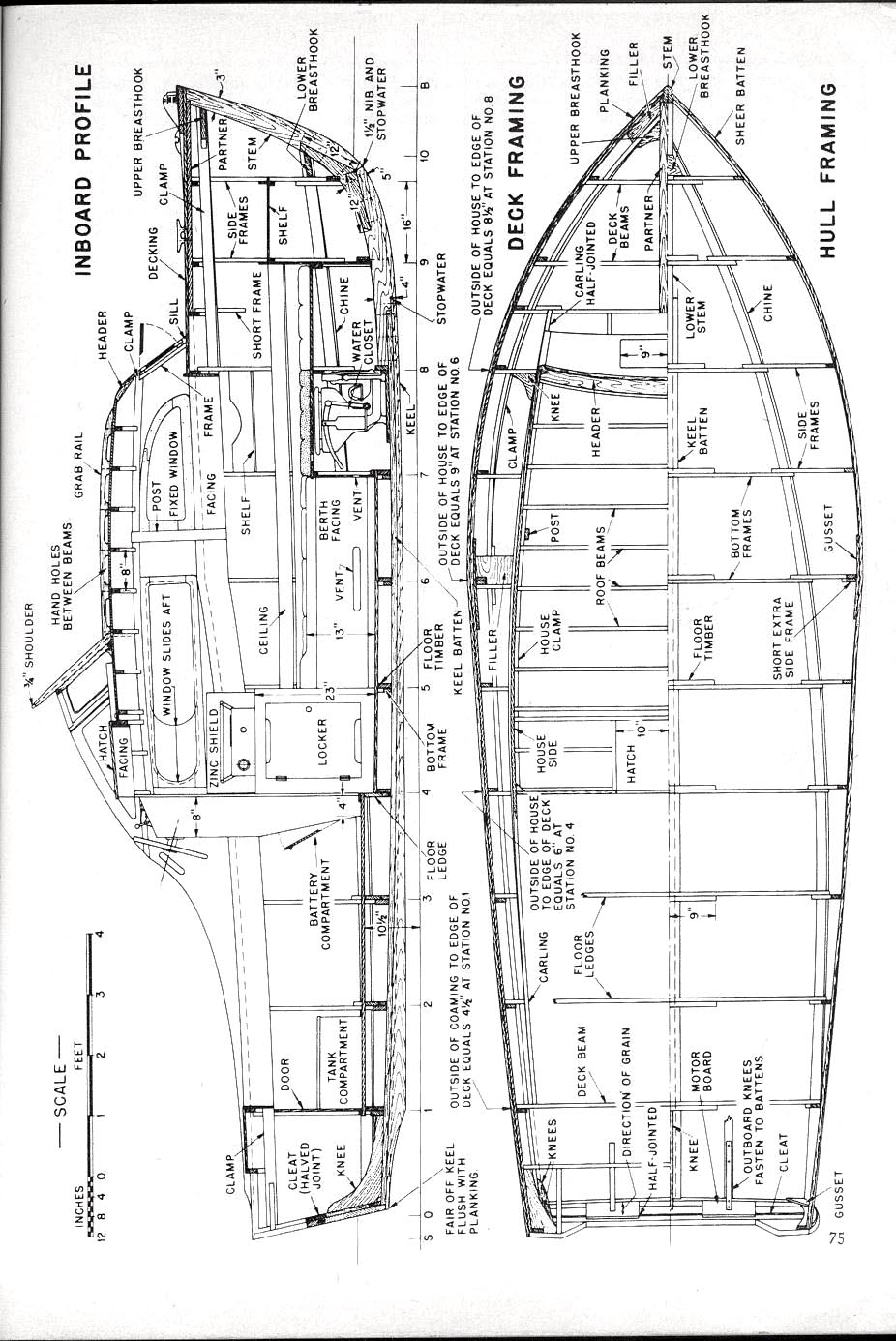

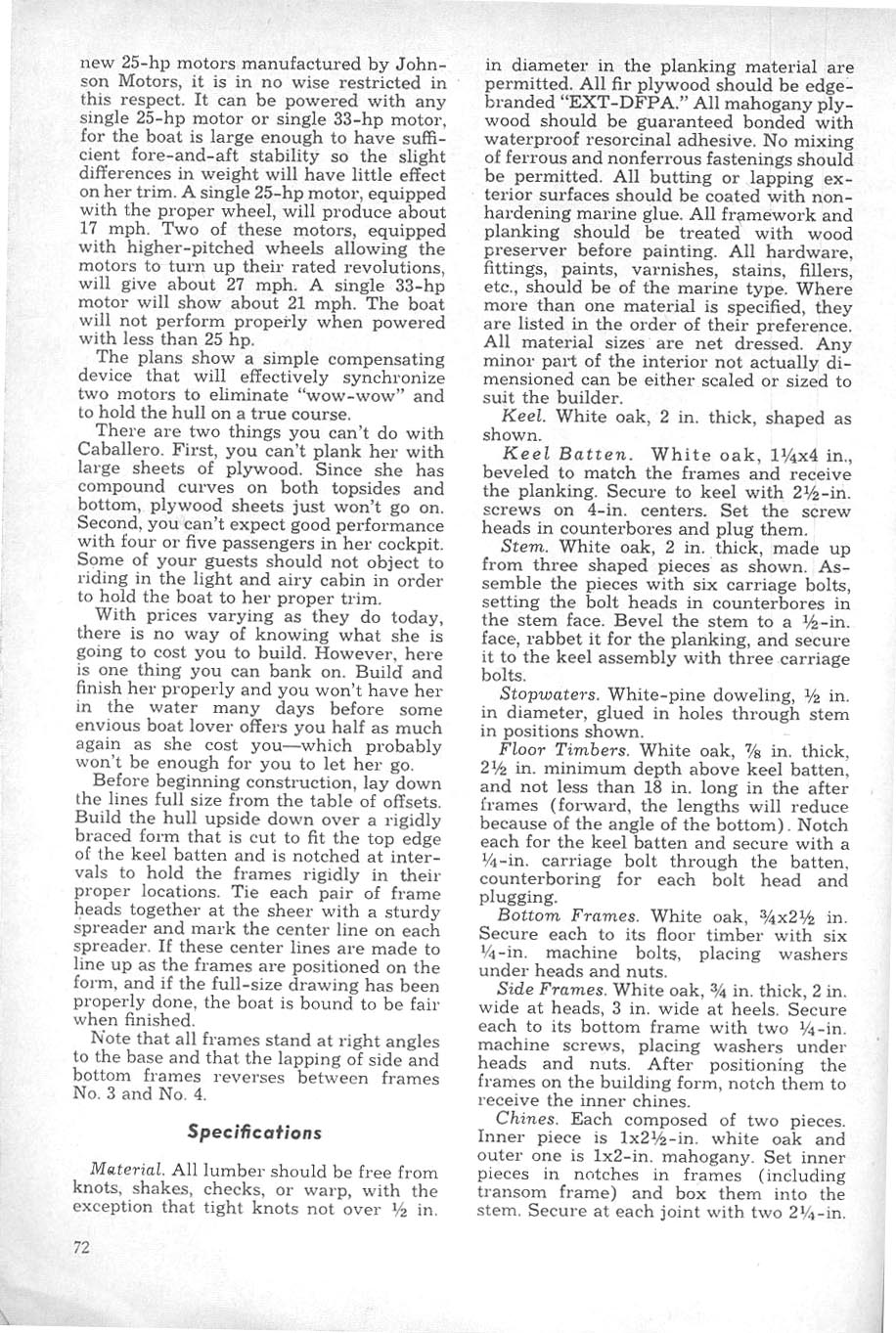

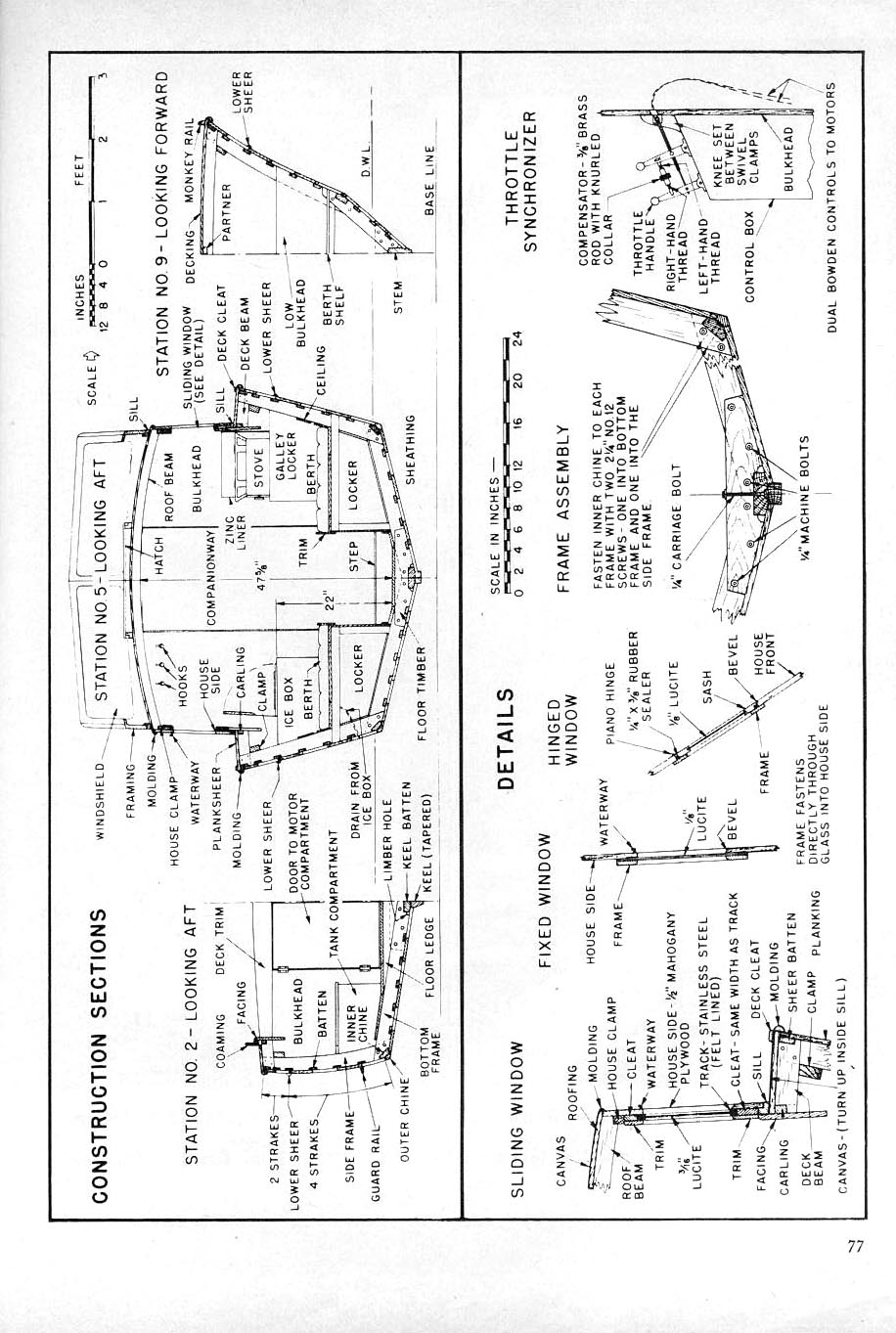

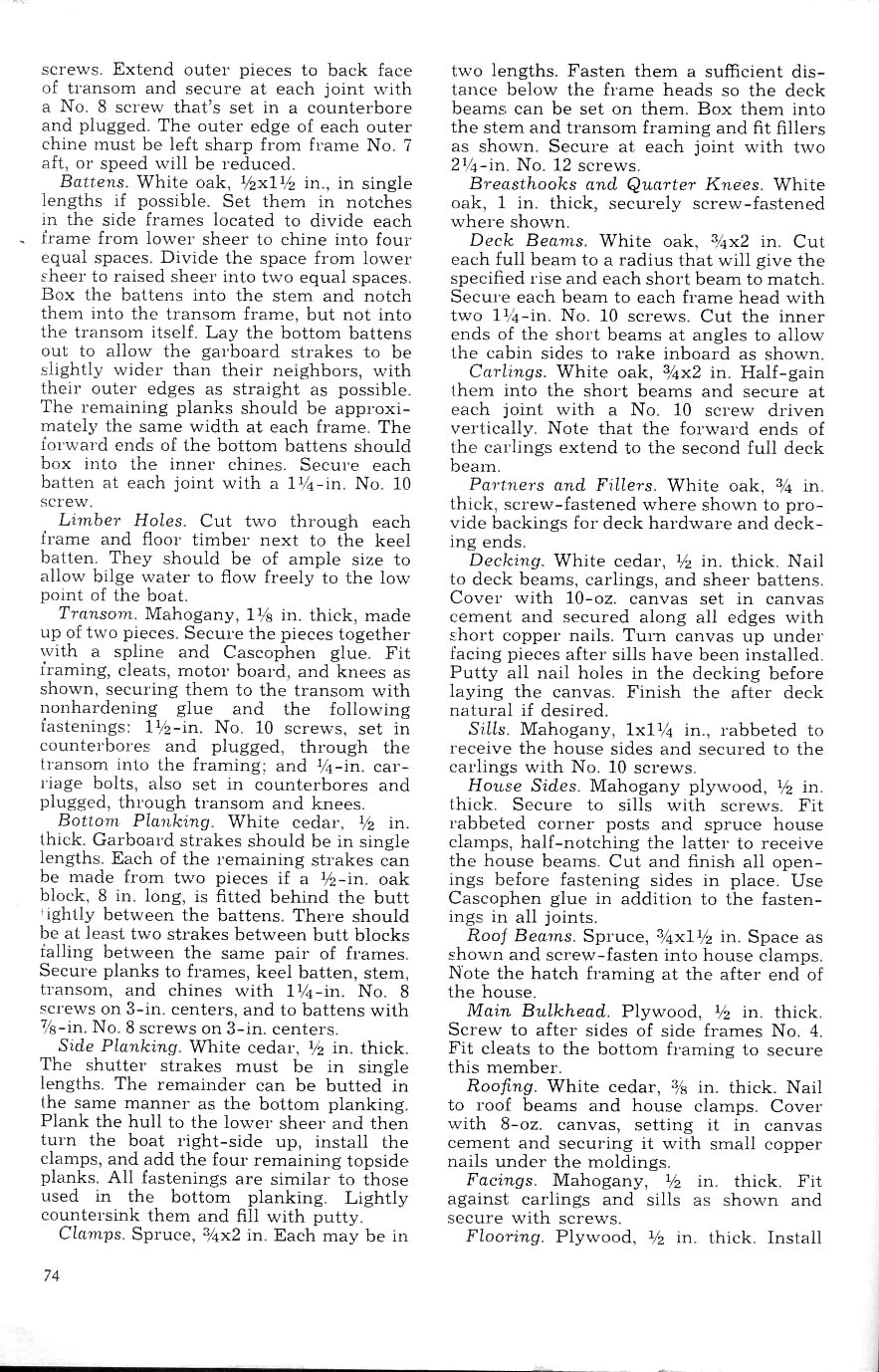

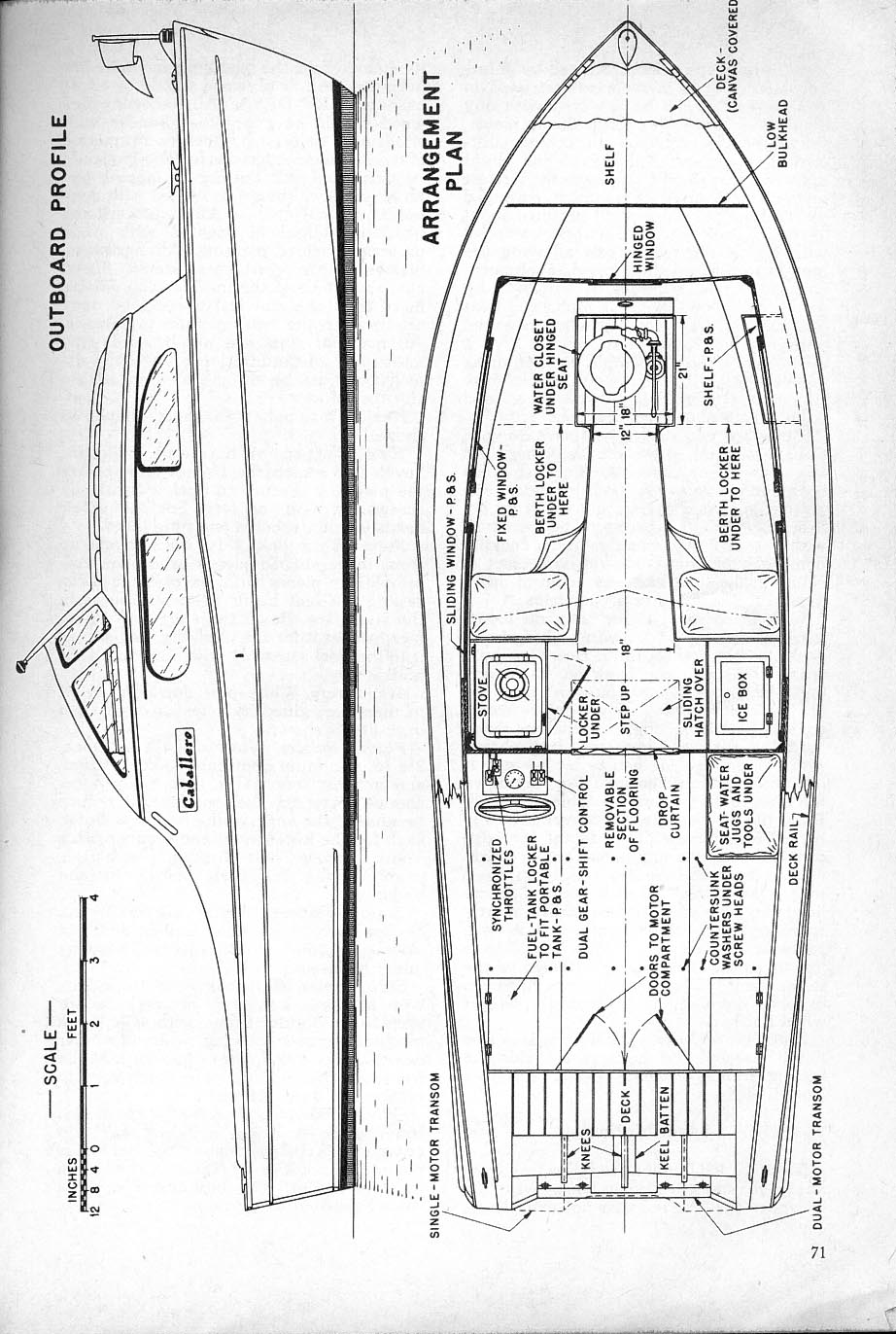

Plan sheets 10
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
