Cab-Over Hydro
Originally called the X-1, this three-point hydroplane has hit 75 mph
- Category
- Hydroplanes
- Published
- Boat Builder, p. 80
- Craft Print
- 363

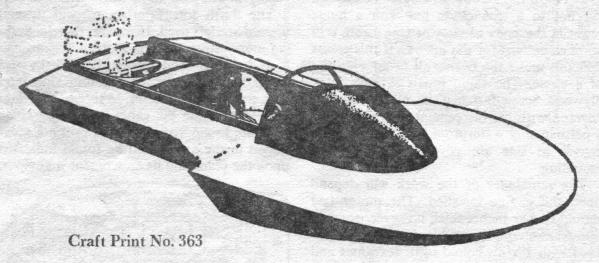

A 14 ft 'cab over' three-point hydroplane, originally called the X-1, that closely resembles the big Unlimited Class hydros racing for the Gold Cup. With a 50 to 100 hp outboard it reaches about 75 mph, riding on a fine mist and throwing a rooster tail.
Specifications
- Length
- 14 ft
- Construction
- Western spruce frames and stringers; marine or AA plywood sides and bottom
- Power
- 50–100 hp outboard; about 75 mph
Downloads

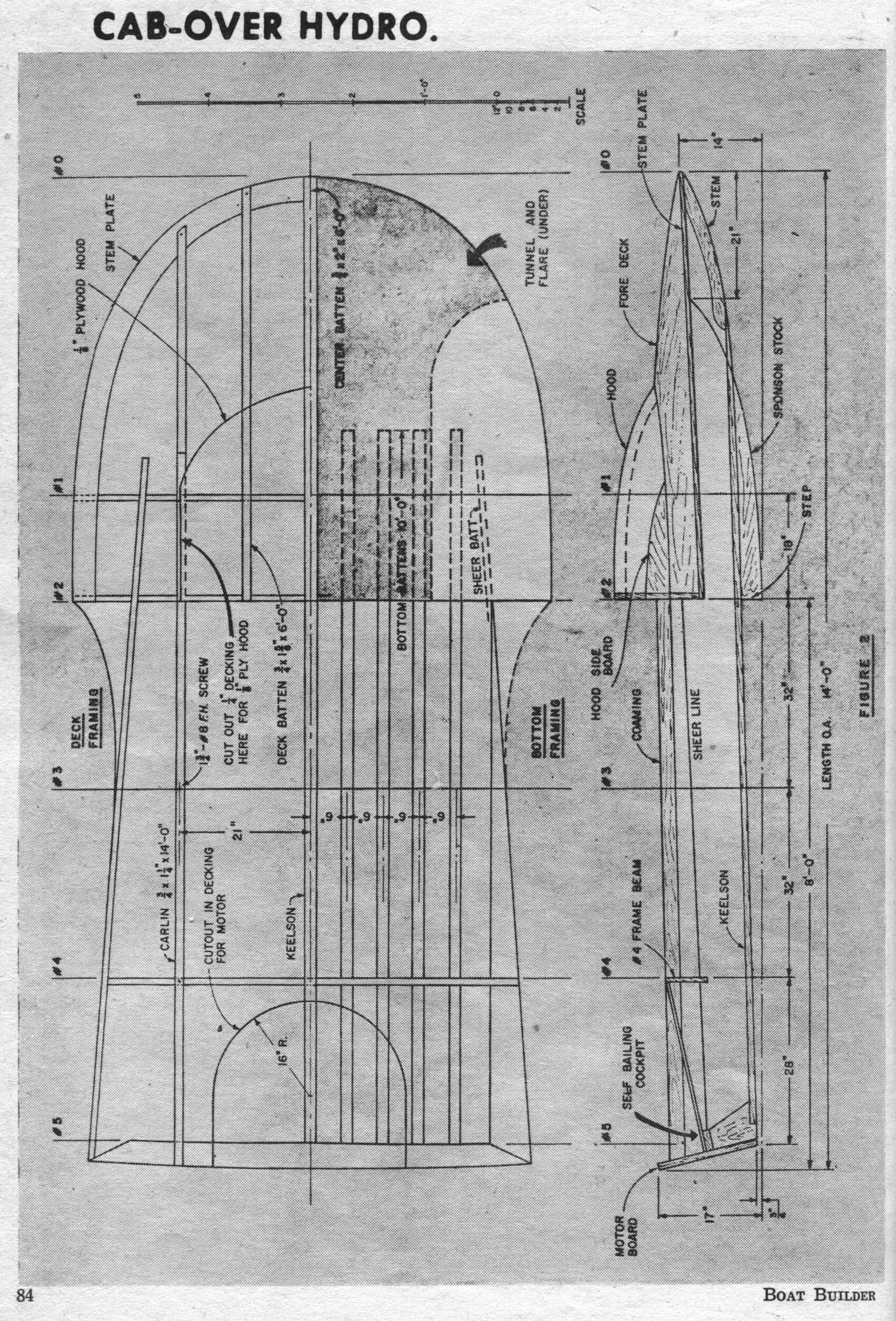

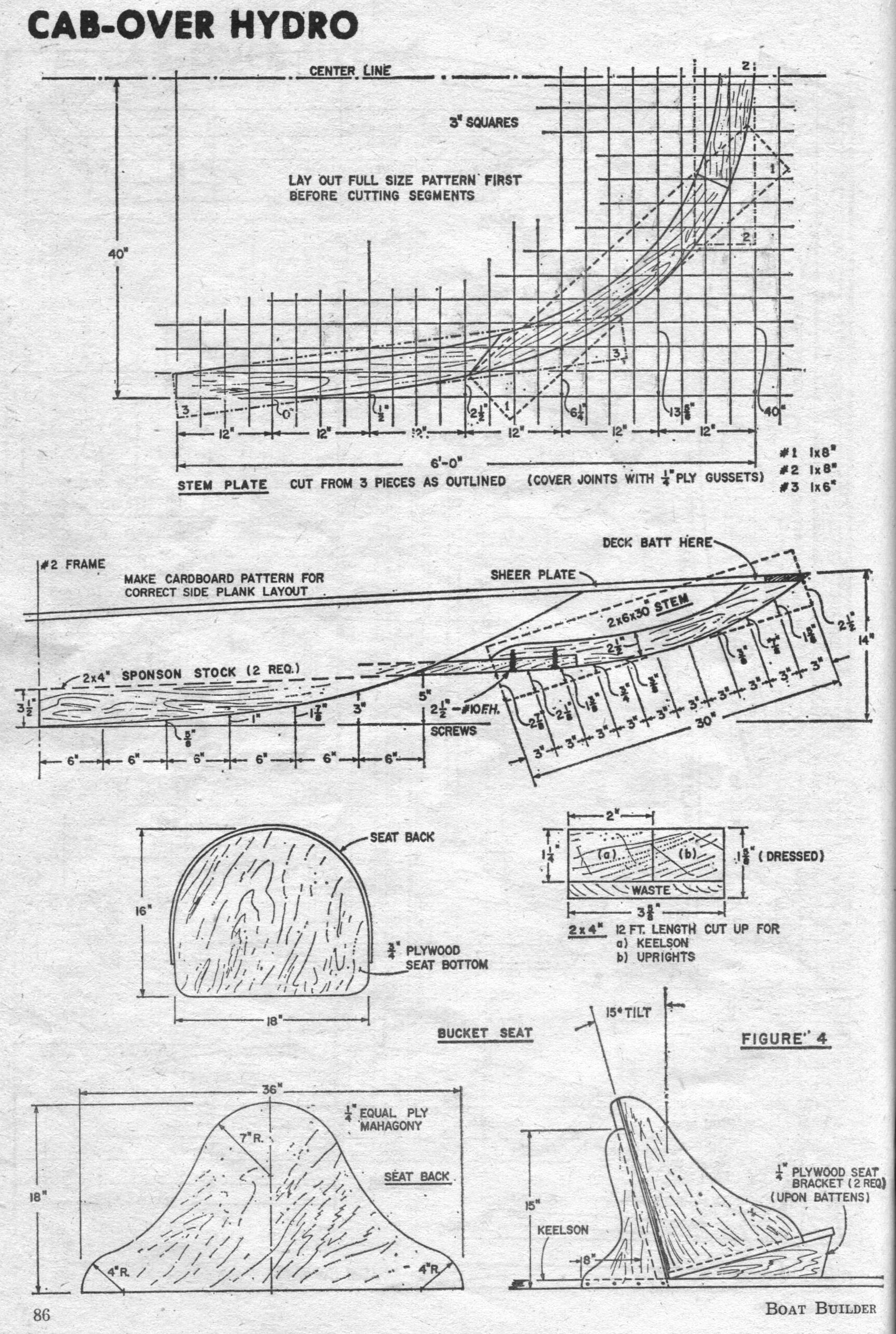

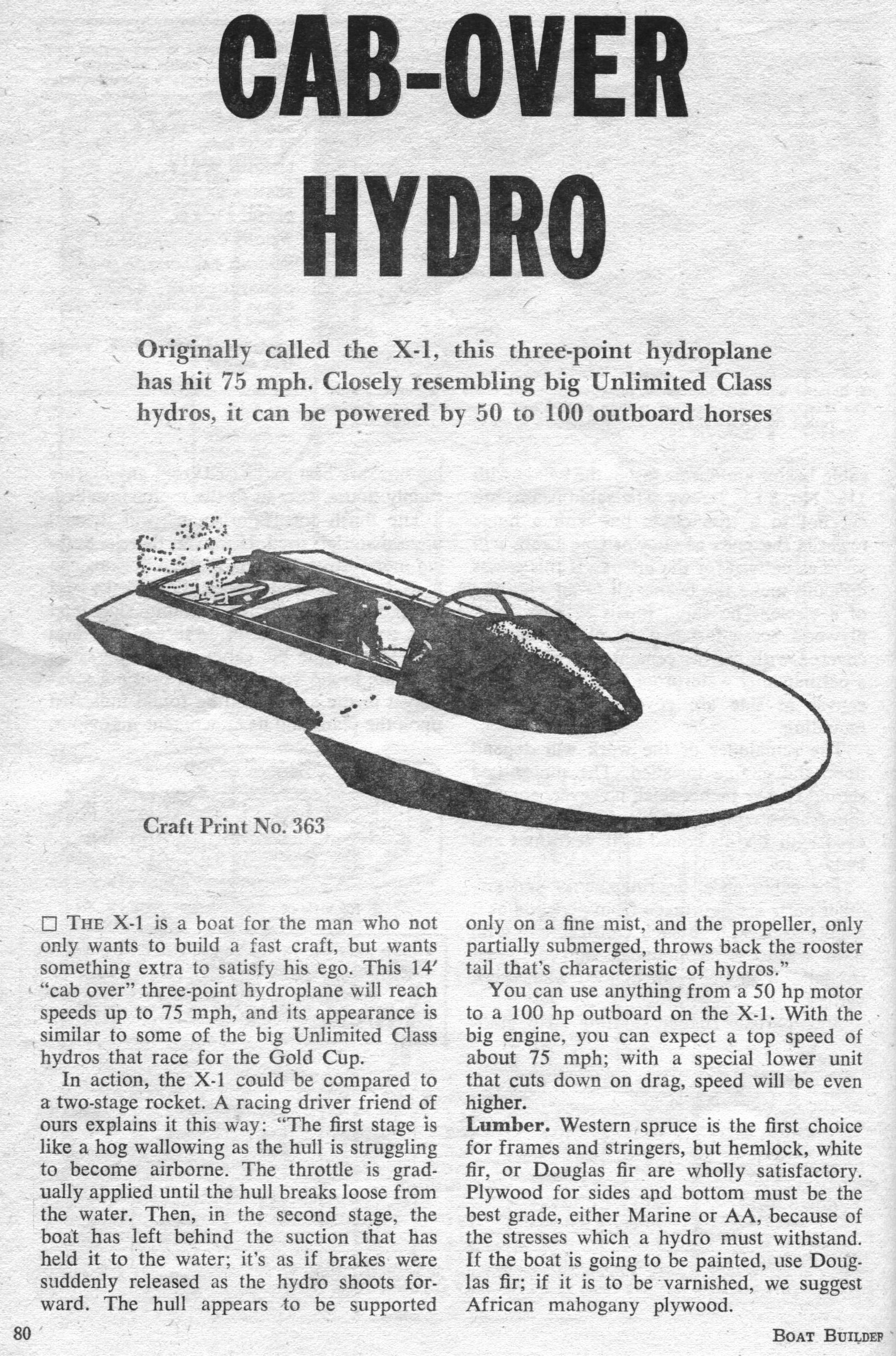

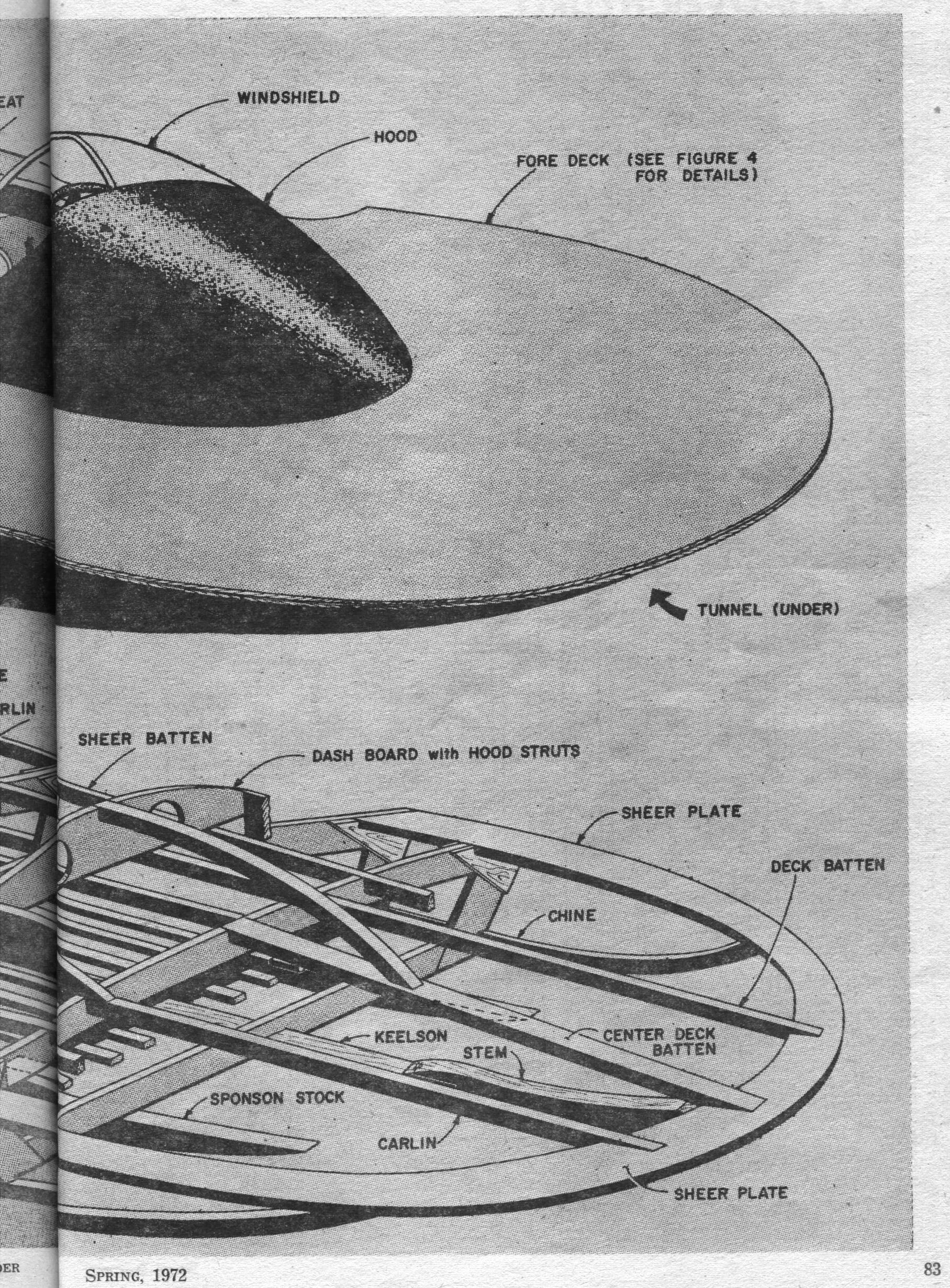

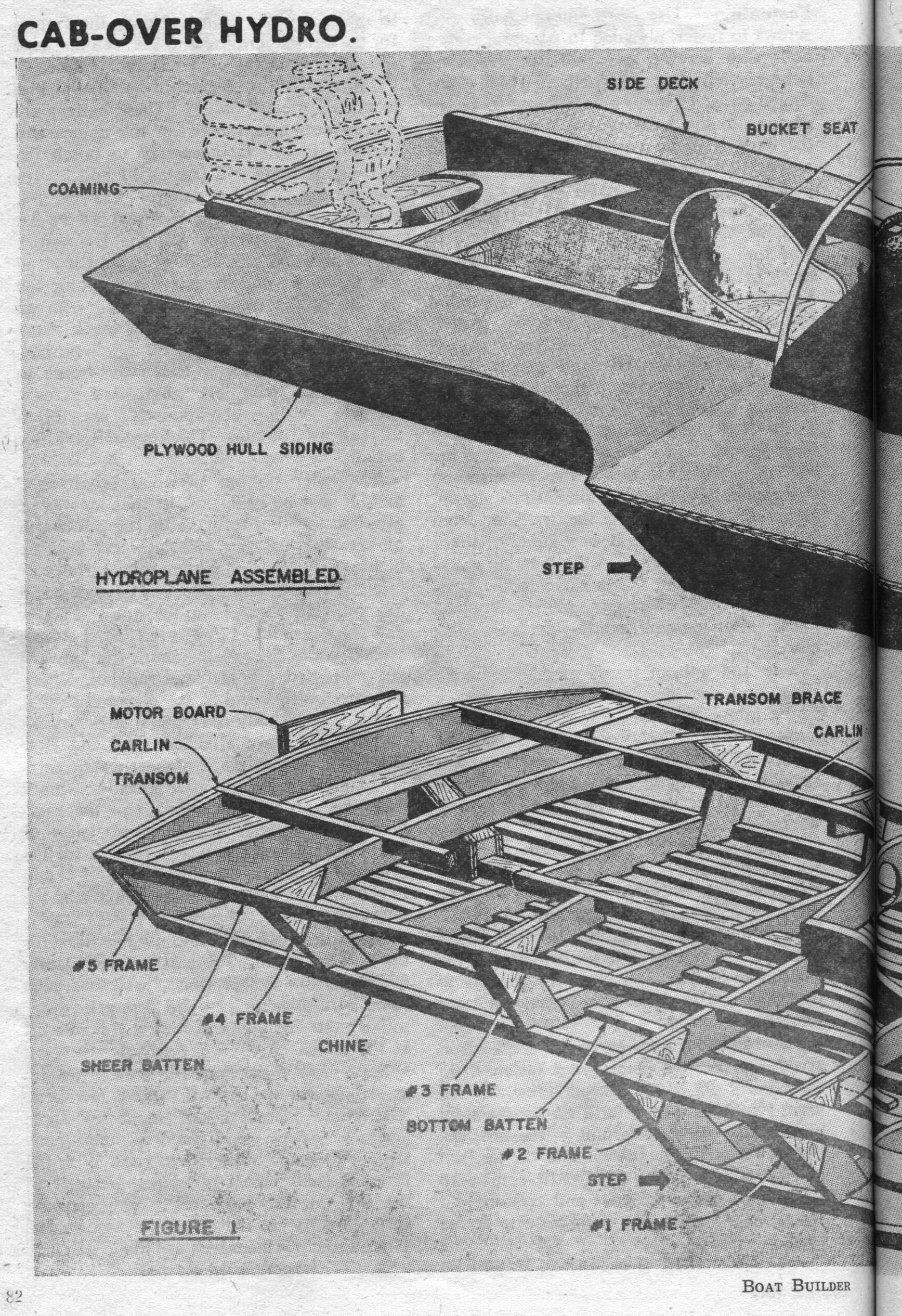

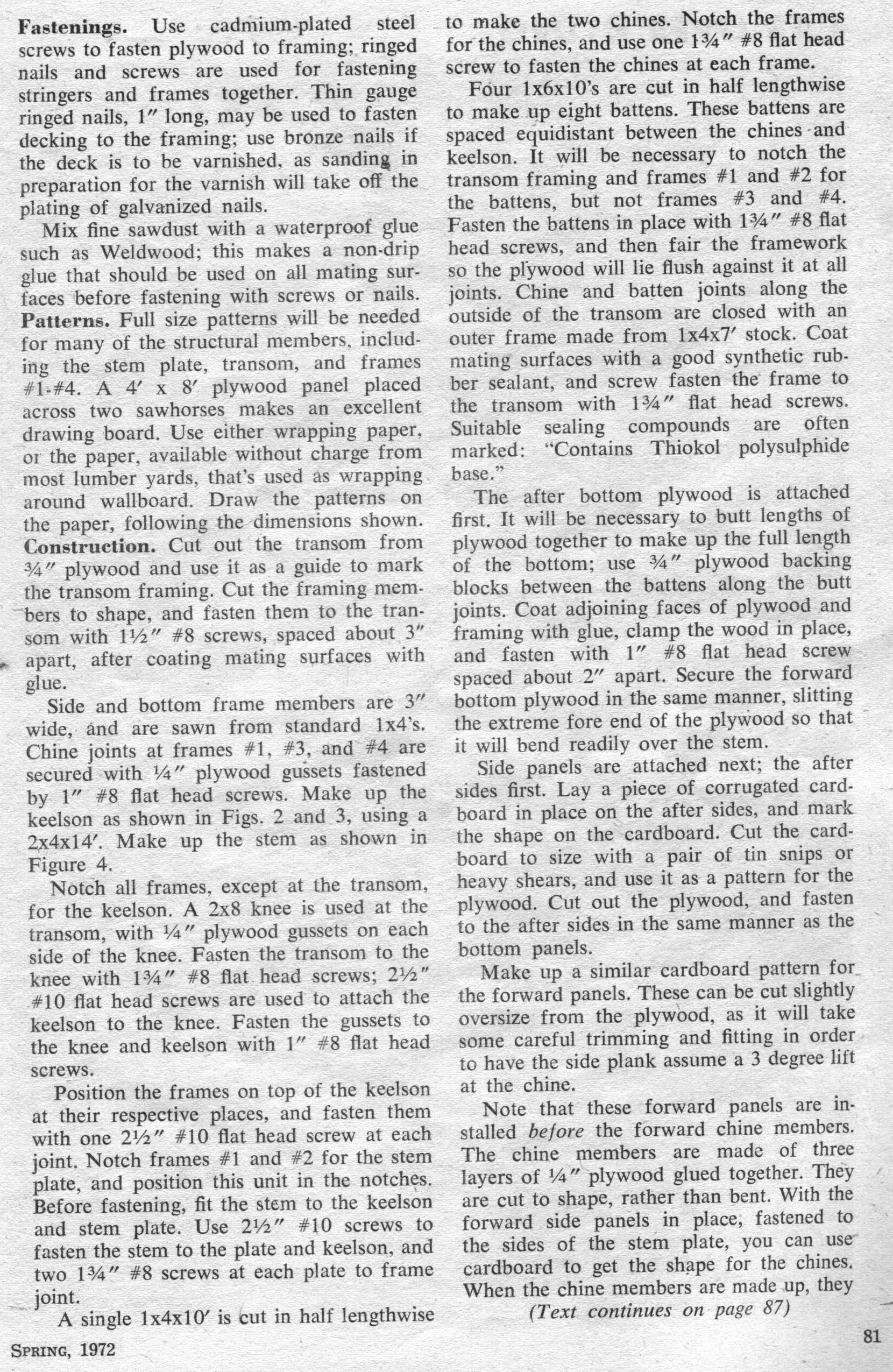

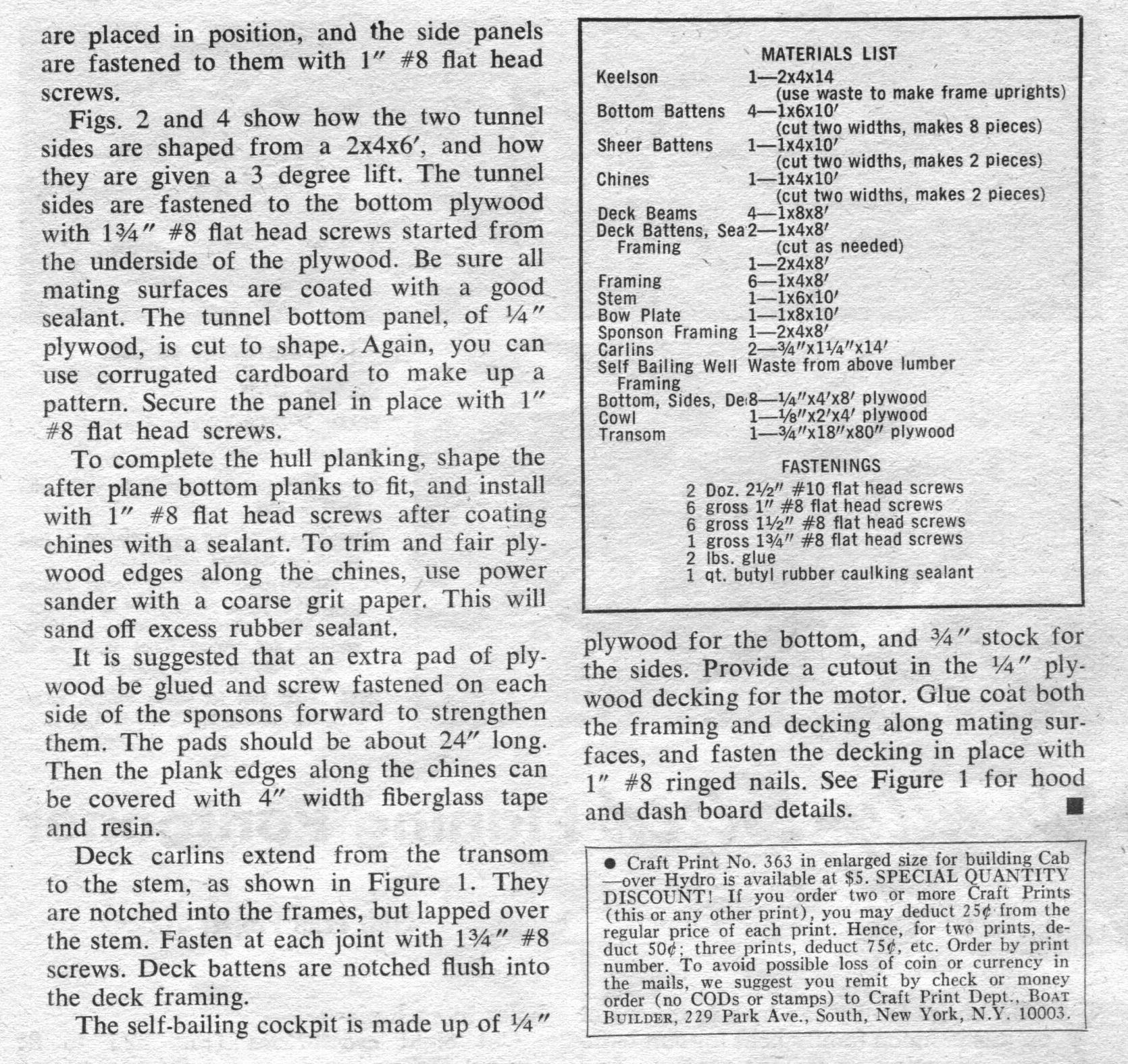

Plan sheets 9
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
