Atomite
You can't beat this tiny hydroplane for high-speed fun afloat
- Category
- Hydroplanes
- Designer
- William D. Jackson
- Published
- Boat Builder's Handbook, p. 50
- Craft Print
- 6
A fast, furious but highly maneuverable 9 1/2 ft outboard hydroplane designed for 7 1/2 to 10 hp motors or larger. It's built over a simple plank form, with optional streamlined tails that add to its looks without affecting performance.
Specifications
- Length
- 9 ft 6 in
- Construction
- Plywood over frames built on a 2 x 8 in. form; optional tail fins
- Power
- Outboard 7 1/2–10 hp or larger
Downloads

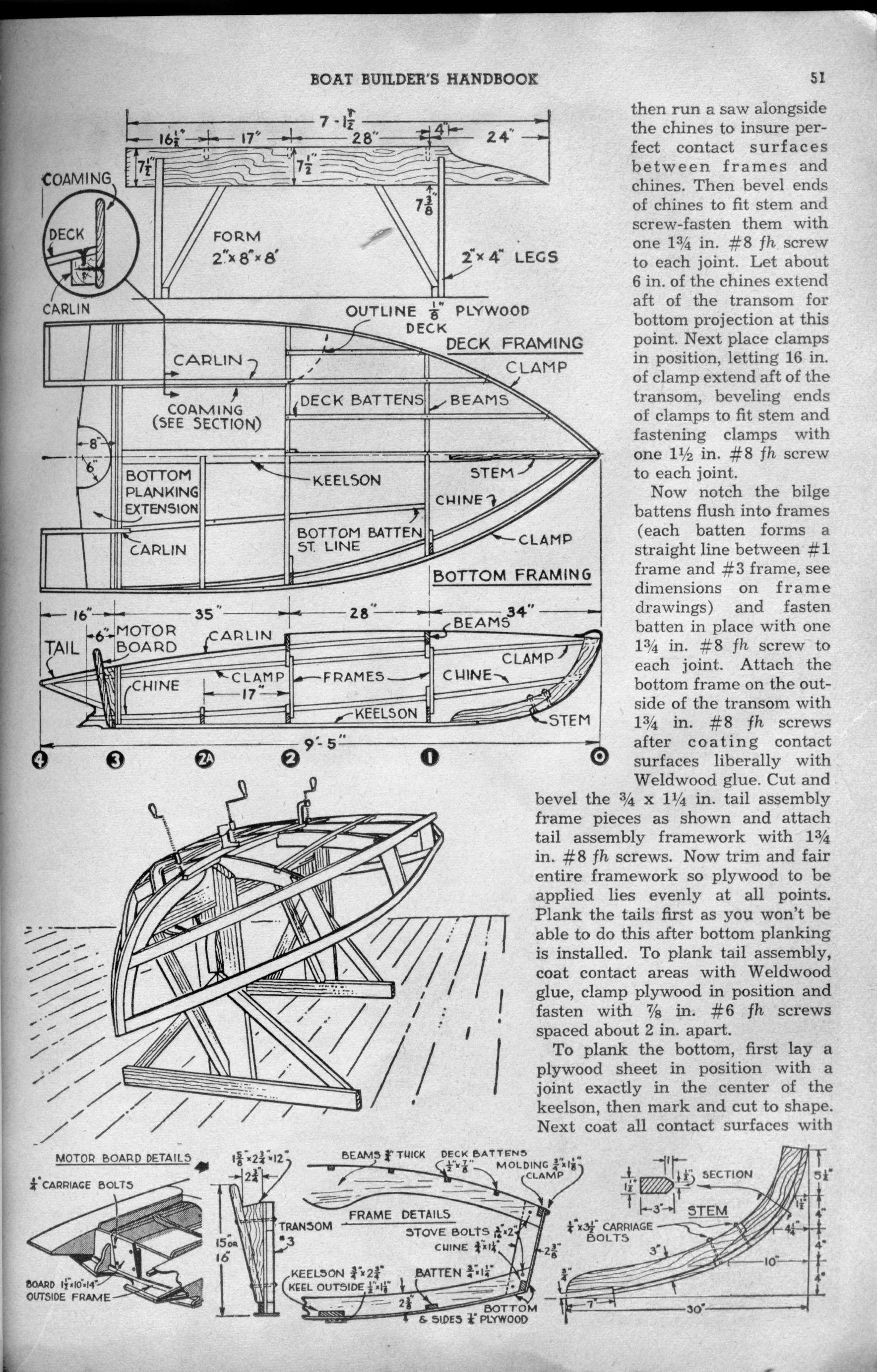

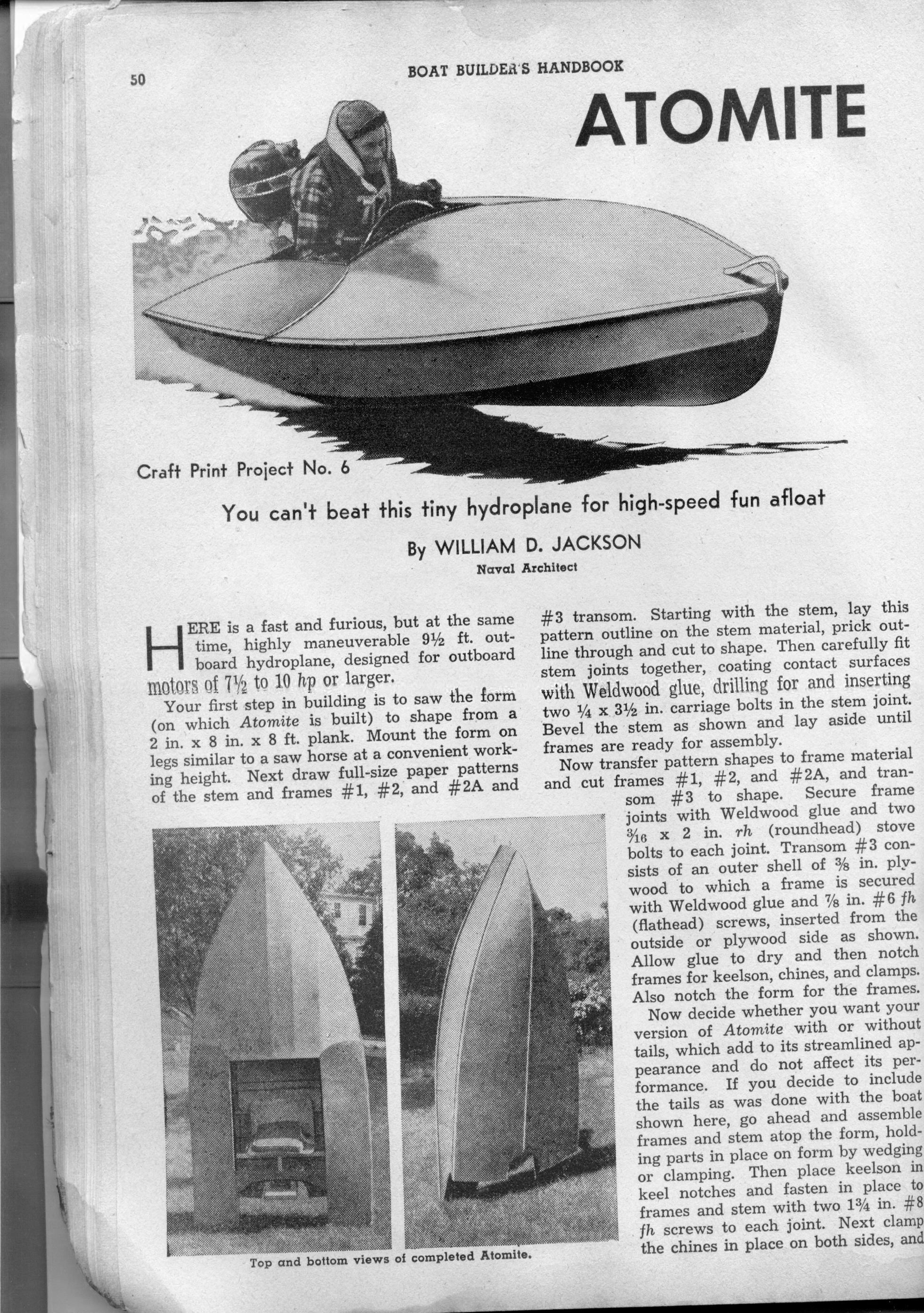

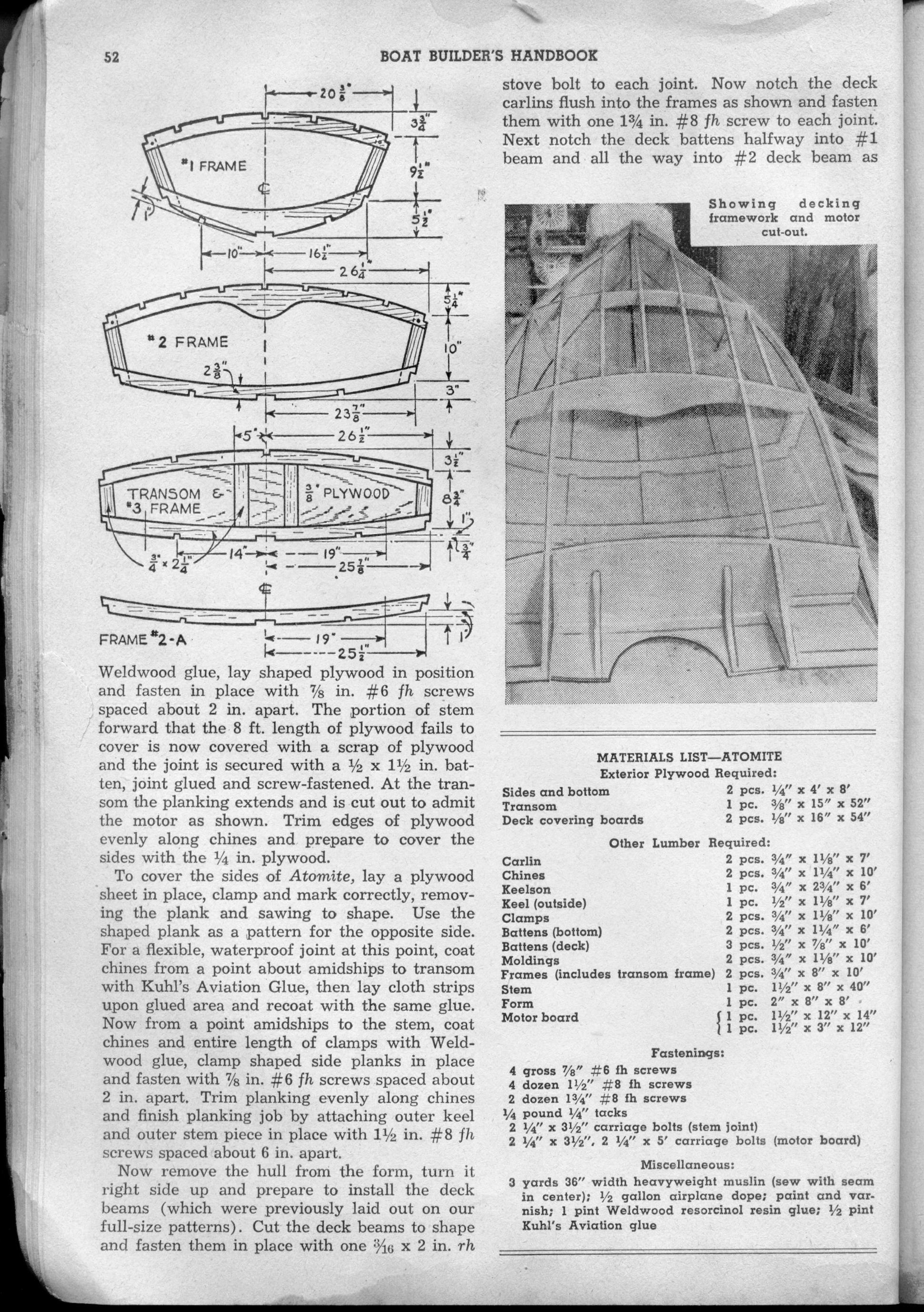

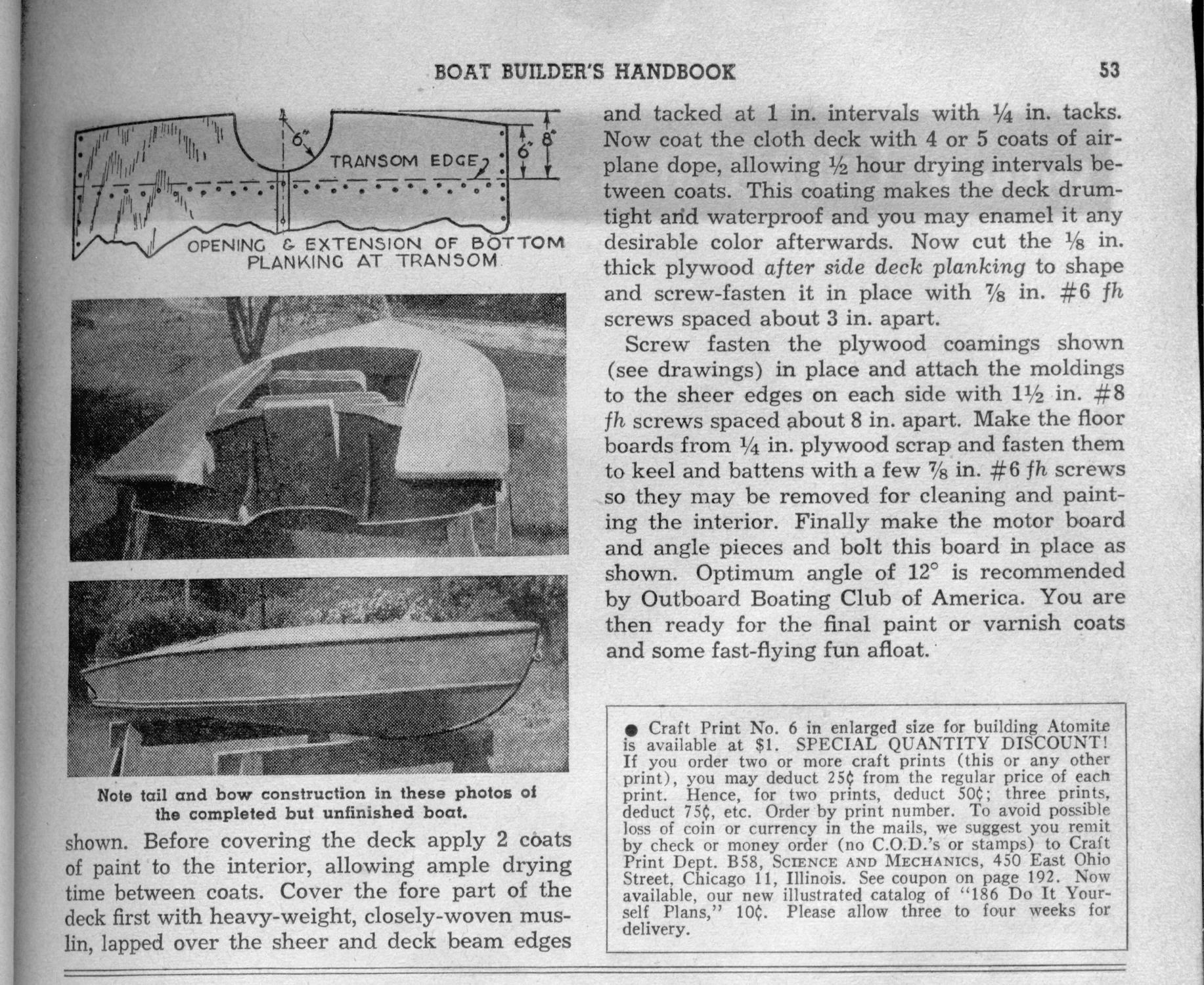

Plan sheets 5
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
