Sea Hawk
Sports-type cabin cruiser with plenty of space for sleeping a large family
- Category
- Cabin Cruisers
- Published
- Boat Builder's Handbook, p. 54
- Craft Print
- 282

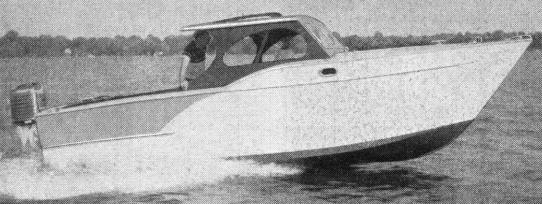

A convex-bottom sports cabin cruiser for overnight trips on protected waters, river and lake sports, or deep-sea fishing in fair weather. It sleeps a family, trailers legally at just under 8 ft wide and planes over half a ton of passengers with a 60 hp outboard.
Specifications
- Length
- 21 ft 2 in (16 ft 9 in on waterline)
- Beam
- 8 ft (trailer-legal)
- Draft
- 4 in with motor tilted
- Weight
- 975 lb less motor
- Capacity
- Sleeps 2 adults and 1–2 children in cabin, 2–3 adults on cockpit cots
- Construction
- 3/8 in. plywood over a developed surface, wooden framework, trussed bottom
- Power
- 1957 Mercury Mark 75 60 hp outboard: 28–32 mph, 23 mph with 7 adults
Downloads

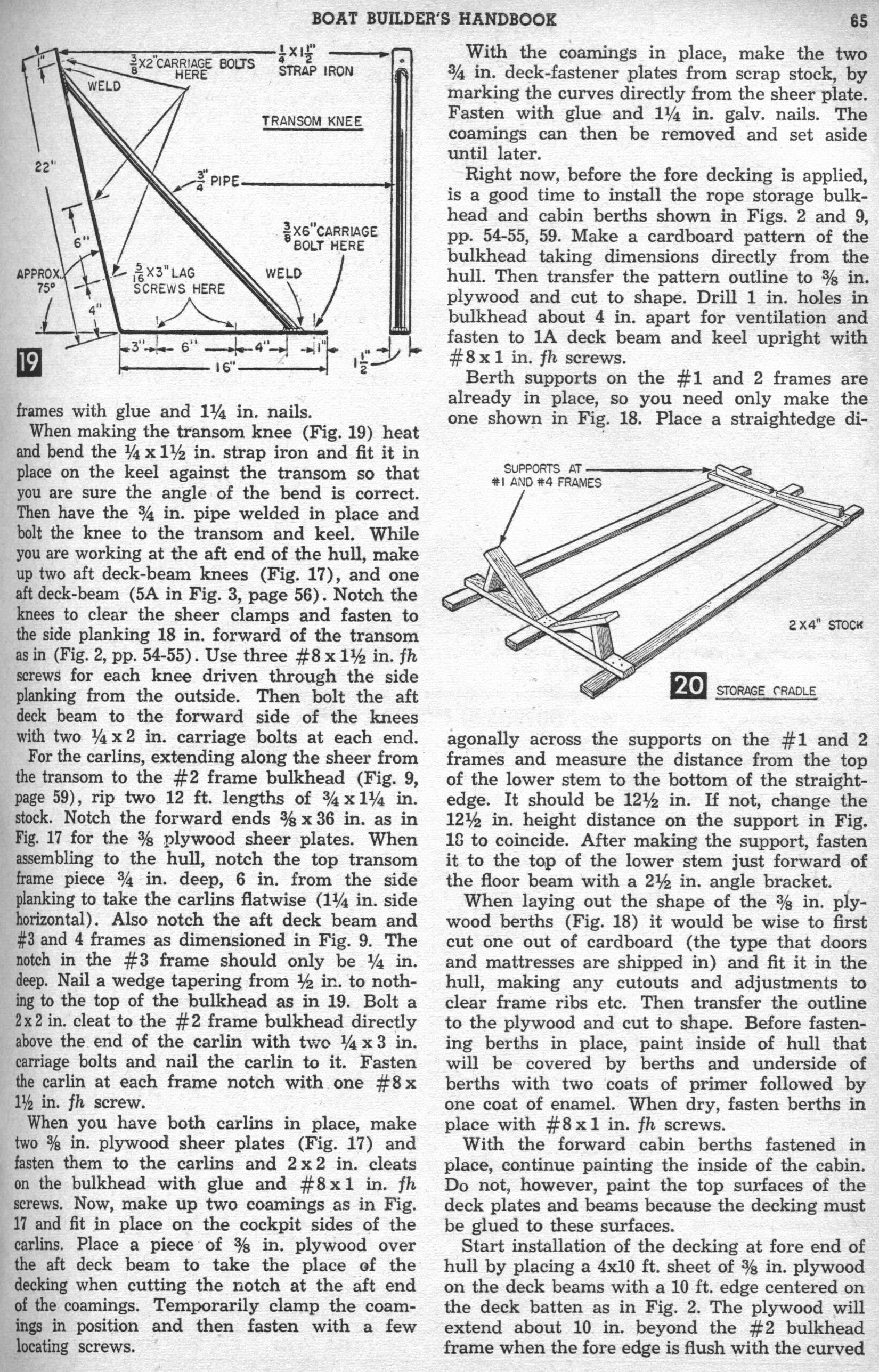

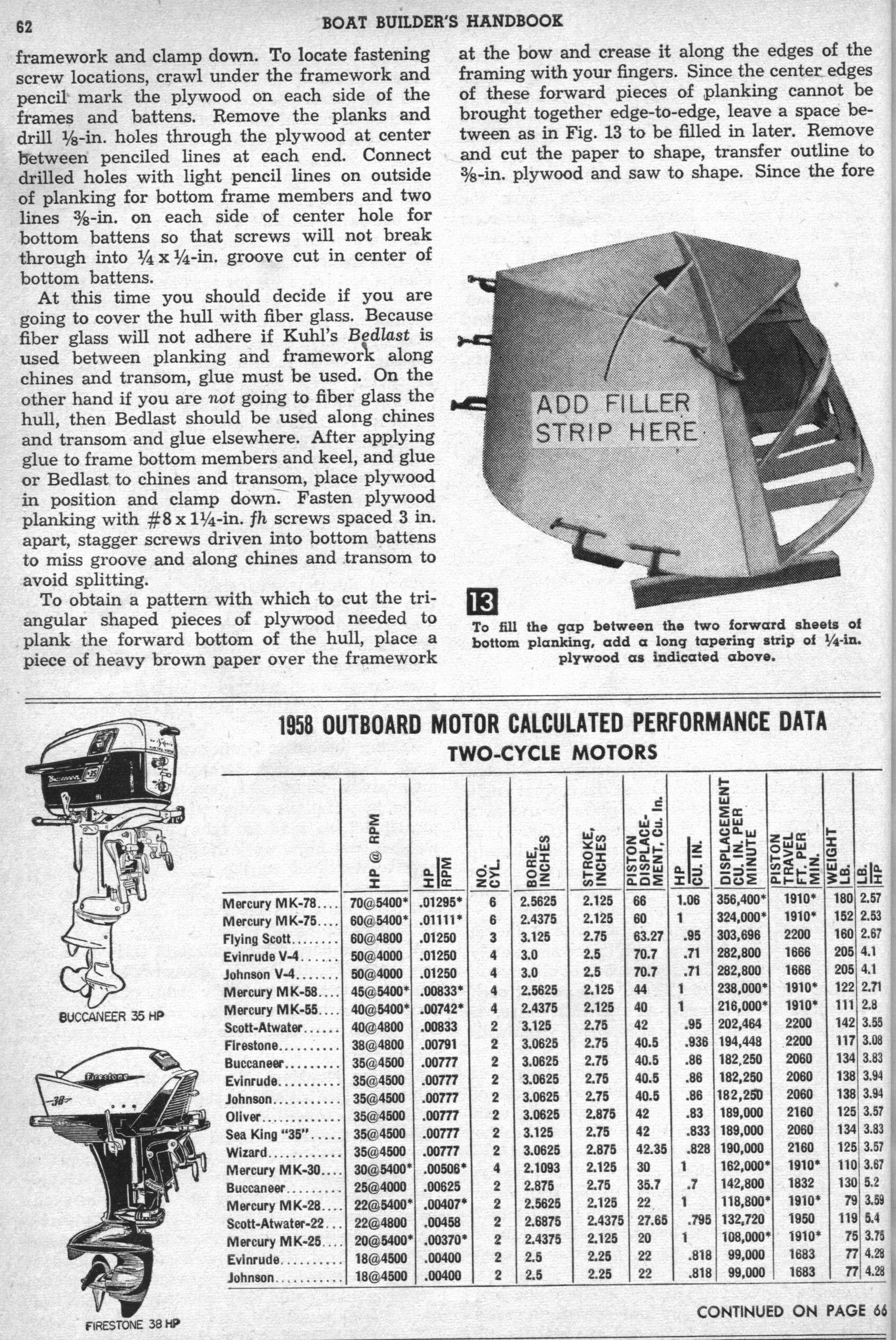

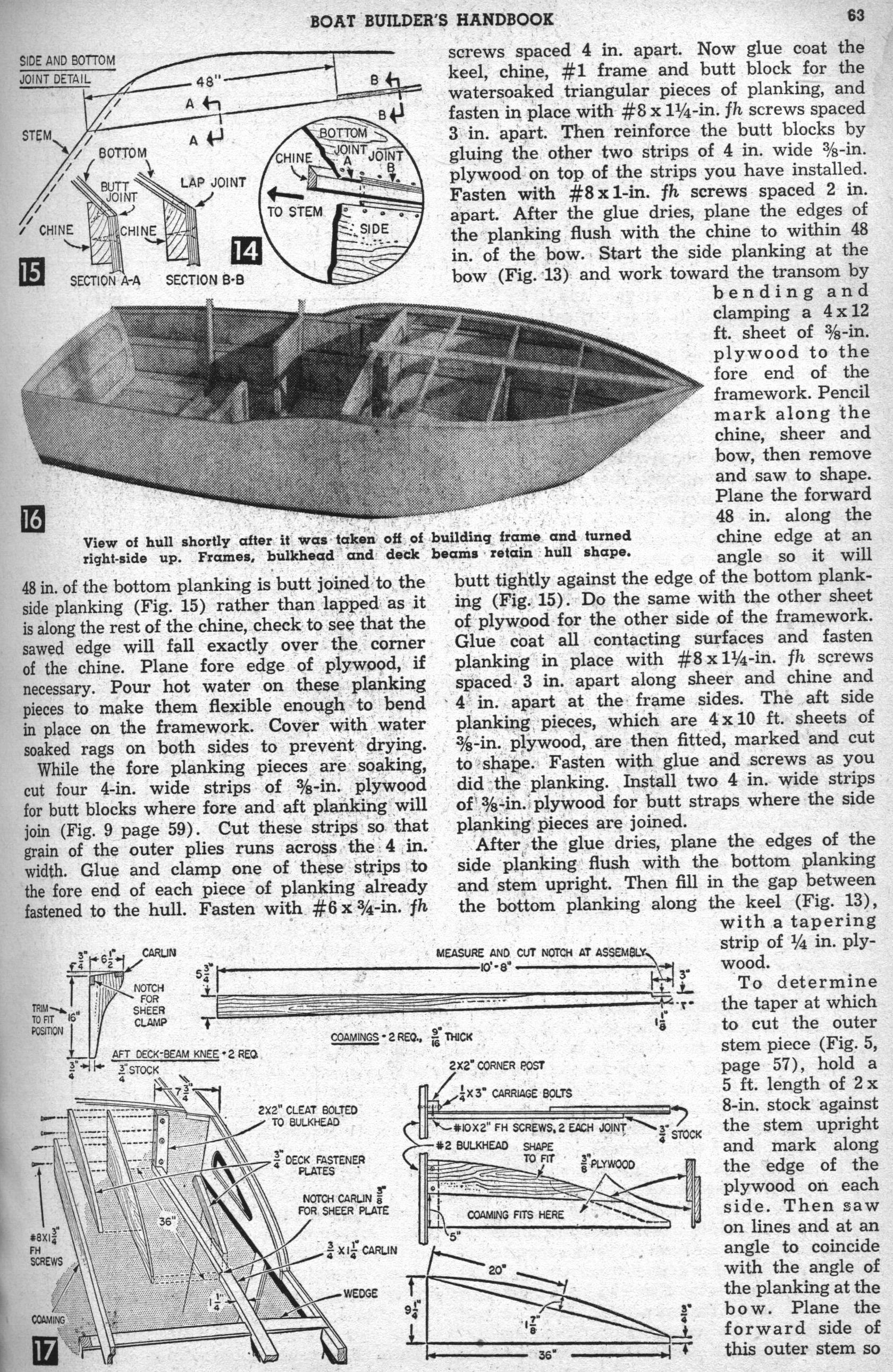

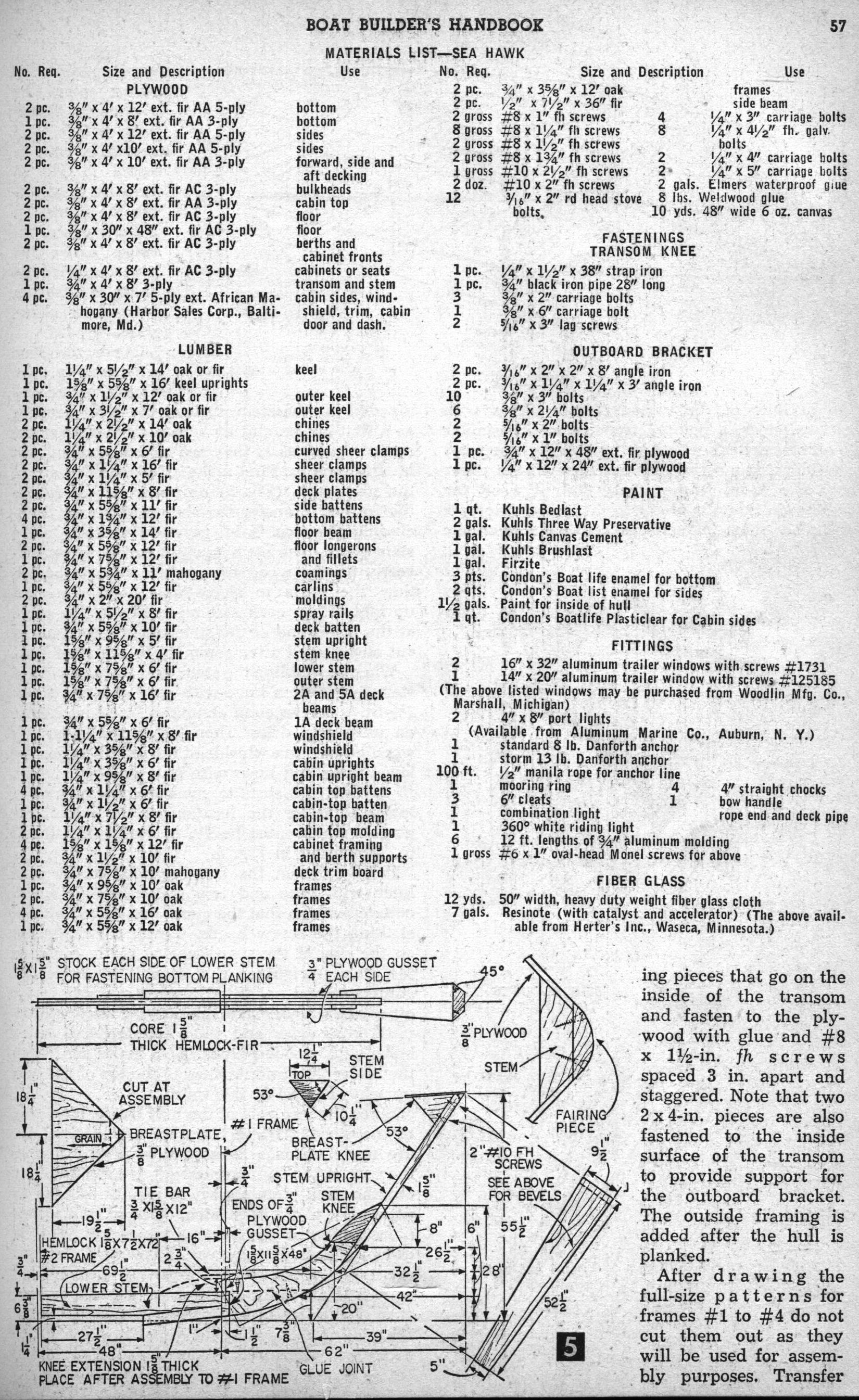

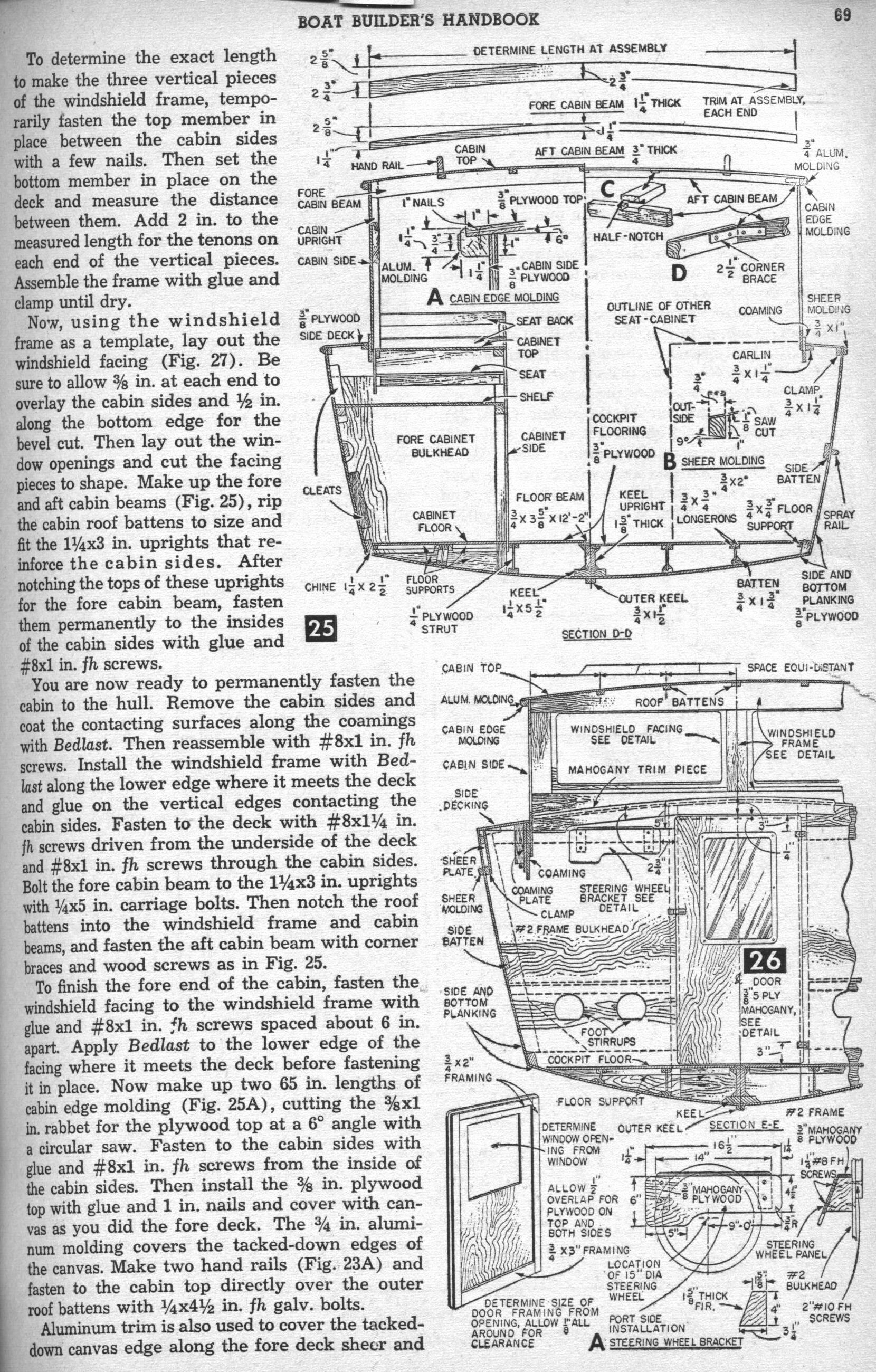

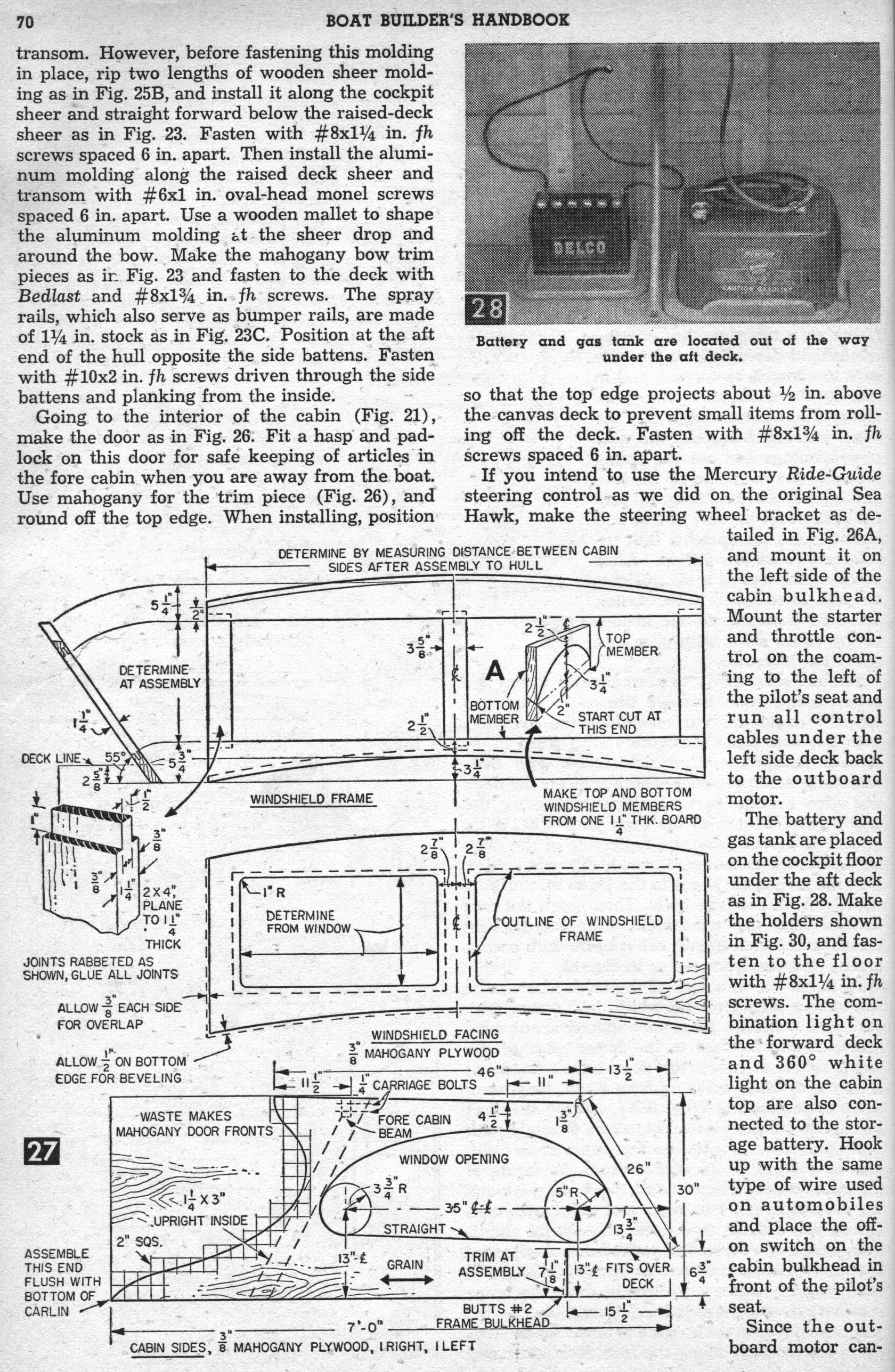

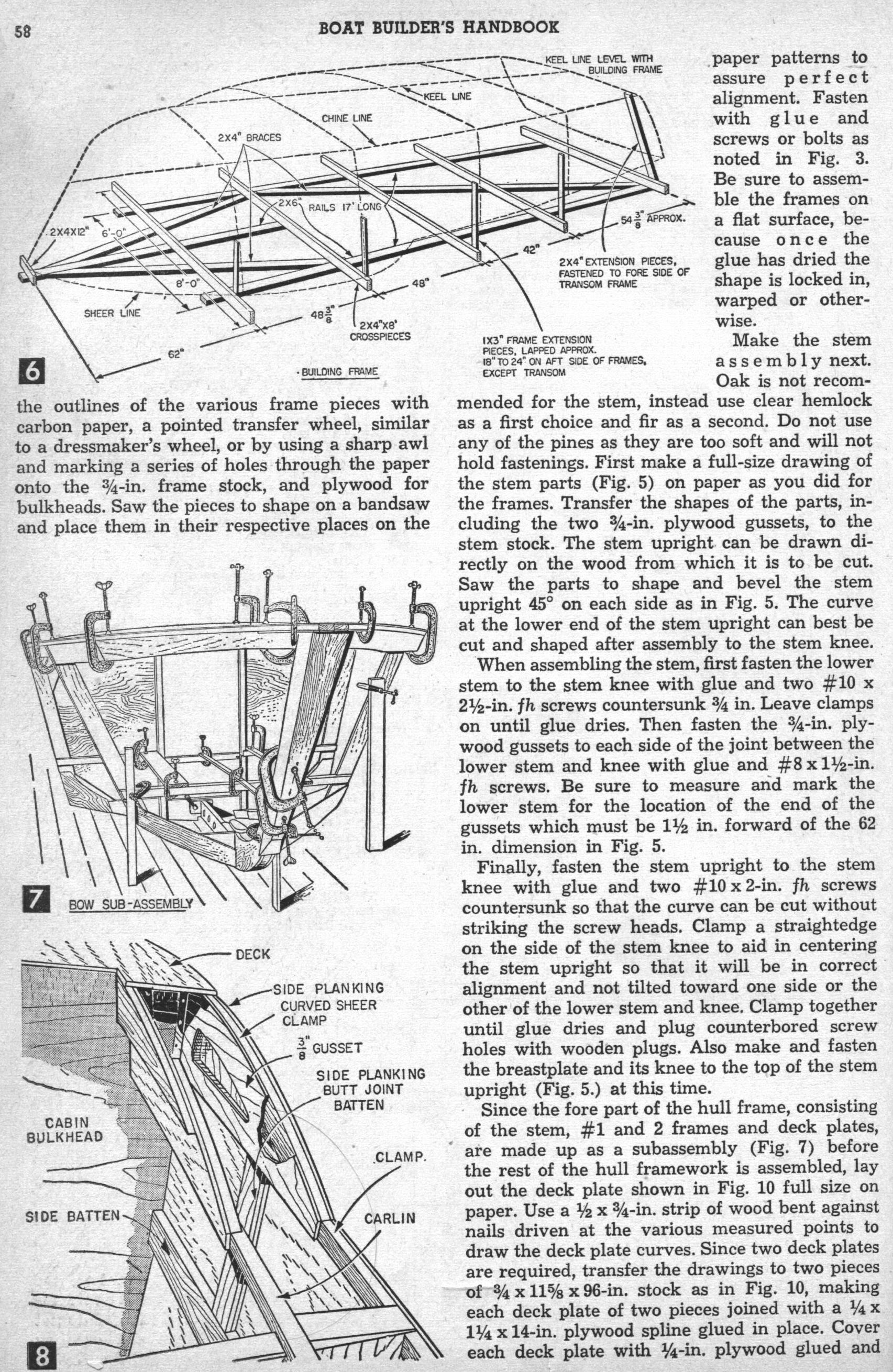

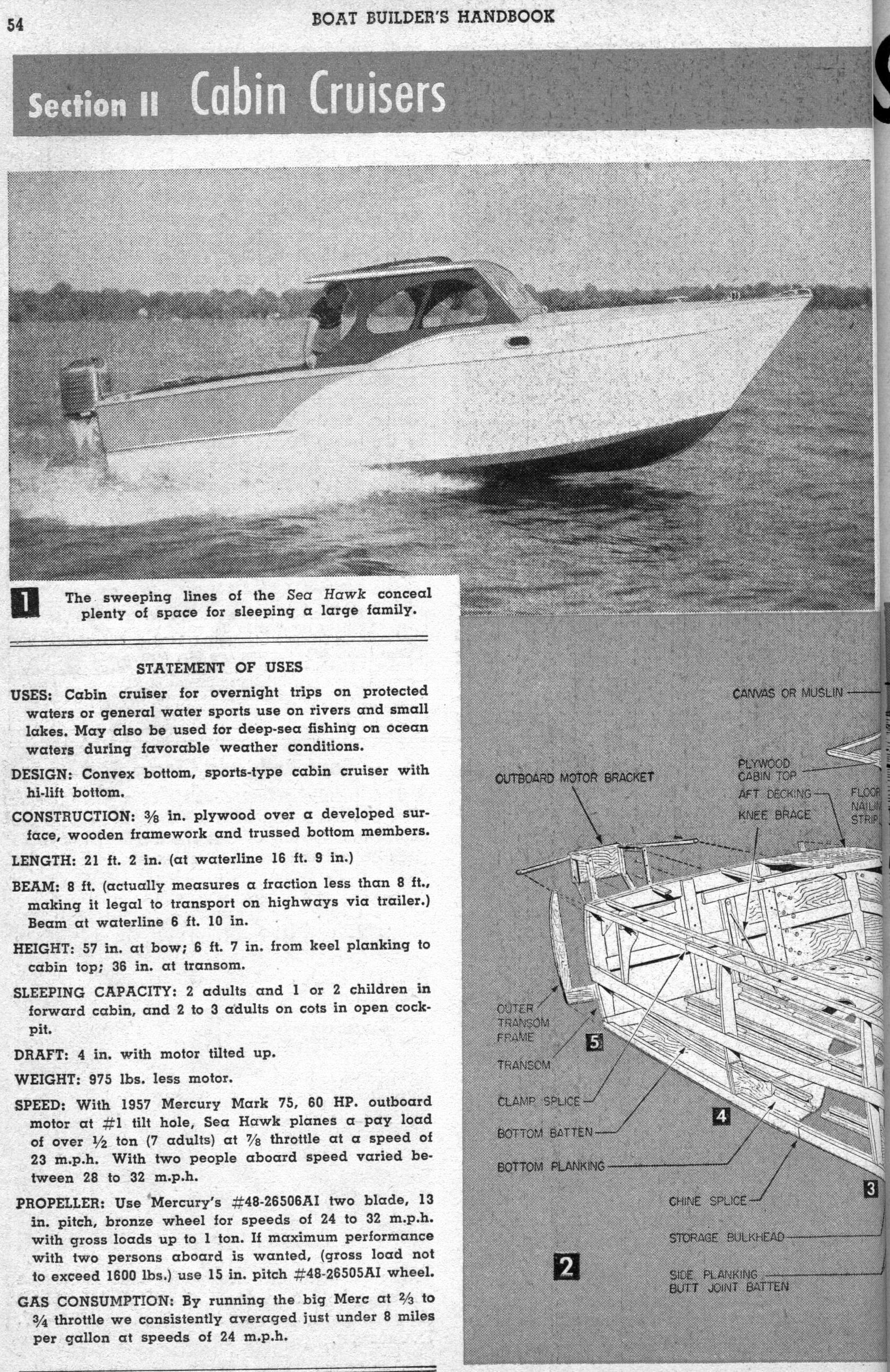

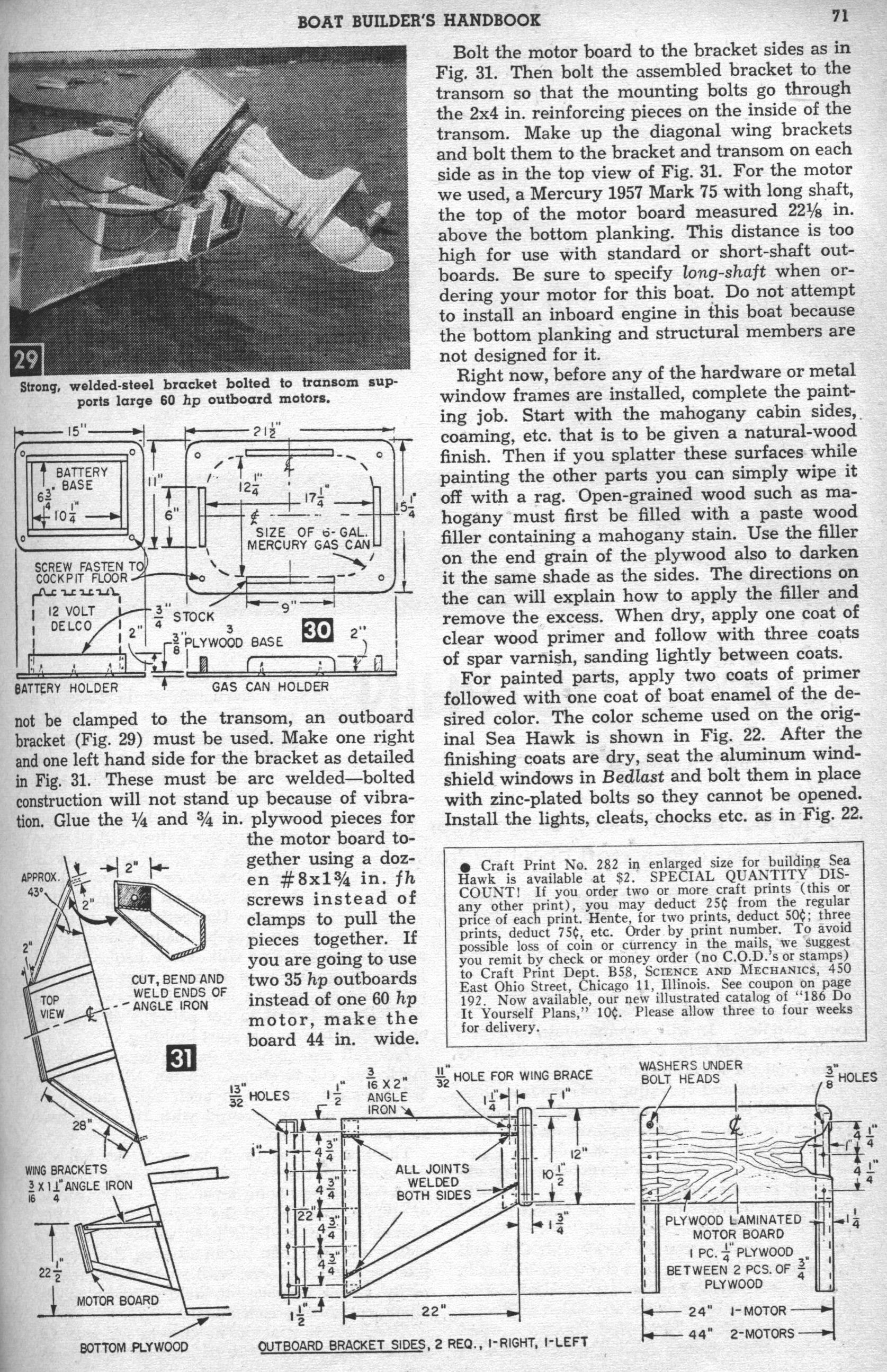

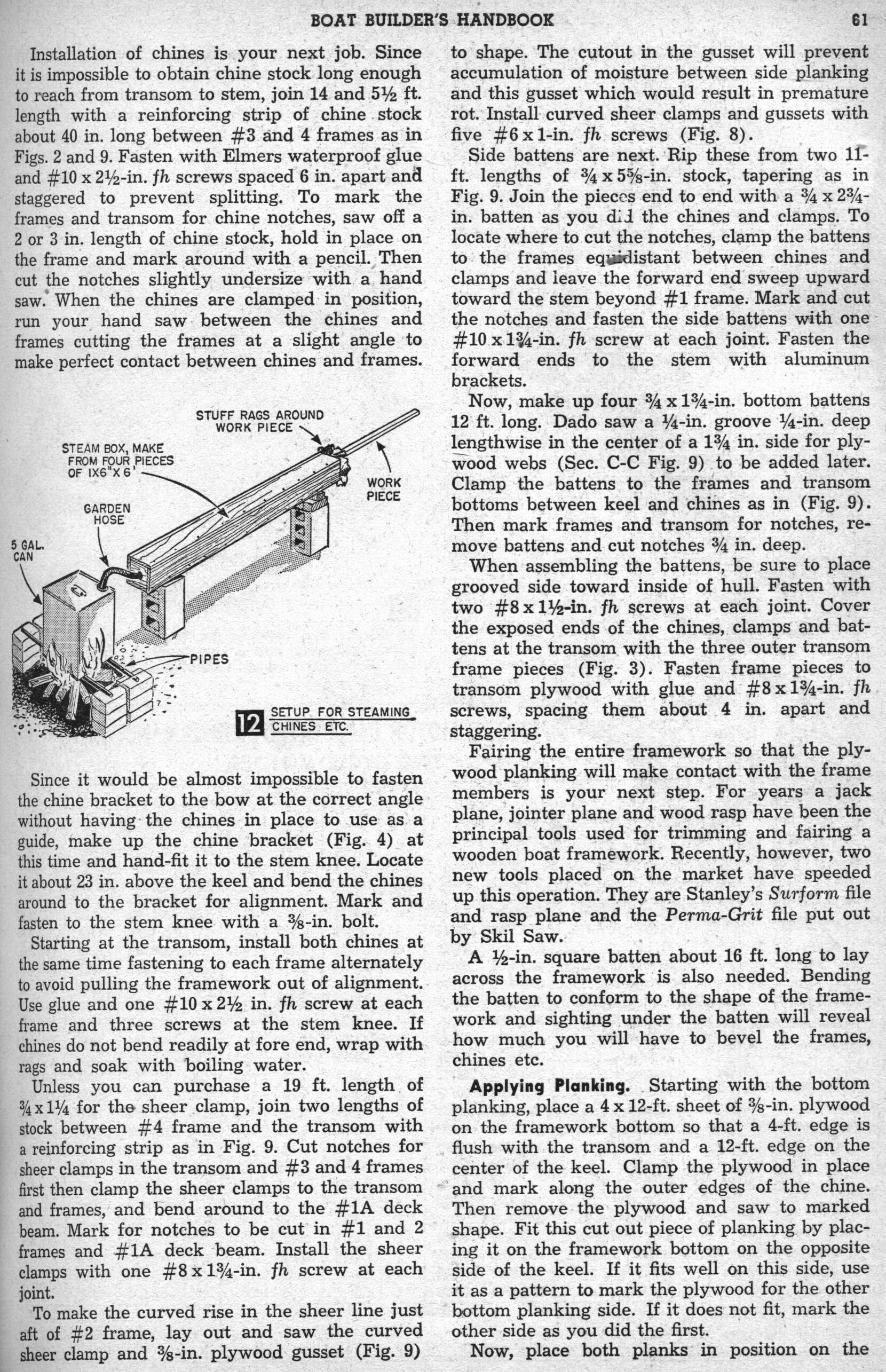

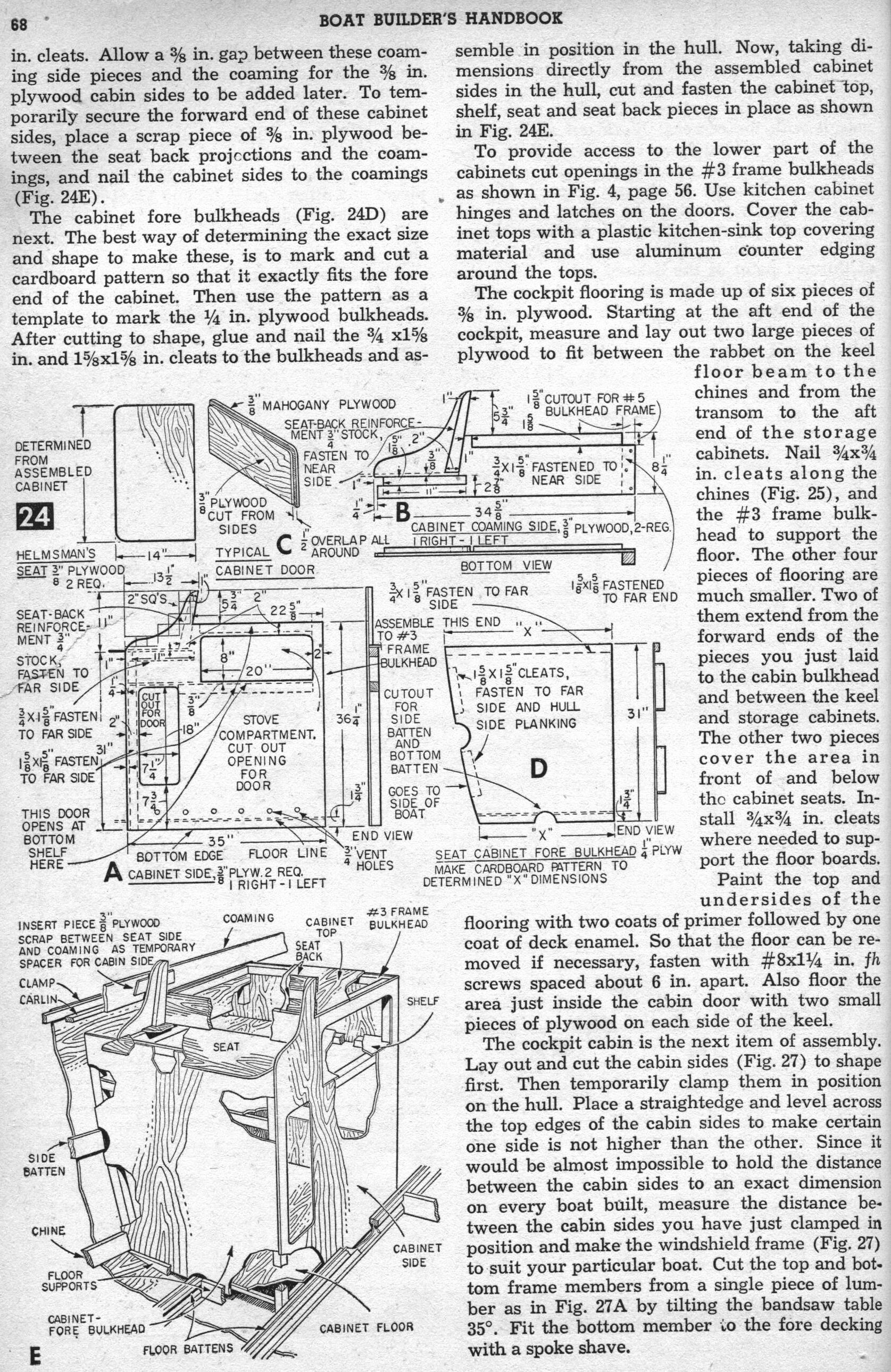

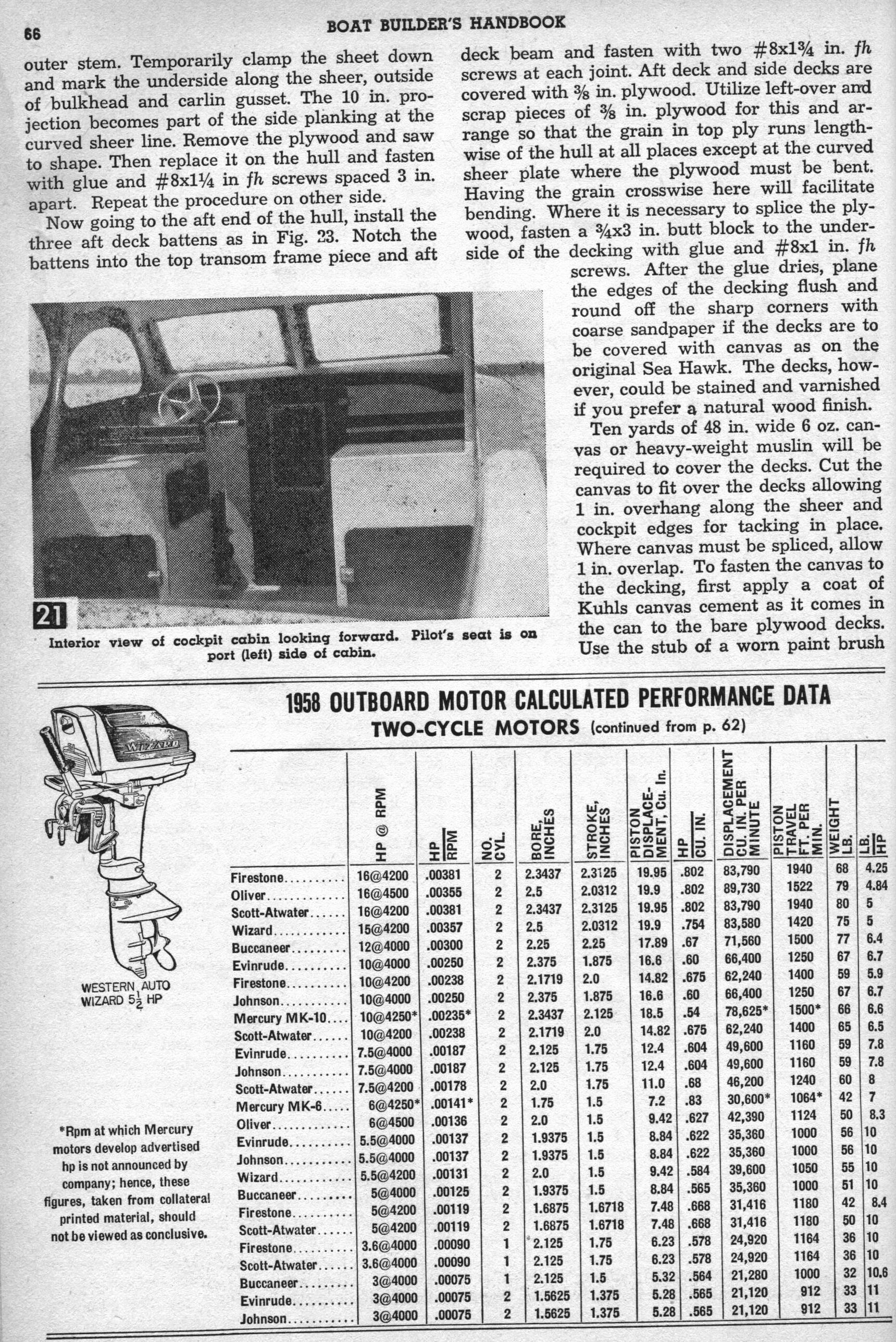

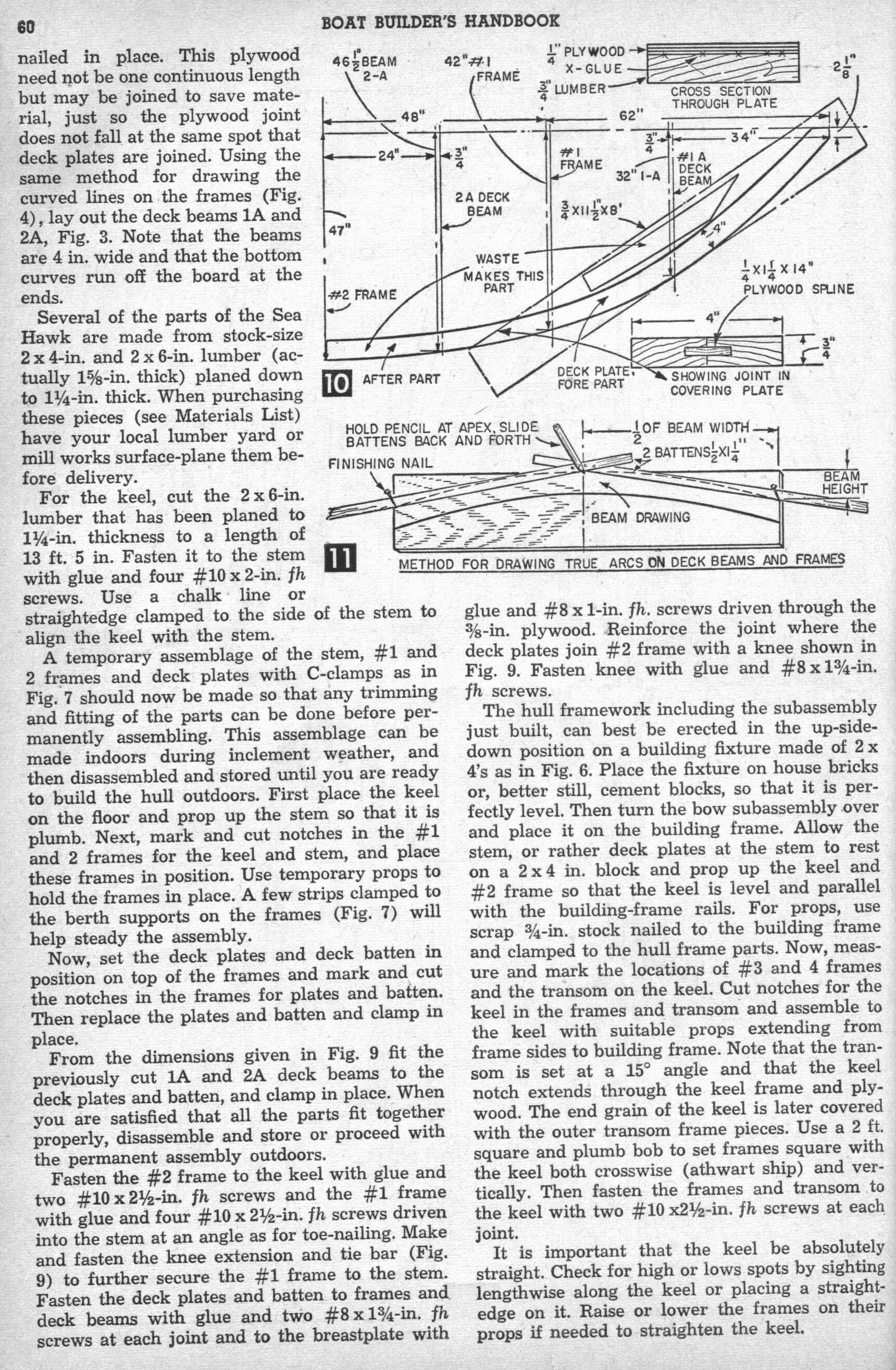

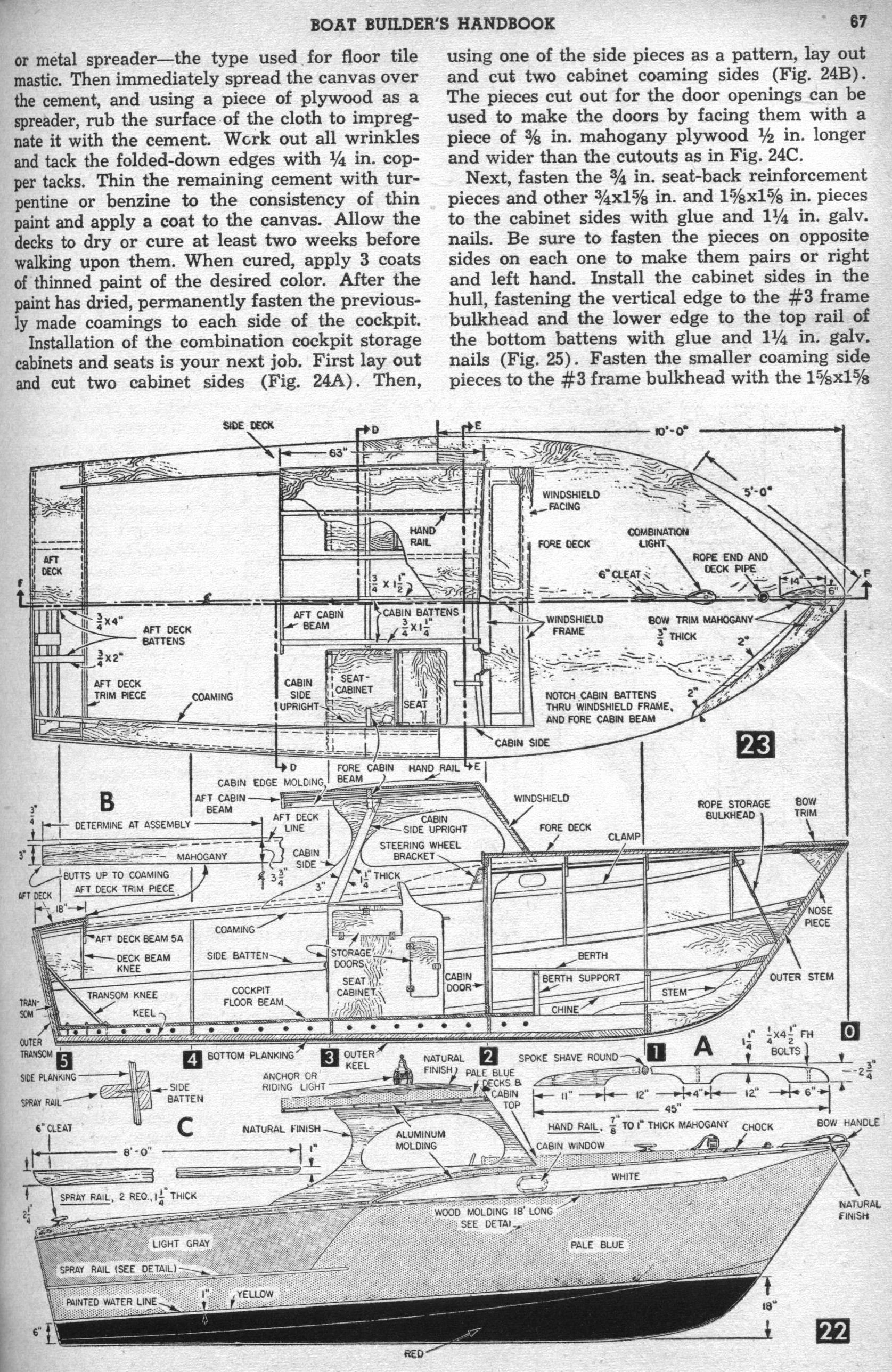

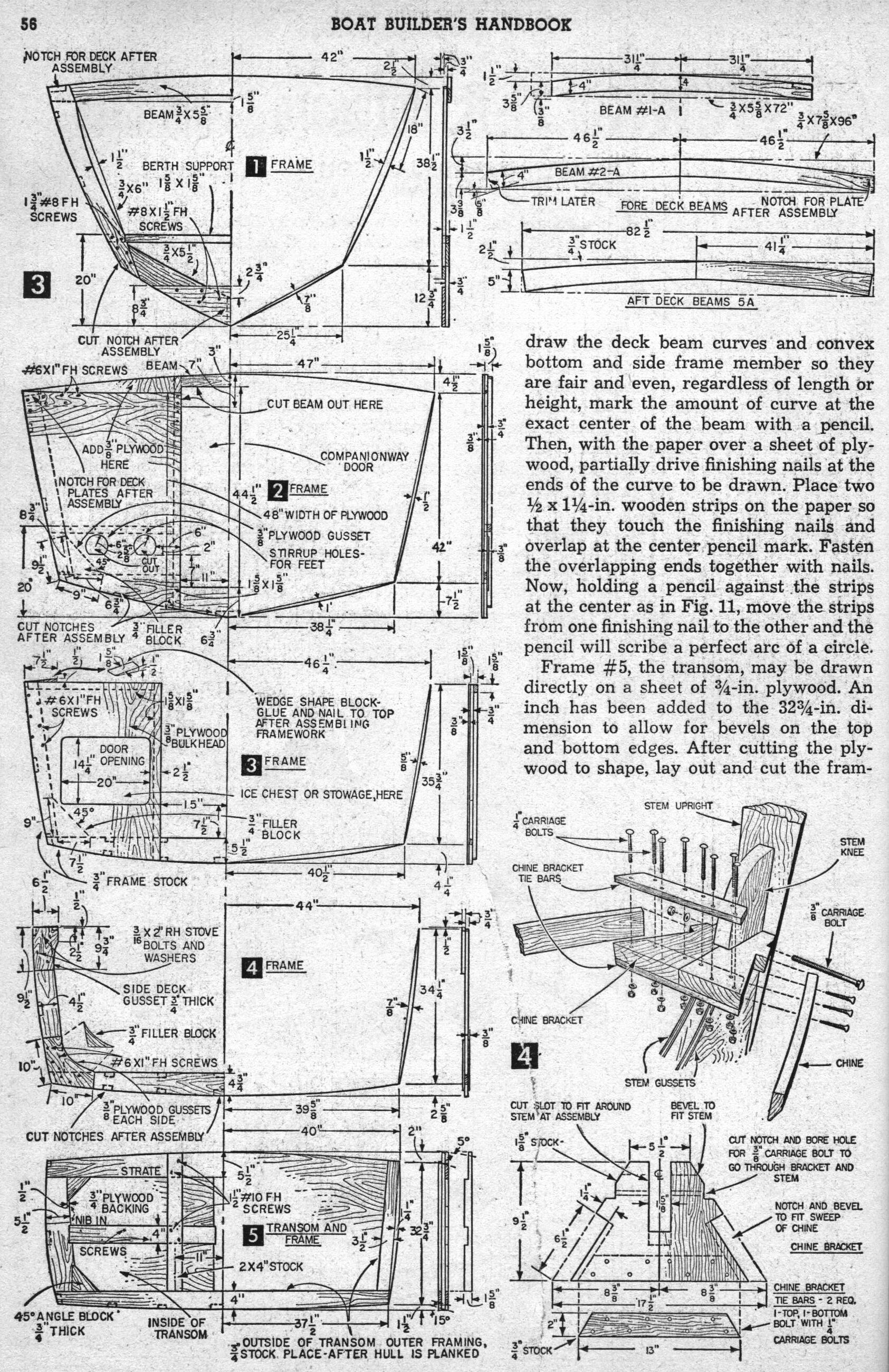

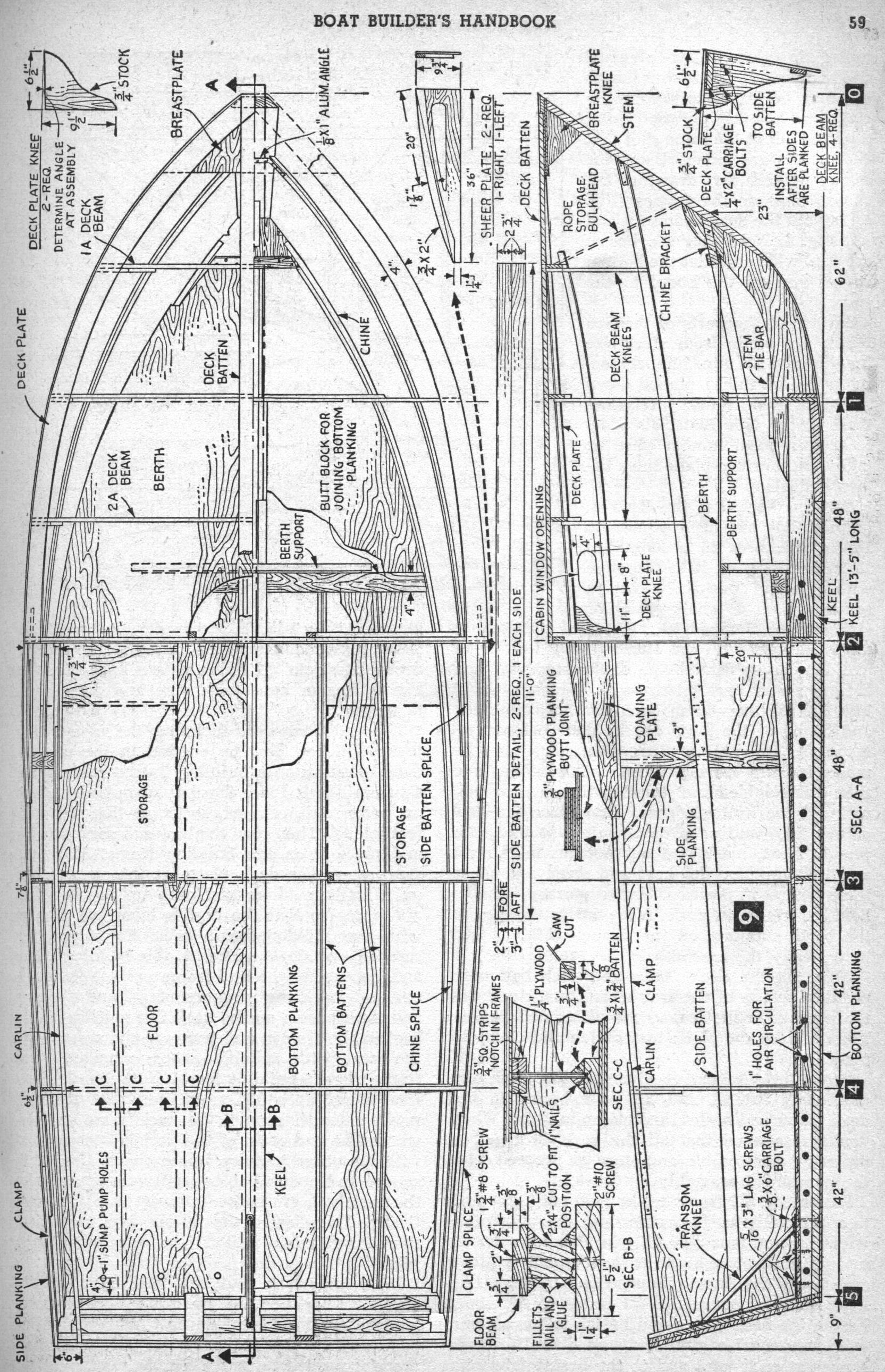

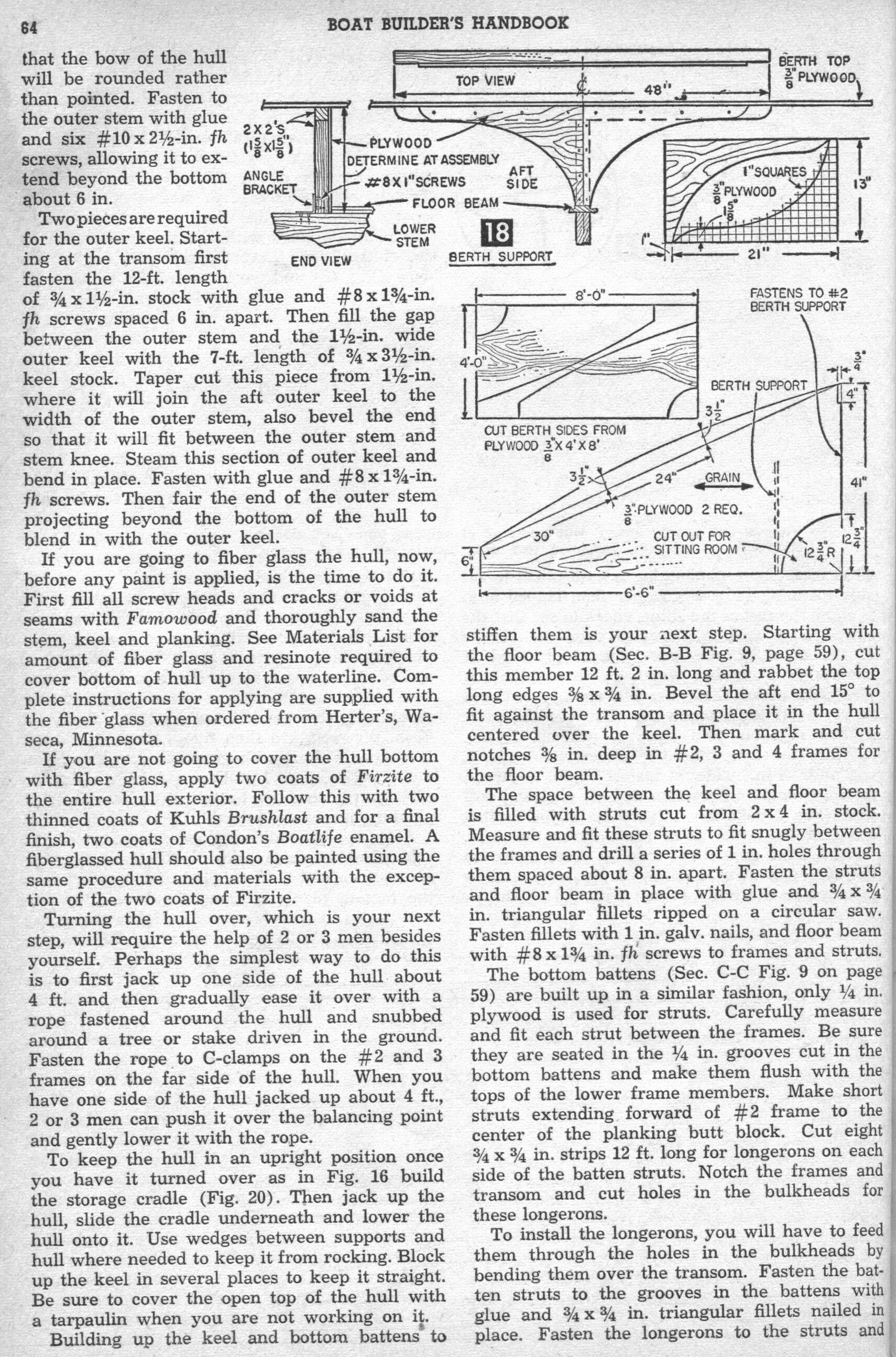

Plan sheets 19
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
