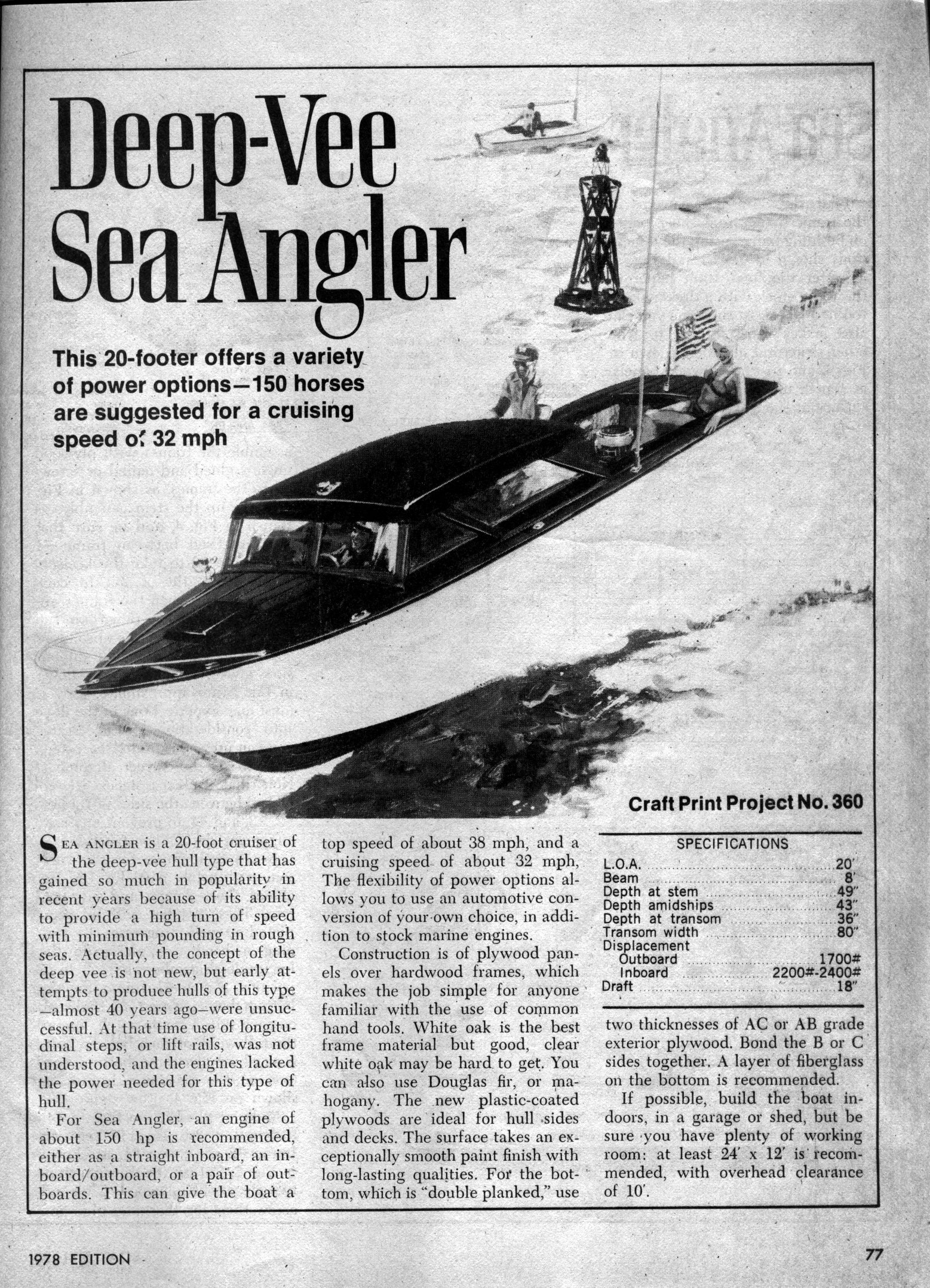

Deep-Vee Sea Angler
This 20-footer offers a variety of power options; 150 hp suggested for a cruising speed of 32 mph
- Category
- Cabin Cruisers
- Published
- 1978 edition, p. 77
- Craft Print
- 360
A 20 ft deep-vee cruiser built for speed with minimum pounding in rough seas. Plywood panels over hardwood frames make it approachable for anyone with common hand tools, and power can be a straight inboard, inboard/outboard, automotive conversion or a pair of outboards.
Specifications
- Length
- 20 ft
- Beam
- 8 ft
- Depth
- 49 in at stem, 43 in amidships, 36 in at transom
- Draft
- 18 in
- Weight
- 1,700 lb (outboard), 2,200–2,400 lb (inboard) displacement
- Construction
- Plywood over hardwood frames; double-planked bottom of AC/AB exterior plywood, fiberglass recommended
- Power
- About 150 hp: inboard, inboard/outboard or twin outboards; cruise 32 mph, top 38 mph
Downloads

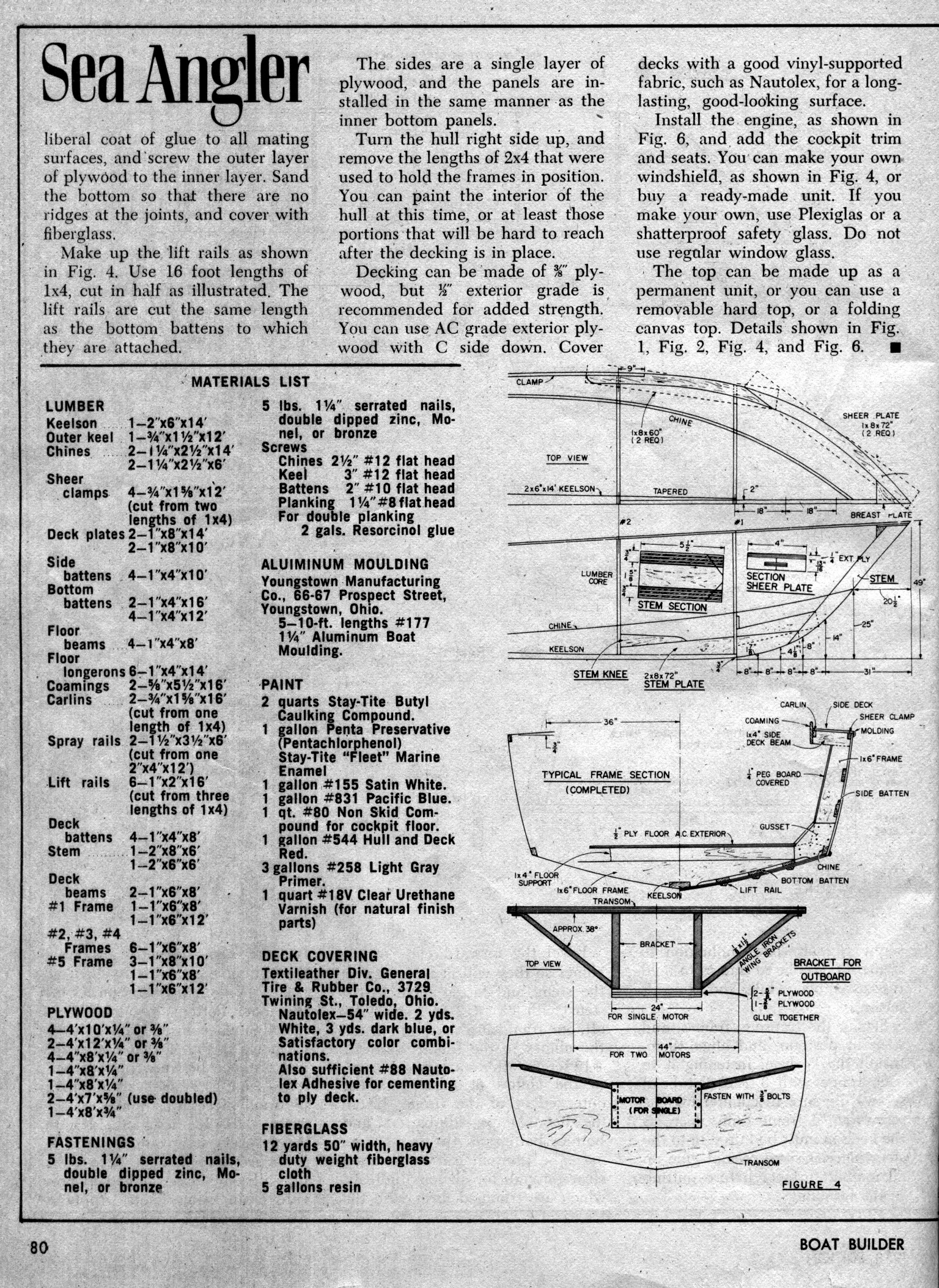

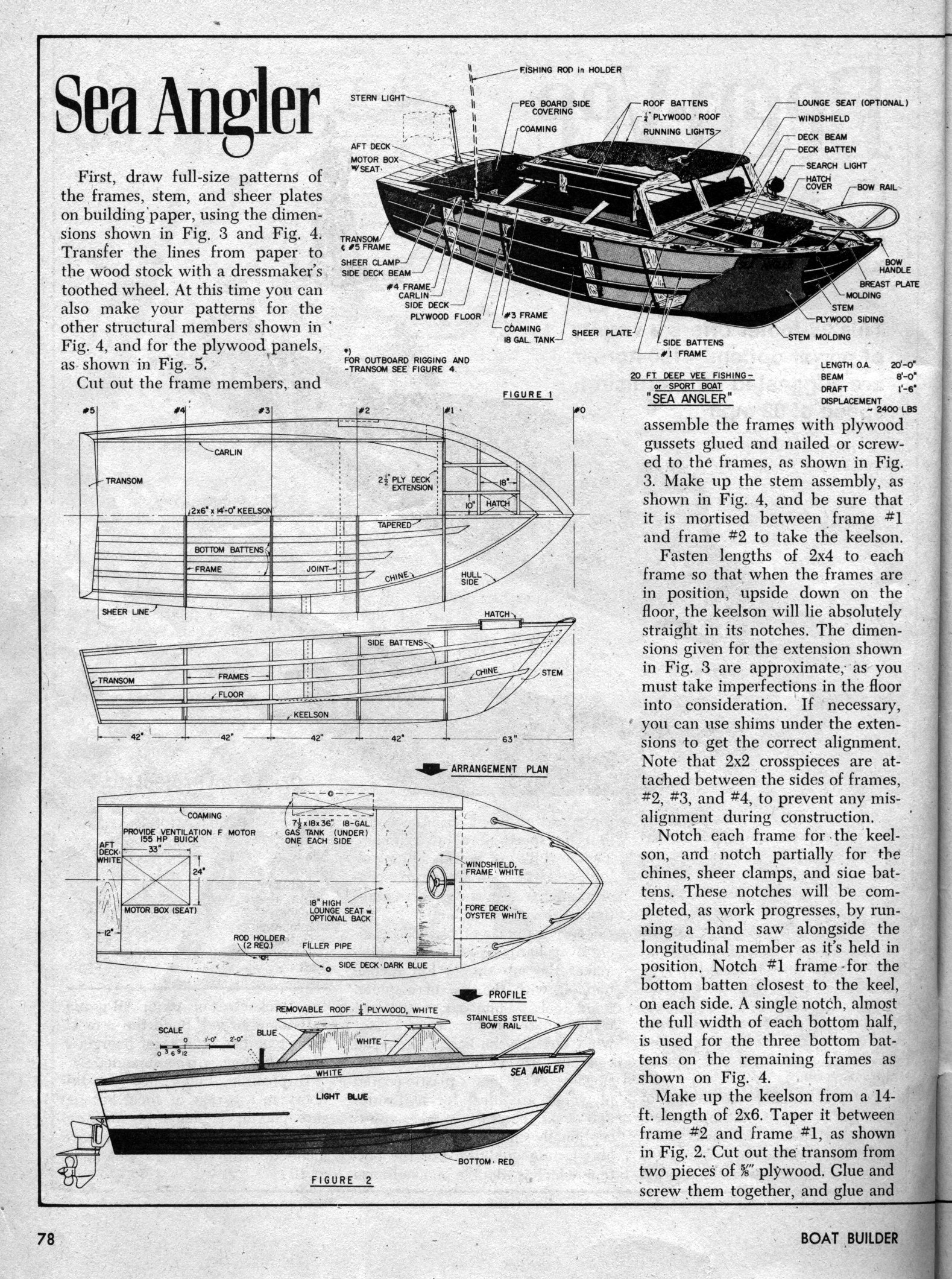

Plan sheets 6
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
