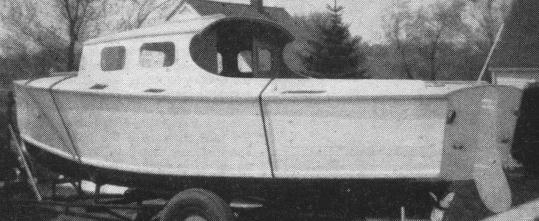

Dolphin
A 16-foot boat specially designed for those who move their craft about by trailer
- Category
- Cabin Cruisers
- Designer
- William D. Jackson
- Published
- Boat Builder's Handbook, p. 72
- Craft Print
- 62
A light, low-cost trailer cruiser for protected waters. It sleeps two for extended trips or carries four on day cruises, and its hull is designed to get the most from small 2 1/2–8 hp inboard engines. An outboard can be fitted by cutting the transom.
Specifications
- Length
- 16 ft
- Capacity
- 2 persons for extended trips, 4 for day cruises
- Construction
- Plywood throughout over sawn frames with plywood gussets
- Power
- Inboard 2 1/2–8 hp (e.g. U.S. Falcon 2 1/2 hp); outboard possible
Downloads

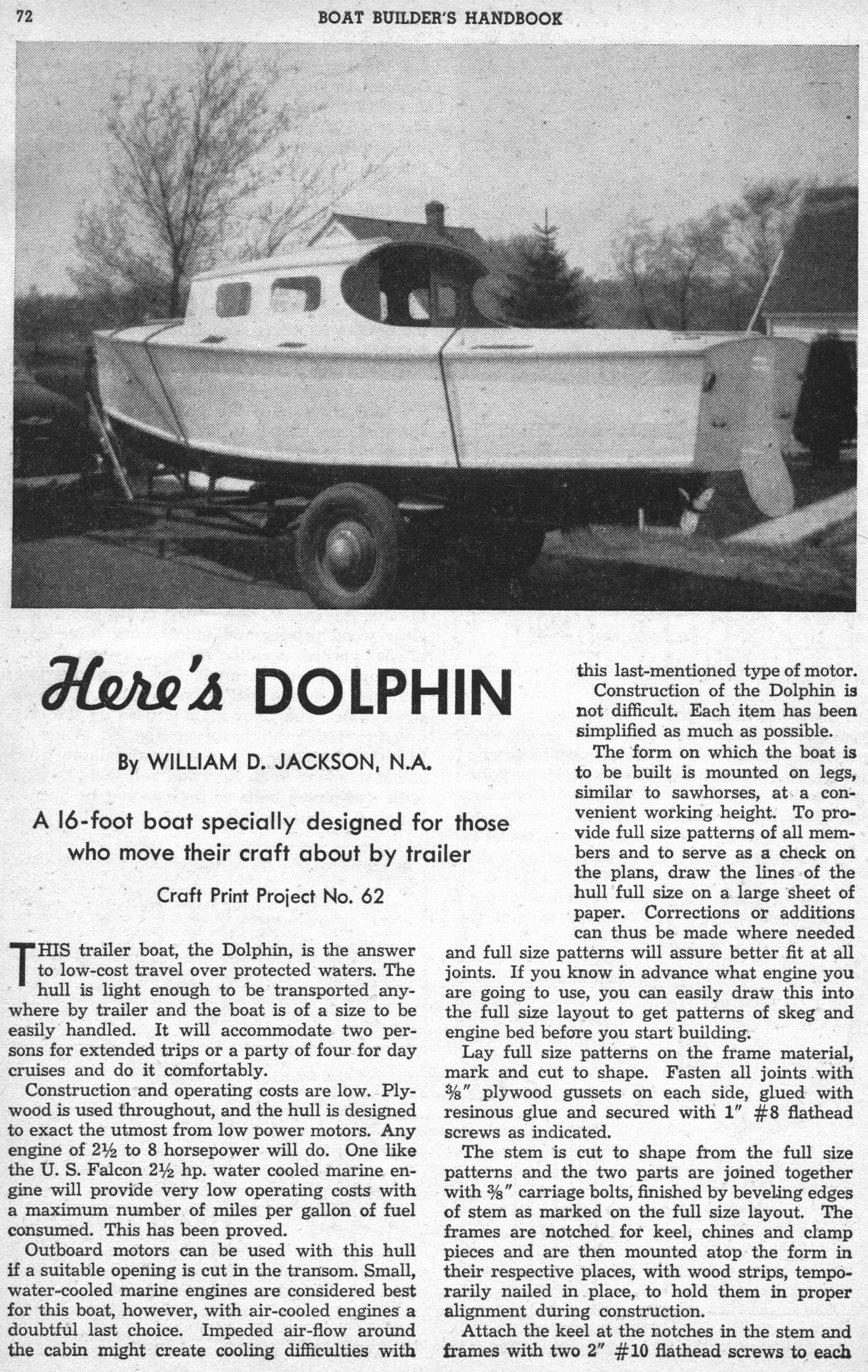

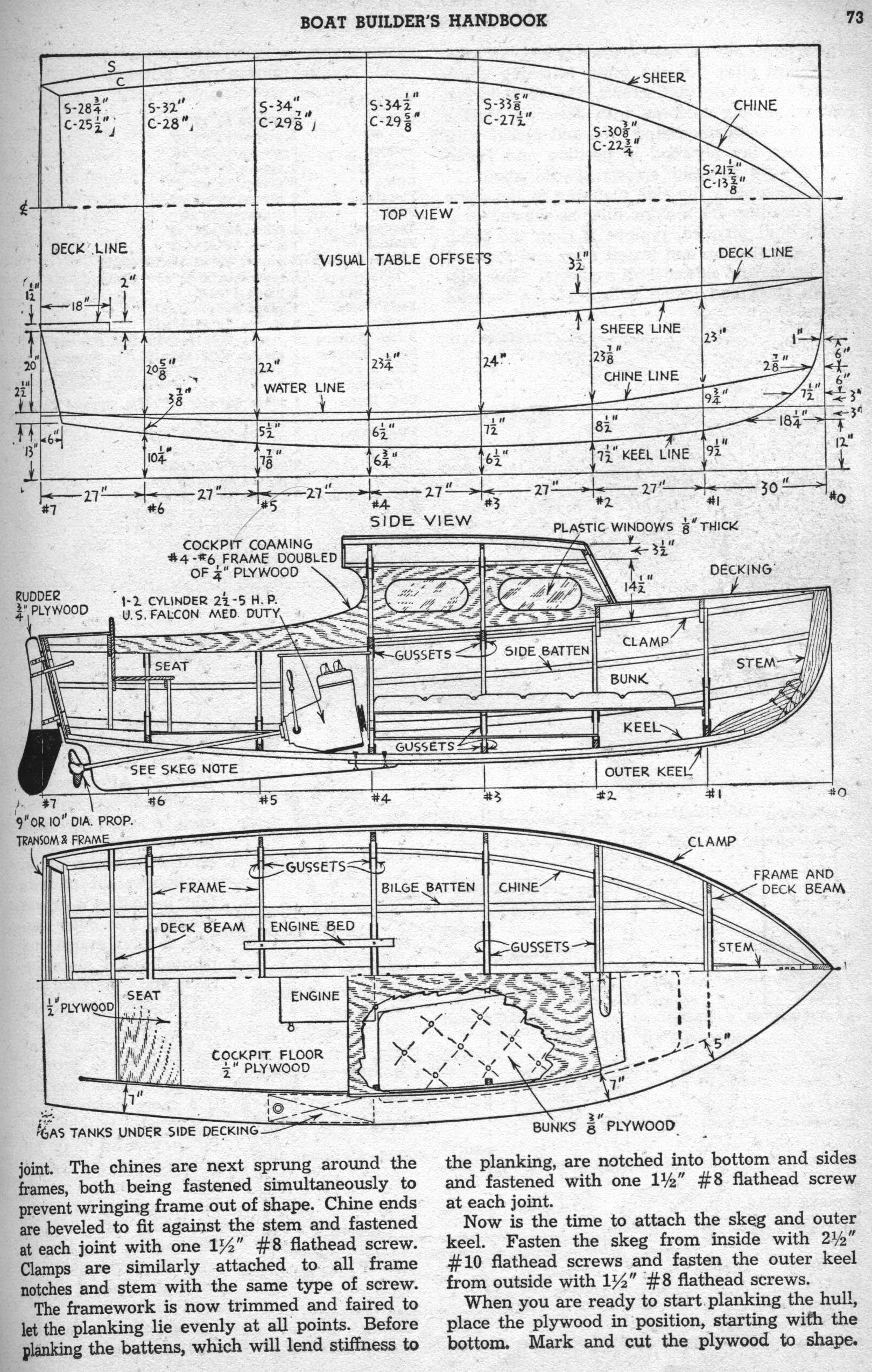

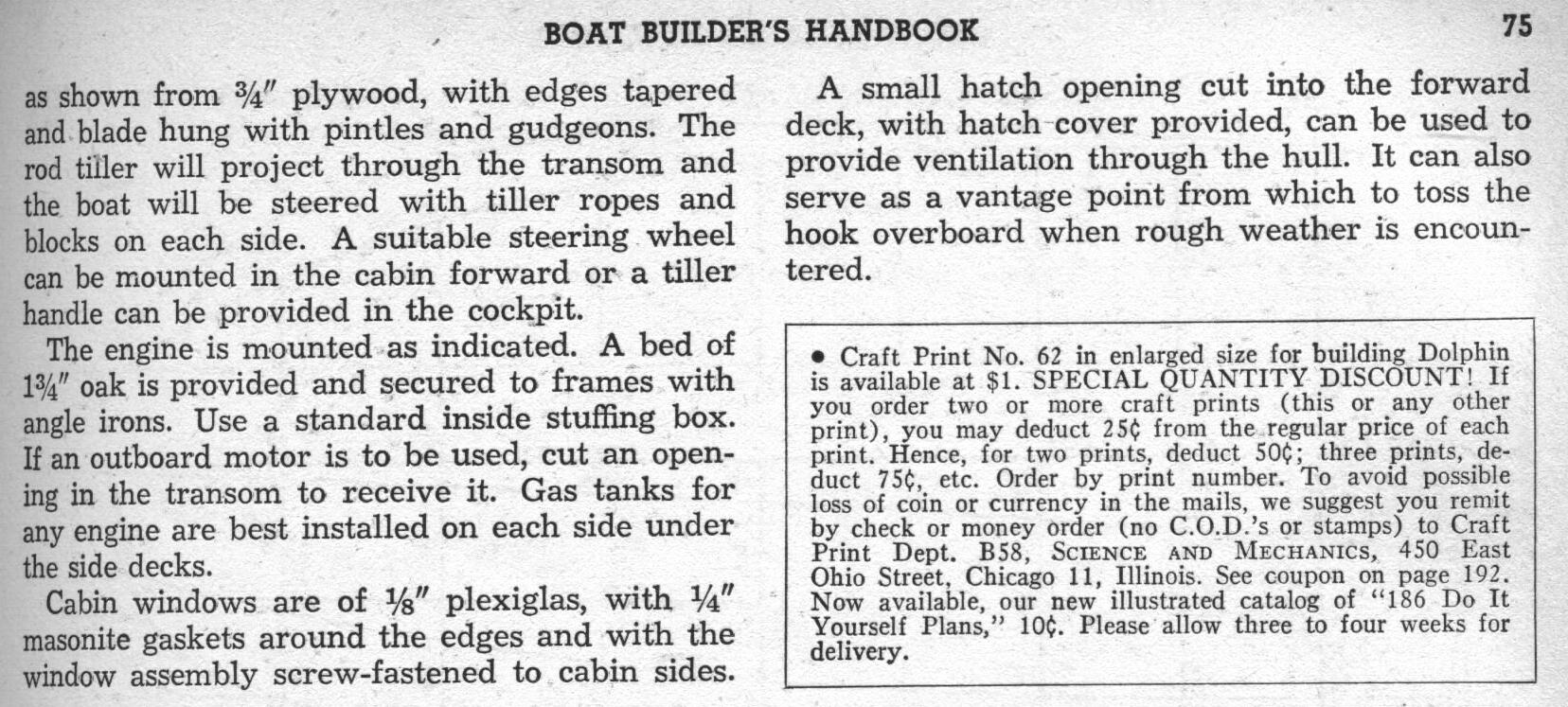

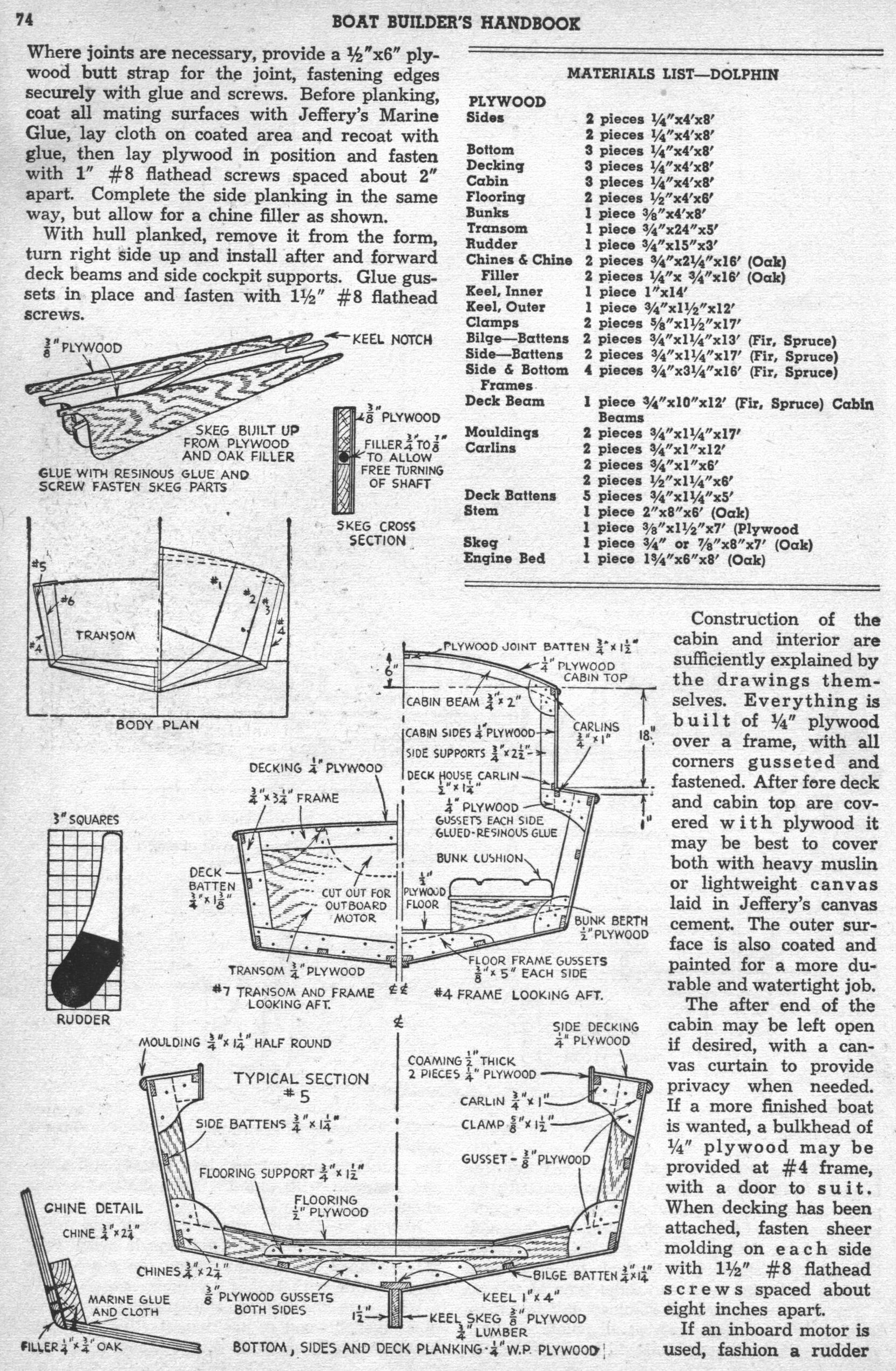

Plan sheets 5
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
