Grumman F6F Hellcat
- Designer
- Jim Ryan
- Published
- Model Airplane News, 1997, plan FSP07971
A small electric R/C scale model of the Grumman F6F Hellcat carrier fighter, designed and drawn by Jim Ryan for Model Airplane News (1997, plan FSP07971). It spans 30 in., weighs 18 oz and flies on three channels: ailerons, elevator and motor speed control.
Specifications
- Length
- 23 in
- Wingspan
- 30 in
- Wing area
- 165 sq in
- Weight
- 18 oz
- Construction
- Balsa crutch fuselage with formers; foam-core wing sheeted with 1/32 in. balsa
- Power
- Electric with speed control; 3 channels (ailerons, elevator, ESC)
Downloads

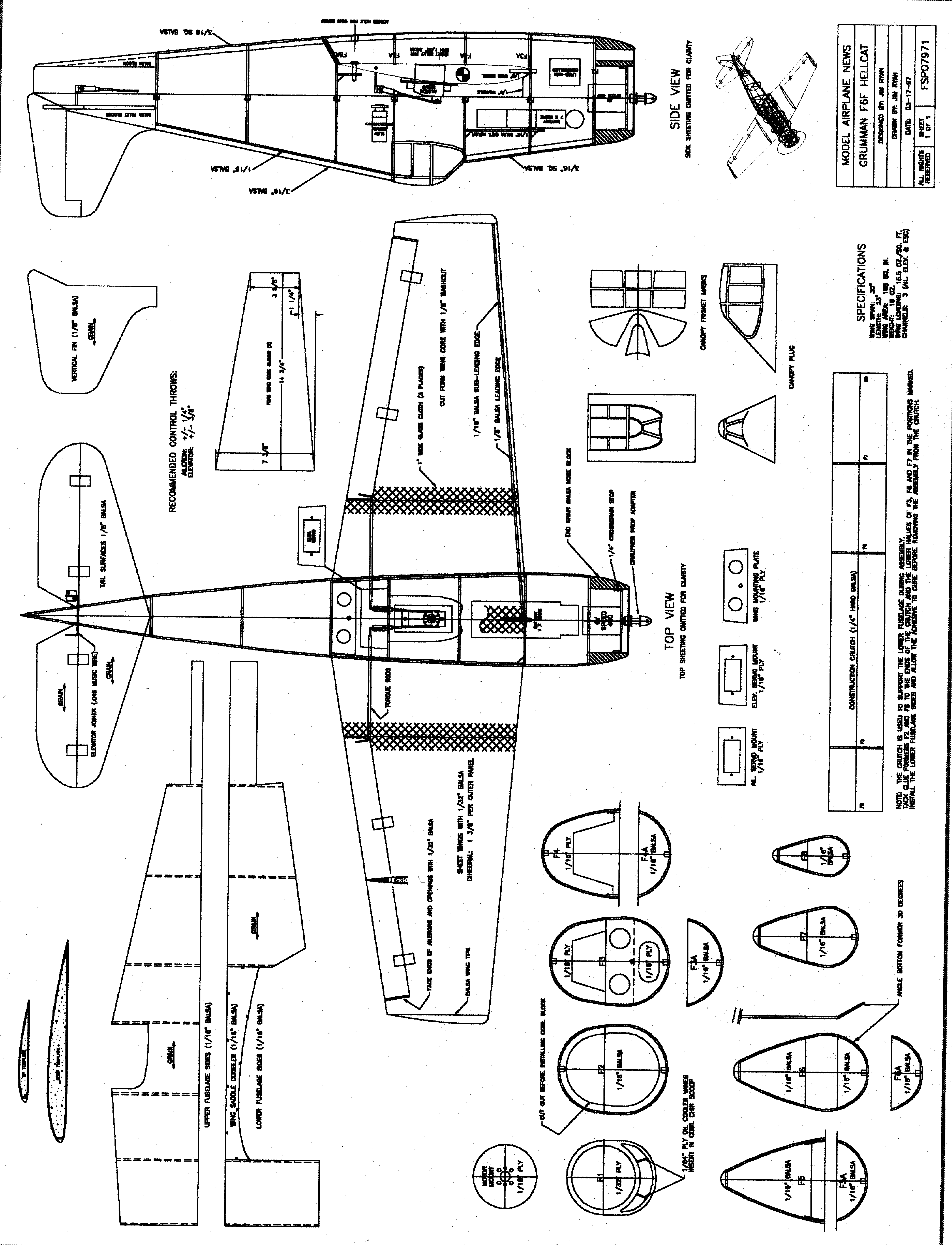

Plan sheets 1
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
