A-10 Warthog (Speed 400)
A balsa Speed 400 electric model of the Fairchild A-10 Thunderbolt II 'Warthog'. The engine nacelles are made from 2-litre soda bottles (or commercial ducted-fan units), and the fuselage is sheeted top and bottom.
Specifications
- Construction
- Balsa, fuselage sheeted top and bottom with 1.6 mm balsa; engine nacelles from 2-litre soda bottles or commercial fan units
- Power
- Electric, Speed 400
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).

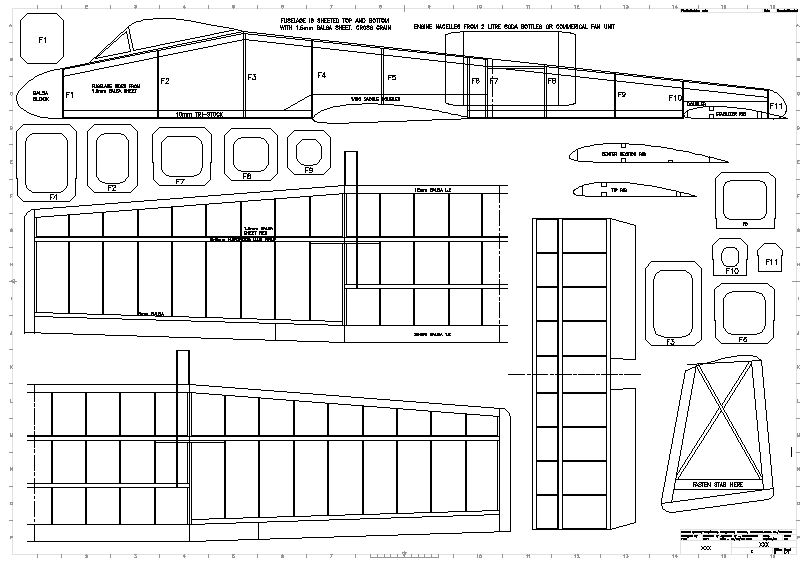

Plan sheets 1
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
