Messerschmitt Bf 109K (1/12 combat)
- Designer
- Pierpaolo Pastorino
- Published
- January 2001
A 1/12 scale Messerschmitt Bf 109K for R/C air combat by Pierpaolo Pastorino (January 2001): 860 mm span, 0.15–2.5 cc engines, with an optional foam wing. Italian notes.
Specifications
- Length
- 810 mm
- Wingspan
- 860 mm
- Construction
- Balsa or foam wing option
- Power
- 0.15–2.5 cc
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).

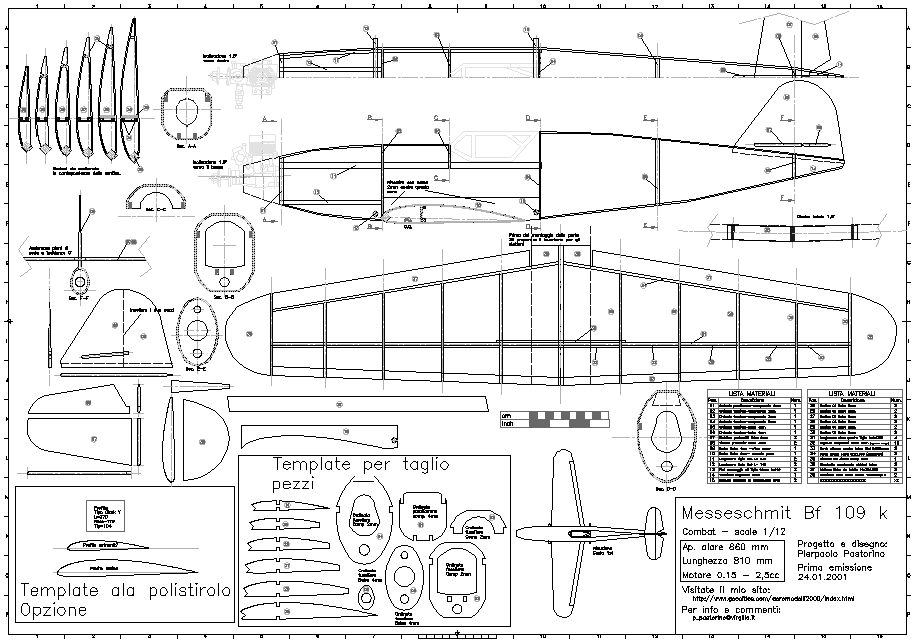

Plan sheets 1
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
