Messerschmitt Me 163 Komet (German plan)
An R/C model of the Messerschmitt Me 163 Komet rocket interceptor: 1,300 mm span, 810 mm long, 2.2–2.5 kg, for 5–7.5 cc engines. German-language plan.
Specifications
- Length
- 810 mm
- Wingspan
- 1,300 mm
- Weight
- 2.2–2.5 kg
- Power
- 5–7.5 cc engine

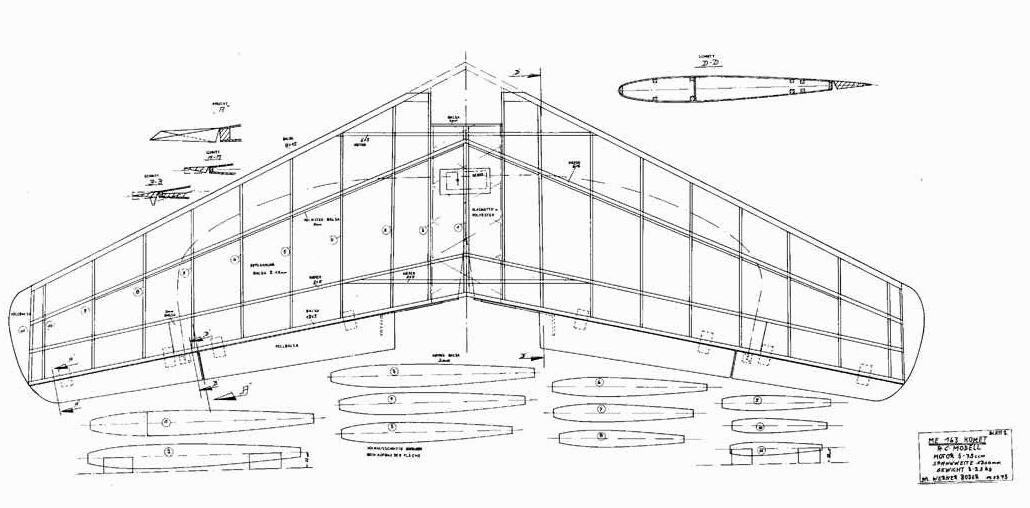

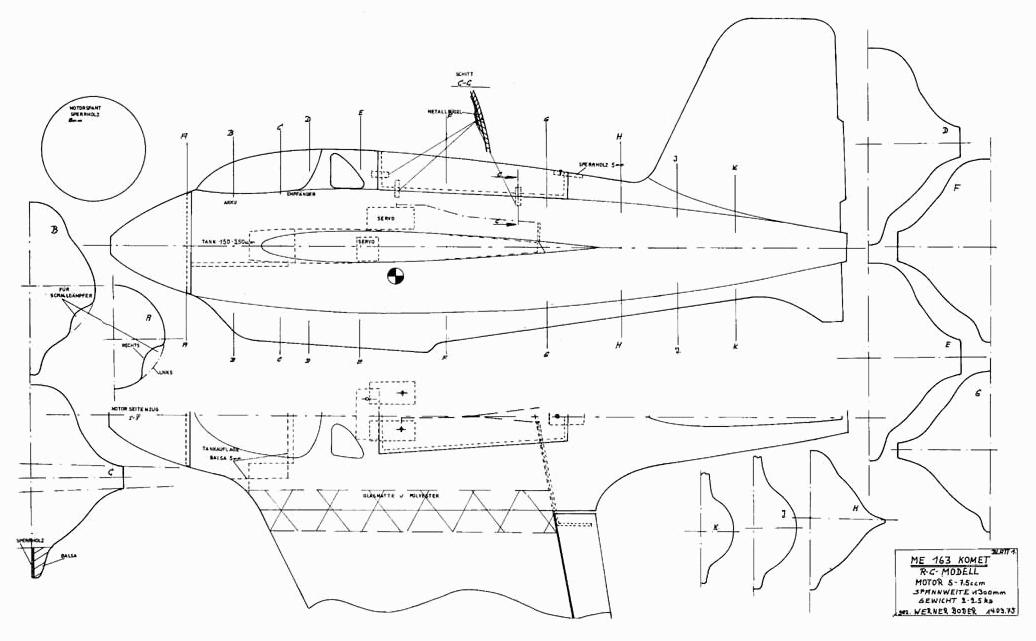

Plan sheets 3
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
