Hercules C-130 (electric)
A simple 1:22 scale electric C-130 Hercules built from beadboard foam: 1.9 m span, 1.4–1.8 kg, with four Speed 400 motors. DXF templates for fuselage tube and wing cutting.
Specifications
- Wingspan
- 1,900 mm
- Weight
- 1.4–1.8 kg
- Construction
- Styropor foam, epoxy; 1:22 scale
- Power
- 4 x Speed 400, 6x3 props
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).

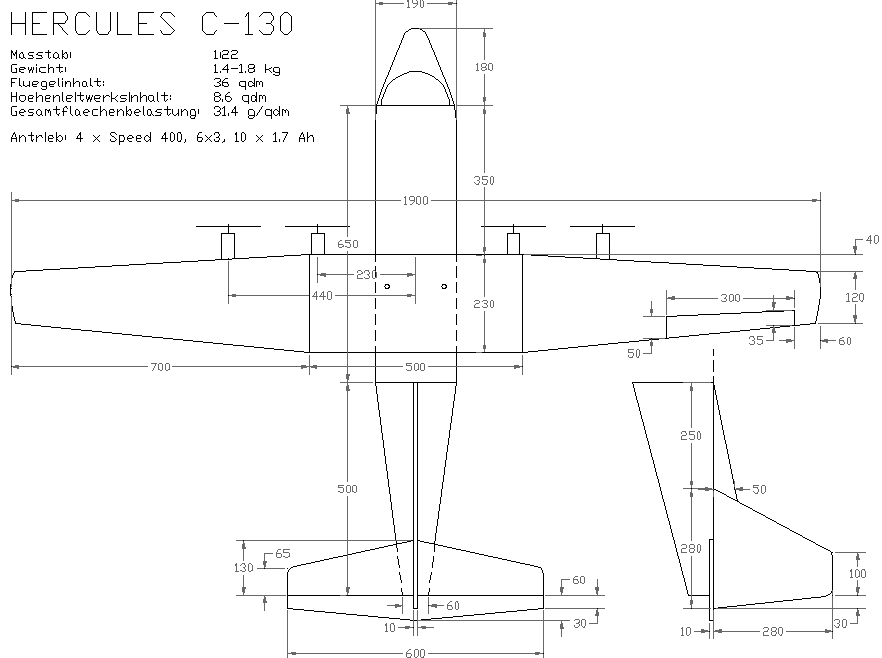

Plan sheets 1
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
