Kioritz Powered Sport
A big 81 in. span sport plane for a Kioritz gasoline engine: 1,200 sq in. of wing, about 15 lb, 28.5 oz/sq ft loading.
Specifications
- Wingspan
- 81 in
- Wing area
- 1,200 sq in
- Weight
- 15 lb
- Construction
- Semi-symmetrical airfoil, 2° dihedral each side
- Power
- Kioritz gas engine
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).

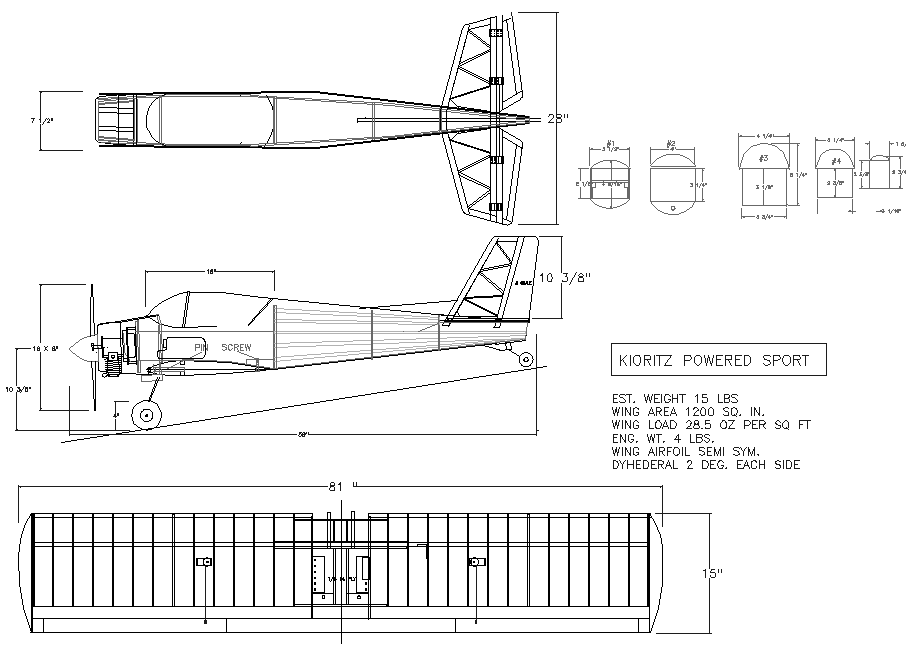

Plan sheets 1
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
