BGiles (Giles G-202)
- Designer
- Erez Raviv
- Published
- 1999
A stand-off scale Giles G-202 by aeronautical engineering student Erez Raviv: neutral like a pattern ship yet capable of 3D maneuvers, light and easy to build. 50 in. span, 4–5 lb, .40–.46 engine.
Specifications
- Length
- 44 in
- Wingspan
- 50 in
- Wing area
- 500 sq in
- Weight
- 4–5 lb
- Construction
- Foam-core wing sheeted with 1/16 in. balsa; 3/32 in. balsa fuselage
- Power
- .40–.46; 4 channels
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).

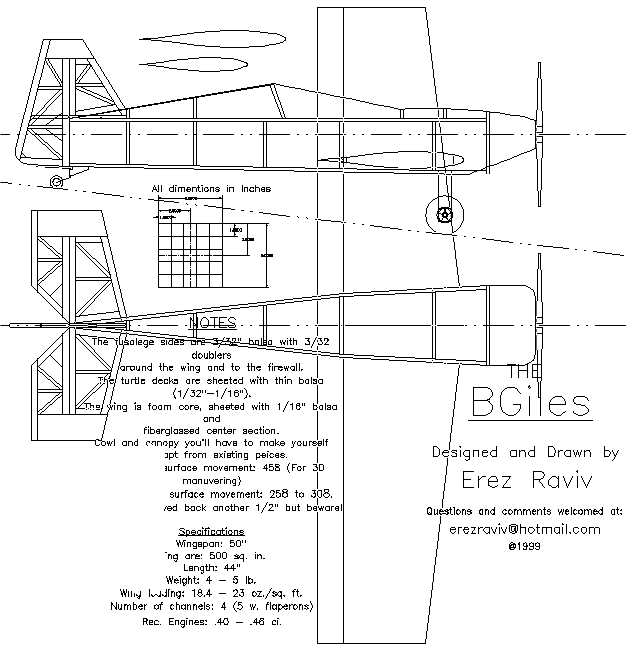

Plan sheets 1
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
