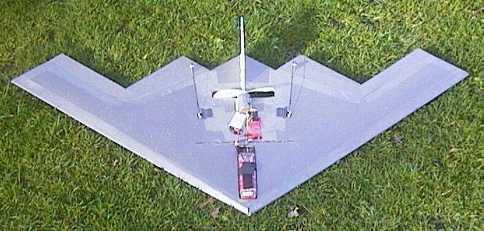

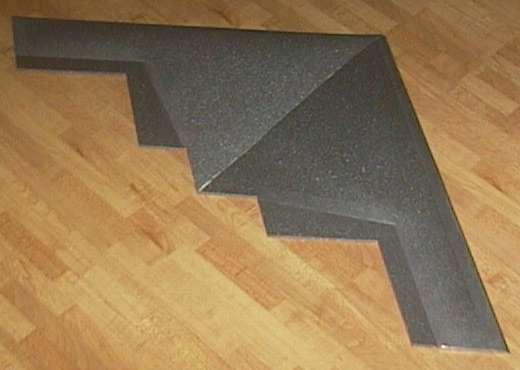

B-2 Flying Wing

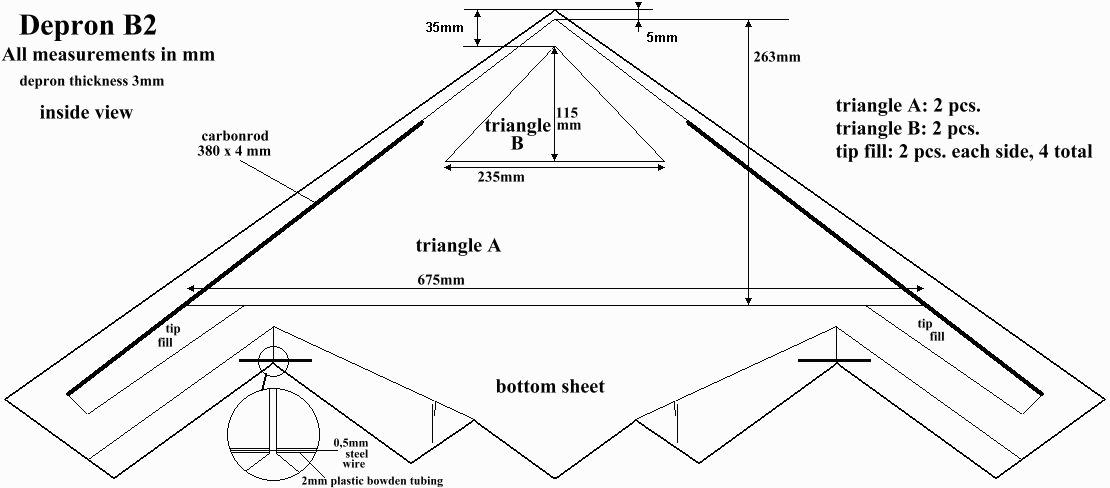

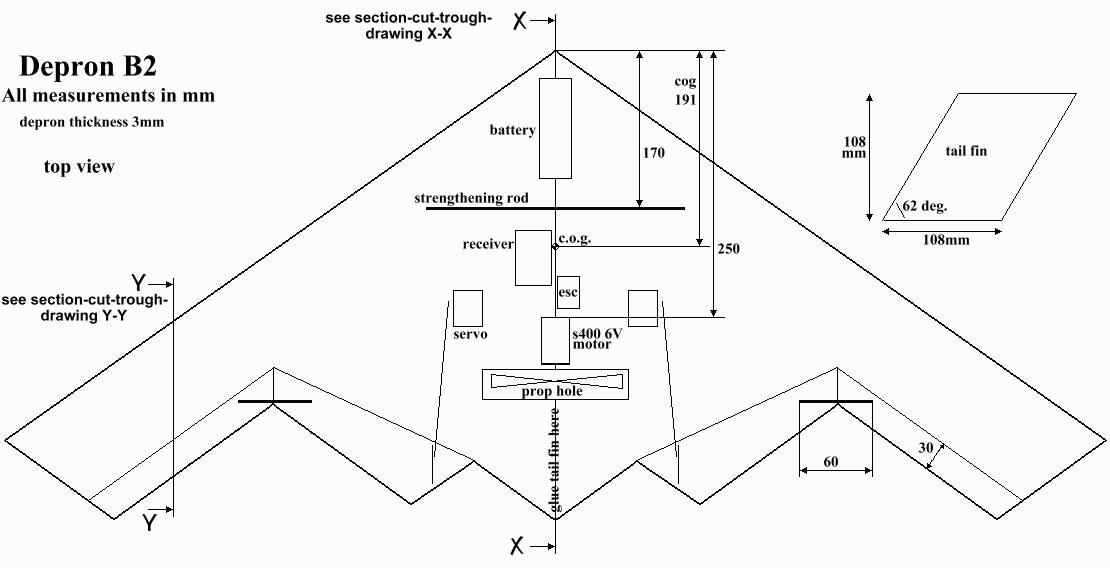

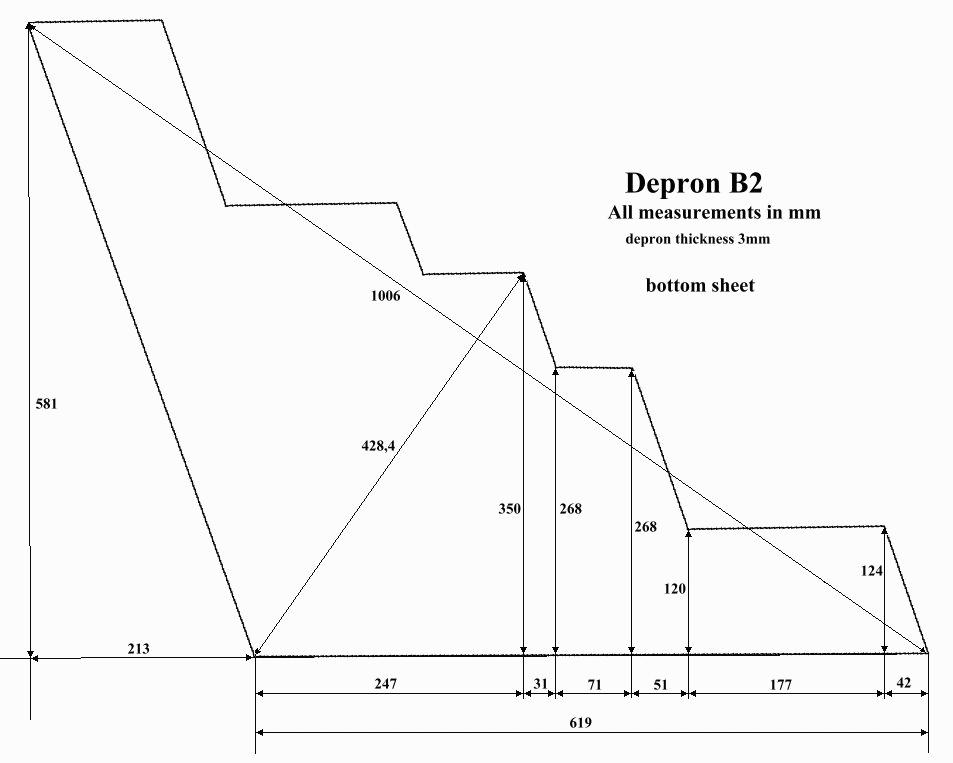

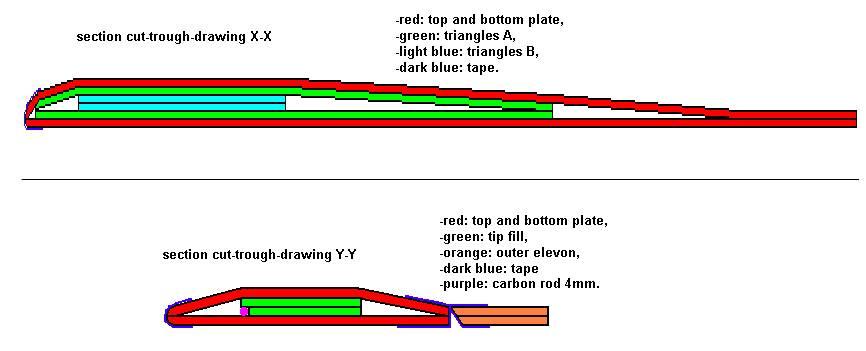

An R/C flying wing in the shape of the B-2 Spirit stealth bomber. The plan explains the layered construction with colour-coded cross-sections: plates, triangle cores, tape and a 4 mm carbon rod.
Specifications
- Construction
- Sheet plates with triangle cores, tape and 4 mm carbon rod; elevons
Plan sheets 11
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
