Avro CF-105 Arrow
- Designer
- Roger Winger
A model of the Canadian Avro CF-105 Arrow interceptor designed and drawn by Roger Winger: 33 in. long, 21 in. span, 220 sq in. The prototype hadn't flown when drawn, so the CG is an approximation.
Specifications
- Length
- 33 in
- Wingspan
- 21 in
- Wing area
- 220 sq in
- Construction
- Balsa sheet and block; delta wing
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).

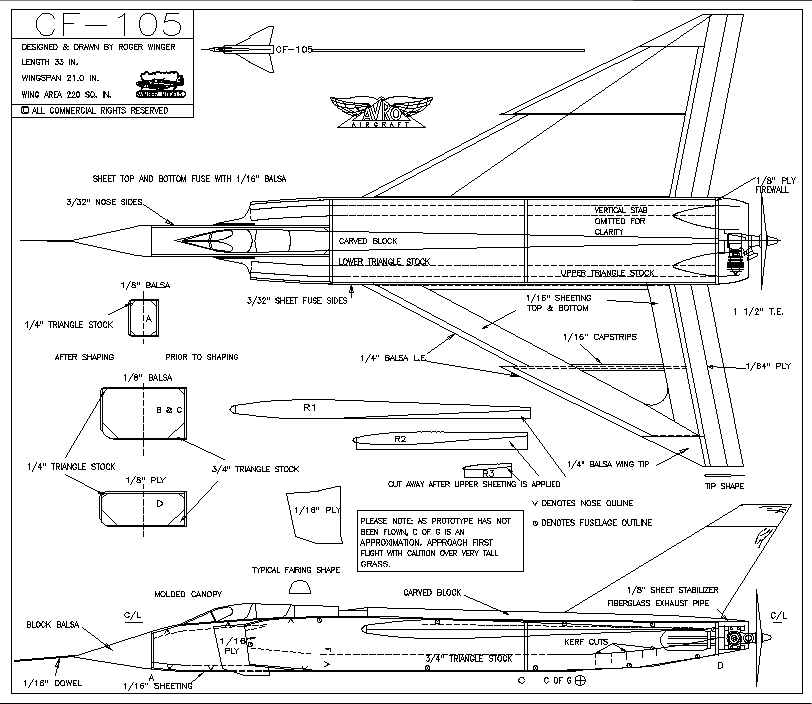

Plan sheets 1
