Ampmaster Jr (sheet 2)
- Designer
- Al Eastman
- Published
- May 1998

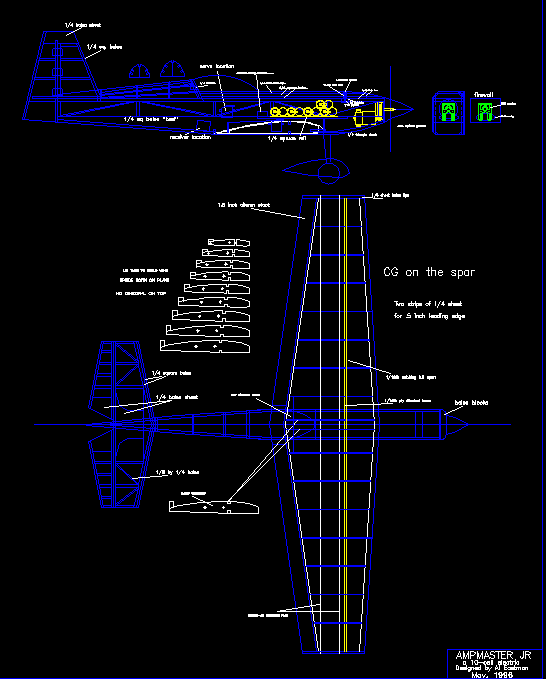

The full Ampmaster Jr plan by Al Eastman (May 1998) for 10-cell electric power, with the CG on the spar. It also works with .20–.25 glow engines.
Specifications
- Construction
- Balsa, CG on the spar
- Power
- 10-cell electric, or .20–.25 glow
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).
Plan sheets 1
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
