Aichi D3A2 'Val'

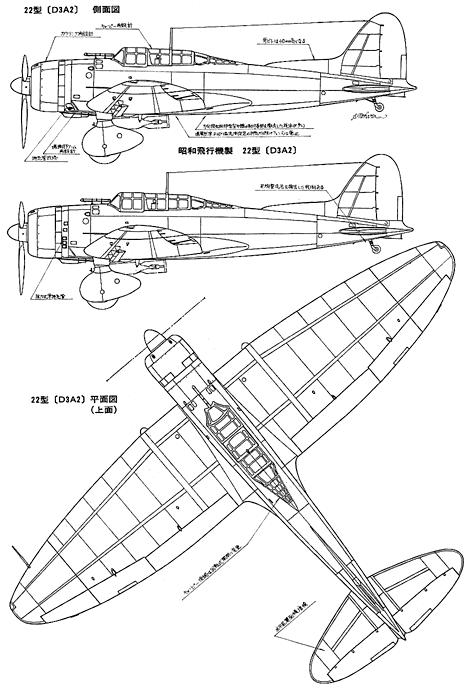

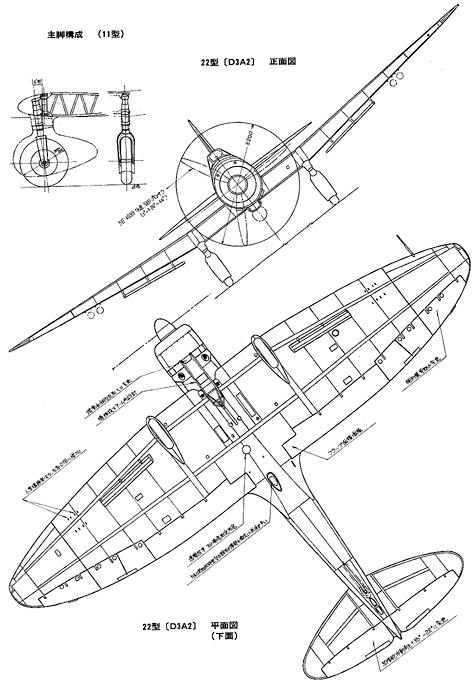

Scale three-view drawings of the Aichi D3A2 Type 22 'Val' carrier dive bomber, with Japanese annotations, useful as a basis for a scale model. A DWG file is included.
Specifications
- Construction
- Scale three-view drawings (Japanese)
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).
Plan sheets 2
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
