Aeronca L-3 (Speed 400)
- Designer
- Roger Winger
A 40 in. span Speed 400 electric scale model of the Aeronca L-3 liaison plane, designed and drawn by Roger Winger. Built-up balsa wing with a Clark Y airfoil and 229 sq in. of area; DXF file included.
Specifications
- Wingspan
- 40 in
- Wing area
- 229 sq in
- Construction
- Balsa and spruce; Clark Y airfoil, 1/16 in. balsa ribs
- Power
- Electric, Speed 400; 6 x 3 prop
Downloads
CAD drawings (.dwg, .dxf) open in most CAD programs. To view them for free, try a viewer such as LibreCAD (.dxf).

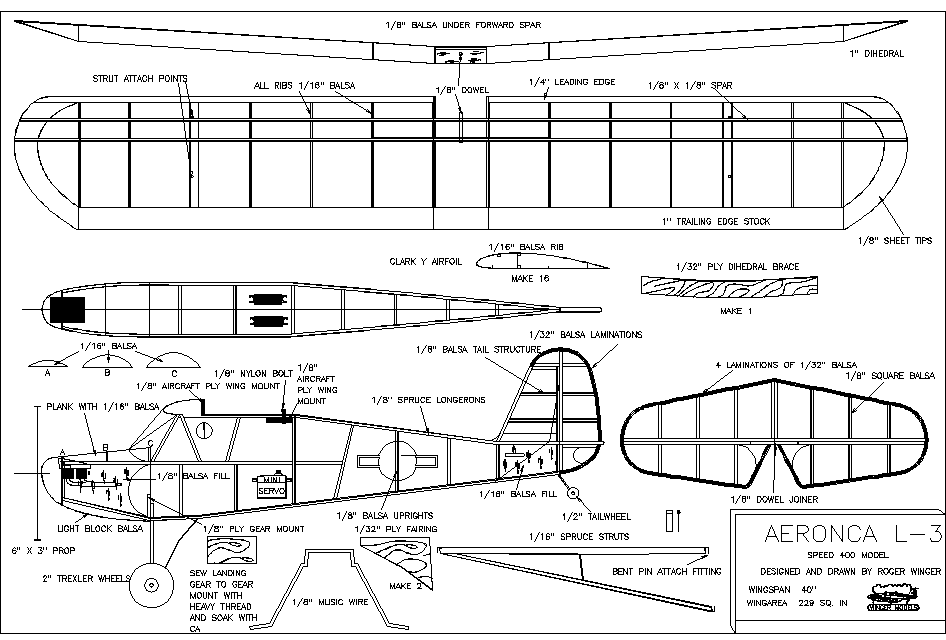

Plan sheets 1
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
